Arcam ST25 High-Resolution Streamer

Now on demo at:

1 of 8

Arcam ST25 High-Resolution Streamer

Regular price $1,649.95
Sale price $1,649.95 Regular price
$0.00 Save $-1,649.95 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

ARCAM ST25 Overview

Product Information

Model: ARCST25AM | UPC: 050667380717

Specifications

What's In The Box

Product Information

Model: ARCST25AM | UPC: 050667380717

Perfect for the Aficionado – The ARCAM ST25 is the ideal music streaming source for any Hi-Fi System and the ARCAM Radia A25.

Features

  • Ultra High-Resolution Streaming Platform
  • New Linear Power Supply
  • 6.5-Inch High-Resolution Display
  • 32-Bit / 384kHz Audio
  • Major Streaming Service Support
  • Radia Amplifier Control Link

All-New Streaming Platform

The ST25 is an all-new digital audio player expertly designed in Cambridge, UK, with an all-new digital audio and streaming platform, new linear toroidal power supply design, new user interface and new app.

Six-Layer Digital Audio Design

Exquisite sound quality has been achieved through thoughtful engineering of a new 6-layer digital audio and streaming platform which includes a ground plane through the entire board to keep noise and interference away from the sensitive audio components. These components include the latest Hyperstream iV DAC topology from ESS, in a balanced configuration with advanced Jitter elimination.

Linear Toroidal Power Supply

Sound quality is enhanced further with a new linear toroidal transformer power supply design that drives the entirety of the internal operation with lower noise, and a switching supply that only operates for peak efficiency when in standby.

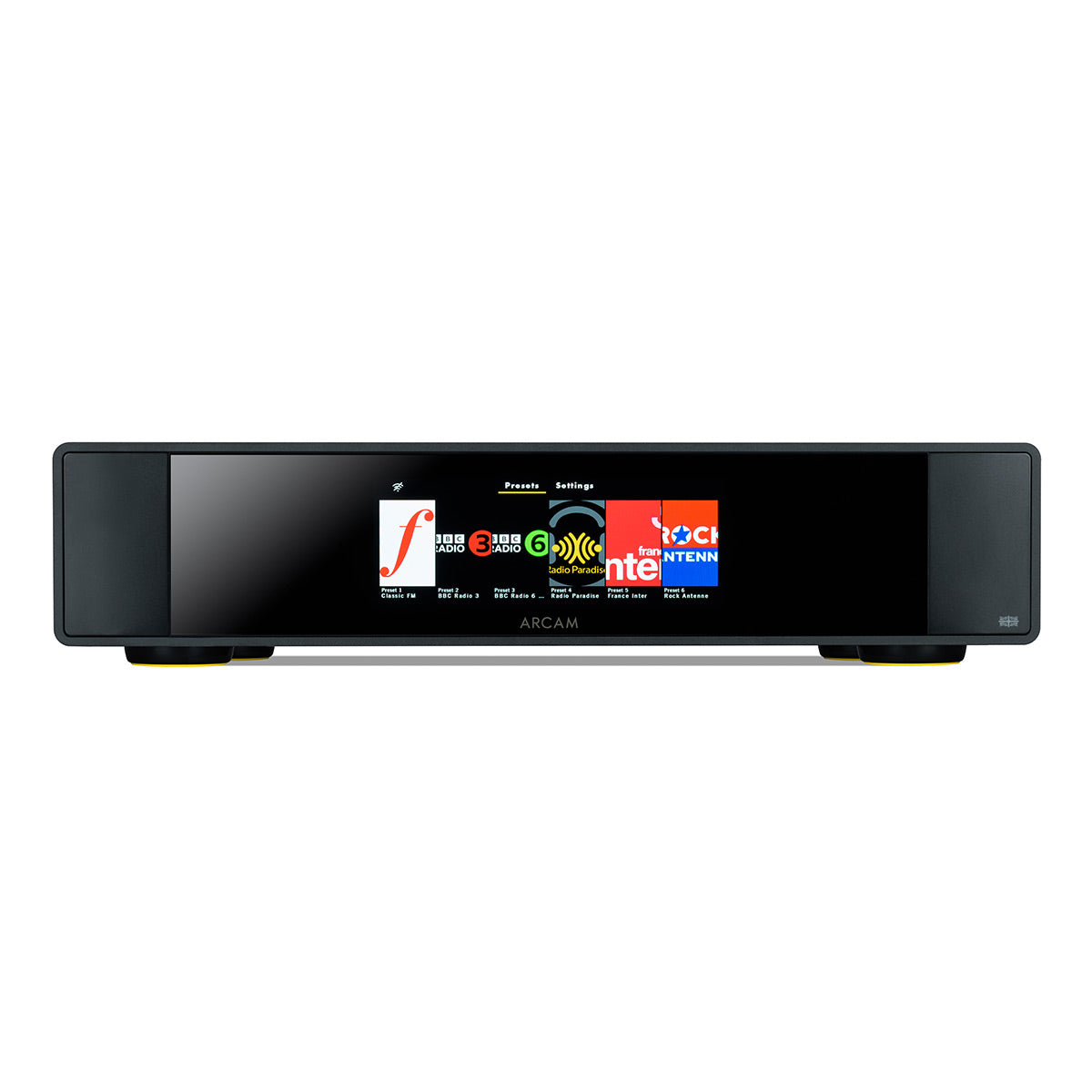

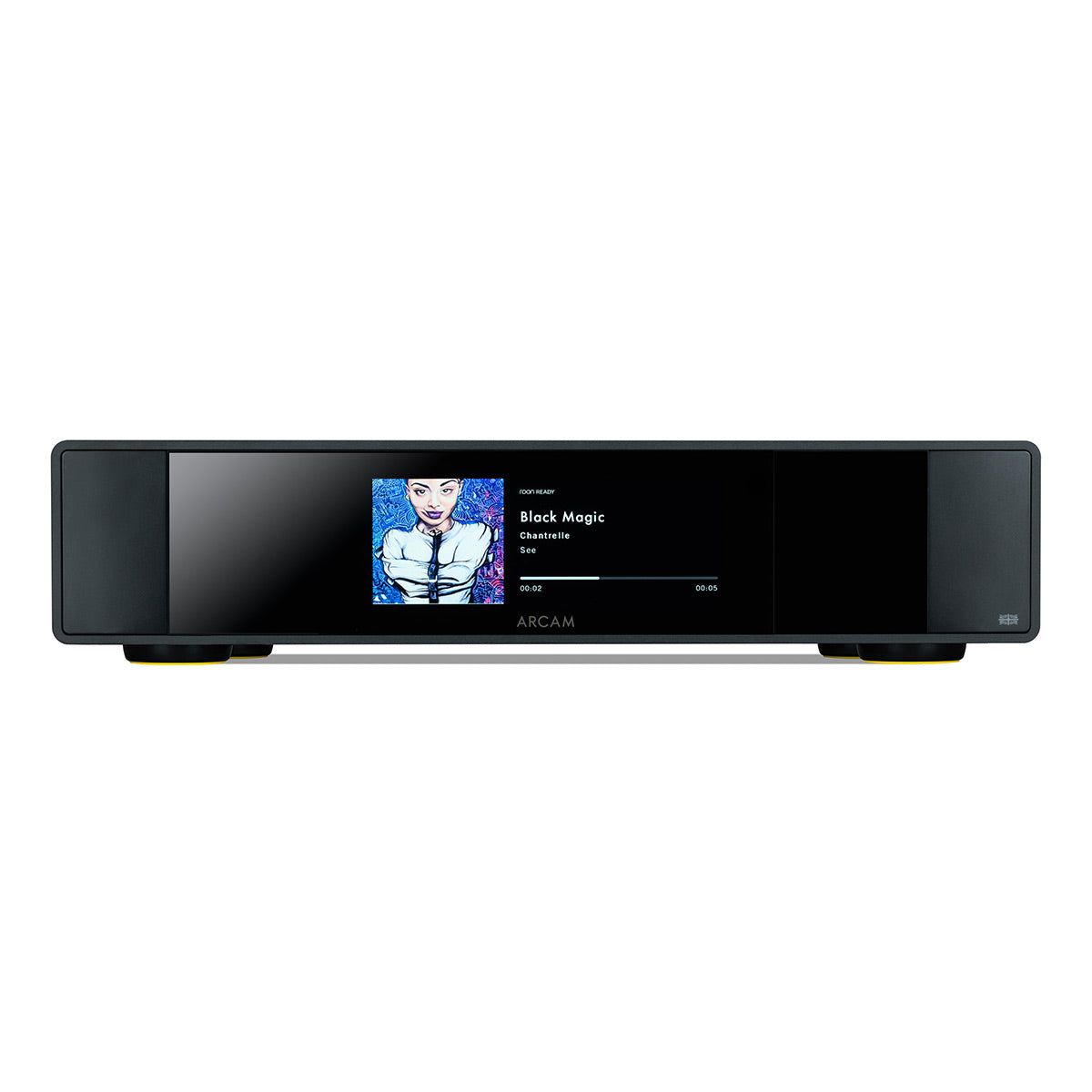

High-Resolution Display & Radia App

Up front, the ST25 features a new, bonded 6.5" high-resolution display to show album artwork and metadata which is clearly legible from the comfort of your preferred armchair. For playback, an inclusive feature set supports most smart phones and tablets, as well as popular streaming services. Connecting the ST25 to your home network with Wi-Fi is quick and straightforward with ARCAM’s ARCAM Radia App.

Extensive Streaming Service Support

Once connected, enjoy instant playback using Apple Airplay, Google Cast, Spotify Connect, Tidal Connect, Qobuz Connect, and Roon.

The Ultimate High-Resolution Audio Upgrade

The ARCAM ST25 is the ultimate high resolution audio upgrade for any Hi-Fi system, especially the ARCAM Radia A25. It includes a control link for ARCAM Radia amplifiers, allowing the 2 components to act as one from your device. Sonically, this combination offers pure audio paradise, thanks to the benefits of isolated components with individual power supplies.

Specifications

  • Works With Apps: ARCAM Radia, Spotify Connect, Tidal Connect, Qobuz Connect, Roon Ready
  • Works With Services: Apple Airplay, Google Cast
  • ARCAM Radia Supported Services: Internet Radio, Podcasts, UPnP, USB Media
  • Supported Media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (Up To 256), MP3, MP4, OGG, WMA
  • Supported Bit Depth: 16, 24, 32
  • Supported Sample Rates: Up To 384kHz
  • Gapless Playback: Yes

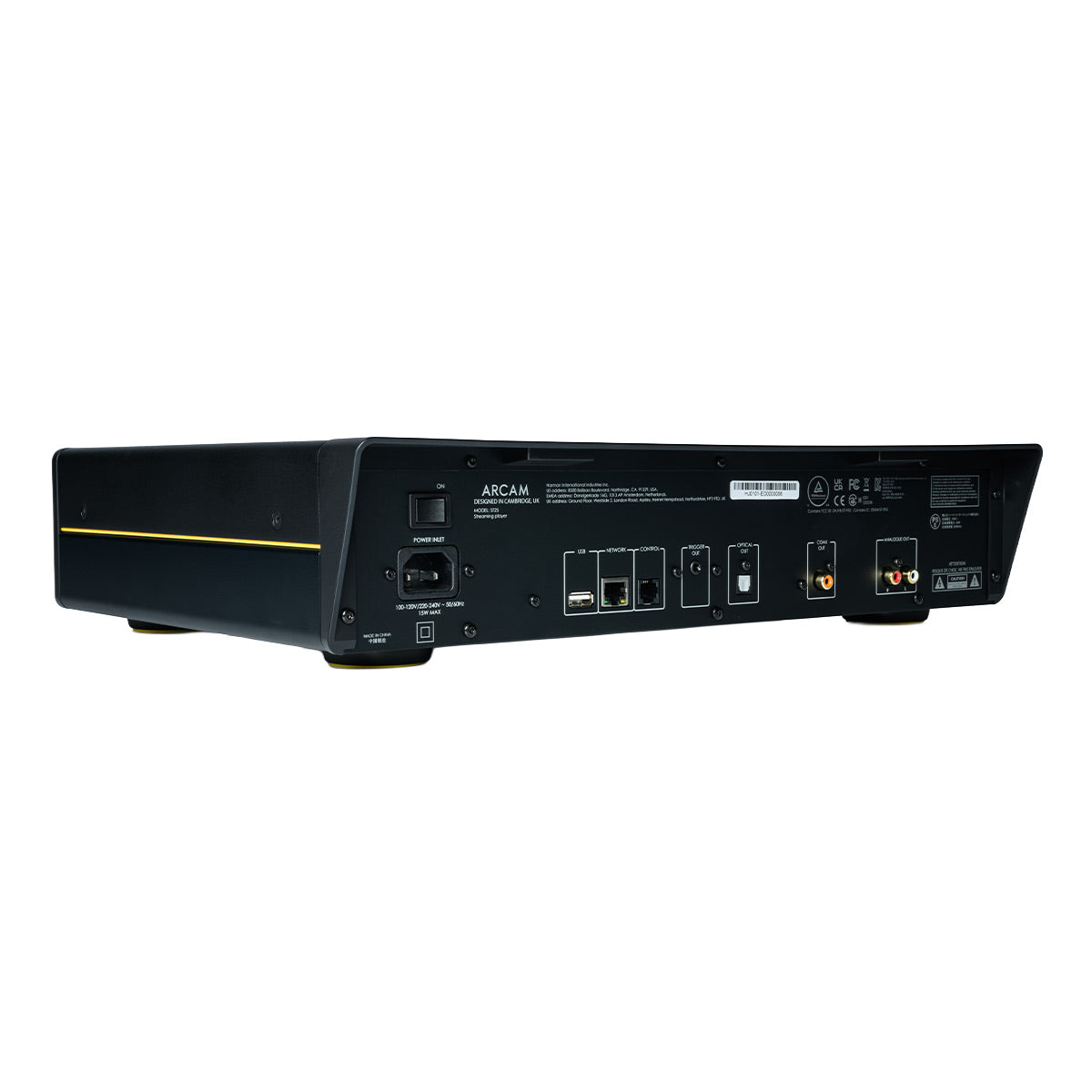

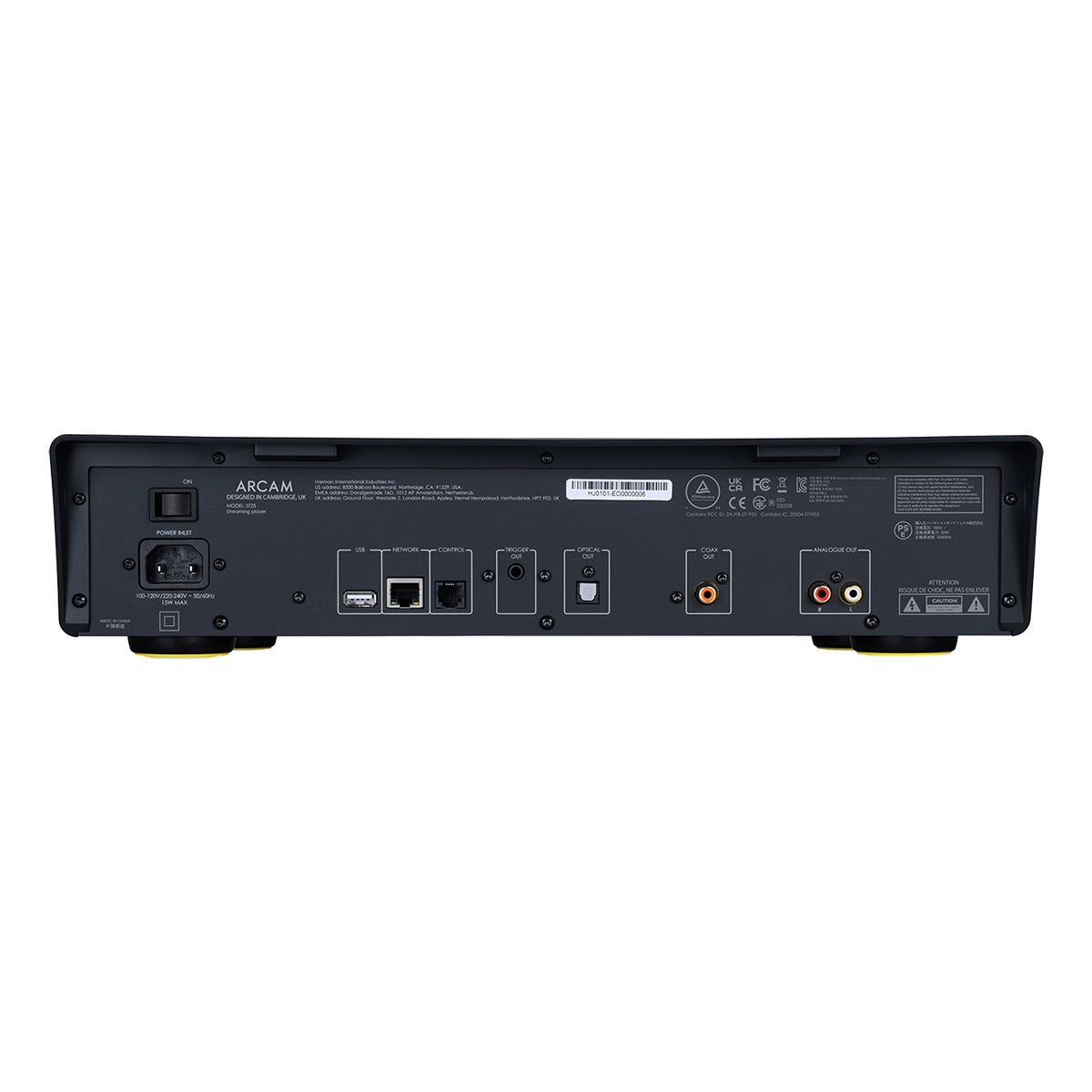

  • Digital Audio Outputs: 1 x Coaxial (RCA), 1 x Optical (Toslink)
  • Analogue Audio Outputs: 1 x Stereo (RCA) Pair
  • Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
  • 2.4GHz Wi-Fi Transmitter Frequency And Power: 2400–2483.5MHz; <20dBm
  • 5GHz Wi-Fi Transmitter Frequency And Power, 5150–5250MHz: <23dBm
  • 5GHz Wi-Fi Transmitter Frequency And Power, 5250–5350MHz: <20dBm
  • 5GHz Wi-Fi Transmitter Frequency And Power, 5470–5725MHz: <20dBm; Not Used In China
  • 5GHz Wi-Fi Transmitter Frequency And Power, 5725–5850MHz: <14dBm For EU; <33dBm For Other Regions
  • Mains Voltage: 100V Or 110–120V Or 220–240V, 50–60Hz
  • Power Consumption: 15W
  • Power Consumption (Eco Standby): <0.5W
  • Dimensions (W x H x D): 17.01" x 3.90" x 12.95"
  • Weight (Net): 11.02 lbs

What's In The Box

  • ST25 High-Resolution Streamer
  • Control Cable
  • Remote
  • Manual
