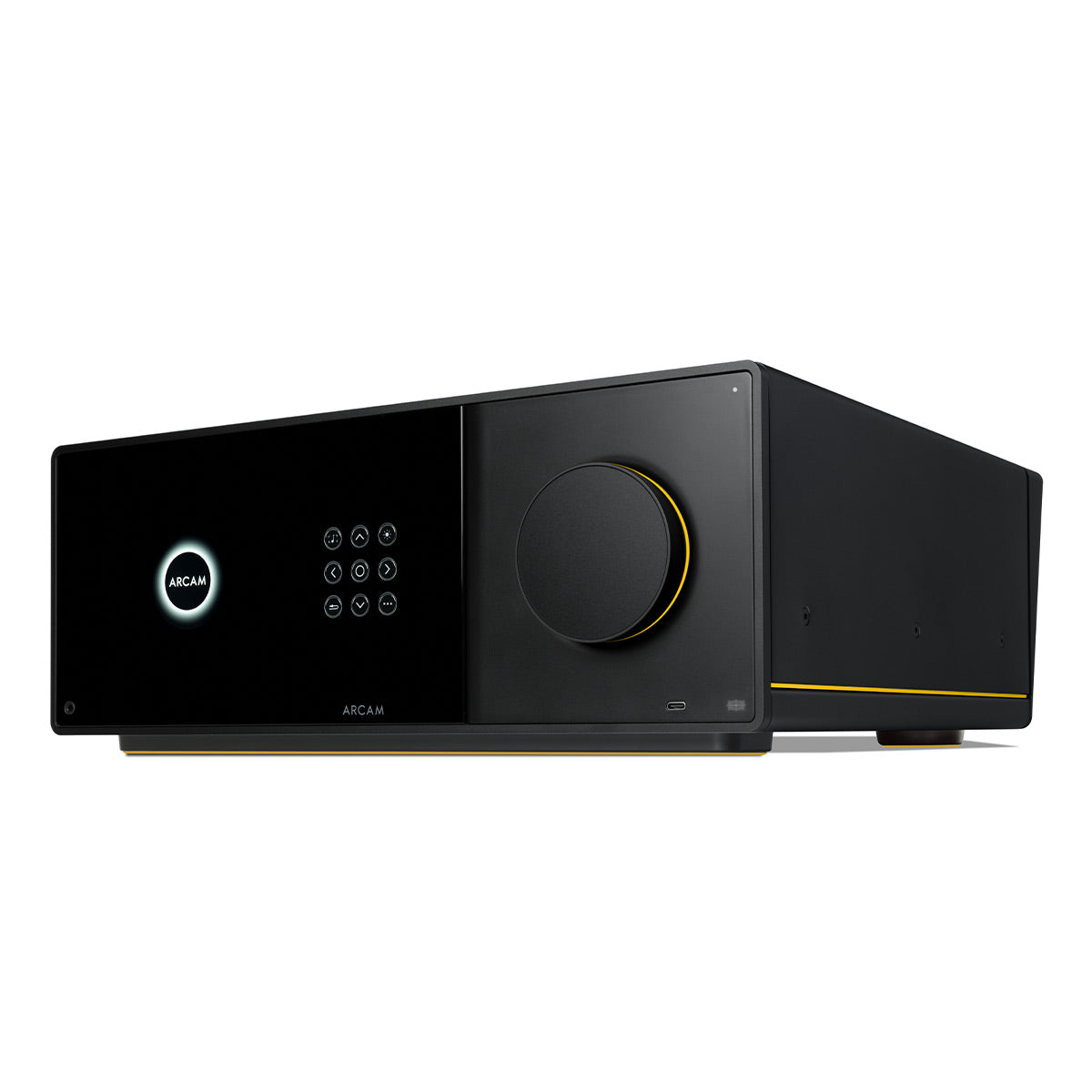

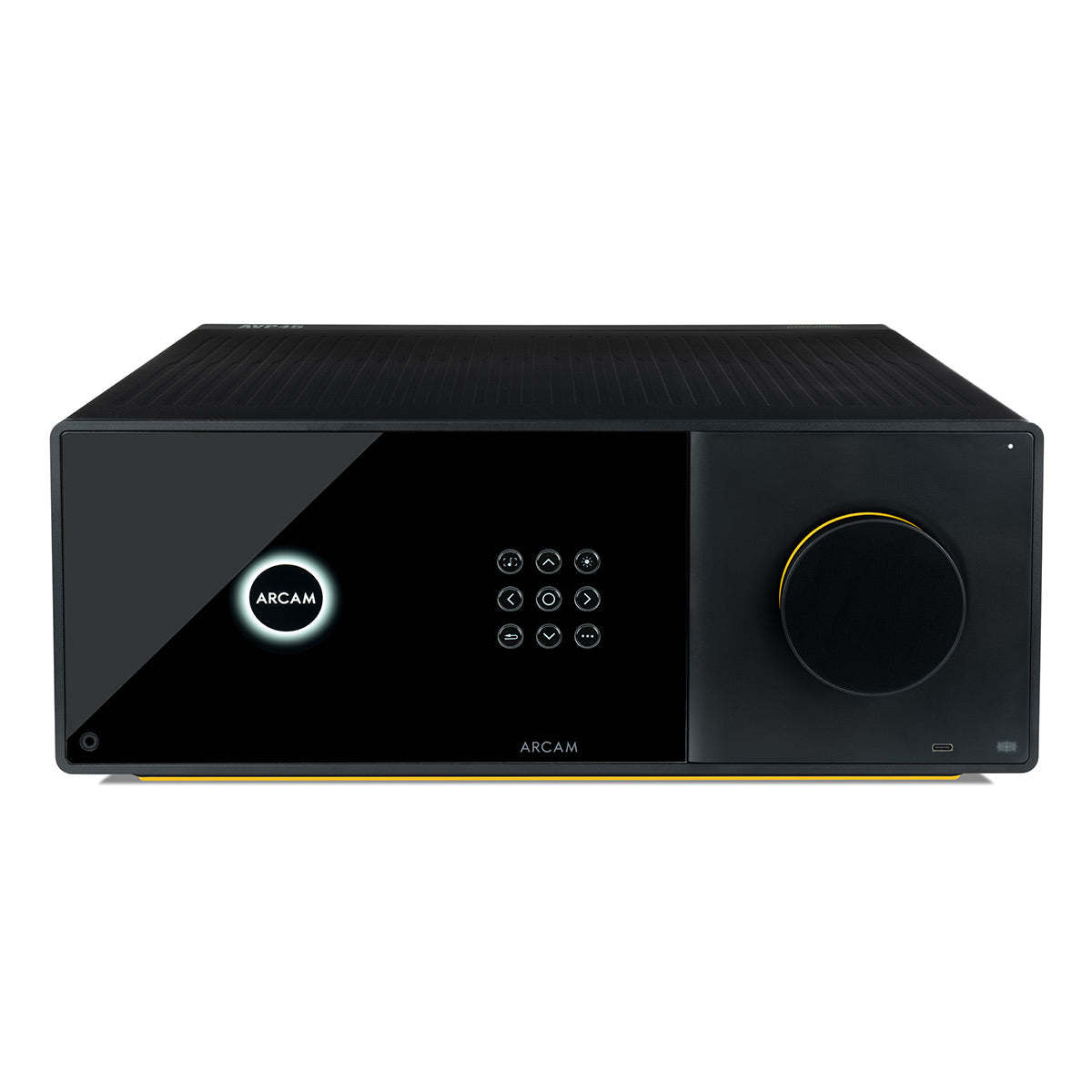

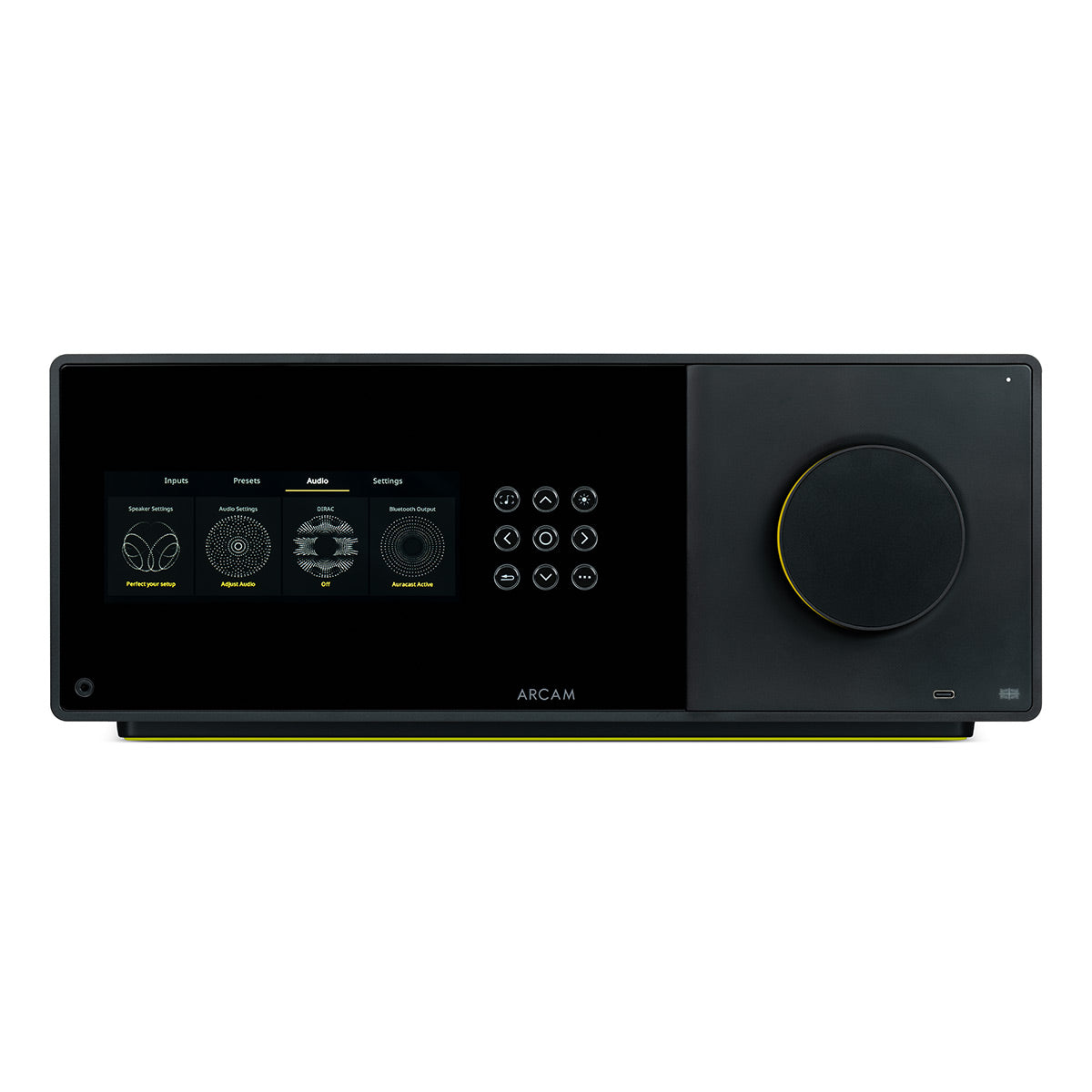

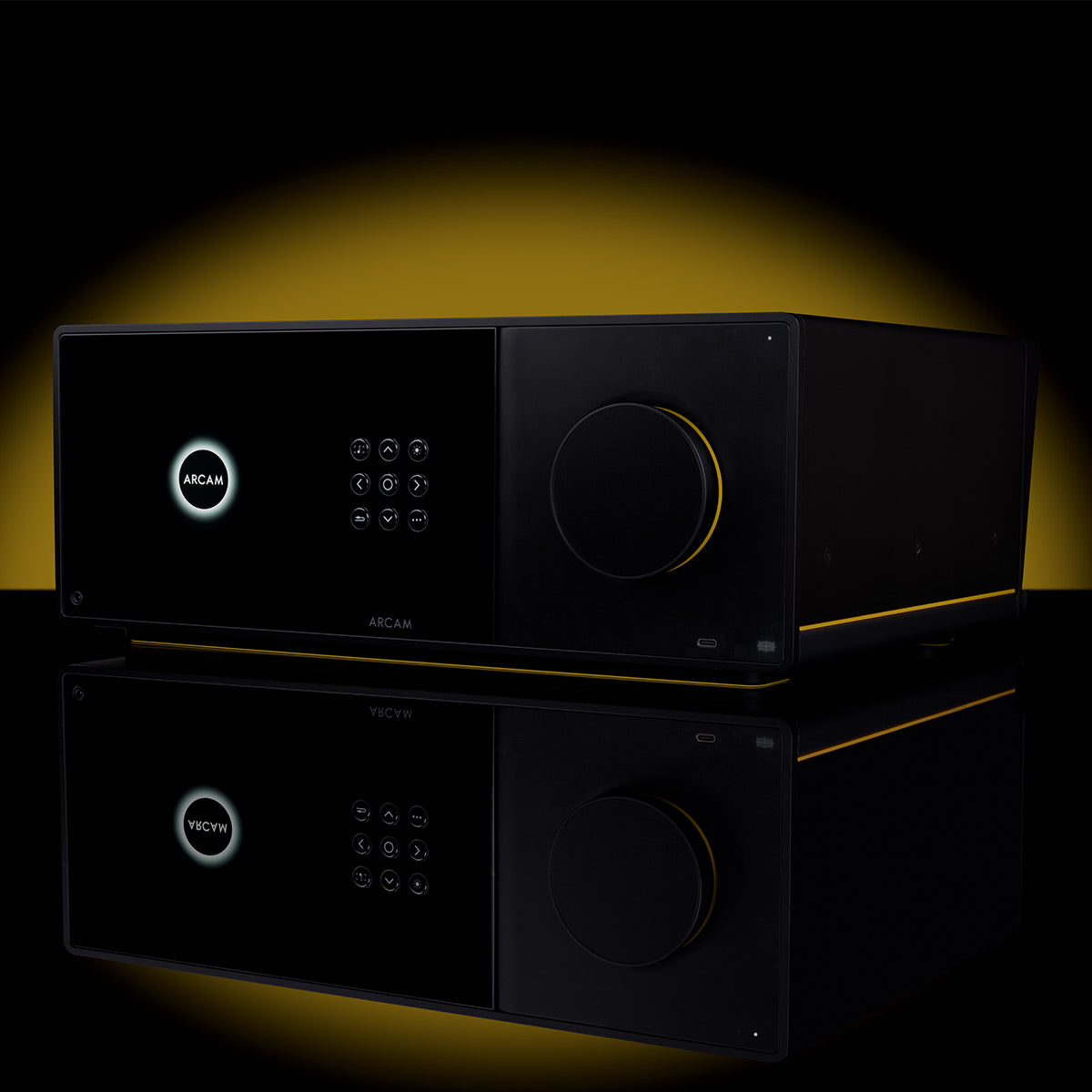

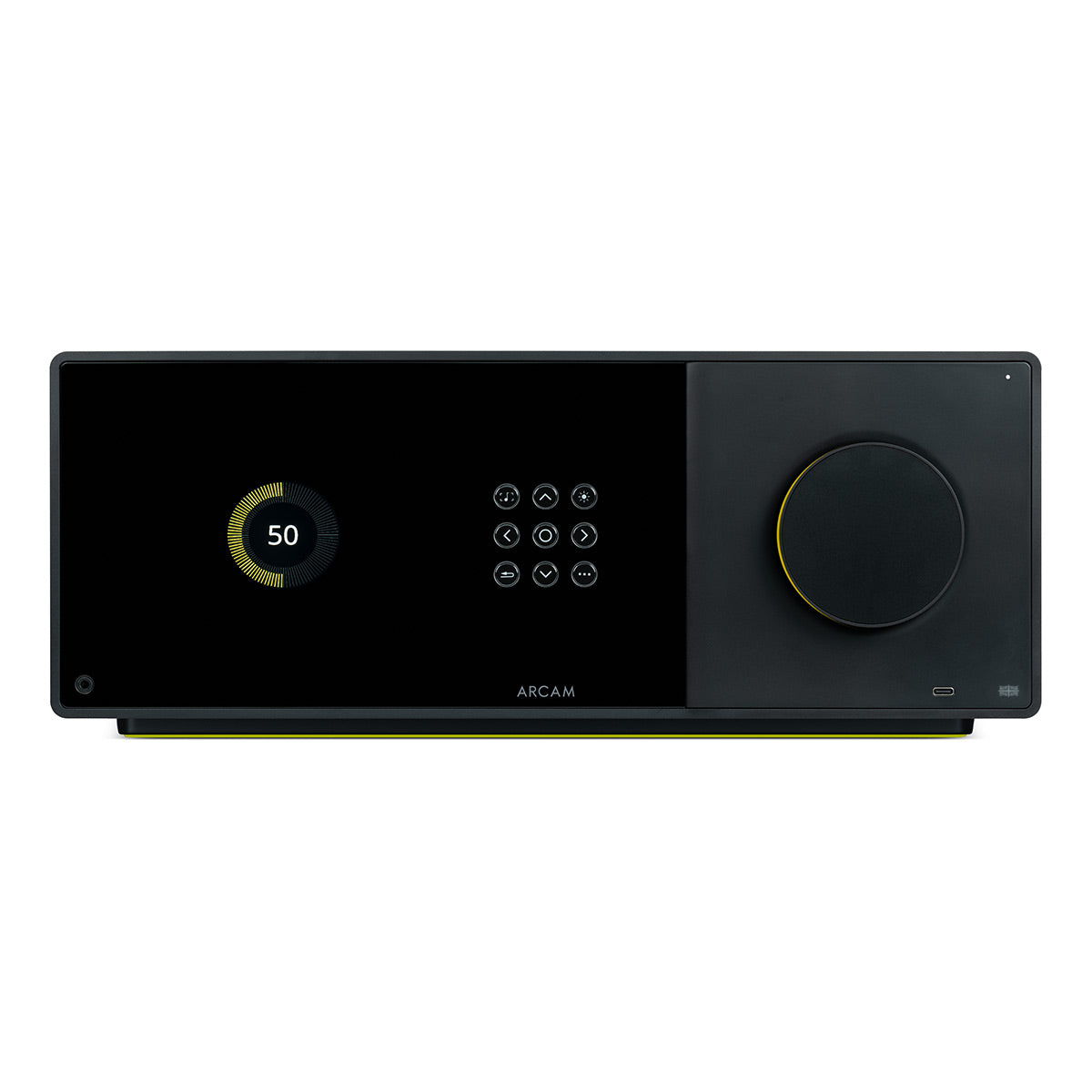

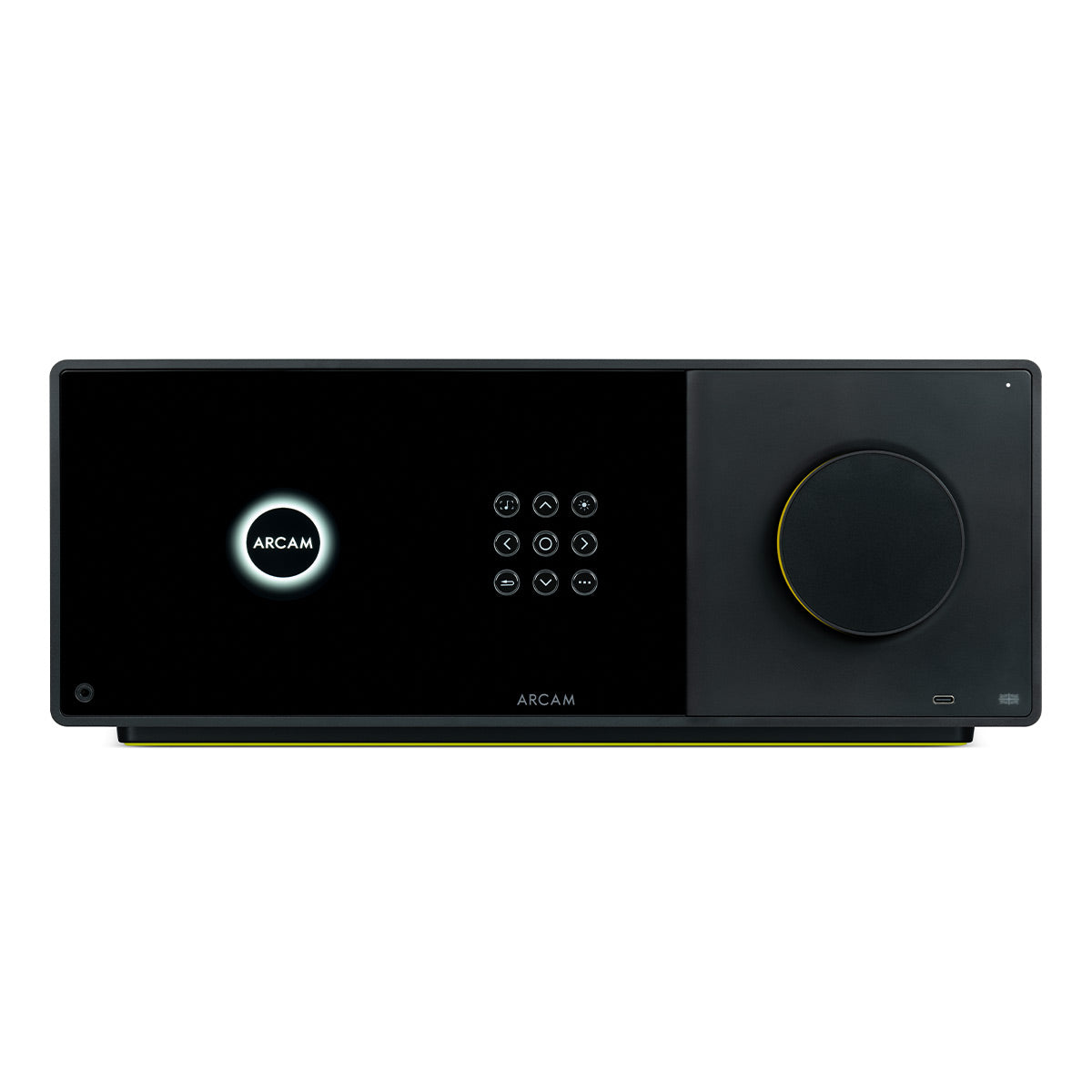

Arcam AVP45 16 Channel Processor

Now on demo at:

1 of 10

Arcam AVP45 16 Channel Processor

Regular price $5,999.95
Sale price $5,999.95 Regular price
$0.00 Save $-5,999.95 (%)
OR

Trade In Your Gear

Get a personalized trade-in estimate within 48 hours and apply it toward your next premium upgrade.

Request Trade-In Quote
Trade In Your Gear

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

ARCAM AVP45 Overview

Product Information

Model: ARCAVP45BLKAM | UPC: 050667381196

Specifications

What's In The Box

Product Information

Model: ARCAVP45BLKAM | UPC: 050667381196

The Heart of the Ultimate Home Theatre

For those who seek the biggest and best in home cinema, the AVP45 is the definitive hub for uncompromised performance. This is not just an AV processor—it’s the command centre for the most dynamic and flexible home theatre systems imaginable.

Features

  • 16-Channel Hi-Res Audio Processing
  • Balanced RCA And XLR Outputs
  • Matrix Channel Assignment
  • Dirac Live Room Correction
  • Immersive Cinema Audio Formats
  • High-Resolution Music Streaming

High-Performance Audio Processing

Engineered in Cambridge, UK, the AVP45 delivers 16 channels of immersive audio decoding and processing, powered by the same high-performance DAC architecture found in ARCAM’s flagship stereo hi-fi systems. Every detail, every nuance, every cinematic moment is reproduced with breathtaking clarity and precision.

Balanced Audio Outputs

The AVP45 includes balanced audio outputs for all channels, ensuring pristine signal integrity when paired with external amplification. Combine it with the ARCAM PA9 Class G power amplifier for a system that sets the standard for power, control, and musicality.

Flexible System Configuration

Flexibility is at the core of the AVP45. With Matrix Channel Assignment, you have complete freedom to configure your system exactly as you envision—whether for movies, gaming, or sport. Dolby Atmos, DTS:X, IMAX Enhanced and AURO-3D processing, and Dirac Live room correction guarantee a truly world-class experience tailored to your space.

Specifications

  • General
    • Maximum Channel Count: 16
    • Reassignable Channels: All Channels (Subwoofers Into CH4 & 11-16 Only)
    • Supported Decoding And Encoding: Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround, DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X, MPEG H, IMAX Enhanced, AURO-3D, AURO-2D
  • HDMI
    • Inputs/Outputs: 7/3 (Zone 1 Outputs = 2, Zone 2 Outputs = 1)
    • HDMI/HDCP Versions: 2.1a/2.3
    • Resolution Support: Up To 8K/60Hz Or 4K/120Hz
    • Supported Dynamic Range Profiles: HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
    • Supported HDMI Features: Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1), On Screen Display
  • Streaming
    • Works With Apps: ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon Ready
    • Works With Services: Apple Airplay, Google Cast, ARCAM Radia Supported Services, Internet Radio, Podcasts, UPnP
    • Supported Hi-Res Media: FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
    • Gapless Playback: Supported
    • Supported Hi-Res Bit Depth: 16, 24
    • Supported Sample Rates: Up To 192kHz
    • Frequency Response: 20Hz—20kHz ± 0.05dB
  • Digital Inputs
    • Number Of Inputs (Coaxial/Toslink): 2/2
    • Coaxial Supported Sample Rates: 192, 176.4, 96, 88.2, 48, 44.1kHz
    • Optical Supported Sample Rates: 96, 88.2, 48, 44.1kHz
    • Bit Depths (Coaxial/Toslink): 24, 16-Bit
    • Frequency Response: 20Hz—20kHz ± 0.2dB
    • Signal/Noise Ratio (A-Wtd, Ref. 50W, 0dBFS): 100dB
  • Analogue Inputs
    • Number Of Inputs: 3 RCA Pairs
    • Signal/Noise Ratio (A-Wtd, Ref. 50W, 1V Input): 100dB
    • Frequency Response: 20Hz—20kHz ± 0.2dB

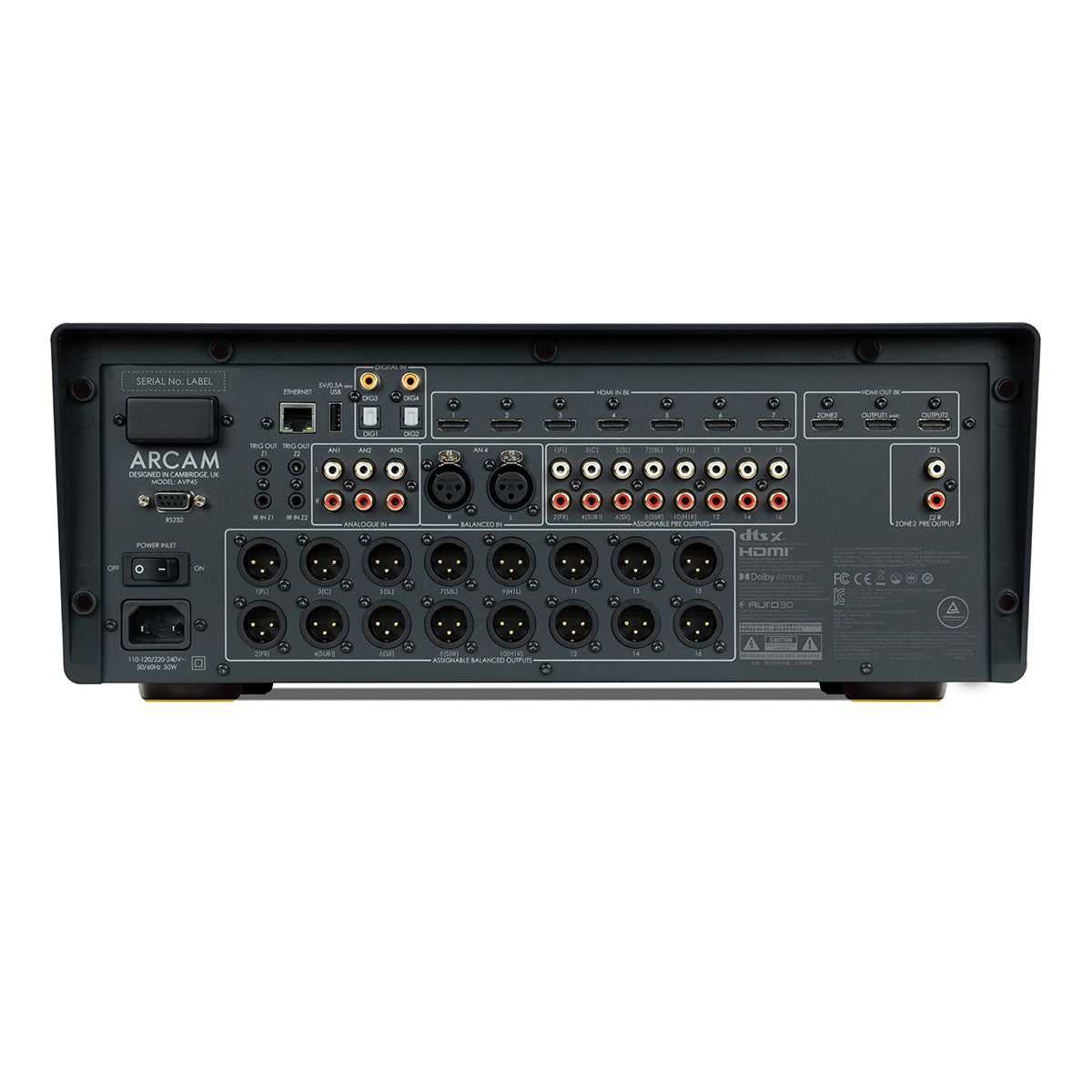

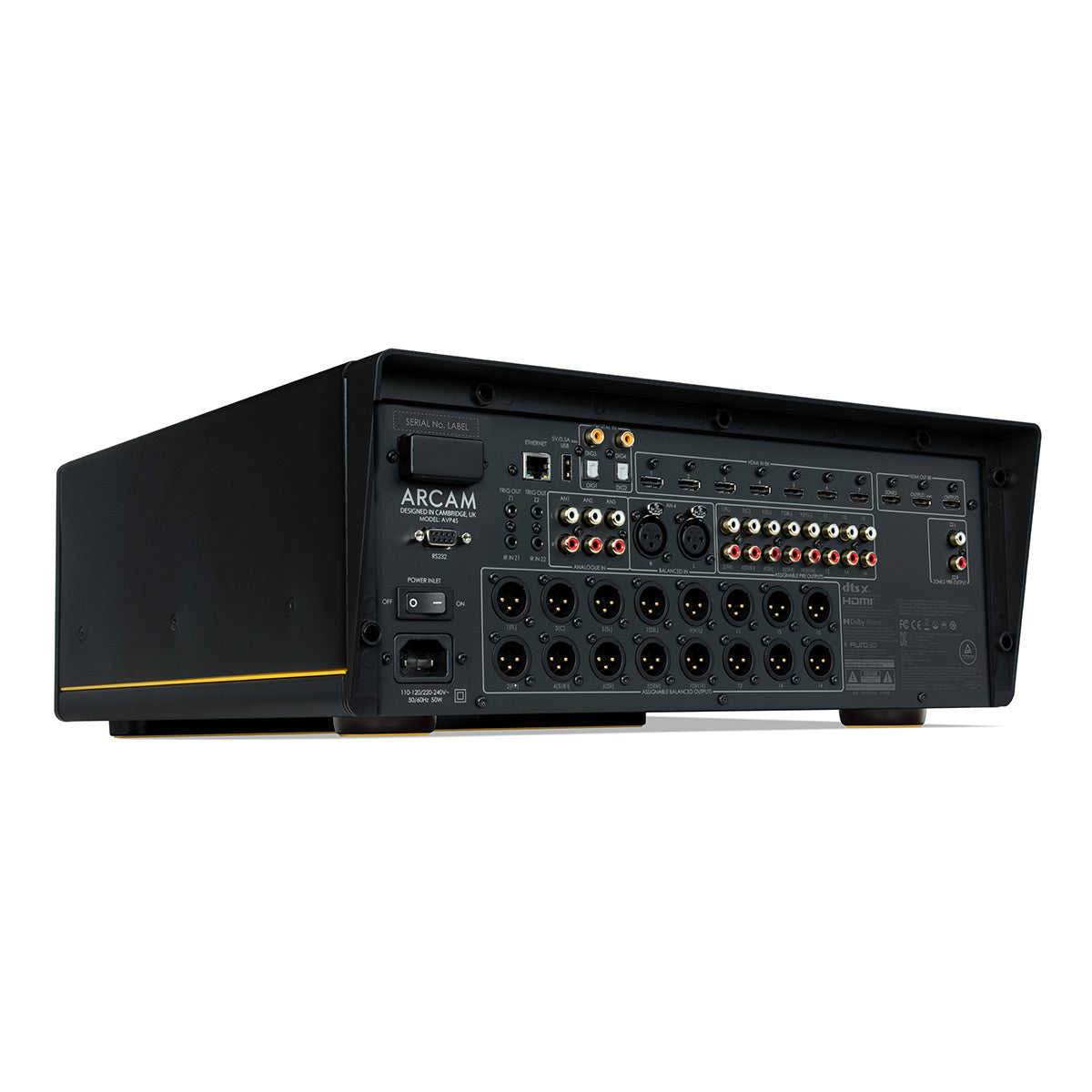

  • Preamplifier Outputs
    • Number Of Outputs RCA/XLR: 16/16
    • Balanced XLR Peak Output Level Per Channel: 5V RMS
    • Single-Ended RCA Peak Output Level Per Channel: 2V RMS
    • THD+N (20Hz To 20kHz): –100dB
  • Wireless Specifications
    • Bluetooth Version: 5.4
    • Bluetooth Profiles: A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
    • Bluetooth Transmitter Frequency Range And Power: 2,402MHz To 2,480MHz, <Maximum 10.73dBm
    • Wi-Fi Network: IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
    • 2.4GHz Wi-Fi Transmitter Frequency Range And Power: 2.400GHz To 2.4835GHz, <Maximum 17.4dBm
    • 5GHz Wi-Fi Transmitter Frequency Range And Power: 5.15–5.35GHz, 5.47–5.725GHz, 5.725–5.875GHz, <Maximum 19.26dBm
  • Power & Dimensions
    • Mains Voltage: 100–120V Or 220–240V, 50–60Hz
    • Maximum Power Consumption: 50W
    • Maximum Thermal Dissipation: 170 BTU/Hour
    • Idle Power Consumption: 35W
    • Idle Thermal Dissipation: 120 BTU/Hour
    • Standby Power Consumption (Default/Low Power): 2W/0.4W
    • Dimensions (W x H x D): 17.01" x 6.69" x 15.71"
    • Weight (Net): 20.72 lbs

What's In The Box

  • AVP45 16 Channel Processor

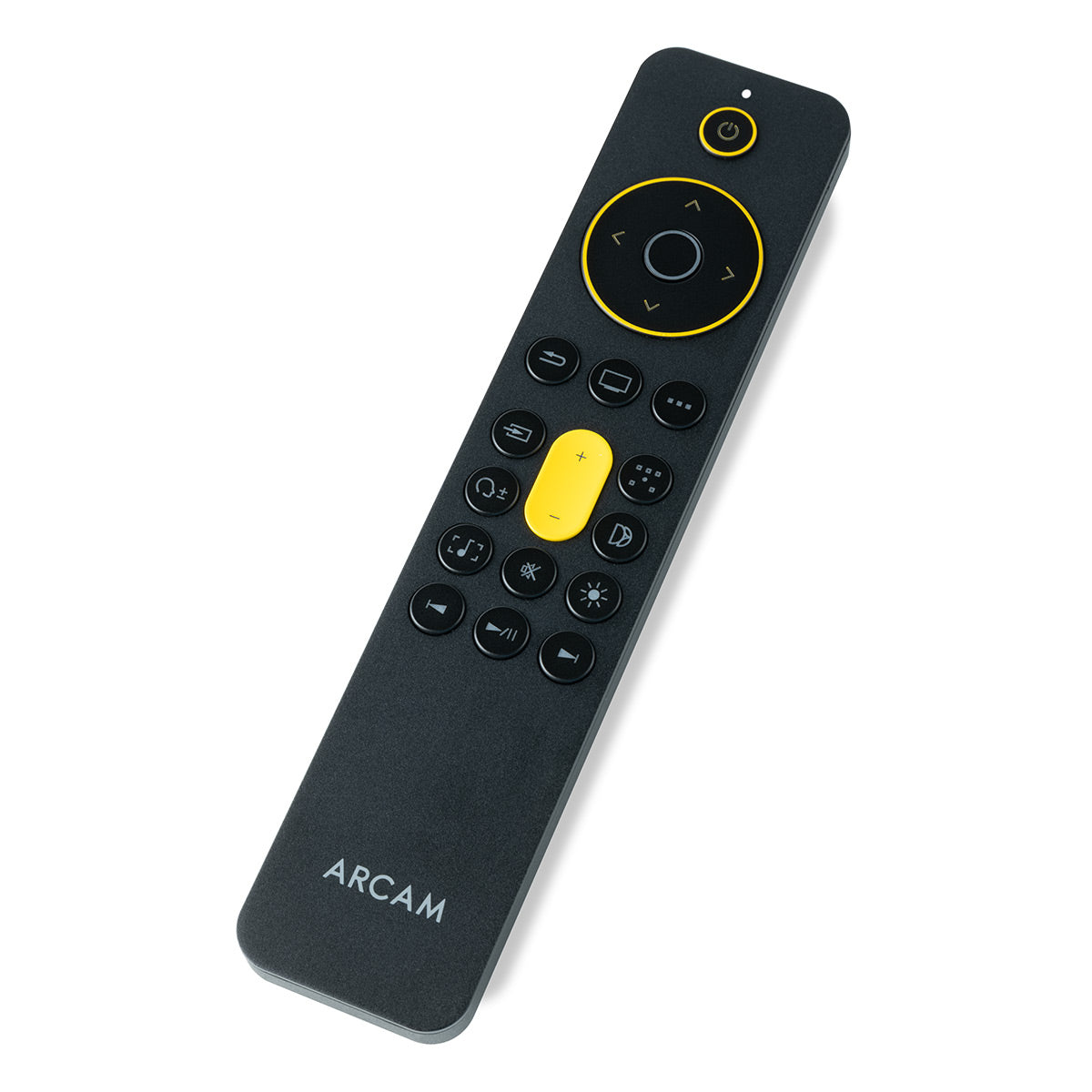

  • Remote
  • Measurement Microphone
  • USB Cable (5m)
  • Manual
