Arcam AVA35 9 Channel Class G AV Amplifier

Now on demo at:

1 of 9

Arcam AVA35 9 Channel Class G AV Amplifier

Regular price $6,999.95
Sale price $6,999.95 Regular price
$0.00 Save $-6,999.95 (%)
OR

Trade In Your Gear

Get a personalized trade-in estimate within 48 hours and apply it toward your next premium upgrade.

Request Trade-In Quote
Trade In Your Gear

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

ARCAM AVA35 Overview

Product Information

Model: ARCAVA35BLKAM | UPC: 050667381202

Specifications

What's In The Box

Product Information

Model: ARCAVA35BLKAM | UPC: 050667381202

For those who refuse to compromise, the AVA35 represents the summit of home cinema and musical performance. This is not just an amplifier—it’s ARCAM’s most advanced integrated AV solution, designed for true connoisseurs of sound.

Features

  • Nine-Channel Class G Amplification
  • Sixteen-Channel Immersive Audio Processing
  • Matrix Channel Assignment
  • Dirac Live Room Correction
  • 8K And 4K HDMI
  • High-Resolution Music Streaming

Signature Class G Amplification

Expertly engineered in Cambridge, UK, the AVA35 harnesses ARCAM signature Class G amplification, a technology unique to ARCAM and revered for its ability to deliver superior power, lower crossover distortion, and unmatched musicality. Combined with the same high-performance DAC architecture found in ARCAM flagship stereo systems, the AVA35 ensures every note and every cinematic moment is rendered with breathtaking clarity and emotional impact.

Matrix Channel Assignment

For the ultimate in flexibility, the AVA35 introduces matrix channel assignment, allowing you to reallocate channels freely for the most personalised and immersive configurations. Whether it’s music, movies, gaming, or sport, this amplifier adapts to your vision of perfection.

Immersive Sixteen-Channel Audio

With nine channels of Class G power, 16-channels of Dolby Atmos, DTS, IMAX Enhanced and AURO-3D processing, and Dirac Live room correction, the AVA35 transforms your space into a world-class listening environment.

Specifications

  • General
    • Maximum Channel Count: 16
    • Reassignable Channels: All Channels (Subwoofers Into CH4 & 11-16 Only)
    • Supported Decoding And Encoding: Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround, DTS, DTS HD Master, DTS Neural, DTS Virtual, MPEG H, IMAX Enhanced, AURO-3D, AURO-2D
  • HDMI
    • Inputs/Outputs: 7/3 (Zone 1 Outputs = 2, Zone 2 Outputs = 1)
    • HDMI/HDCP Versions: 2.1a/2.3
    • Resolution Support: Up To 8K/60Hz Or 4K/120Hz
    • Supported Dynamic Range Profiles: HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
    • Supported HDMI Features: Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1), On Screen Display
  • Streaming
    • Works With Apps: ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon Ready
    • Works With Services: Apple Airplay, Google Cast, ARCAM Radia Supported Services, Internet Radio, Podcasts, UPnP
    • Supported Hi-Res Media: FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
    • Gapless Playback: Supported
    • Supported Hi-Res Bit Depth: 16, 24
    • Supported Sample Rates: Up To 192kHz
    • Frequency Response: 20Hz—20kHz ± 0.05dB
  • Digital Inputs
    • Number Of Inputs (Coaxial/Toslink): 2/2
    • Coaxial Supported Sample Rates: 192, 176.4, 96, 88.2, 48, 44.1kHz
    • Optical Supported Sample Rates: 96, 88.2, 48, 44.1kHz
    • Bit Depths (Coaxial/Toslink): 24, 16-Bit
    • Frequency Response: 20Hz—20kHz ± 0.2dB
    • Signal/Noise Ratio (A-Wtd, Ref. 50W, 0dBFS): 100dB
  • Analogue Inputs
    • Number Of Inputs: 3 RCA Pairs
    • Signal/Noise Ratio (A-Wtd, Ref. 50W, 1V Input): 100dB
    • Frequency Response: 20Hz—20kHz ± 0.2dB
  • Preamplifier Outputs
    • Number Of Outputs RCA/XLR: 16/0
    • Single-Ended RCA Peak Output Level Per Channel: 2V RMS
    • THD+N (20Hz To 20kHz): –100dB
  • Amplification
    • Amplifier Channels: 9, Class G
  • Continuous Power Output (0.5% THD)
    • 8Ω, 20Hz–20kHz, 2 Channels Driven: 145W
    • 4Ω, 1kHz, 2 Channels Driven: 200W
    • 8Ω, 20Hz–20kHz, 7 Channels Driven: 110W
    • 4Ω, 1kHz, 7 Channels Driven: 130W
    • Harmonic Distortion At 80% Power, 8Ω At 1kHz: 0.004%
  • Wireless Specifications
    • Bluetooth Version: 5.4
    • Bluetooth Profiles: A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
    • Bluetooth Transmitter Frequency Range And Power: 2,402MHz To 2,480MHz, <Maximum 10.73dBm
    • Wi-Fi Network: IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
    • 2.4GHz Wi-Fi Transmitter Frequency Range And Power: 2.400GHz To 2.4835GHz, <Maximum 17.4dBm
    • 5GHz Wi-Fi Transmitter Frequency Range And Power: 5.15–5.35GHz, 5.47–5.725GHz, 5.725–5.875GHz, <Maximum 19.26dBm
  • Power & Dimensions
    • Mains Voltage: 100–120V Or 220–240V, 50–60Hz
    • Maximum Power Consumption: 900W
    • Maximum Thermal Dissipation: 3070 BTU/Hour
    • Idle Power Consumption: 93W
    • Idle Thermal Dissipation: 320 BTU/Hour
    • Standby Power Consumption (Default/Low Power): 2W/0.4W
    • Dimensions (W x H x D): 17.01" x 6.69" x 18.07"
    • Weight (Net): 50.04 lbs

What's In The Box

  • AVA35 9 Channel Class G AV Amplifier

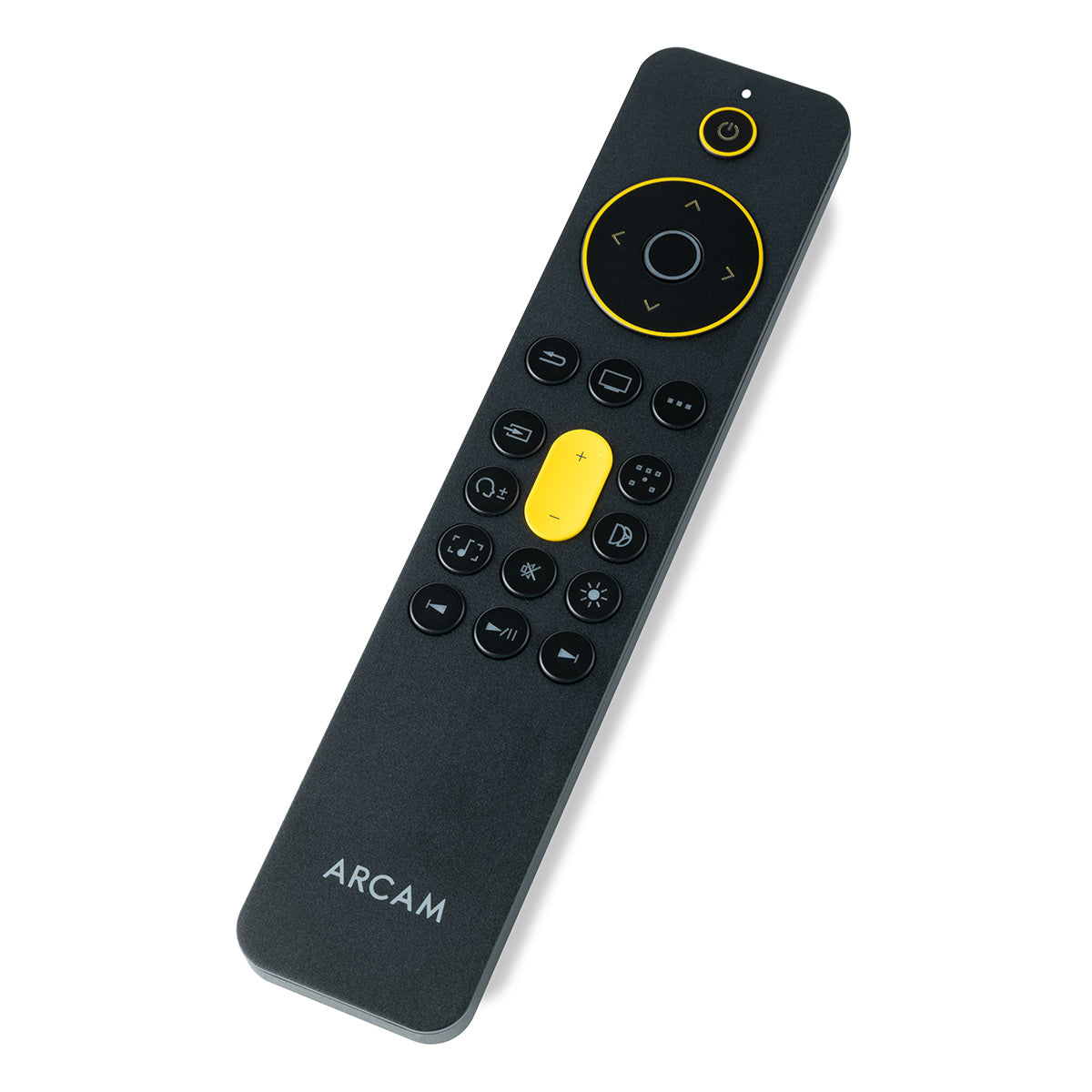

  • Remote
  • Measurement Microphone
  • USB Cable (5m)
  • Manual
