Arcam A5+ Integrated Amplifier with Bluetooth & Auracast

Now on demo at:

1 of 7

Arcam A5+ Integrated Amplifier with Bluetooth & Auracast

Regular price $1,199.95
Sale price $1,199.95 Regular price
$0.00 Save $-1,199.95 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

ARCAM A5P Overview

Product Information

Model: ARCA5PLAM | UPC: 050667381554

Specifications

What's In The Box

Product Information

Model: ARCA5PLAM | UPC: 050667381554

Building on nearly 50 years of amplifier expertise, the ARCAM A5+ delivers improved sound and greater versatility than the award-winning Radia A5.

Features

  • Bluetooth 5.4
  • Wireless Lossless Audio
  • Hi-Res Audio Digital Inputs
  • ESS ES9018 DAC
  • Meticulously Tuned Phono Stage
  • Class AB Amplification
  • 2 x 50 Watts (8Ω) Power Output
  • Auracast

Snapdragon Sound & Auracast

The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.

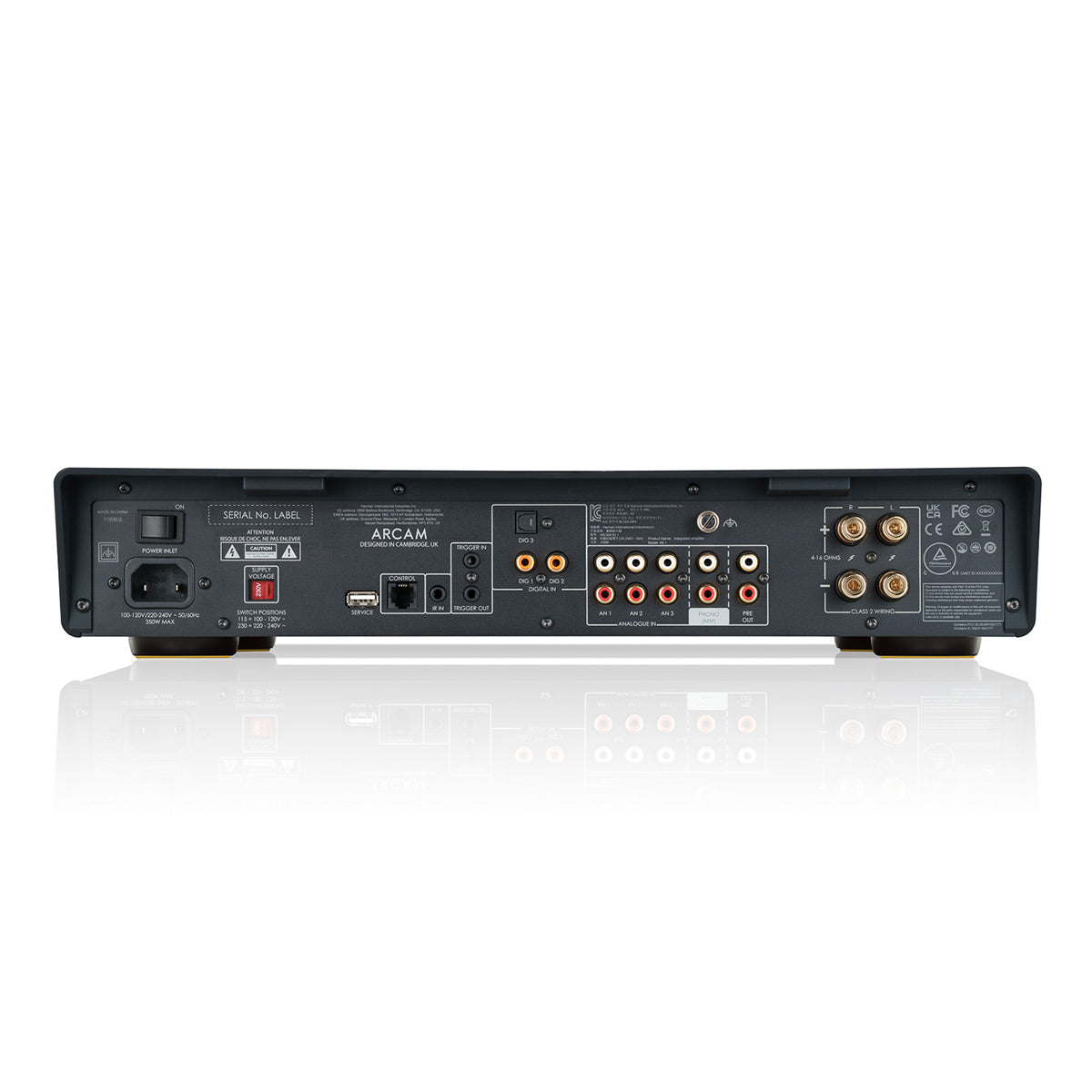

Digital & Analog Inputs

With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.

Specifications

  • Continuous Power Output (0.5% THD), Per Channel:
    • 2 Channels Driven, 20Hz - 20kHz, 8Ω: 50W
    • 2 Channels Driven, 1kHz, 4Ω: 75W
    • Harmonic Distortion, 80% Power, 8Ω At 1kHz: 0.003%
  • Analogue Inputs
    • Number Of Inputs: 3 (RCA pairs)
    • Signal/Noise Ratio (A-wtd, Ref. 50W, 1V Input): 106dB
    • Frequency Response: 20Hz—20kHz ± 0.2dB
  • Phono (MM) Input
    • Input Impedance: 47kΩ + 100pF
    • Frequency Response (Ref. RIAA Curve): 20Hz—20kHz ± 1dB
  • Digital Inputs
    • Supported Sample Rates (kHz): 192, 176.4, 96, 88.2, 48, 44.1
    • Bit Depths (Bit): 24, 16
    • Frequency Response (Filter 1): 20Hz—20kHz ± 0.2dB
    • Signal/Noise Ratio (A-wtd, Ref. 50W, 0dBFS): 109dB
  • Headphone Output
    • Maximum Output Level (RMS) Into 32Ω/300Ω: 2.5V/5V
    • Load Range: 16Ω - 2kΩ
  • Wireless Specifications
    • Bluetooth Version: 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast
    • Bluetooth Transmitter Frequency And Power: 2,400 MHz to 2,483.5 MHz: <20dBm
  • Mains Voltage: 100V or 110–120V or 220–240V, 50–60Hz
    • Power Consumption (Maximum): 350W
    • Power Consumption (Standby): <0.5W
    • Dimensions (W x H x D): 16.97" x 3.27" x 13.54"
    • Weight (Net): 17.64 lbs

What's In The Box

  • A5+ Integrated Amplifier with Bluetooth & Auracast

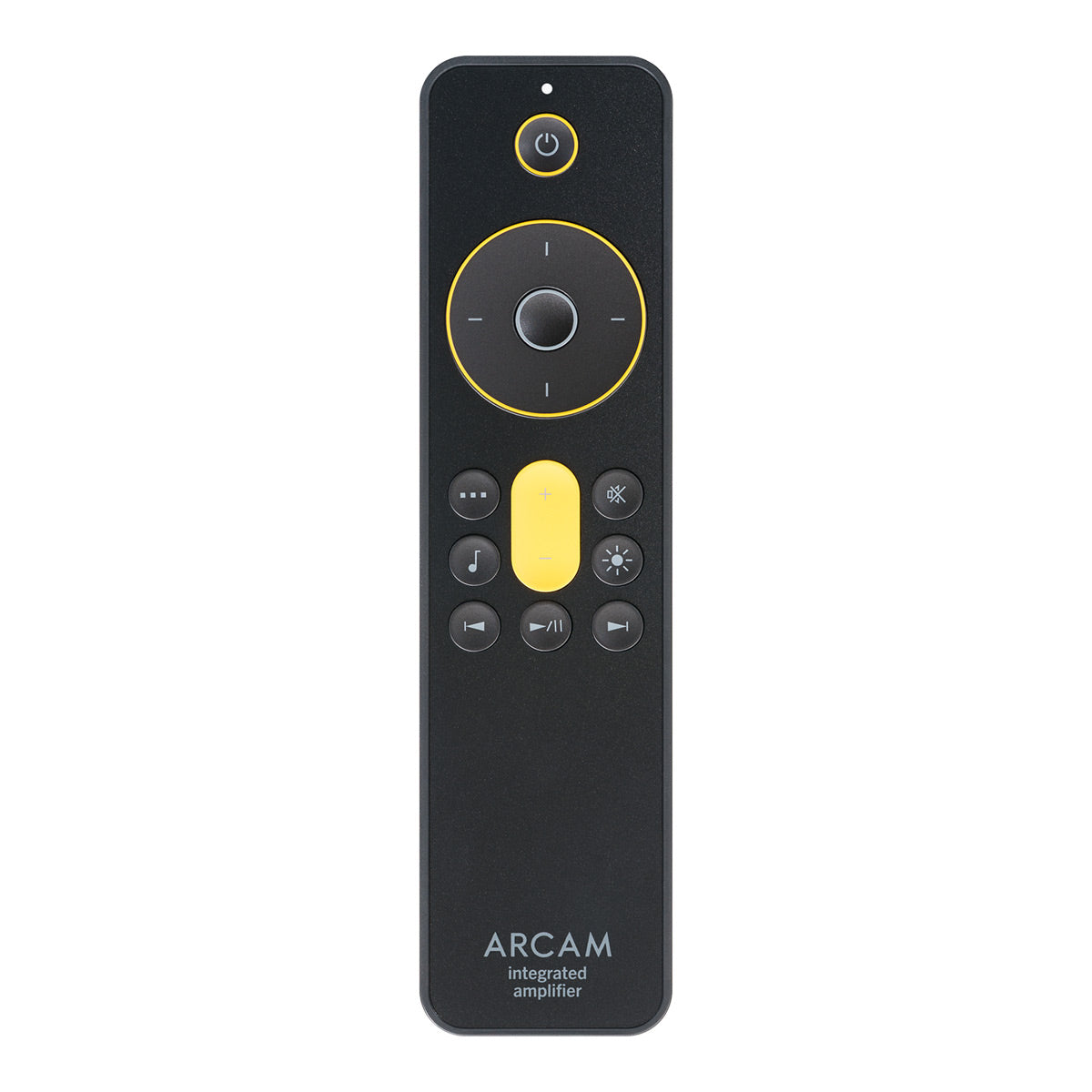

  • Remote
  • Power Cord
  • Manual
