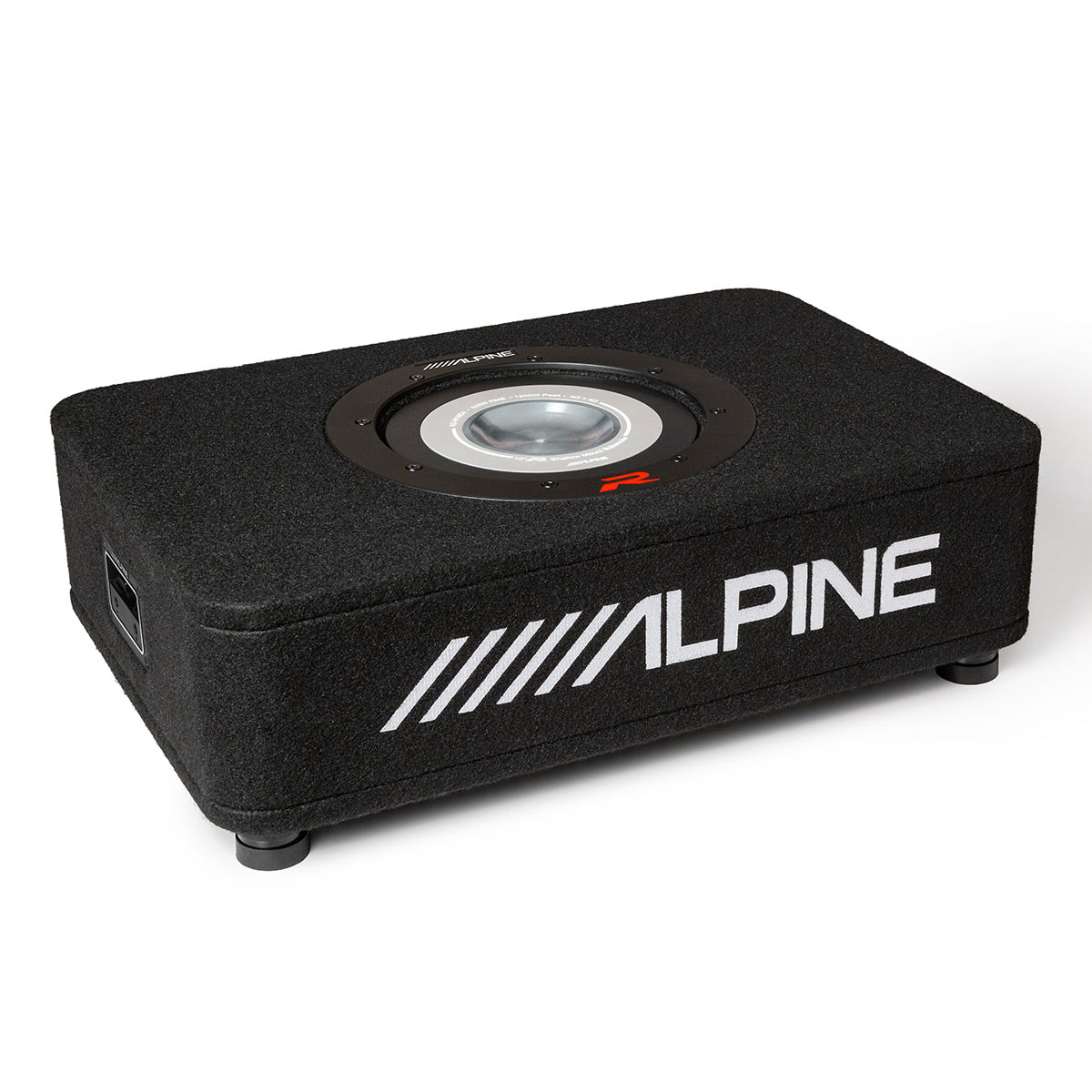

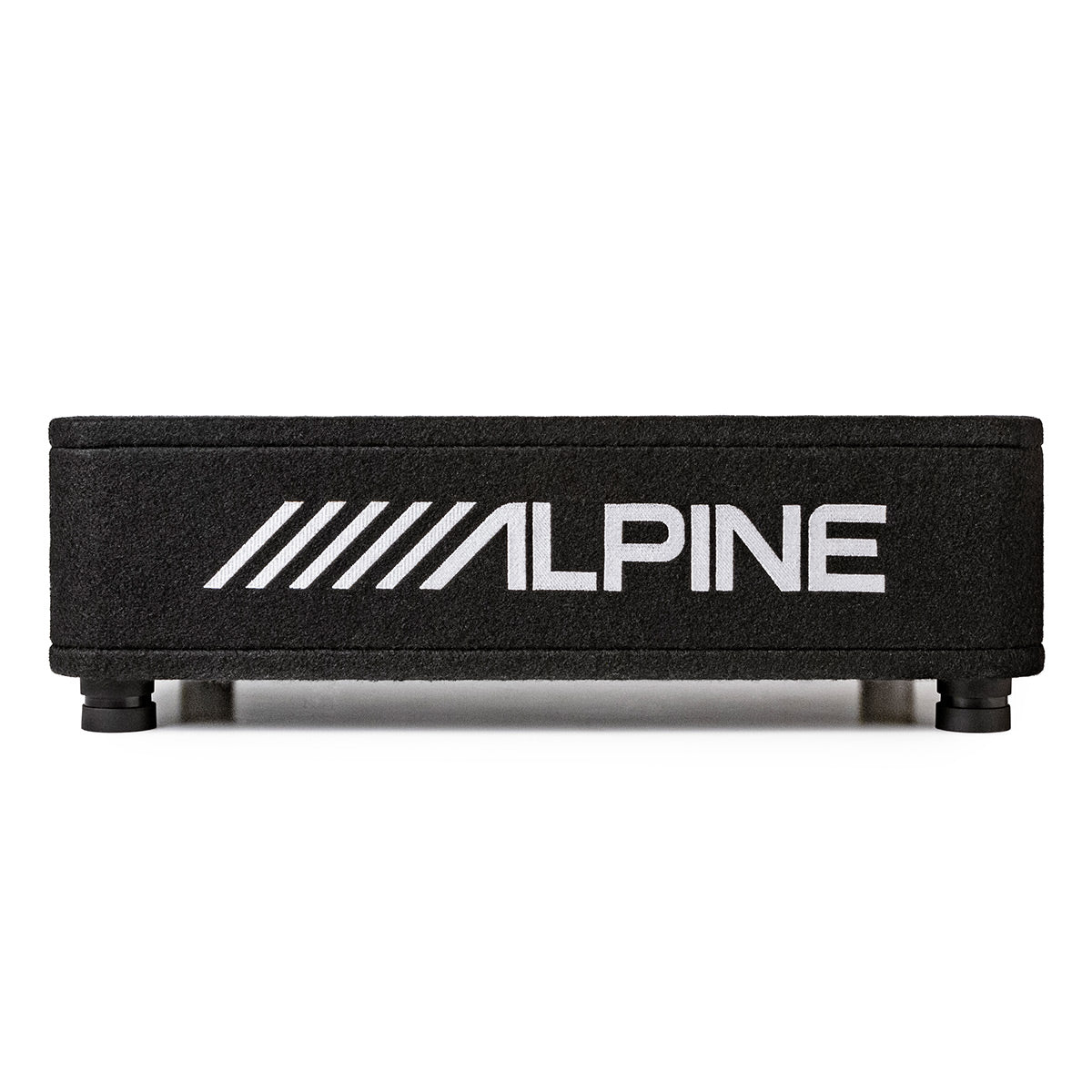

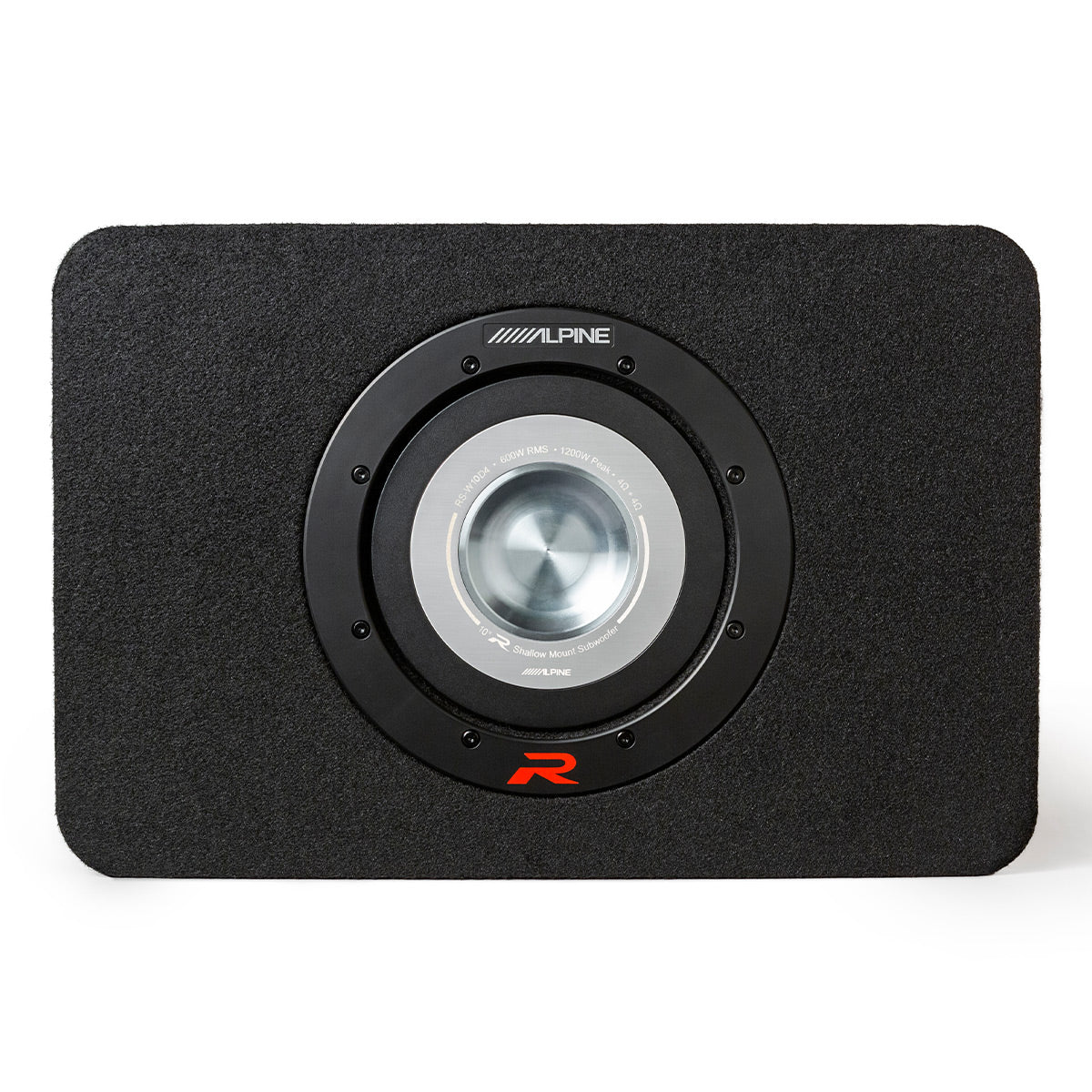

Alpine RS-SB10 Halo R-Series 10" Loaded Shallow Subwoofer Enclosure

Regular price $599.95
Sale price $599.95 Regular price
$749.95 Save $150.00 (20%)
OR

Limited time offer! Sale ends 12/2/2024.
In Stock & Ready to Ship
Free Shipping Get it between Wed, Nov 13 – Wed, Nov 20

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Alpine RS-SB10 Overview

Product Information

Model: RS-SB10 | UPC: 793276084507

Specifications

What's In The Box

Product Information

Model: RS-SB10 | UPC: 793276084507

With an ultra-shallow enclosure design and powerful sound output, the R-Series Shallow Preloaded Subwoofer Enclosures give you the best of both worlds in size and sound.

Features

  • Loaded with 10” R-Shallow Subwoofer
  • Groundbreaking Shallow Alpine Halo Design
  • Unique Dual-Panel Mount Exposed Motor
  • Neodymium Magnet
  • Alpine Gen2 DD Linear Magnetic Circuit
  • Pre-Installed Steel Mesh Grille

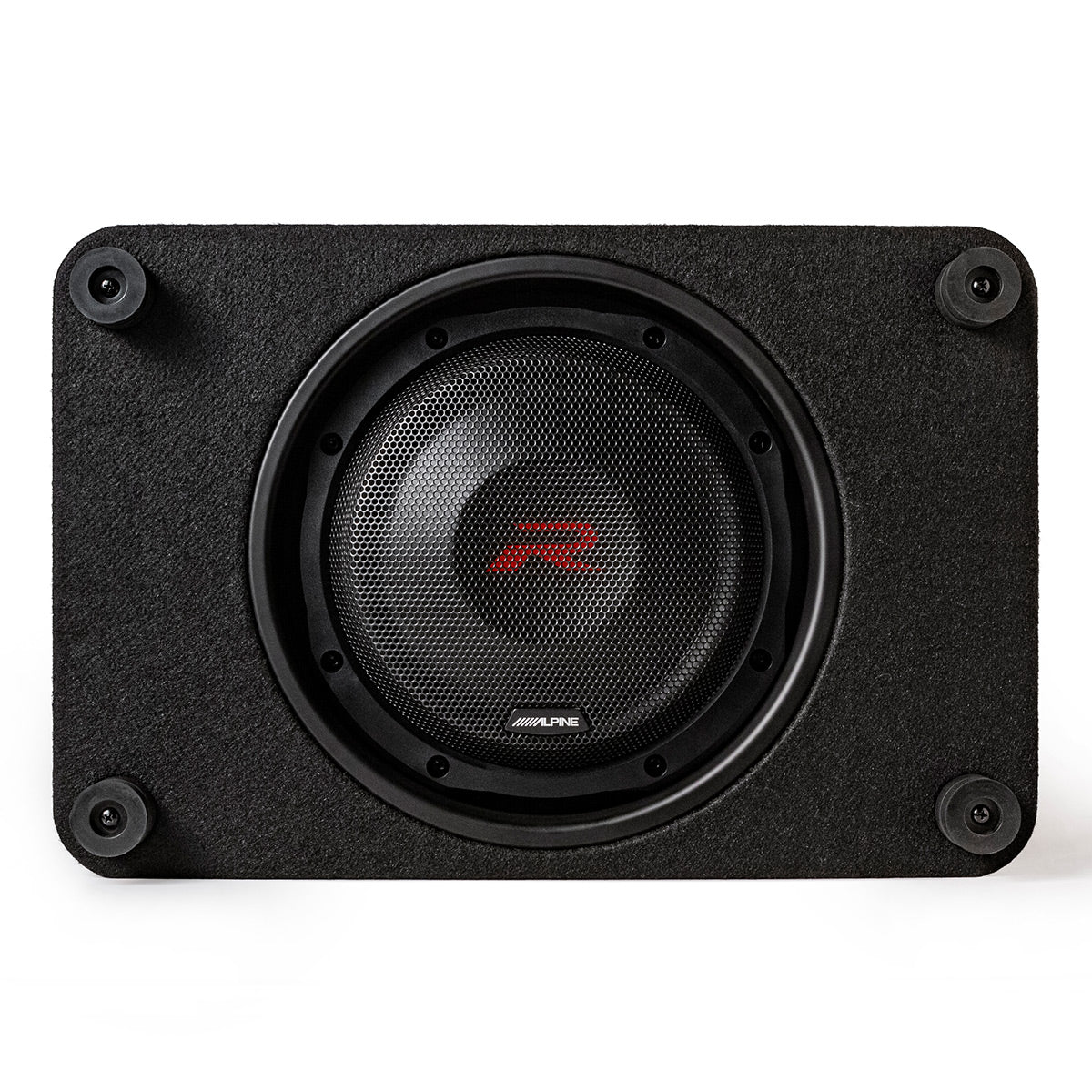

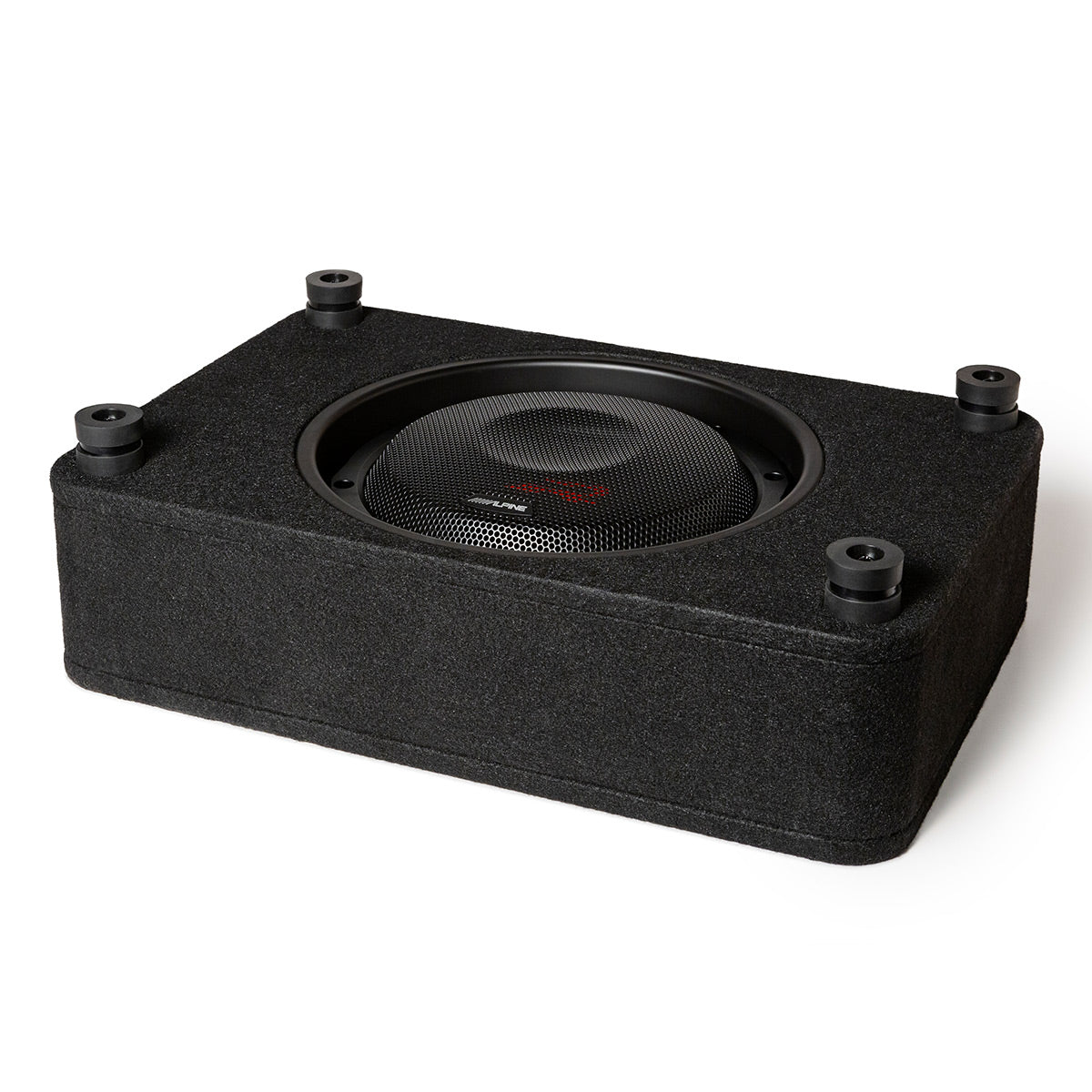

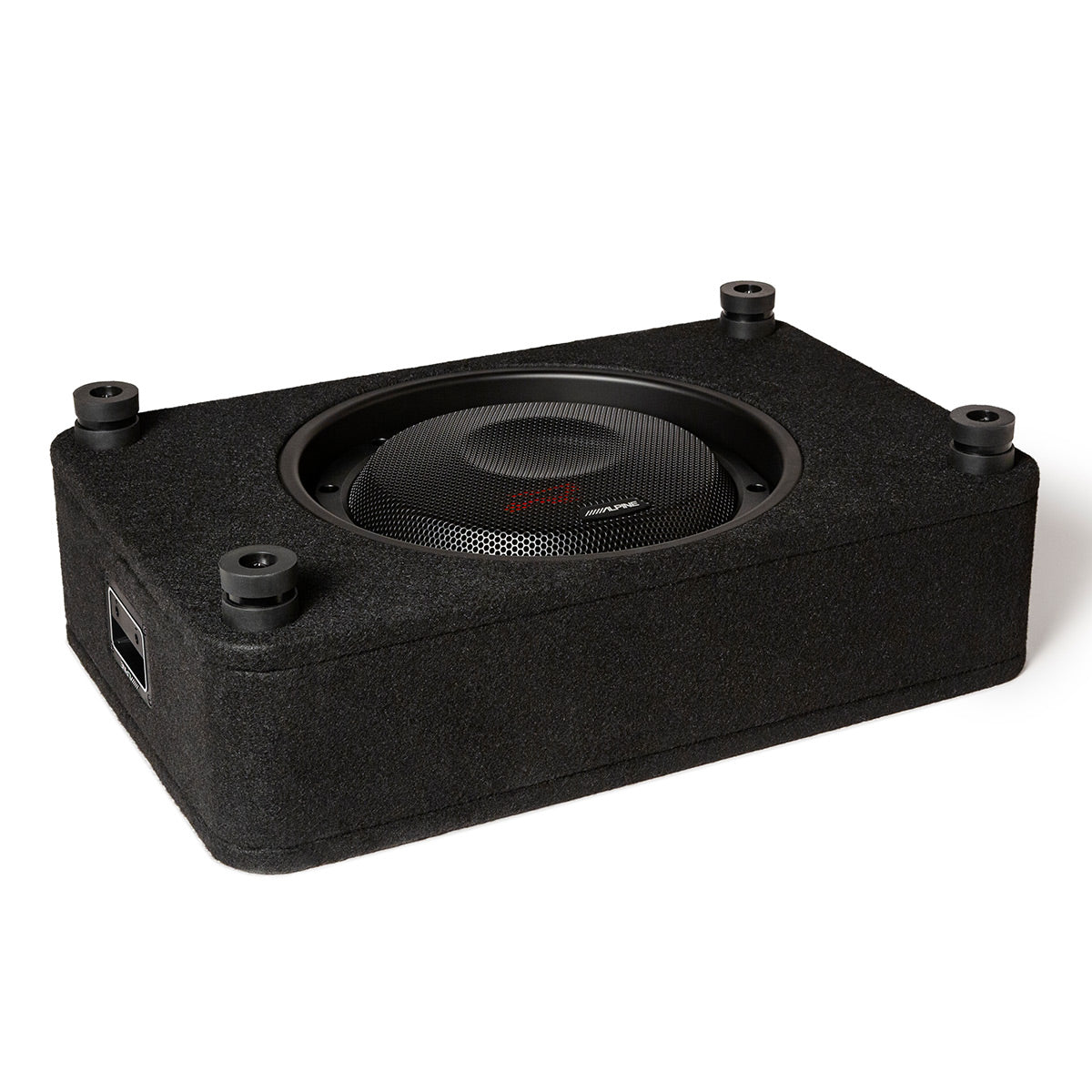

  • Rubber, Modular Stackable Foot Design (Downfiring or Upfiring)

Designed for Tight Spaces

Now you don’t have to choose between bass and space! Alpine’s R-Series Shallow Preloaded Subwoofer Enclosure measures at a minimal 5.25” deep to deliver a loud and fun sound in most vehicle applications. Rubber “feet” are adjustable in height to accommodate uneven vehicle floors.

Extreme Output

Don’t let the size fool you – the enclosures feature the same motor movement (20MM of 1-way excursion) as the full-size R2-Series Subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series Shallow Subwoofers is an oversized 4-inch voice coil that houses the lightweight and powerful neodymium magnet for 600W RMS of power handling.

Reliable Performance

Integrated cooling fins located in the core of the subwoofer help dissipate the heat generated by the rapid subwoofer movement for enhanced cooling reliability and hours of uninterrupted playtime. The Unique CoolMount™™ Dual-panel mount subwoofer motor enhances cooling.

Precise Bass Control

Alpine's Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control. The preloaded enclosures use the subwoofer frame as bracing for a more ridged design and better bass response.

Powerful Bass Projection

A lightweight yet rigid aluminum dust cap allows the R-Series Shallow Subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance. The included adjustable mounting brackets allow for down-fire mount configuration.

Optimal Power Match

With dual voice coils wired in parallel for a 2-Ohm load, the Alpine R-Series 10" Shallow Subwoofer Enclosure is optimized to perform with Alpine's S- A60M and R-A75M mono amplifiers.

Specifications

  • Dimensions (W x H x D): 21.15” x 5.25” x 16”
  • Power Handling: 600W RMS / 1800W Peak
  • Frequency Response: 29Hz-200Hz
  • Voice Coil: 4”
  • Sensitivity: 84dB
  • Nominal Impedance: 2-Ohm
    • Dual Voice Coils Wired in Parallel for a 2-Ohm Load

What's In The Box

  • RS-SB10 Halo R-Series 10" Loaded Shallow Subwoofer Enclosure
  • Installation Hardware
  • Manual
