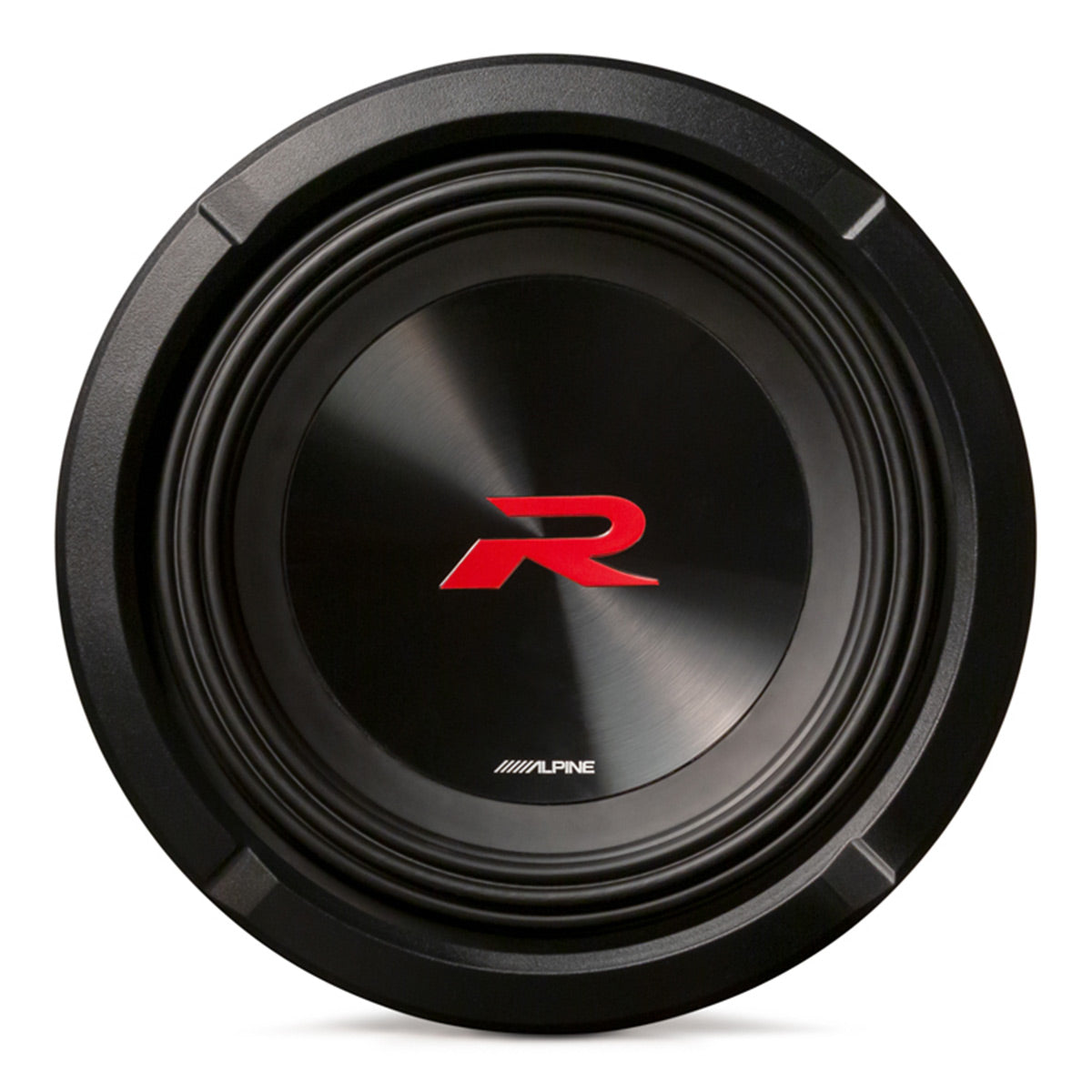

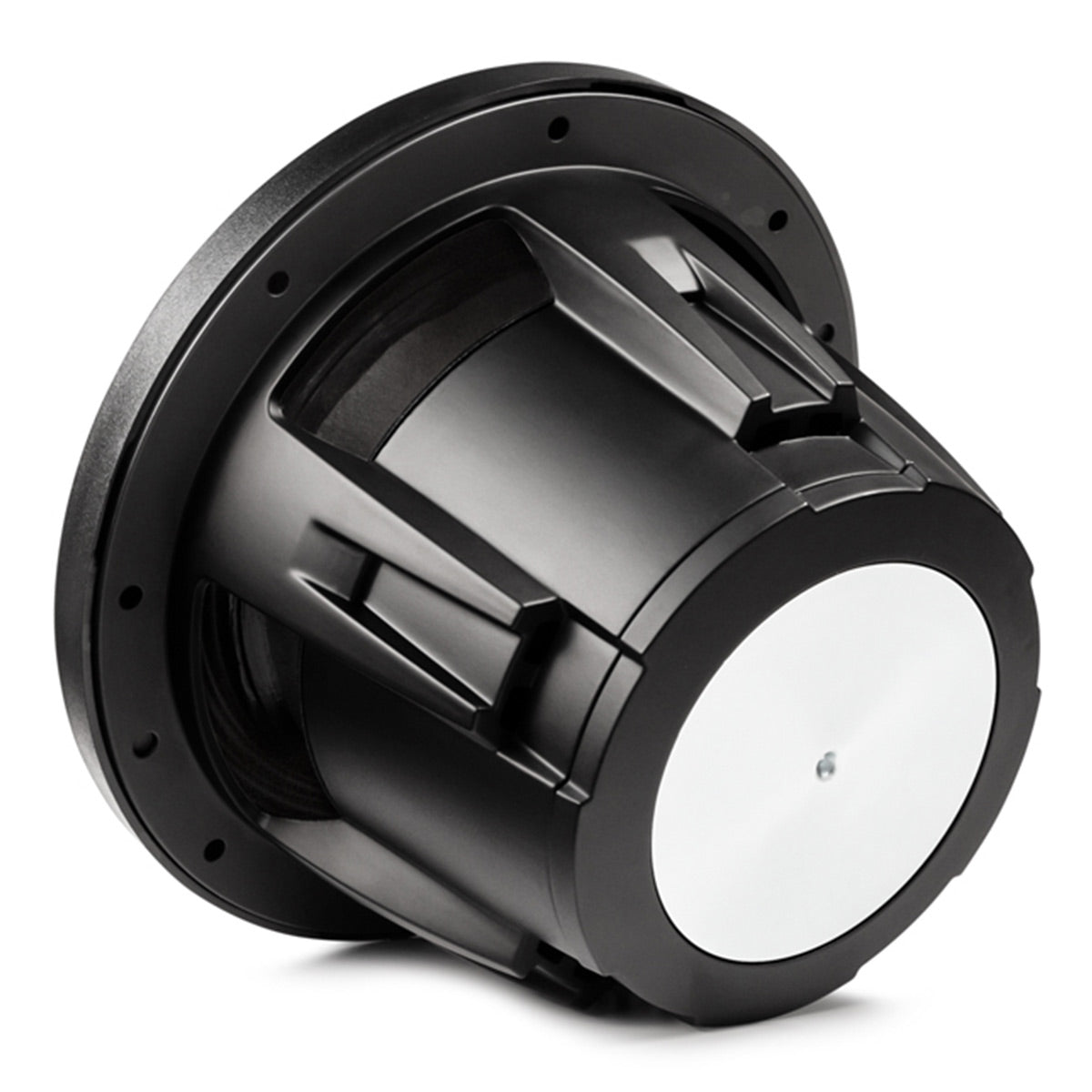

Alpine R2-W8D2 R-Series 8" 4-Ohm Subwoofer

Regular price $199.95
Sale price $199.95 Regular price
$249.95 Save $50.00 (20%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Alpine R2-W8D4 Overview

Product Information

Model: R2-W8D4 | UPC: 793276084699

Specifications

What's In The Box

Product Information

Model: R2-W8D4 | UPC: 793276084699

The next generation of sound performance is here with the 2nd-Gen R-Series Subwoofers featuring a larger motor structure for more accurate and authoritative bass.

Features

  • Dual Voice Coil (DVC) with Configuration Jumpers

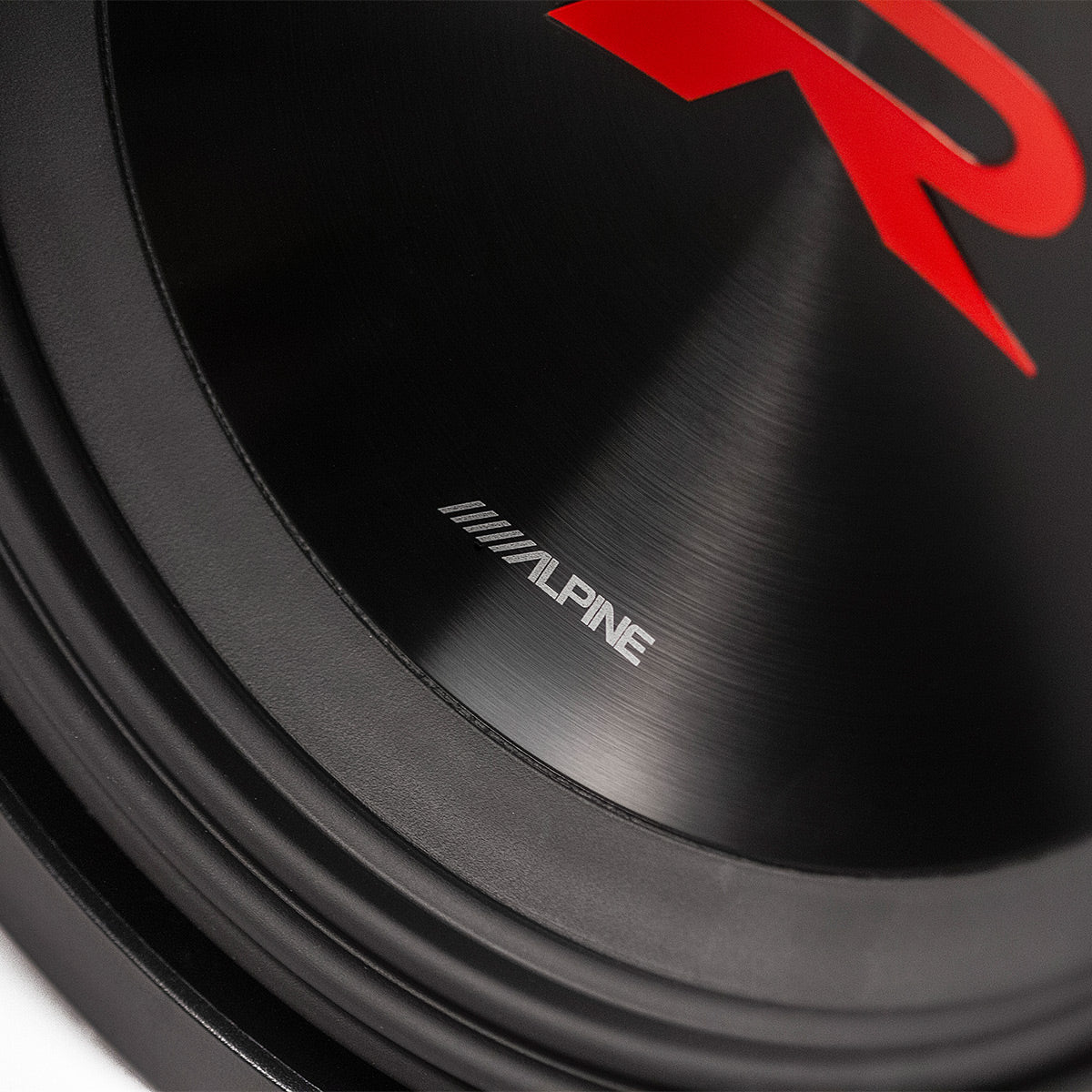

  • Polypropylene/Ceramic Composite Dust Cap
  • Kevlar Reinforced Pulp Cone High-Performance subwoofers
  • Twist-Lock Grille Mount System
  • High-Amplitude Multi-Roll (H.A.M.R.)?Surround
  • Large Double-Stacked Magnets

Next-Gen Sound Performance

Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.

New Motor Structure

The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.

Additional Reliability

A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non-stop bass performance.

Flexible Application

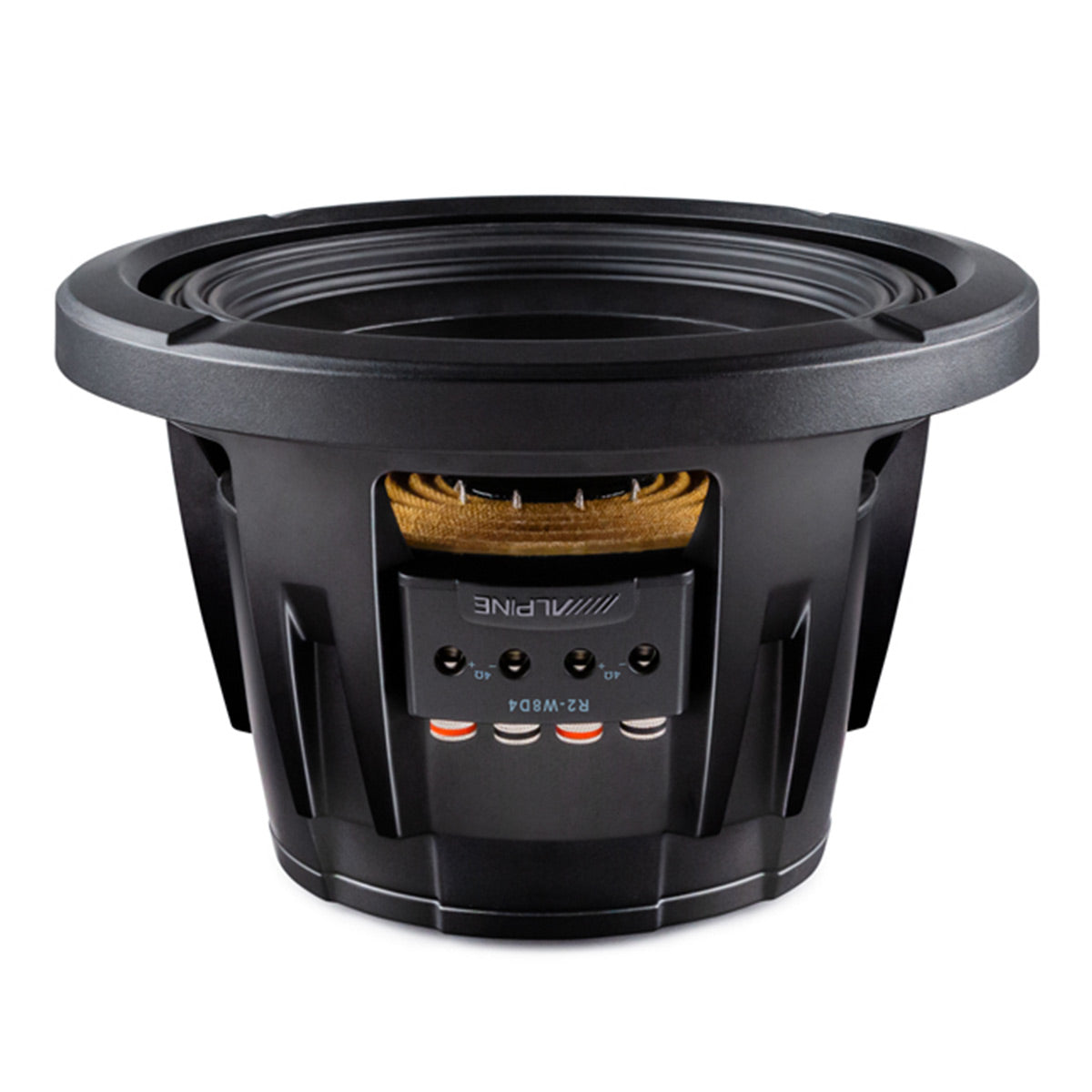

The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W8D4 is compatible with the KTE-8G Grille System (sold separately).

Increased Accuracy

The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 12mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.

Specifications

  • Power: 350W RMS & 1000W Peak Power Handling
  • Frequency Response: 30Hz-200Hz
  • Sensitivity (1W/1m): 83.5dB
  • Nominal Impedance: 4-Ohm
  • Voice Coil: 35mm
  • X-Max: 12mm
  • Magnet Weight: 56oz
  • Mounting Depth: 4-3/8” (118mm)
  • Cutout Size: 6-15/16” (176mm)
  • Terminals: Push-Type Speaker Terminals (Up to 8AWG Wire Size)
  • CTA-2031 Compliant: Yes

What's In The Box

  • R2-W8D4 R-Series 8" 4-Ohm Subwoofer
