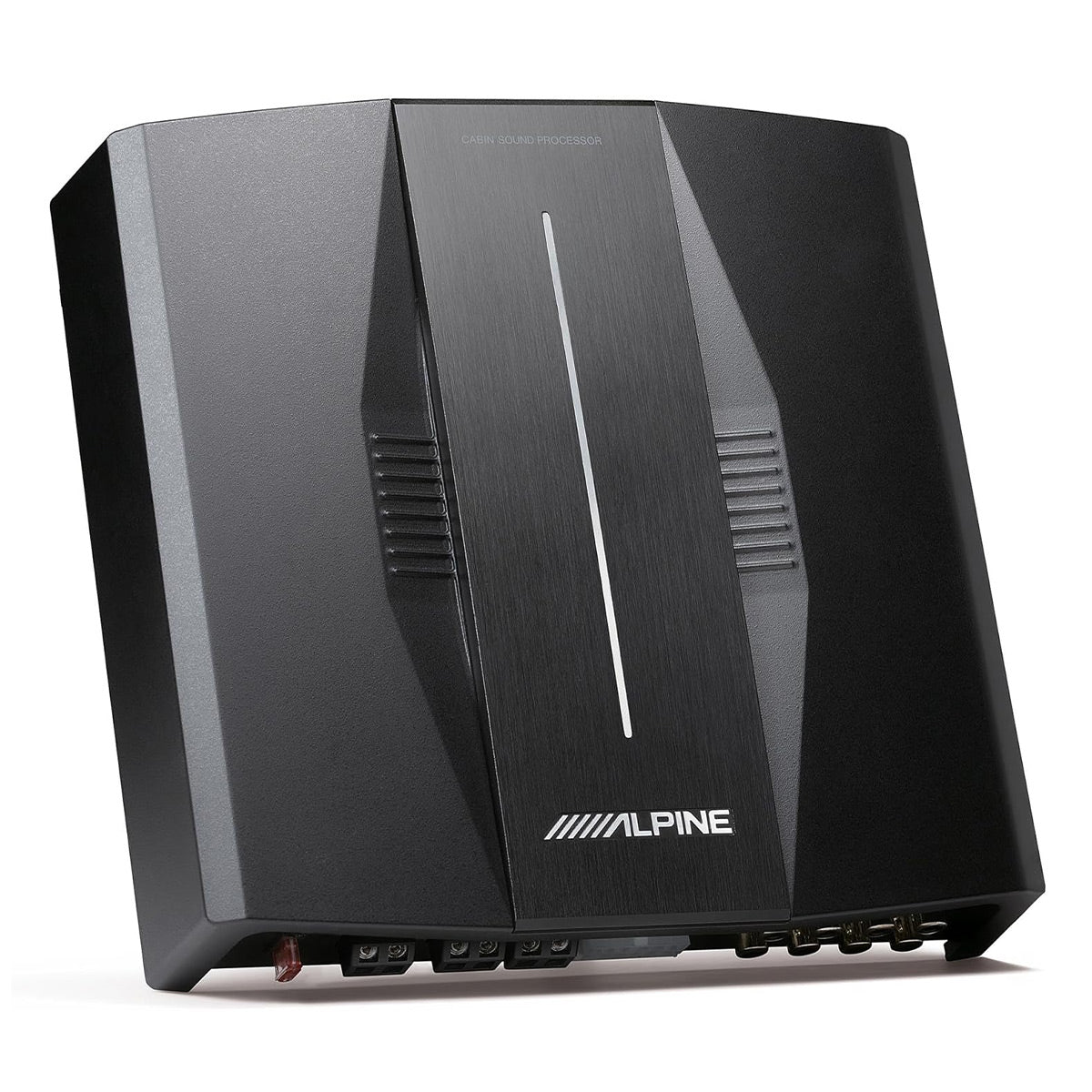

Alpine PXE-C80-88 Optim8 8-Channel Amplifier & Sound Processor

Regular price $799.95
Sale price $799.95 Regular price
Save $-799.95 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Apr 29 – Tue, May 6

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Alpine PXE-C80-88 Optim8 Overview

Product Information

Model: PXE-C80-88 | UPC: 793276085207

Specifications

What's In The Box

Product Information

Model: PXE-C80-88 | UPC: 793276085207

The groundbreaking Alpine OPTIM™8 is the ultimate all-in-one solution designed to effortlessly optimize and amplify any sound system with remarkable precision.

Features

  • Hi-Res Audio Playback (96kHz/24Bit)
  • Intuitive Realtime Sound Set-Up with 5 Minute Vehicle Self-Tuning
  • Manual & Automatic Sound Tuning with PC App Control
  • Automatic Sound Tuning & Auto-EQ
  • Compatible with the KTX-CSP1 PC Mic Tuning Kit (sold separately)

All-in-One Solution

Enhance your sound system with the Alpine OPTIM™8. Featuring a built-in 8-channel amplifier with Hi-Res Audio playback up to 96kHz/24Bit, the OPTIM™8 is the all-in-one sound solution to amplify and effortlessly sound-tune your system in minutes.

Simplifying Sound Tuning

The Alpine OPTIM™8 removes all the complexities of tuning a sound system by providing a simple, self-guided process via the OPTIM IOS App (iPhone/iPad) or PC App with the KTX-CSP1 External Mic kit (sold separately) to quickly and precisely measure your vehicle's interior. This innovative Auto-EQ software analyzes your vehicle’s acoustic environment and intelligently adjusts to optimize the audio output for your vehicle and provide the best possible listening experience. Manufactured under license rights from Eilex International, LLC. Eilex PRISM and VIR Filter are trademarks of Eilex International, LLC.

Power Your System

The Alpine OPTIMM8 boasts 8 channels of power with its built-in amplifier (50W x 6 @ 40 + 150W x 2 @ 40 or 50W x 6 @ 20 + 300W x 2 @ 22) allowing users to effectively power a full system with ease. Use it to boost a factory system or pair OPTIM™8 with Alpine's S-Series Speakers and Subwoofers for a powerful system upgrade in any vehicle.

Personalize Your Listening Experience

Tune your system in real-time using tuning tools like crossover adjustments and time correction to create an experience that's tailored to your ideal listening position or music genre preference. Use any of the six included presets to save your favorite tuning adjustments and access on the fly using the included OPTIMTM8 controller.

Specifications

  • Performance
    • Power Output
      • Rated: 4Ω, 14.4V, 10%THD
      • CH1-6: 50W, CH7-8: 150W
    • RCA Output
      • Rated: 10kΩ, 14.4V, 0.1%THD
      • CH1-8: 4Vrms
    • THD+N
      • High level: 2Vrms into 4Ω ≤ 0.1%
      • RCA: 2Vrms into 10kΩ ≤ 0.06%
    • S/N
      • High level
        • 40k-AES17+A-weighted: ≥80dB
      • RCA
        • 40k-AES17+A-weighted: ≥95dB
    • Input Voltage
      • High level: 26Vpp
      • RCA: 11Vpp
    • Output Voltage
      • High level: CH1-6: 40Vpp, CH7-8: 70Vpp
      • RCA: 4Vrms
    • Frequency Response: 20Hz~40kHz
  • General
    • Input Impedance
      • High level >50kΩ
      • RCA >50kΩ
    • System Sampling Rate: 192kHz/32bit
    • Operating Voltage: 9~16V
    • Operating Temperature: -20°C~+60°C
    • BACK UP CURRENT (12.6V): ≤3mA
    • REM Start Input: High level (H1-/H1+), ACC optional
    • REM Start Output: 12V (0.2A)
    • Dimensions (W x H x D): 8.68” x 2.12” x 8.85”
    • Weight: 5.29 lbs.

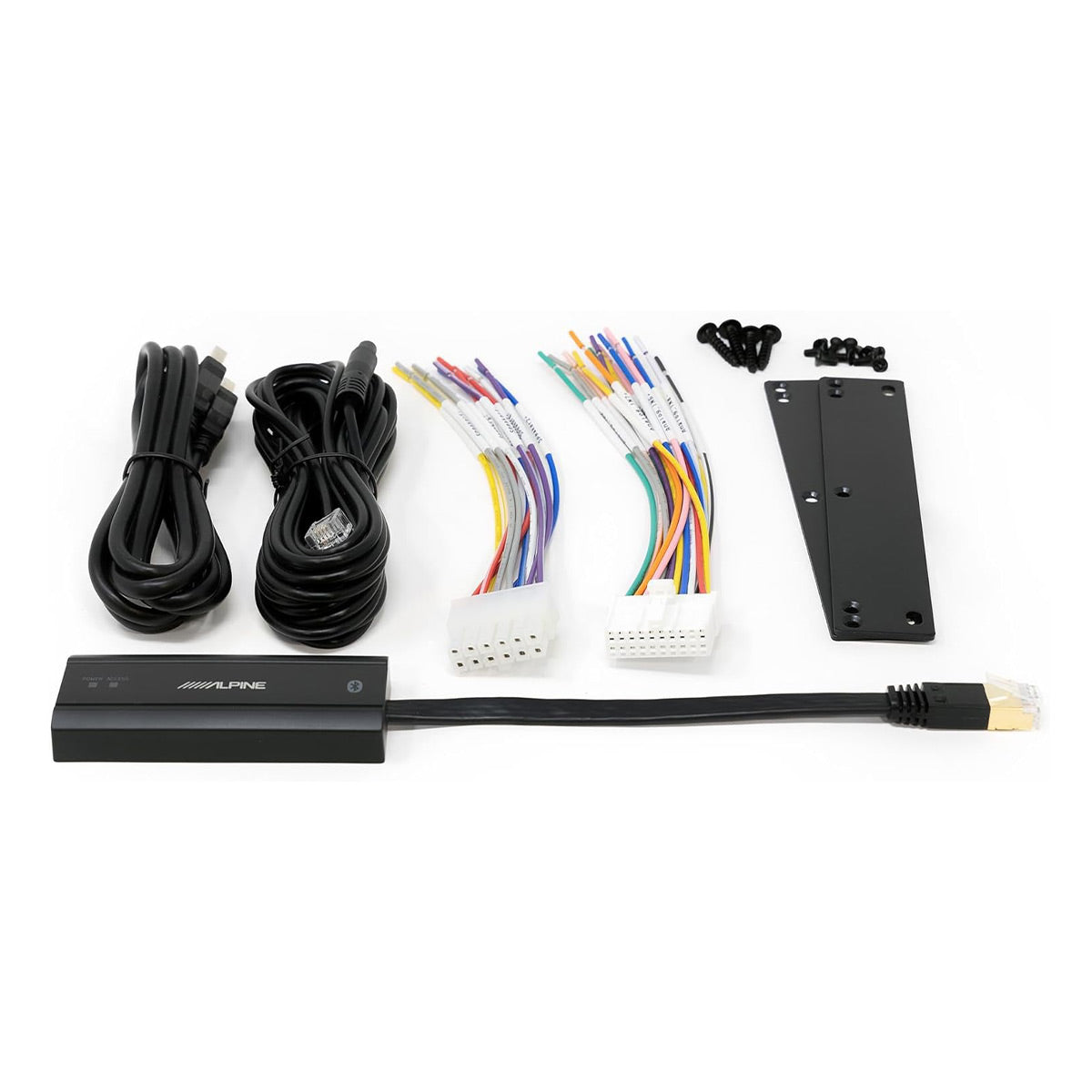

What's In The Box

  • PXE-C80-88 Optim8 8-Channel Amplifier & Sound Processor

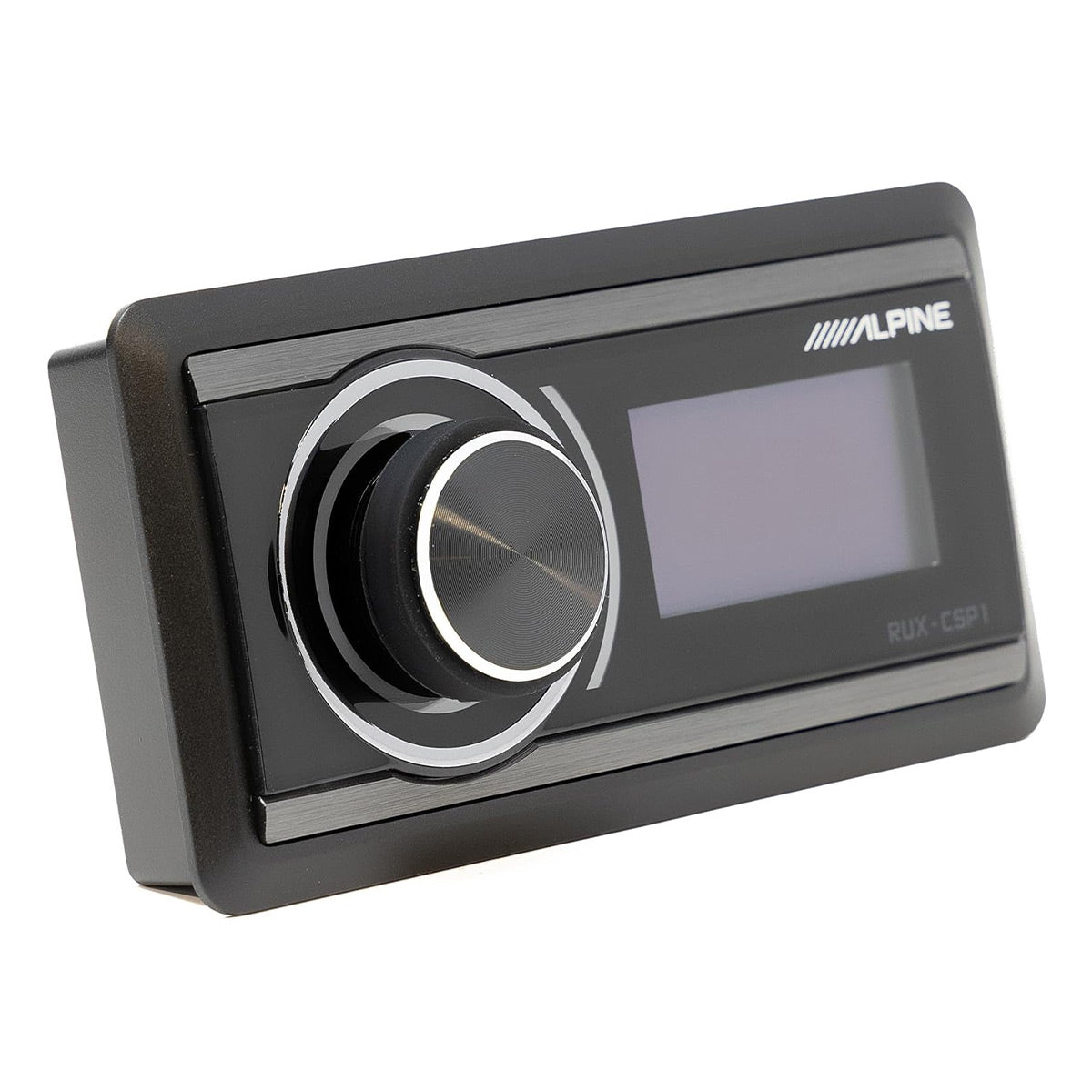

  • CSP Controller (16", 4-Pin Cable Attached)
  • Controller Cable (16.25')

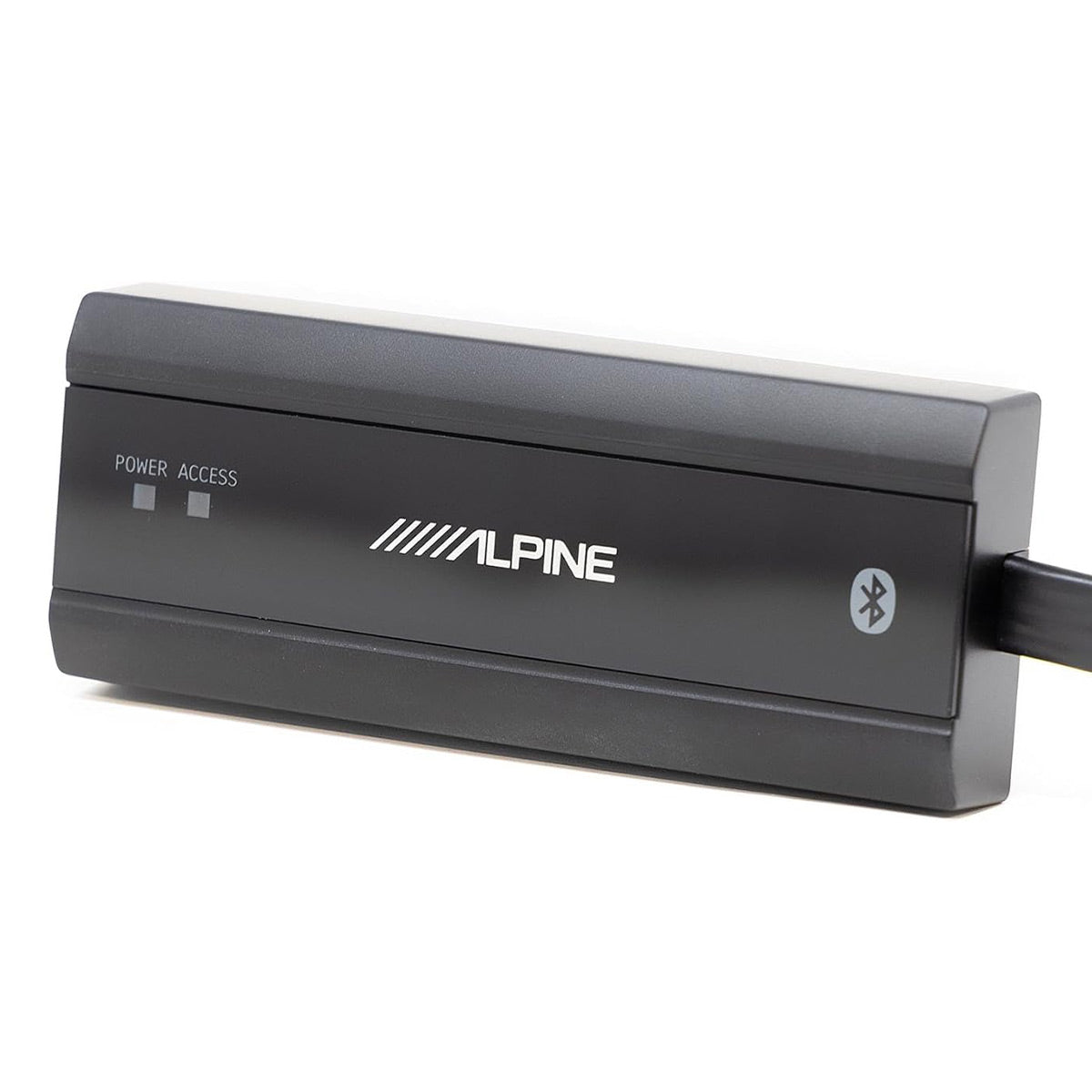

  • KCE-800BT Bluetooth Module
  • Wiring Harness
  • Installation Hardware
  • Manual
