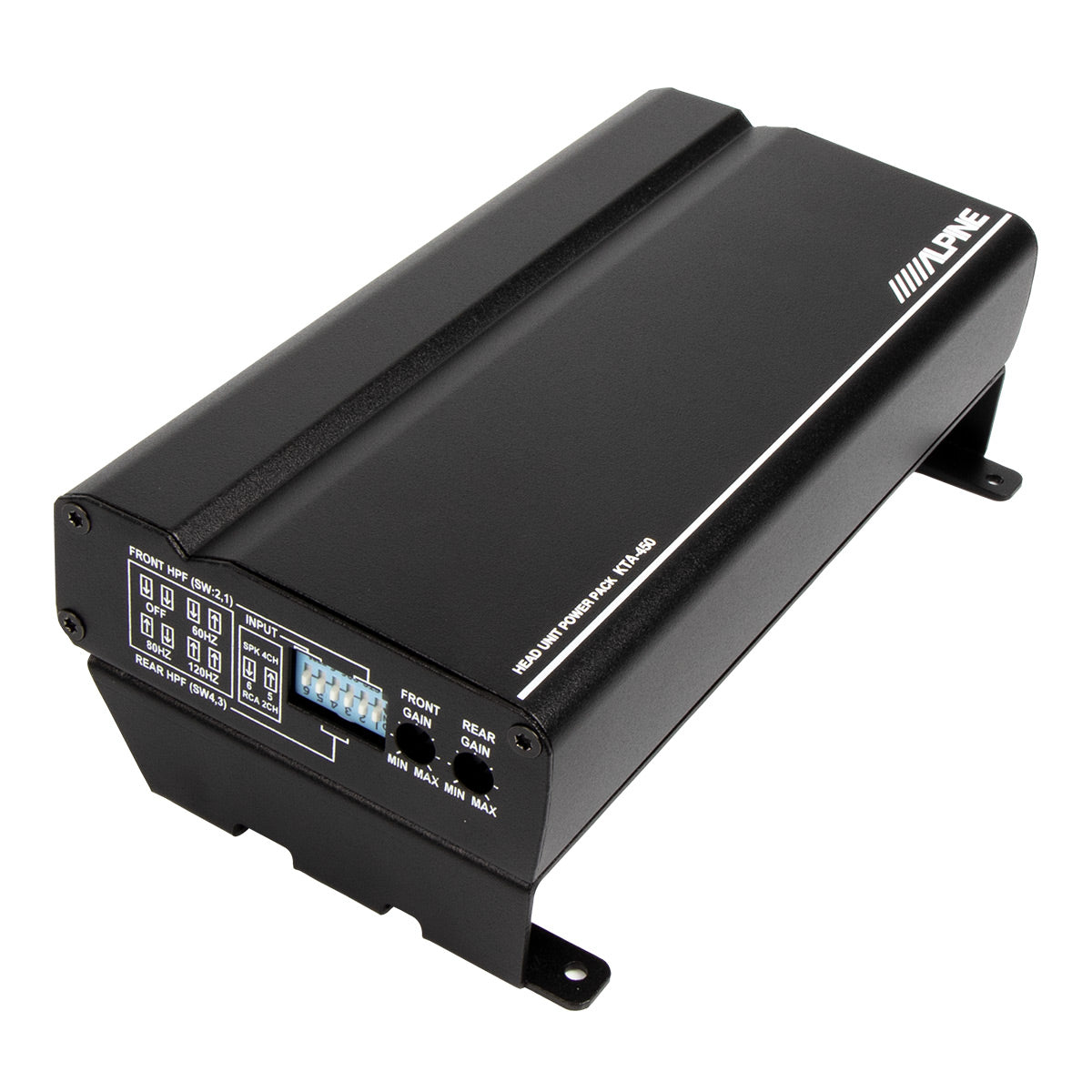

Alpine KTA-450 4-Channel Power Pack Amplifier

Regular price $219.95
Sale price $219.95 Regular price
Save $-219.95 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Alpine KTA-450 Overview

Product Information

Model: KTA-450 | UPC: 793276242822

Specifications

What's In The Box

Product Information

Model: KTA-450 | UPC: 793276242822

The next generation of Power Pack is here! The compact KTA-450 Power Pack Amplifier utilizes Alpine’s exclusive DPP technology for a big power boost in a small space.

Features

  • Compact 4-Channel Power Pack Amplifier
  • Class D Amplifier Circuit
  • Dynamic Peak Power (DPP) technology
  • PowerStacking Bracket Included

Award-Winning Powerstack Compatibility

The KTA-450 can mount behind select Alpine 2-DIN mech-less head units, like the iLX-W650, using the included bracket. The KTA-450’s recessed harness receptacle allows the wiring to fold between it and the head unit so both products fit in a standard 2-DIN space. This PowerStack design is a 2019 CES Innovation Awards winner and makes the duo one of the most powerful 2-DIN radios available.

Dynamic Peak Power (DPP)

The KTA-450 features Alpine’s exclusive Dynamic Peak Power (DPP). DPP intelligently adjusts the gain to adapt to musical needs. DPP prevents the KTA-450 from clipping by supplying up to double the power for sudden, dynamic sounds. DPP ensures music sounds the way it should at high volumes and boosts the KTA-450 to 400 watts DPP, doubling its power without increasing its size.

Compact Size for Hidden Installation Applications

For vehicles that do not have the space for a traditional amplifier, the KTA-450’s small size allows it to be tucked away in hidden areas such as in the glove box or behind the radio. It could even be used in a motorcycle’s saddlebag or on a boat.

Simple Installation for Use with Any Radio

The KTA-450 uses a 22-pin power harness with a recessed design on one side, so the cables can be tucked-in for a cleaner, less-bulky installation.

Specifications

  • Power Output
    • Ref: 14.4V, 4Ω, @ ≤1% THD+N: 50W RMS X 4
    • Ref: 14.4V, 2Ω, @ ≤1% THD+N: 45W RMS X 4
  • Dynamic Peak Power Output
    • Ref: 14.4V, 4Ω, @ ≤1% THD+N: ~100W RMS x 4ch
    • Ref: 14.4V, 2Ω, @ ≤1% THD+N: ~100W RMS x 4ch
  • THD+N
    • Ref: 10W into 4Ω: <0.2%
    • Ref: Rated Power into 4Ω: <0.1%
    • Ref: 10W into 2Ω: <0.1%
    • Ref: Rated Power into 2Ω: <0.1%
  • S/N Ratio
    • AES-17, Ref: 1 W into 4Ω: ≥85dB
    • AES-17, Ref: Rated Power into 4Ω: > 95dB
  • Frequency Response
    • +0 / -3 dB, Ref: 1 W into 4Ω: 15-50kHz
    • Input Sensitivity
    • Ref: Rated Power Into 4Ω, RCA: 0.152 to 2.80vrms
    • Ref: Rated Power Into 4Ω, Speaker: 0.33 to 6.05vrms
  • Crossover
    • Selectable for front and rear channels: OFF/60/80/120Hz
  • General
    • IP Rating: IP66
    • Dimensions (W x H x D): 3.5” x 1.75” x 3.75”
    • Weight: 1.3 lbs.

What's In The Box

  • KTA-450 4-Channel Power Pack Amplifier
  • Input/Output/Power Wire Harness
  • Universal Bracket Set
  • W650 Mounting Bracket
  • Installation Hardware
  • Manual
