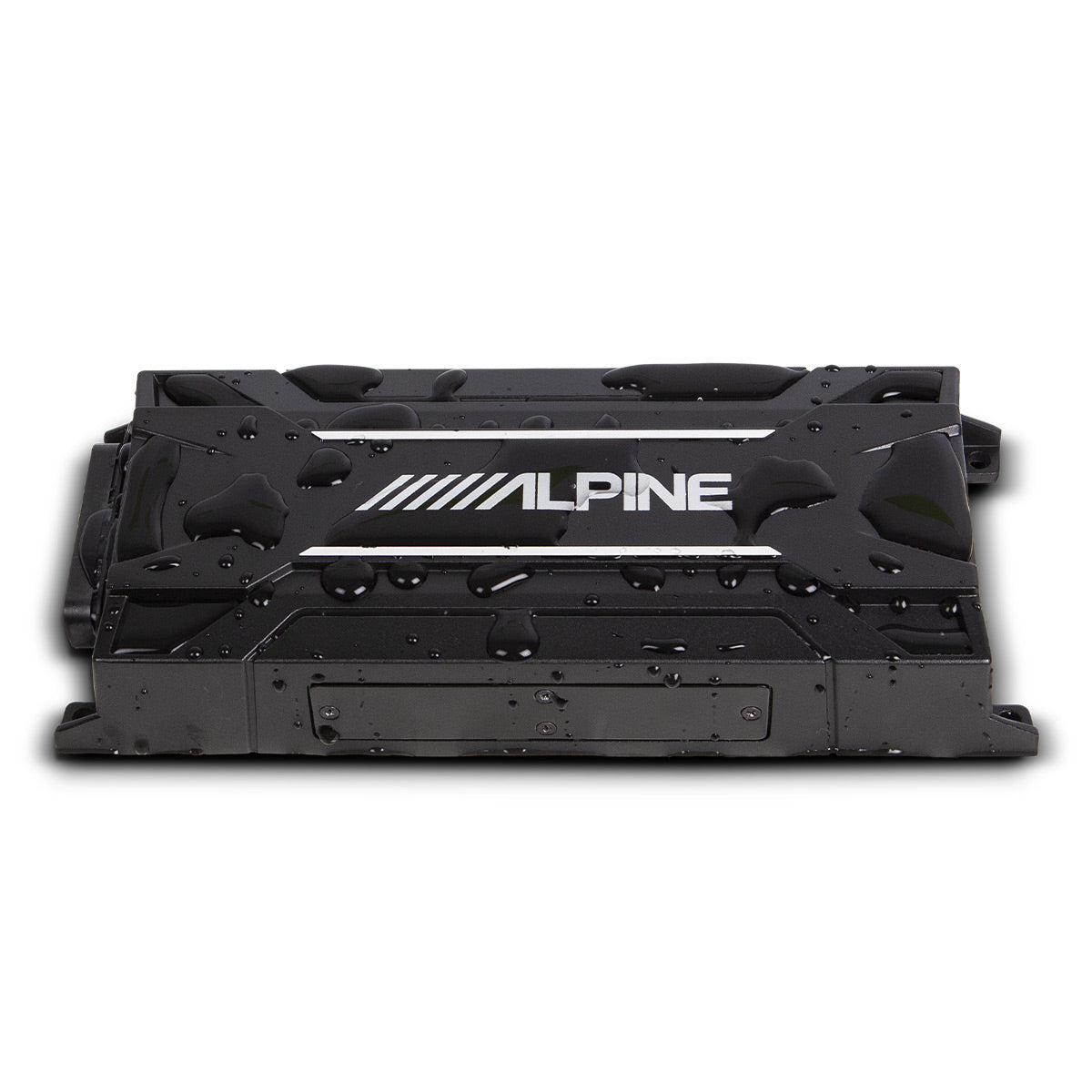

Alpine KTA-30FW 4-Channel Power Pack Amplifier

Regular price $419.95
Sale price $419.95 Regular price
Save $-419.95 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: KTA-30FW | UPC: 793276242082

Specifications

What's In The Box

Product Information

Model: KTA-30FW | UPC: 793276242082

Small Amp That Packs A Punch

This tiny amplifier can be installed with an aftermarket or factory head unit, resulting in up to 4 times the power increase over the head unit's original built-in power.

Features

  • 4-Channel, Power Pack Amplifier
  • Class D with Dynamic Peak Power
  • Weather Resistant (IP66)
  • Compact Design

A Sound System Boost Without The Big Space Commitment

The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.

Dynamic Peak Power

The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.

Weather Resistant Format

The KTA-30FW is ready for your adventures. It is weather resistant, rated at IP66 for protection again dust ingress and high-pressure water spray. The KTA-30FW features a rugged chassis and high-quality waterproof connector so it can be used in installations where it will be exposed to the elements, like side-by-sides, boats, open- top vehicles. and motorcycles.

Half The Size of Alpine’s Smallest Traditional Amplifiers

The KTA-30FW measures just 9-3/16" (W) x 1-5/8" (H) x 3-3/4" (D), so its small footprint lets it fit where most amplifiers won't. The KTA-30FW can be tucked away under the dash or in the glove compartment, installed under the dash of a side-by-side, placed in the saddlebag of a motorcycle, or used in other places where space is an issue.

Specifications

  • Power Output
    • Ref: 14.4V, 2Ω, @ ≤1% THD+N: 75W RMS X 4
    • Ref: 14.4V, 4Ω, @ ≤1% THD+N: 75W RMS X 4
  • Dynamic Peak Power Output
    • Ref: 14.4V, 2Ω, @ ≤1% THD+N: ~150W RMS x 4 up to 20ms
    • Ref: 14.4V, 4Ω, @ ≤1% THD+N: ~150W RMS x 4 up to 20ms
  • THD+N
    • Ref: 10W into 2Ω: <0.1%
    • Ref: Rated Power into 2Ω: <0.1%
    • Ref: 10W into 4Ω: <0.1%
    • Ref: Rated Power into 4Ω: <0.1%
  • S/N Ratio
    • IHF A-wtd + AES-17, Ref: 1 W into 4Ω: ≥82dB
    • IHF A-wtd + AES-17, Ref: Rated Power into 4Ω: > 98dB
  • Frequency Response
    • +0 / -3 dB, Ref: 1 W into 4Ω: 15-36kHz
  • Input Sensitivity
    • Ref: Rated Power Into 4Ω, RCA 0.2-4V
    • Ref: Rated Power Into 4Ω, Speaker 0.5-10V
  • Crossover
    • Selectable LPF/HPF @-12dB/oct(Defeatable) 50-400Hz
  • General
    • IP Rating: IP66
    • Dimensions (W x H x D): 9-3/16” x 1-3/4” x 3-3/4”
    • Weight: 1.1 lbs.

What's In The Box

  • KTA-30FW 4-Channel Power Pack Amplifier
  • Wiring Harness
  • Installation Hardware
  • Manual
