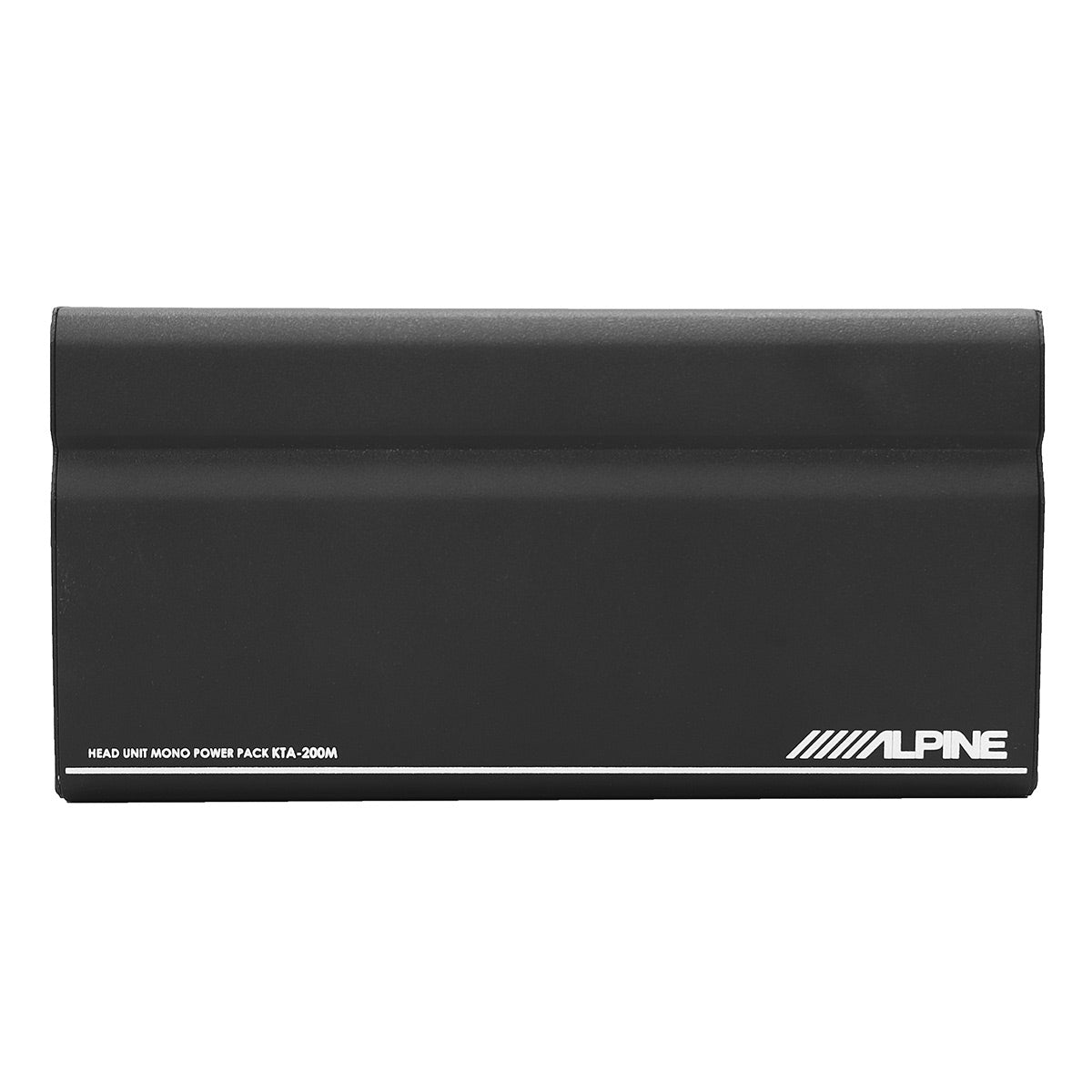

Alpine KTA-200M Mono Power Pack Amplifier

Regular price $199.95
Sale price $199.95 Regular price
Save $-199.95 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Mar 18 – Tue, Mar 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Alpine KTA-200M Overview

Product Information

Model: KTA-200M | UPC: 793276084088

Specifications

What's In The Box

Product Information

Model: KTA-200M | UPC: 793276084088

More Bass in Less Space

The KTA-200M Mono Power Pack Amplifier produces 400-watts of Alpine’s Exclusive Dynamic Peak Power for big subwoofer power in a small space.

Features

  • Alpine’s Exclusive Dynamic Peak Power (DPP) Technology??
  • Remote Bass-Knob?ready with the RUX-KNOB.2 (sold separately)?
  • PowerStack?capable with the Alpine iLX-W650?(sold separately)?

A Simple Way to Add Bass

If you're craving the impact of bass in your sound system but don't have the room in your budget or vehicle for a traditional amplifier, start your journey to better sound with the compact KTA-200M. With the highest performance value on the market, this mono-power amp provides an easy upgrade path to add more bass to your sound system.

BIG Sound in a Small Package

Utilizing Alpine's exclusive Dynamic Peak Power (DPP) technology, the 200-watt KTA-200M delivers bursts of power to meet the peak demands of your music effectively rising to 400-watts and then rolling back to maintain efficiency. The result is crisp, clean music at all volumes.

Reliable Power Handling

New to the KTA-200M, a voltage adapting input circuit is included to maintain the maximum source signal level without clipping. This ensures that the KTA-200M can continue to produce powerful, clean bass even at higher volumes with dynamic musical passages.

Powerstack Capable

The KTA-200M utilizes Alpine's compact Power Pack design to fit in hidden areas like a glove box or behind a radio to optimize power and space in your vehicle. Mounted behind the iLX-W650 7-Inch Mech-Less Audio/Video Receiver, the KTA-200M becomes the newest PowerStack product, for an easy, hideaway bass solution that adds more power to the sound system while occupying the same depth as a traditional 2-DIN radio.

Remote Bass Knob Ready

The KTA-200M has input capability to add an optional RUX-KNOB.2 Remote Bass Control Knob (sold separately). The remote bass knob controls the bass in your subwoofer by adjusting the gain on your amplifier for quick bass adjustments when needed.

Specifications

  • Product Dimensions: 7” x 1.5” x 3.5”
  • Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
    • 200W x 1 RMS (4-Ohm, 14.4V, ≤1% THD+N)
    • 200W x 1 RMS (2-Ohm, 14.4V, ≤1% THD+N)
    • 400W x 1 DPP (4-Ohm, 14.4V, ≤1% THD+N)
  • S/N>80dB (ref. 1W into 4?)
  • THD+N≤0.1% (ref. 10W into 4-Ohm)
  • Single-side 22-pin connector
  • RCA inputs (Low range=0.2-4V)
  • Sound controls: Crossovers-Off/60Hz/80Hz/120Hz?Linkwitz?Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)?

What's In The Box

  • KTA-200M Mono Power Pack Amplifier
  • Input/Output Harness
  • iLX-W650 Mounting Bracket
  • (2) Universal Mounting Brackets
  • Mounting Hardware
  • Manual
