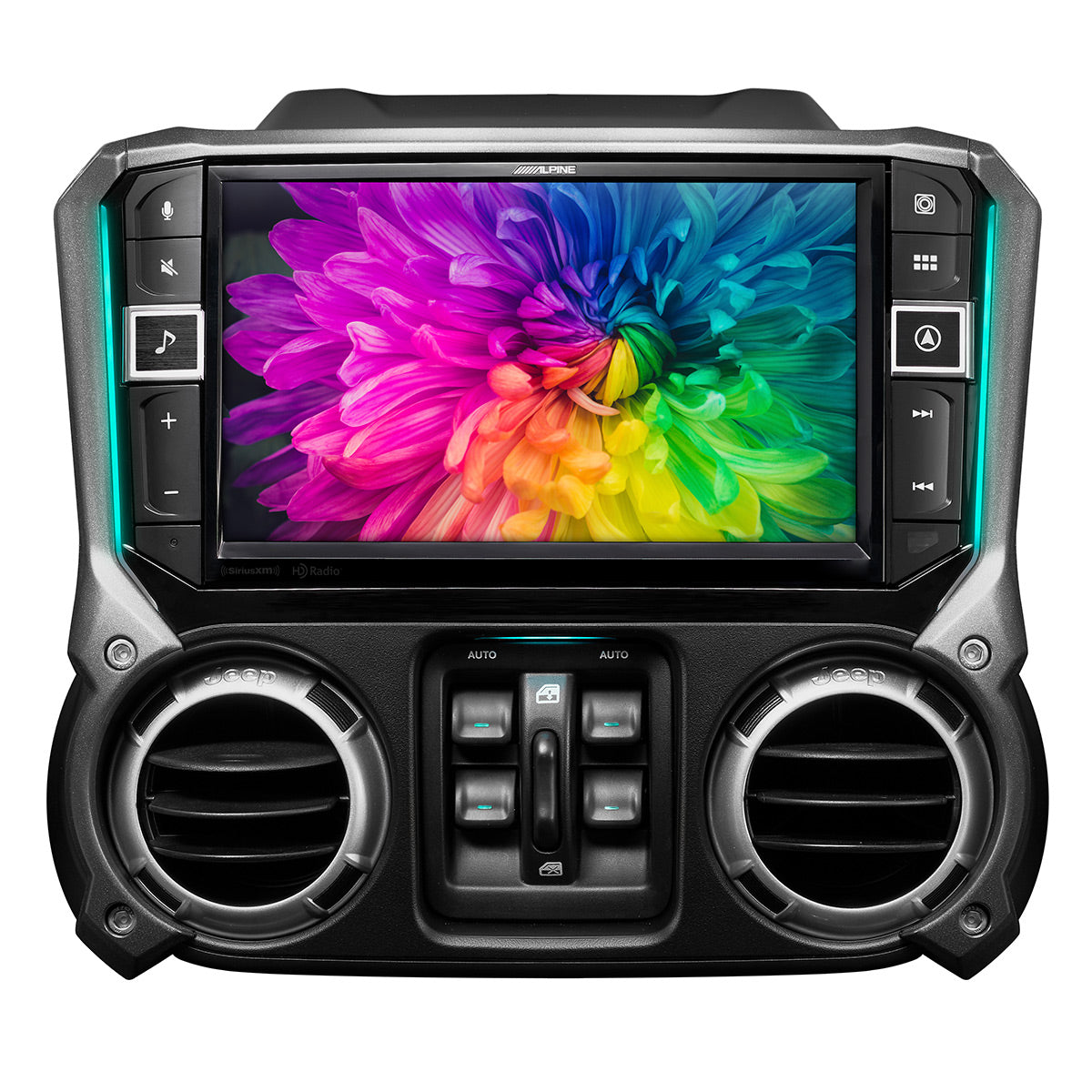

Alpine i509-WRA-JK 9" Weather-Resistant Media Receiver for 2011-2018 Jeep® Wrangler

Regular price $2,199.95
Sale price $2,199.95 Regular price
Save $-2,199.95 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Nov 12 – Tue, Nov 19

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Alpine I509-WRA-JK Overview

Product Information

Model: I509-WRA-JK | UPC: 793276084385

Specifications

What's In The Box

Product Information

Model: I509-WRA-JK | UPC: 793276084385

Go beyond expectations for on-and-off-road performance with the i509-WRA-JK, made for the music-loving outdoor weekender.

Features

  • 9” HD Anti-Glare Display with Jeep® Specific Trim Bezel
  • Weather-Resistant (Rated IP53)
  • Plug-and-Play Installation
  • Jeep® Specific Tuning
  • Hi-Res Audio Playback (96kHz / 24bit)
  • Wireless Hi-Res Audio (requires LDAC compatible device)
  • Hi-Res music streaming with TIDAL (Subscription is required)
  • Bluetooth® Hands-Free
  • SiriusXM-Ready® with 360L (requires SXV300 Tuner, sold separately)
  • Built-in HD Radio®

Designed for Jeep®

The display is housed in a Jeep® -specific trim bezel that emulates the look and feel of the Jeep® dash. A Jeep® -specific harness is included with the receiver to take out the guesswork during installation and make it a true plug-and-play solution. The weather-resistant display features a Jeep® -specific opening screen and LED color scheme for a consistent design with factory Jeep® settings.

Hi-Res Audio

Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more. The i509-WRA-JK plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HDtracks and plug directly into the receiver for Hi-Res playback.

Apple Carplay® (Wired & Wireless)

The i509-WRA-JK Works with Apple CarPlay® and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay® is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.

Android Auto™ (Wired & Wireless)

The i509-WRA-JK includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands-free.

Next-Gen Dash Technology

Enhance your Jeep® driving experience with the high-resolution i509-WRA-JK. Features Apple CarPlay®, Android Auto™, and built-in Bluetooth® hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio®, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM® for even more choices in entertainment (tuner and subscription sold separately).

Onboard Audio Tuning

The i509-WRA-JK has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.

Keep Select Factory Controls

The i509-WRA-JK includes an iDatalink® Maestro module to allow select factory features like voice-activated media player, Bluetooth® technology, and steering wheel controls to be retained and vehicle information displayed on the screen. The iDatalink® can also integrate with the Jeep® diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user-customizable gauges can be monitored on the display.

Add a Rear Camera and More

Whether commuting or off-roading, the i509-WRA-JK includes two camera inputs to add a front, side, or rearview camera (sold separately) and make blind spots a distant memory. The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.

Dash Cam Integration

Take driving safety even further by connecting your i509-WRA-JK with the DVR-C320R Premium 1080P Front and Rear Dash Camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition on your i509-WRA-JK, plus receive drive assist features that help get you to your destination.

SiriusXM with 360L

Alpine is the first aftermarket car audio company to offer SiriusXM-Ready® head units enhanced with 360L. SiriusXM with 360L combines satellite and streaming features, to give you the widest variety of ad-free music, and the best in sports, news, talk, and comedy. SiriusXM-Ready® with 360L is available on compatible Alpine head units and requires the SXV300 Tuner and subscription (sold separately).

Specifications

  • Monitor Section
    • Screen Size: 9” (i509)
    • Operation System: TFT active matrix
    • Number of Picture Elements: 2,764,800 pcs. (1280 × 720 × RGB)
    • Effective Number of Picture Elements: 99% or more
    • Color system: NTSC / PAL
    • Illumination System: LED
  • FM Tuner Section
    • Tuning Range: 87.7 – 107.9 MHz
    • Mono Usable Sensitivity: 9.3 dBf (0.8 μV/75 ohms)
    • 50 dB Quieting Sensitivity: 13.5 dBf (1.3 μV/75 ohms)
    • Alternate Channel Selectivity: 80 dB
    • Signal-to-Noise Ratio: 65 dB
    • Stereo Separation: 35 dB
  • AM Tuner Section
    • Tuning Range: 530 – 1,710 kHz
    • Usable Sensitivity: 25.1 μV/28 dBf
  • HD Radio Section
    • FM
      • Tuning Range: 87.7 – 107.9 MHz
      • Usable Sensitivity: 19 dB/μV
      • Stereo Separation: 80 dB
      • Total Harmonic Distortion: 0.08 % (at 1kHz)
    • AM
      • Tuning Range: 530 – 1,710 kHz
      • Usable Sensitivity: 21 dB/μV
      • Stereo Separation: 75 dB
      • Total Harmonic Distortion: 0.08 % (at 1kHz)
  • USB #1 Section
    • USB requirements: USB 2.0
    • Max. Power Consumption: 2,400 mA
    • USB Class USB (Mass Storage Class): File System FAT16 / 32, exFAT
    • Number of Channels: 2-Channels (Stereo)
    • Frequency Response:  5 – 40,000 Hz (±1 dB)
    • Total Harmonic Distortion: 0.005% (at 1 kHz)
    • Dynamic Range: 95 dB (at 1 kHz)
    • Signal-to-Noise Ratio: 95 dB
    • Channel Separation: 90 dB (at 1 kHz)
  • USB #2 Section
    • USB Class: Charge only
    • Max. Power Consumption: 1,500 mA (CDP Support)
  • HDMI Section
    • Input Format
      • HDMI: 720p / 480p / VGA
      • USB Video Files Supported: MP4 / MOV / FLV / MKV
    • Output Format
      • HDMI: 720p / 480p
      • USB Video Files Supported: MP4 / MOV / FLV / MKV (HDMI input pass-though)
  • Bluetooth Section
    • Bluetooth Specification: Bluetooth V4.2 (2,402 - 2,480 MHz)
    • Output Power: +4.0 dBm/2.51 mW Max. (Power class 2)
    • Profile
      • HFP (Hands-Free Profile)
      • OPP (Object Push Profile)
      • PBAP (Phone Book Access Profile)
      • SPP (Serial Port Profile)
      • A2DP (Advanced Audio Distribution Profile)
      • AVRCP (Audio/Video Remote Control Profile)
  • GPS Section
    • Reception Frequency: 1575.42 + / - 1.023 MHz
    • Reception sensitivity (Search): -136 dB max.
  • Wi-Fi Section
    • Frequency Ranges
      • IEEE 802.11 b/g/n (2.4 GHz)
      • IEEE 802.11 a/n/ac (5 GHz)
    • Channels
      • 1 – 11 ch (2.4 GHz)
      • 149 – 165 ch (5 GHz)
    • Security Protocols: WPA3 / WPA2-PSK (TKIP, AES)
  • General
    • Power Requirement 14.4 V DC (11–16 V allowable)
    • Operating temperature -4°F to +140°F (-20°C to + 60°C)
    • Power Output: 18 W RMS × 4
    • Power Output: Measured at 4 Ohms and ≤ 1% THD+N
    • S/N: 80 dBA (reference: 1 W into 4 Ohms)
    • Maximum Current Consumption: 15 A
    • Audio output level: Preout (Front, Rear): 4V/10k ohms (max.)
    • Preout (Subwoofer): 4V/10k ohms (max.)
    • Weight: 3 lbs. 9 oz
    • Chassis Size (W x H x D): 7-1/8” x 2” x 5-5/8”
    • Display Size (W x H x D): 8-1/2” x 5-3/8” x 1-1/2”

What's In The Box

  • i509-WRA-JK 9" Weather-Resistant Media Receiver for 2011-2018 Jeep® Wrangler
  • Wiring Harness
  • Display Power Harness
  • Side Mounting Brackets
  • USB Extension Cable
  • AUX/Pre-Out Harness
  • GPS Antenna
  • Direct Camera Adapter
  • Display Cable
  • Display Mounting Brackets
  • Source Unit HDMI Bracket
  • Microphone (12.5' Cable Attached)
  • GPS Antenna
  • Maestro Flashing Cable
  • Antenna Adapter
  • iDatalink Maestro Module
  • SAT Radio Antenna Adapter
  • Installation Hardware
  • Manual
