Alpine HDA-F60 Status Series 4-Channel Amplifier

Regular price $799.95
Sale price $799.95 Regular price
Save $-799.95 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Alpine HDA-F60 Overview

Product Information

Model: HDA-F60 | UPC: 793276084941

Specifications

What's In The Box

Product Information

Model: HDA-F60 | UPC: 793276084941

Superior Sound Performance

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

Features

  • Hi-Res Audio Playback (192kHz/24Bit)
  • High-Efficiency Digital Circuit Design
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Quick Connect Power & Speaker Terminals

Superior Sound

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.

Impressive Output

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-F60 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

Precise Sound Reproduction

The HDA-F60 features a high-efficiency digital direct design that ensures ultra-low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-played chassis and black direct board, bring the signal-to-noise ration up to 83 dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.

Incredible Reliability

Featuring Technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. The technology also stabilizes the amplifier output while driving the speakers for ultimate reliability.

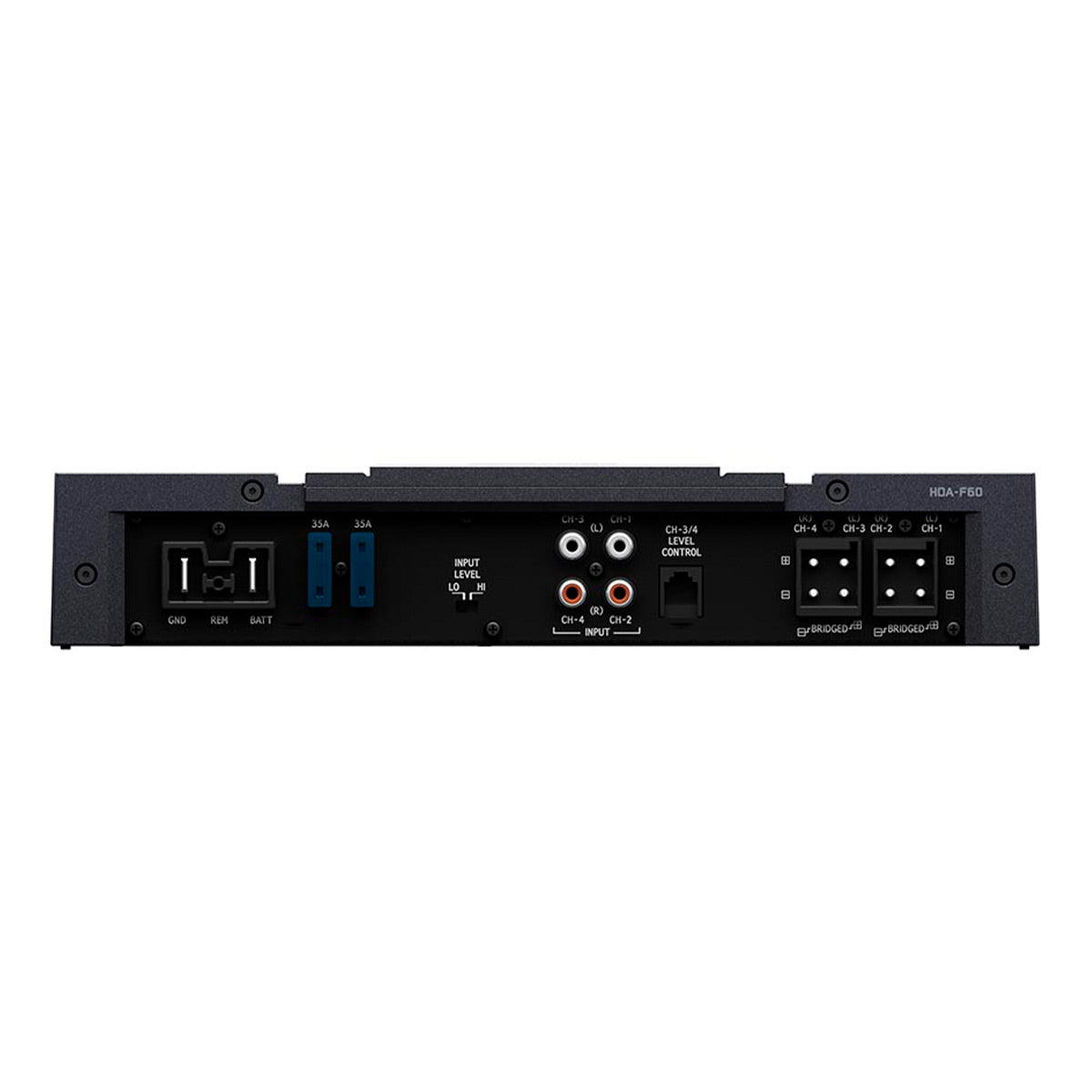

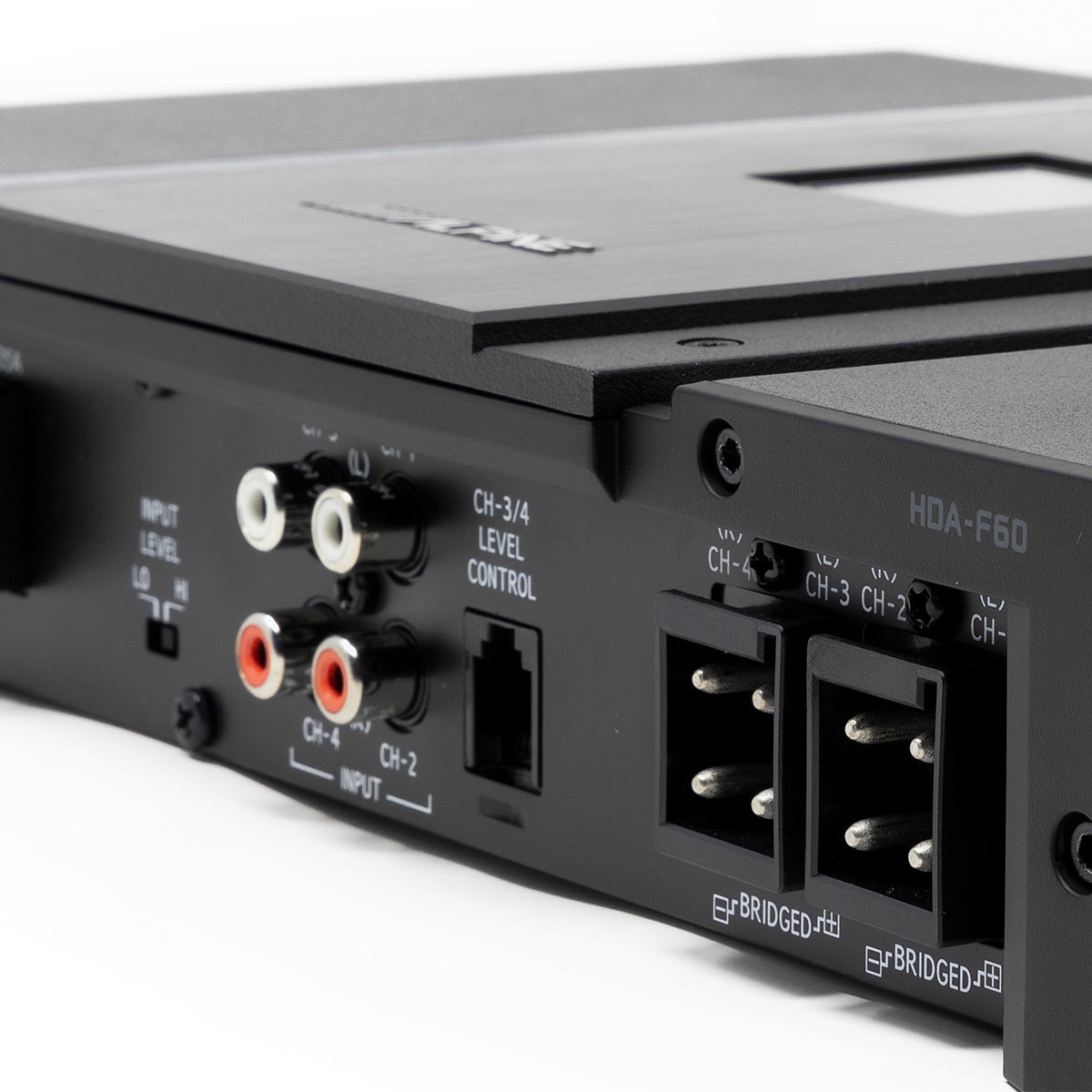

Easy Installation

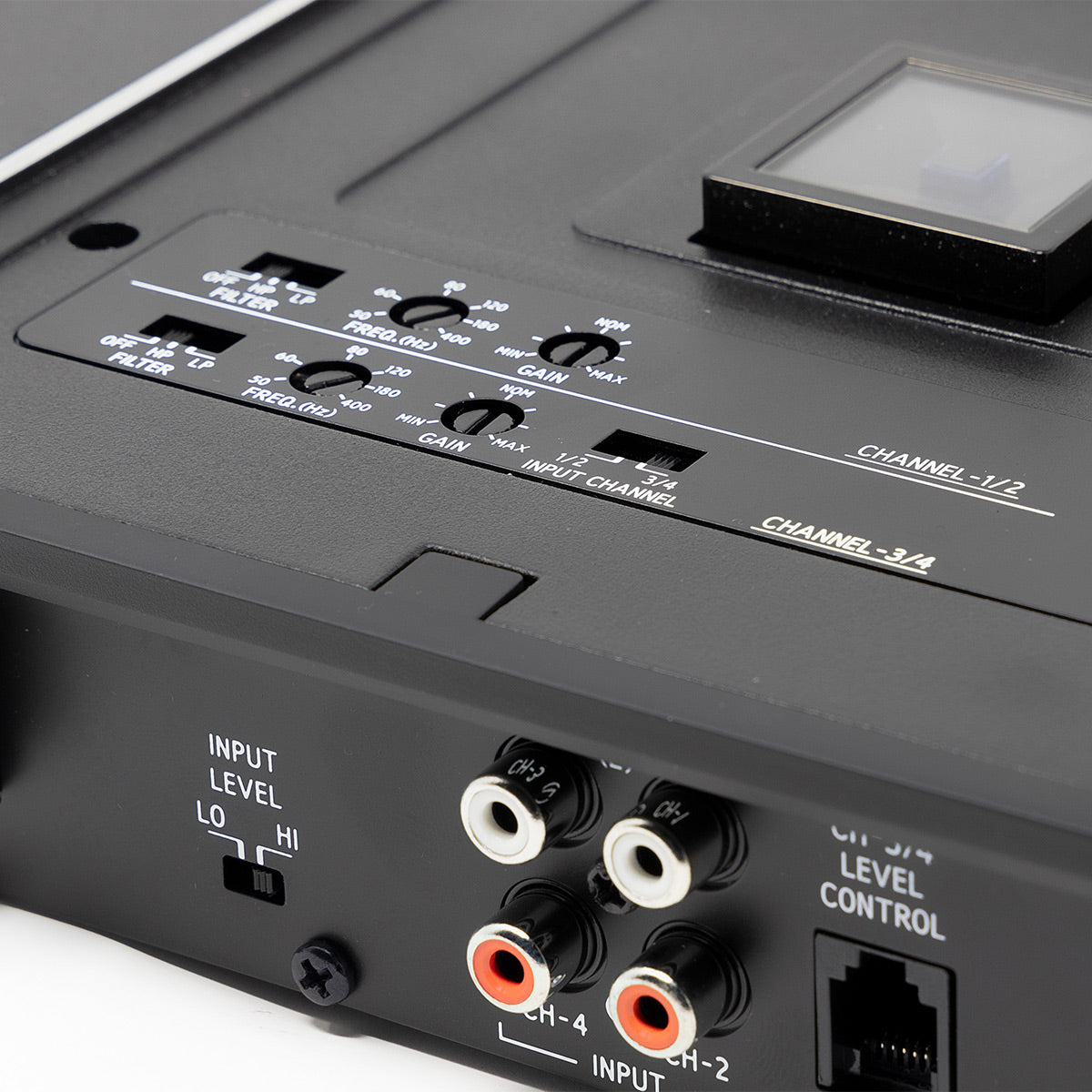

The HDA-F60 features Alpines quick-connect power and speaker connectors for quick and safe installation. The one0sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.

Specifications

  • Dimensions: 11.43” x 7.5” x 2.12”
  • Power Rating (14.4V, ≤1.0% THD+N)
    • 100W x 4 @ 4 Ohm
    • 150W x 4 @ 2 Ohm
  • Bridged: 300W x 2 @ 4 Ohm
  • THD+N: 0.02% (10W into 4ohm)
  • S/N Ratio: 87dB (1W into 4ohm)
  • Frequency response: 10-60kHz (-3dB)
  • Damping factor: 500
  • Selectable input level: HI/LO
  • Selectable 2/4ch input: Yes
  • Variable High pass / Low pass crossover: Yes
  • Auto-turn on with remote sensing: Yes

What's In The Box

  • HDA-F60 Status Series 4-Channel Amplifier
  • Mounting Hardware
  • Manual
