Alpine HCE-RCAM-WRA Spare Tire Rear-View Camera System for the 2007 - 2008 Jeep® Wrangler

Regular price $219.95
Sale price $219.95 Regular price
Save $-219.95 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Alpine HCE-RCAM-WRA Overview

Product Information

Model: HCE-RCAM-WRA | UPC: 793276242839

Specifications

What's In The Box

Product Information

Model: HCE-RCAM-WRA | UPC: 793276242839

The HCE-RCAM-WRA is an adjustable HDR rear-view camera system that mounts behind the spare tire of the 2007-2018 Jeep Wrangler JK.

Features

  • Includes HCE-C1100 HDR Rear-View Camera And Bracket System
  • Sliding bracketry allows you to position the camera perfectly
  • Mounts behind the spare tire and extends the camera through the spokes of the wheel
  • High Dynamic Range (HDR) technology
  • Waterproof (IP67)

Easy, Add-On Camera System

The HCE-RCAM-WRA lets you easily add an Alpine rear-view camera to your 2007-2018 Jeep Wrangler JK. It is compatible with Alpine in-dash screen systems, the factory Jeep screen or other aftermarket screens. If used with the factory screen, you can add the Alpine SGS-CH01 Camera Interface (sold separately) with Active Guide Lines, – without factory screen re-programming.

Versatile Installation

With tons of wheel choices for the Wrangler, you need a versatile camera that works with any of them. The HCE-RCAM-WRA consists of the HCE-C1100 Rear-View Camera and bracket that is mounted between the spare tire and the Wrangler’s 5x5 wheel pattern. The upper portion of the bracket can be positioned to the left or right of the wheel’s spokes, ensuring that the attached camera has a clear line of sight behind the vehicle and is not blocked by the wheel.

HDR Technology

Backing out of garages or riding through shady trails can be tough on a back-up camera. Standard cameras have difficulty managing changes in light, causing images to wash out and making it difficult to see what’s behind you at times. The HCE-RCAM-WRA has High Dynamic Range (HDR) technology for improved image quality. HDR technology can manage a wider range of luminance through the camera’s sensor as compared to standard cameras. Bright and dark areas are captured and adjusted for even exposure and white balance, preventing the image from being washed-out or too dark as you drive between sunlight and low-light conditions.

Specifications

  • Power Requirements: DC5.0V to DC7.0V
  • Ground Type: Negative ground type
  • Power Consumption: 0.57W (6V)
  • Output Image Composite Video: NTSC
  • Output Drive Capacity: 1Vp-p (75 Ω)
  • Image Sensor: 1/3.7 inch CMOS image sensor, aspect ratio 4:3
  • Effective Number of Pixels: 640 (horizontal)×480 (vertical) approximately 0.3 Mega pixels
  • Lens Section Focal length: f=1.34mm, brightness F=1:2.0
  • Angle of Field Horizontal: 131°, vertical: 103°
  • Automatic Image Adjusting: Function Automatic white balance adjustment
  • Water Resistance: IP67
  • S/N ratio: 40.5db or more
  • Resolution (Horizontal): 330 TV lines (center area)
  • Illumination Range: Approximately 1.5 to 100klx
  • Operating Temperature Range: -22 to +158F (-30 to +70°C)
  • External dimensions (W×H×D): 0.92” × 0.92” × 0.94” (excluding projection on the rear)
  • Weight (including cord): 0.05 lbs

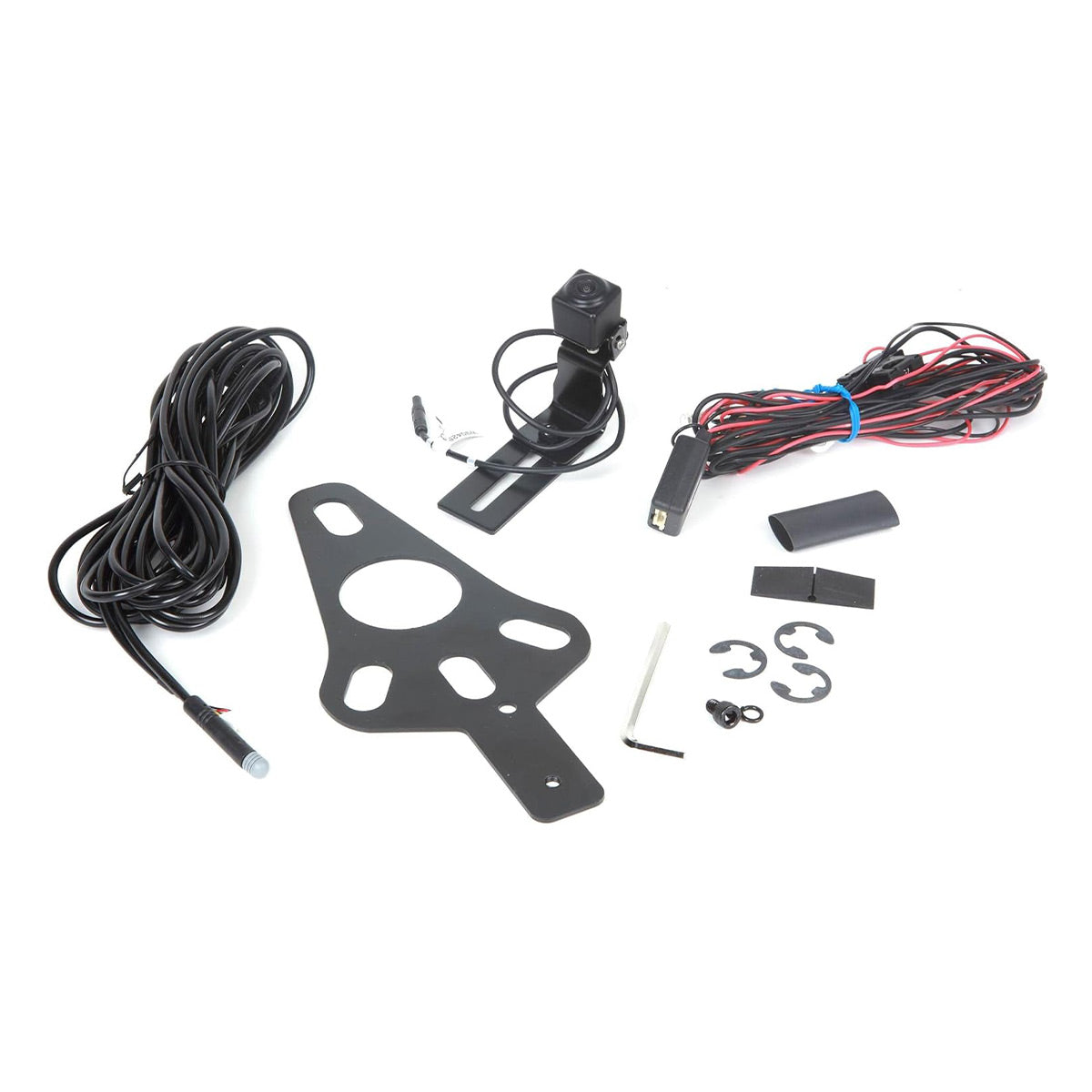

What's In The Box

  • HCE-RCAM-WRA Spare Tire Rear-View Camera System for the 2007 - 2008 Jeep® Wrangler

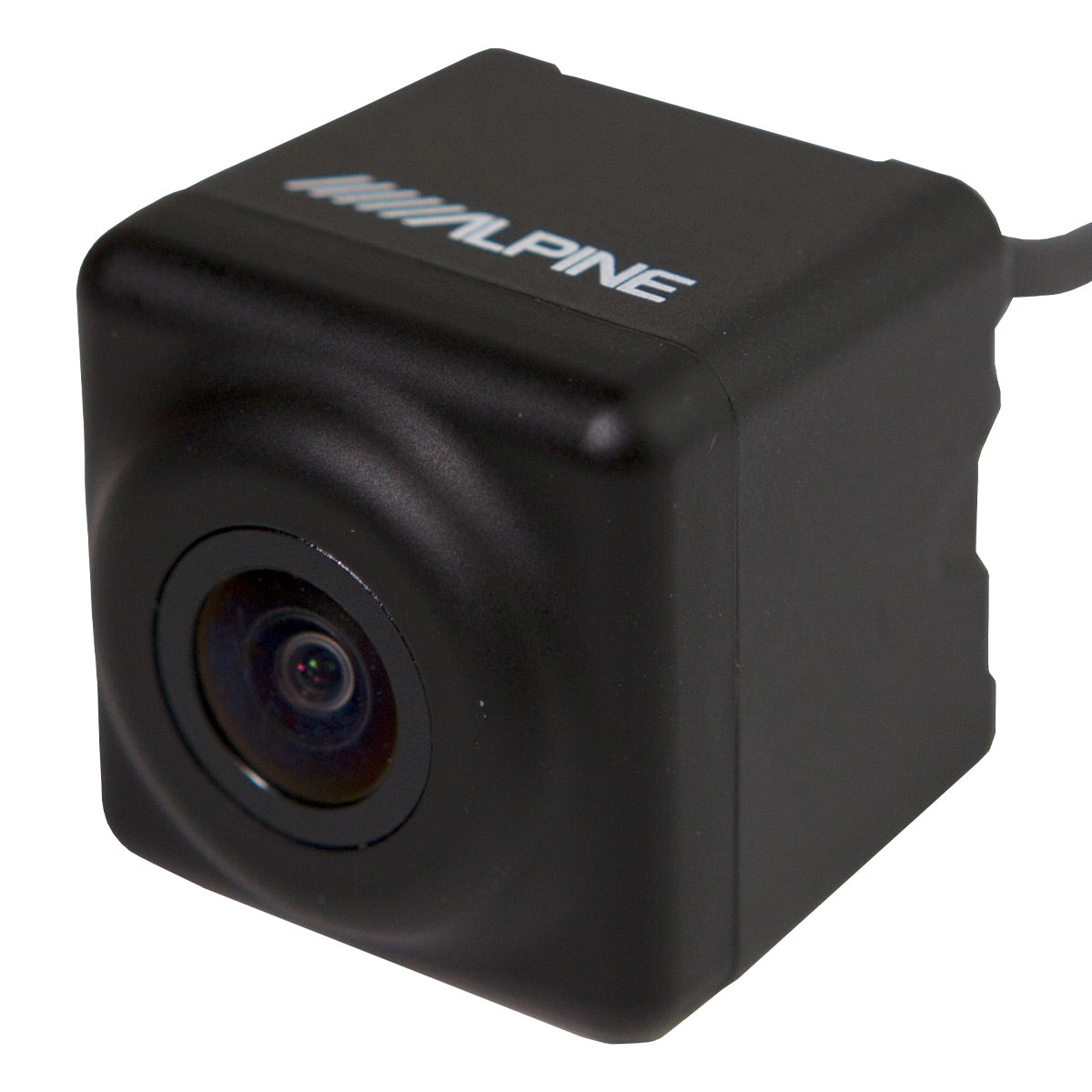

    • HCE-C1100 HDR Rear-View Camera
    • Bracket System
  • Installation Hardware
  • Manual
