AKG C414 XLS Overview

Product Information

Model: 3059X00050 | UPC: 885038025917

Specifications

What's In The Box

Product Information
Model: 3059X00050 | UPC: 885038025917

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLS also maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

Features

  • Engineered for Highest Linearity & Neutral Sound
  • Nine Selectable Polar Patterns
  • Three Attenuations Levels (-6, -12 ,-18 dB)
  • Three Different Switchable Bass-Cut Filters
  • Overload Warning with Audio Peak Hold LED

Specifications
  • Type: One-inch large diaphragm pressure gradient microphone
  • Polar Patterns: Nine, selectable
  • Open-Circuit Sensitivity: 23 mV/Pa / -33 dBV ± 0.5 dB
  • Frequency Range: 20 Hz – 20,000 Hz
  • Impedance: ≤ 200 ohms
  • Recommended Load Impedance: ≥ 2,200 ohms
  • Bass Cut Filter Slopes: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
  • Pre-Attenuation Pads: -6 dB, -12 dB, -18 dB, selectable
  • Equivalent Noise Level to IEC 60268-4: 20 dB, 0 dB pre-attenuation
  • Equivalent Noise Level to IEC 60268-4, A-Weighted: 6 dB-A, 0 dB pre-attenuation
  • Signal-to-Noise Ratio re 1 Pa, A-Weighted: 88 dB
  • Max SPL for 0.5% THD: 200 / 400 / 800 / 1600 Pa = 140 / 146 / 152 / 158 dB SPL, 0 / -6 / -12 / -18 dB pre-attenuation
  • Dynamic Range: 134 dB minimum
  • Max Output Level: 5 V RMS / +14 dBV
  • Operating Temperature: -10°C to +60°C
  • Relative Humidity: 95% at +20°C; 85% at +60°C
  • Powering: 48 V phantom power to IEC 61938
  • Current Consumption: Approx. 4.5 mA
  • Connector: 3-pin XLR, pin 2 hot
  • Dimensions: 2 x 1.5 x 6.3"
  • Net Weight: 300 g / 10.6 oz.

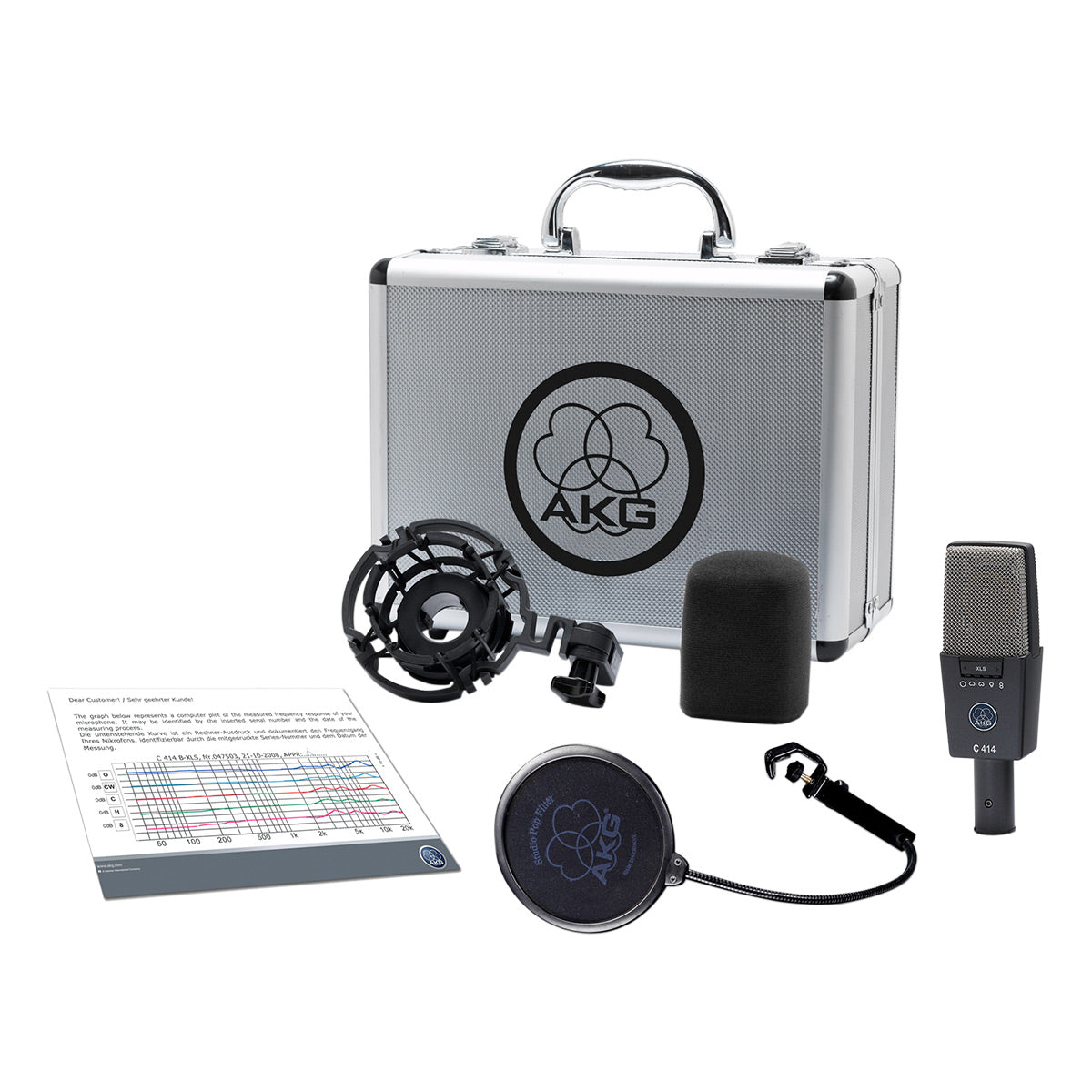

What's In The Box
  • C414 XLS Multi-Pattern Large-Diaphragm Condenser Microphone
  • H85 Universal Shock Mount
  • PF80 Pop Filter
  • W414 Windscreen
  • Manual
