Thorens

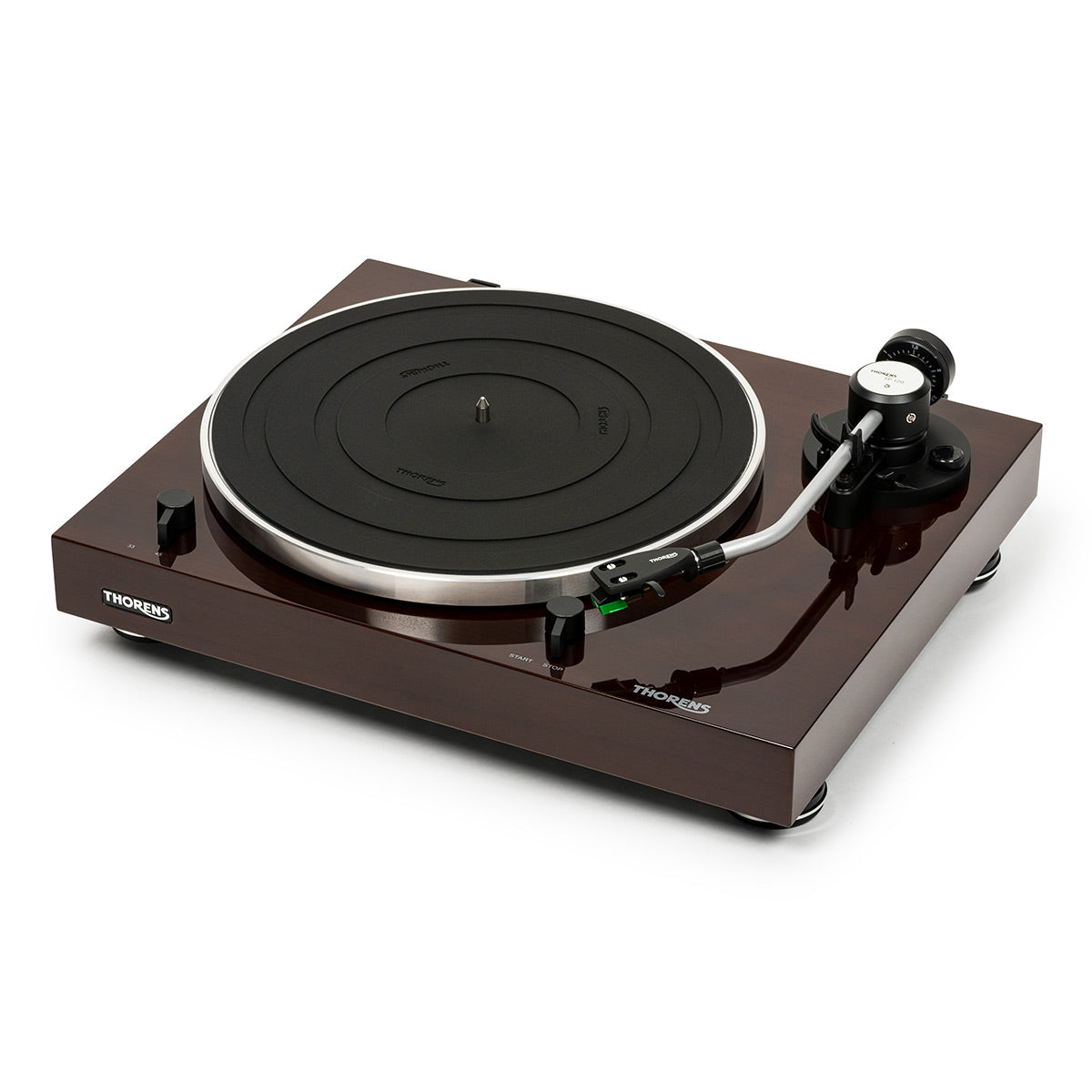

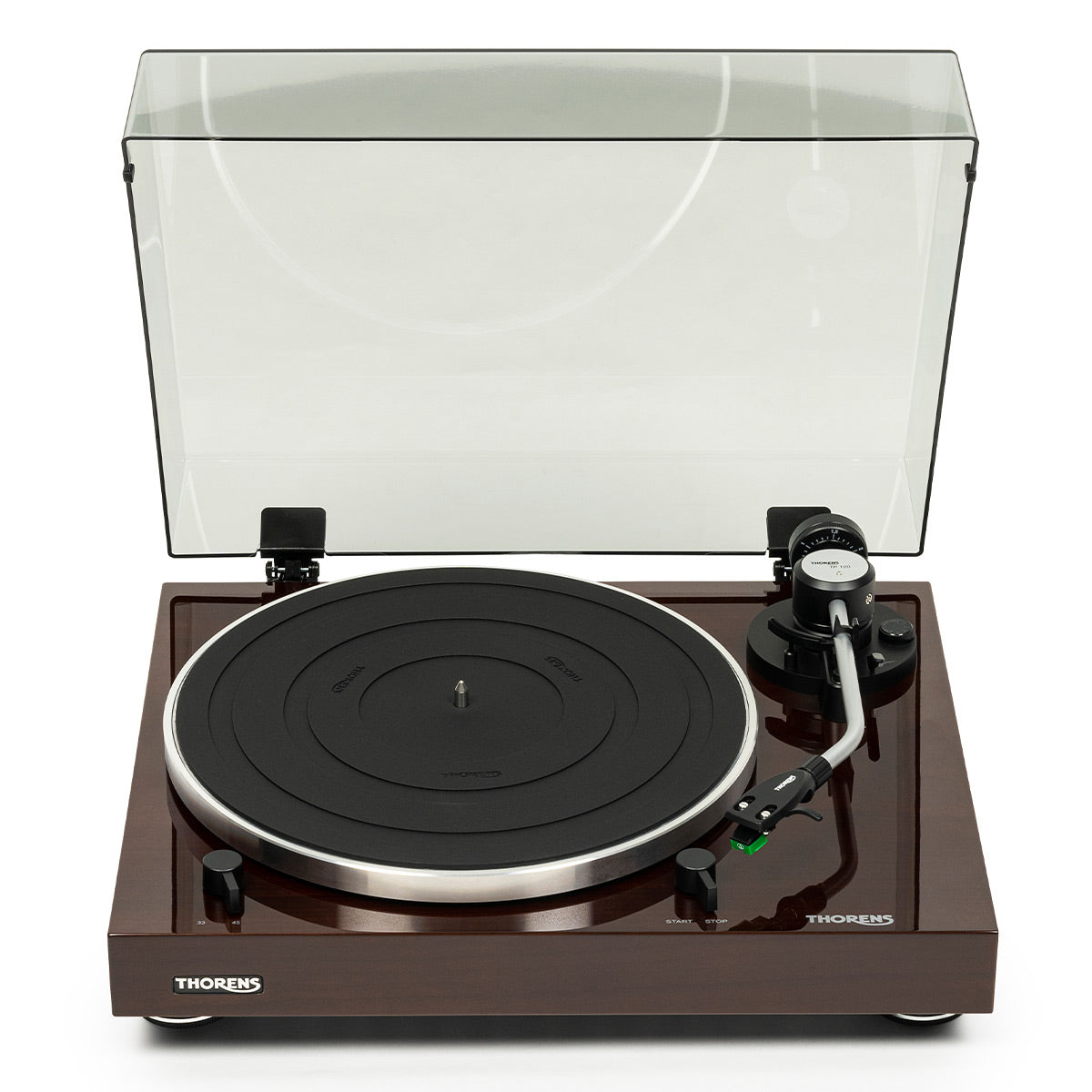

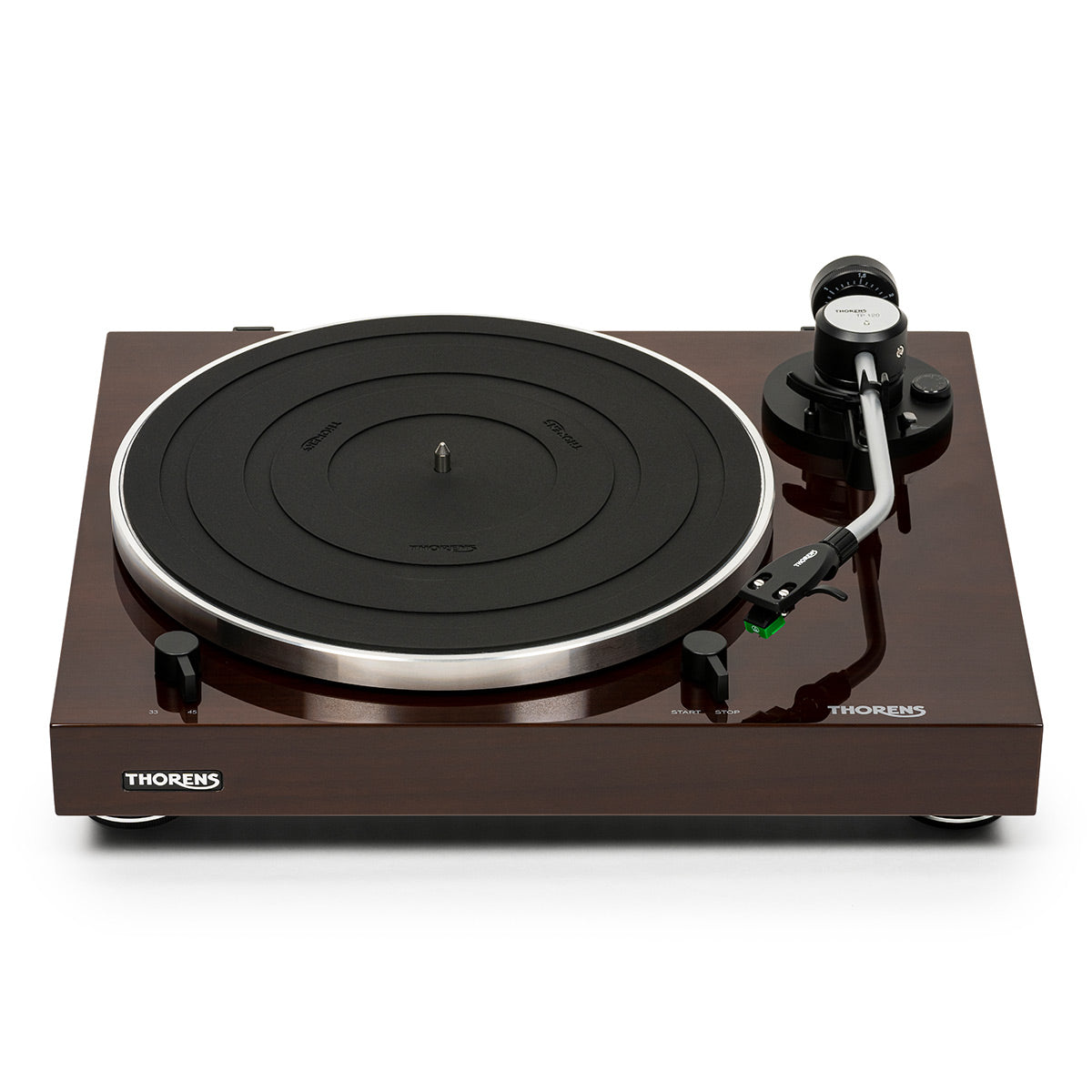

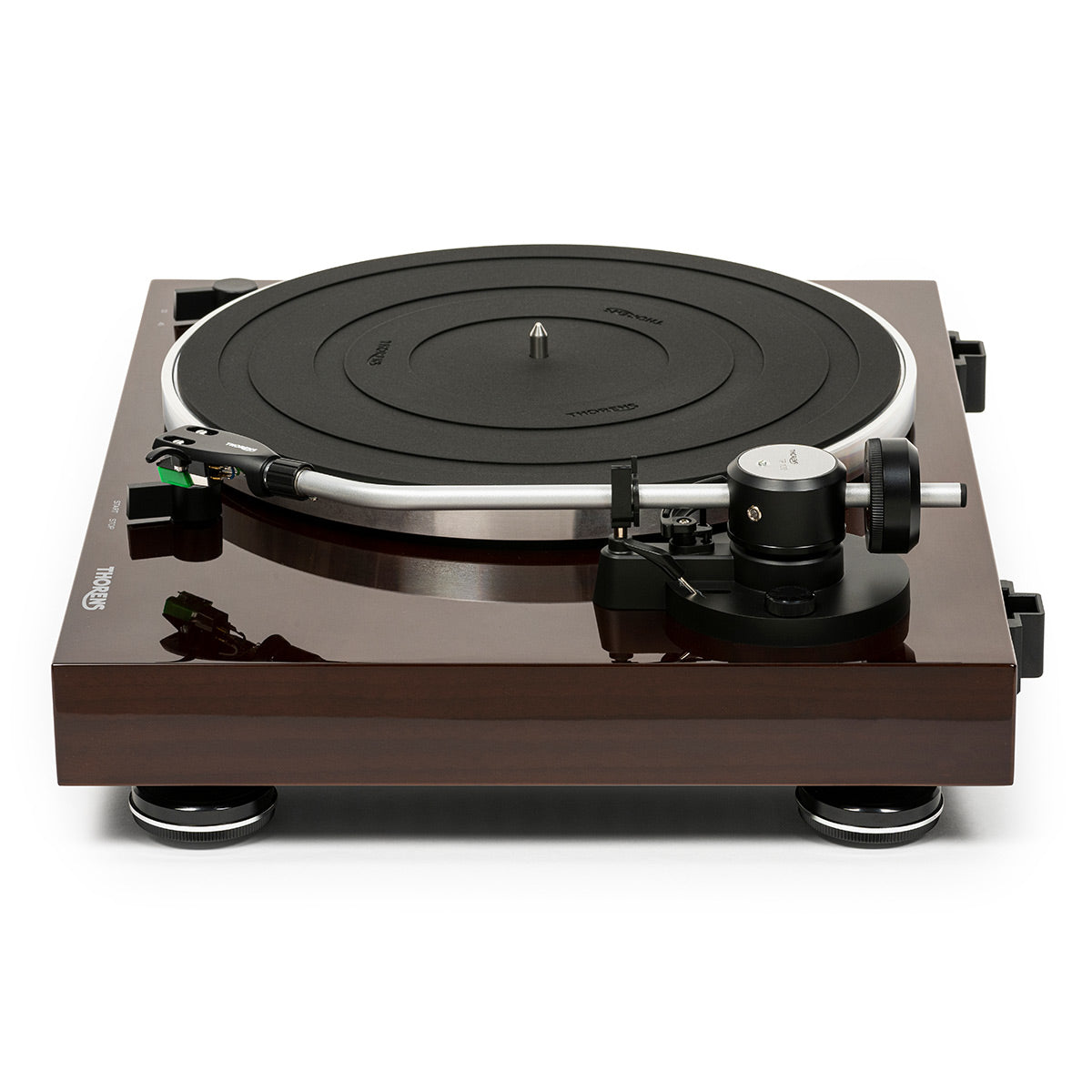

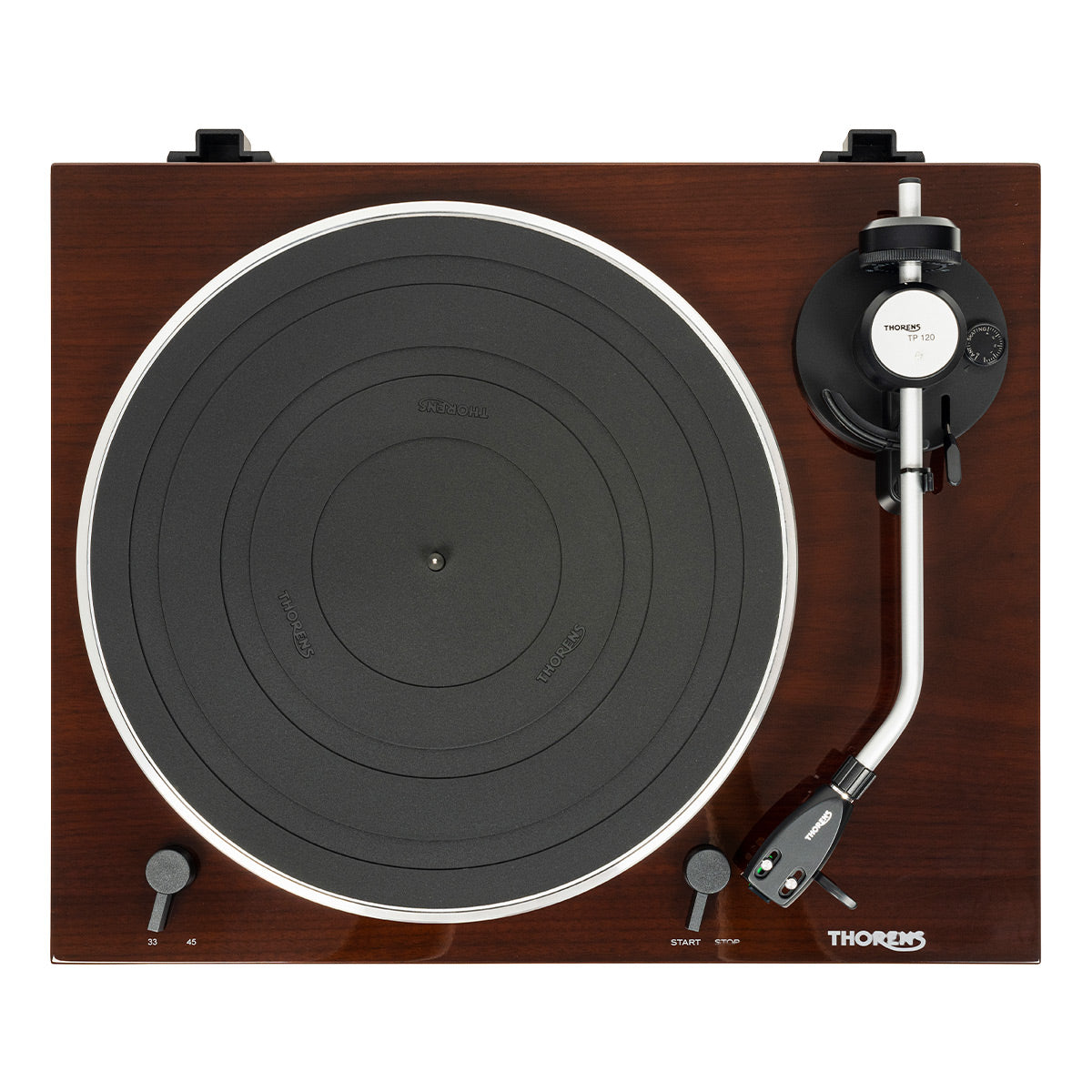

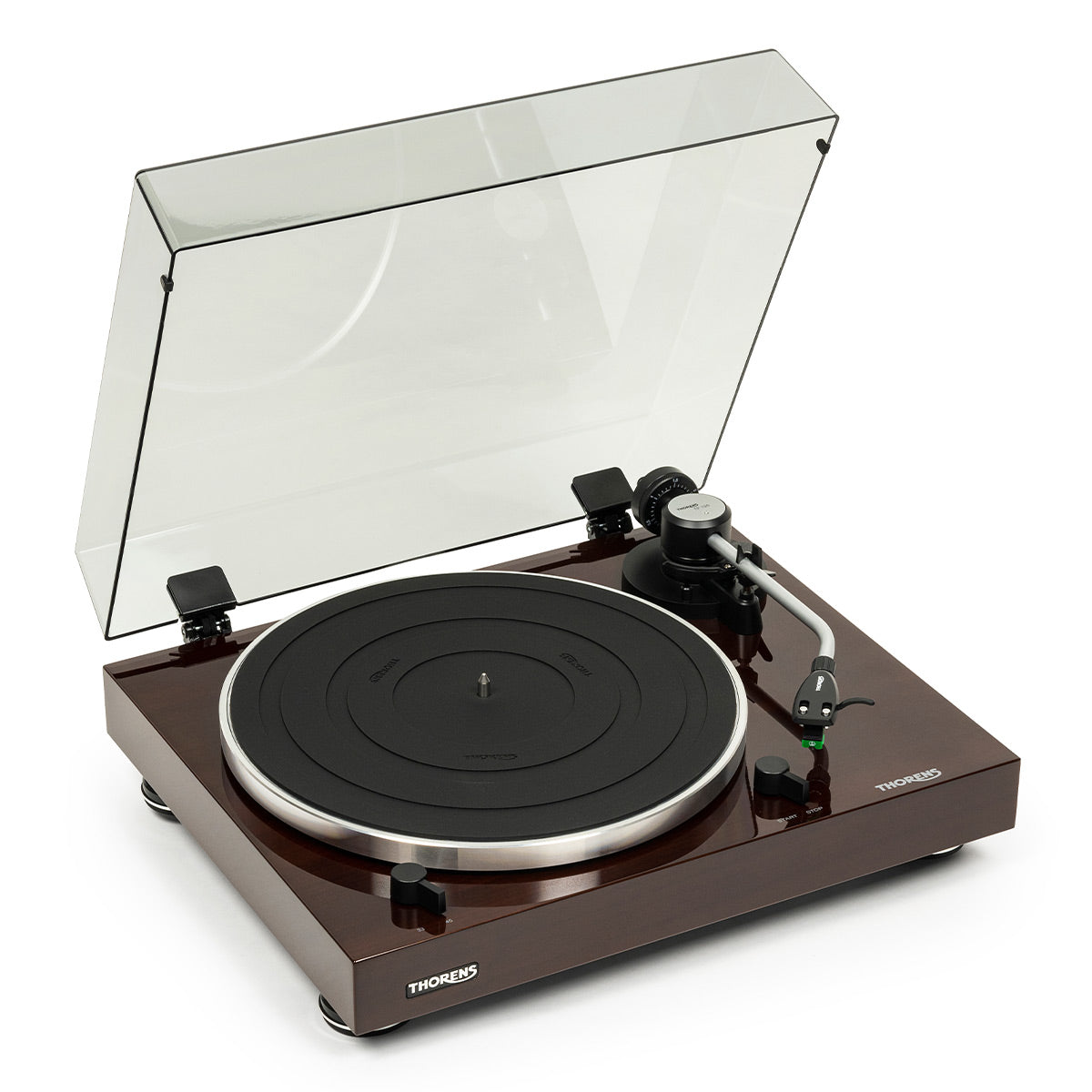

Thorens TD 204 Manual Two-Speed Turntable with Built-In Preamp & Pre-Installed Audio Technica AT95E Cartridge (High Gloss Walnut)

Regular price $1,099.00
Sale price $1,099.00 Regular price
Save $-1,099.00 (%)
OR

Pair it with...
World Wide Stereo 12
World Wide Stereo 12" Cork Turntable Slipmat - 2019 Edition $19.99
The Last Factory Heritage Record Preservative & Cleaning Kit with Microfiber Applicators
The Last Factory Heritage Record Preservative & Cleaning Kit with Microfiber Applicators $82.00

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Thorens TD 204 Manual Two-Speed Turntable with Built-In Preamp & Pre-Installed Audio Technica AT95E Cartridge (High Gloss Walnut) Overview

Product Information

Model: THOTD204-W | UPC: 4260623590890

Specifications

What's In The Box

Product Information

Model: THOTD204-W | UPC: 4260623590890

The THORENS TD 204 was developed for the audiophile beginner. A turntable with sound expansion potential for audiophiles.

Features

  • Smooth running belt drive
  • Thorens TP 120 9” tonearm with J shape
  • Detachable headshell with SME connector
  • Switchable MM phono preamplifier
  • Die-cast aluminum platter
  • Pre-installed Audio Technics AT95E cartridge

Finish

The surface finishes "black high gloss" and "walnut high gloss" fit seamlessly into the existing range with the typical THORENS design. The brand identity is underlined by the high processing quality and guarantees a long life like all Thorens turntables.

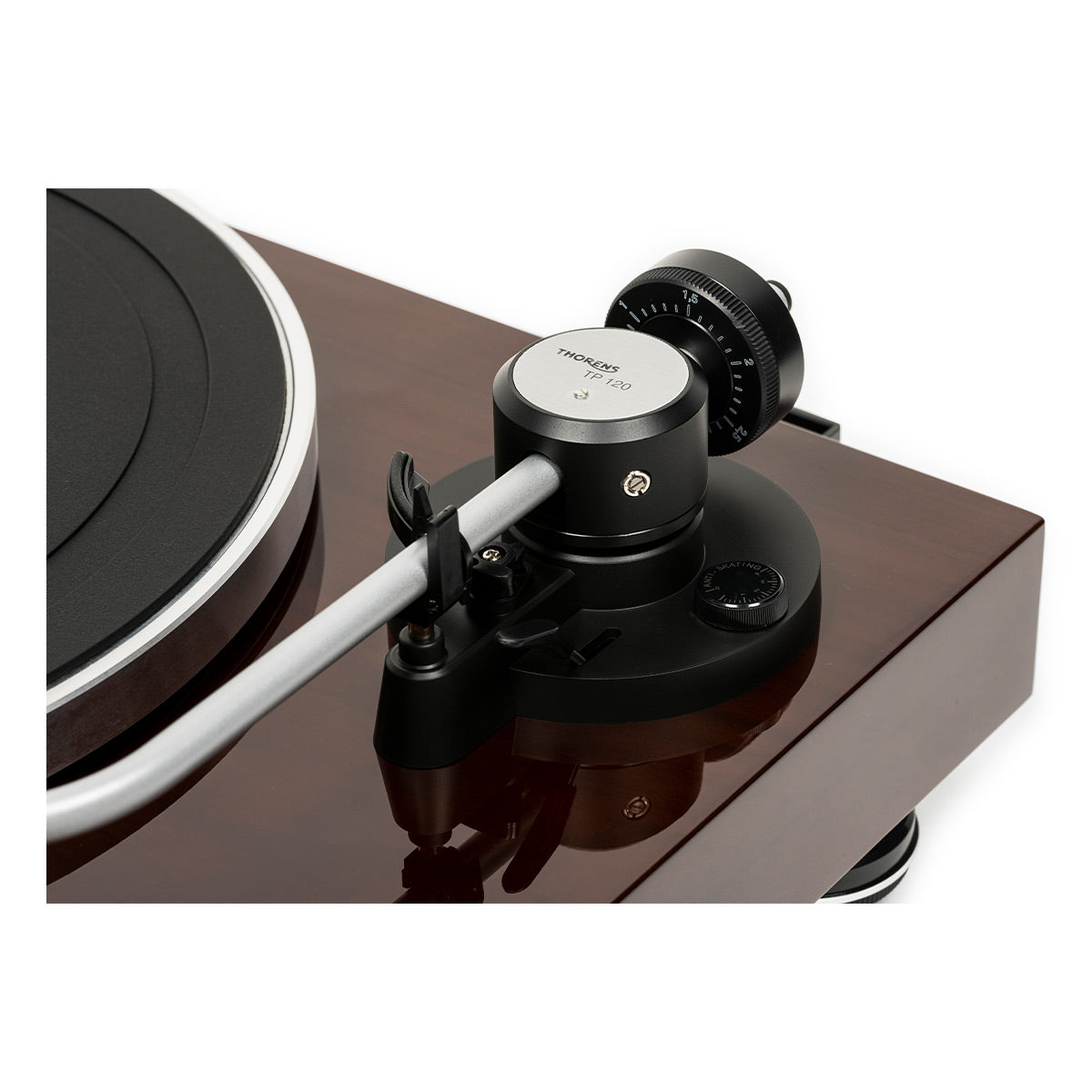

Tonearm

The newly developed TP 120 tonearm impresses with its high-quality bearing technology. The bearing play and the coefficients of friction could be reduced to an astonishingly low level for the price class by using modern bearings. The TP 120 is a real 9" J-shaped aluminum tonearm with an effective tonearm mass of 15 grams. The visual similarity to the larger models TP 150 and TP 124 is obvious and promises first-class properties.

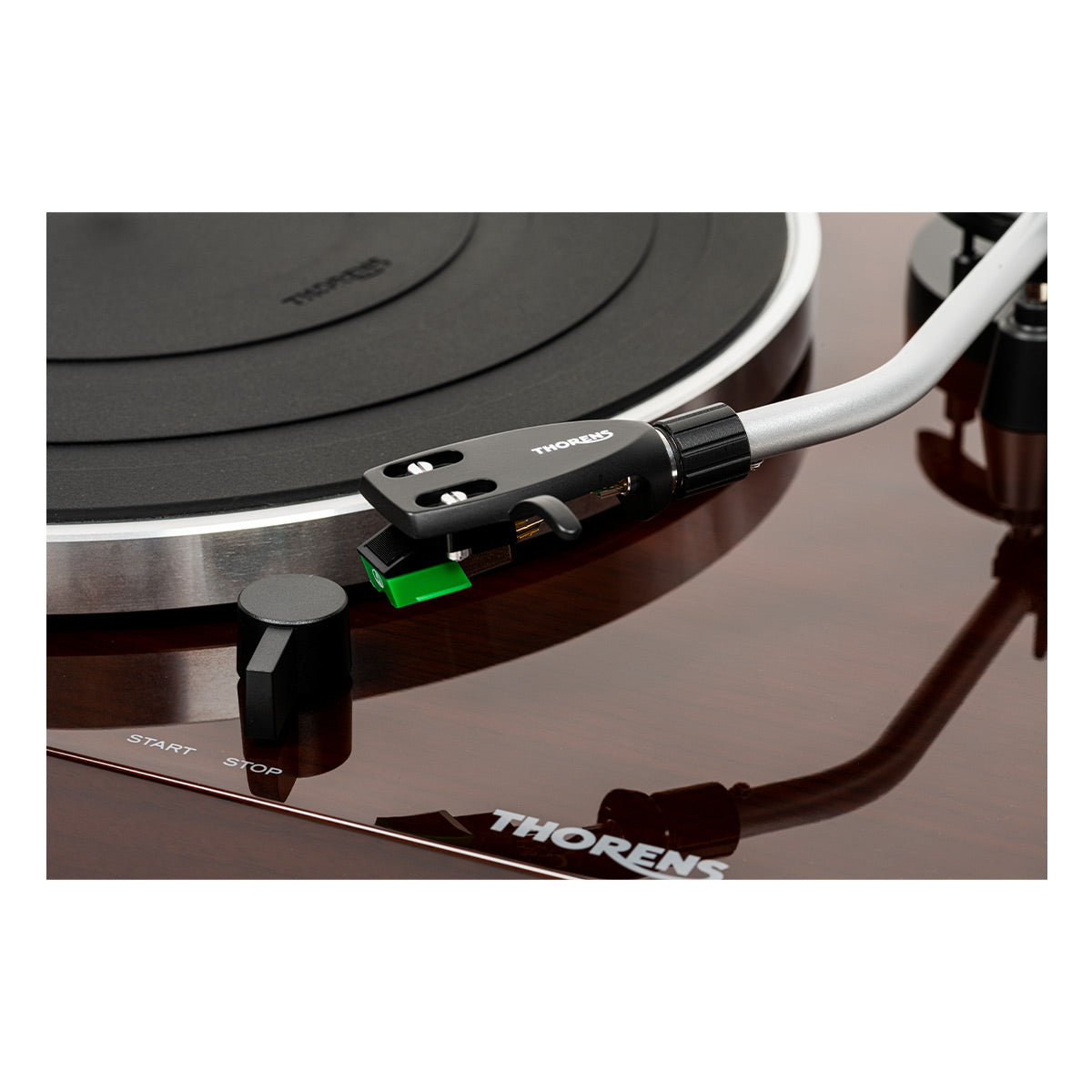

Headshell

The detachable headshell with SME connector is equipped with an AT95E from the Japanese pickup specialist Audio Technica. The skating compensation is carried out via a spring.

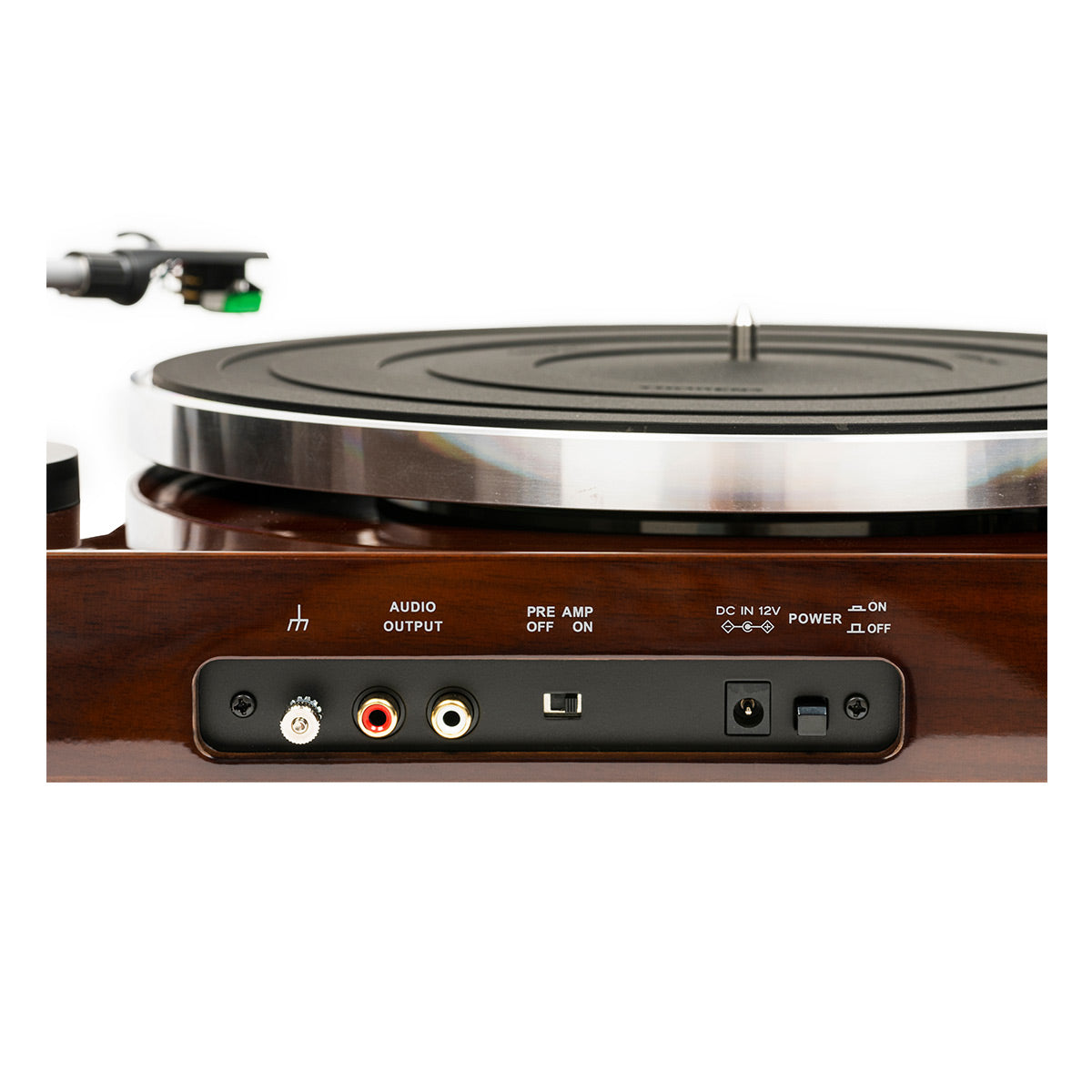

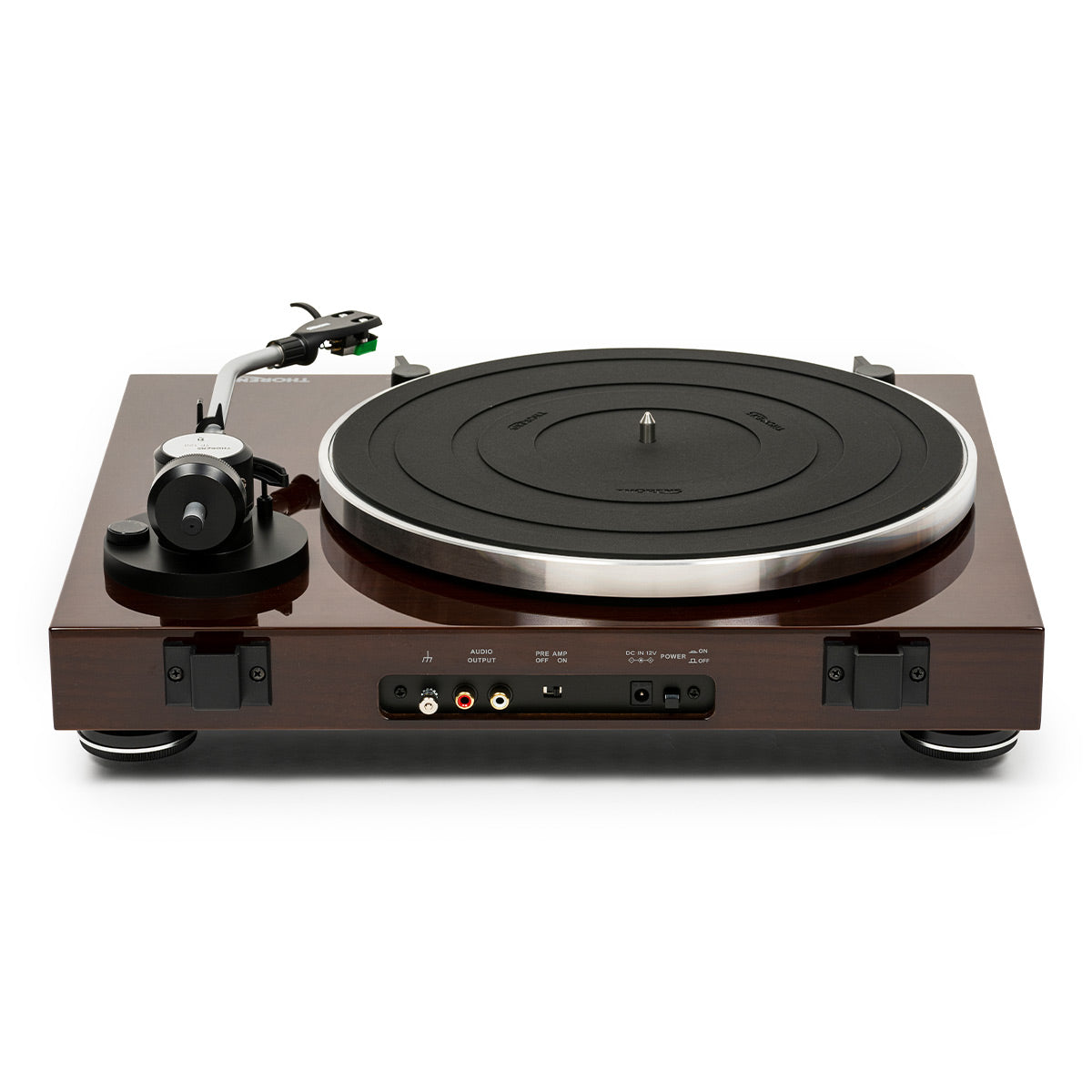

Connection

The connection terminal on the back shows high-quality RCA sockets for a solid connection to the amplifier. An integrated MM phono pre (which can be switched on/off) enables direct connection to a high-level input.

Platter

The platter, which is precisely manufactured from die-cast aluminum, is set in rotation by a precision drive belt. The plinth of the TD 204 rests on four vibration-damping feet.

Specifications

  • Turntable Section
    • Drive: System Belt Drive
    • Motor: DC Motor
    • Speed: 33 1/3 RPM, 45 RPM
    • Rotation Speed Variation: +/–2%
    • Wow and Flutter: 0.2%
    • Platter: Aluminum Die-cast
    • Diameter of Platter: 12“, 300mm
  • Tonearm Section
    • Material: Aluminum
    • Type: Static Balance, J Type
    • Effective Arm Length: 9“, 232,8 mm
    • Stylus Pressure Range: 0 to 4g
    • Supported Cartridge Weight: 3.5 bis 6.0g
    • Overhang: 17,8 mm
    • Anti-skating Adjustment: Supported
  • Cartridge Section
    • Type: MM type (Audio-Technica AT 95 E)
    • Stylus: Construction Bonded Diamond
    • Frequency Response: 20Hz to 20kHz
    • Channel Balance: 20 dB
    • Output balance: 2 dB
    • Vertical Tracking Angle: 20 degrees
    • Supported Load Impedance: 47k ohms
    • Output Voltage: 3.5 mV (1kHz, 3.54 cm/sec.)
    • Stylus Pressure: 2 g
    • Cartridge Weight: 5,7 g
    • Head-shell Weight: 10g (including Screws, Nuts and Wires)
  • Analog Output
    • Connector: RCA Pin jack (Gold-plated)
    • Power: AC 100 to 240V, 50/60Hz
    • Power Consumption: 1.5W (less than 0.5W at Standby)
    • Overall Dimensions (W x H x D): 16.53” x 4.76” x 13.97”
    • Weight Approx. 10.58 lbs

What's In The Box

  • TD 204 Manual Two-Speed Turntable with Built-In Preamp & Pre-Installed Audio Technica AT95E Cartridge
  • RCA Cable

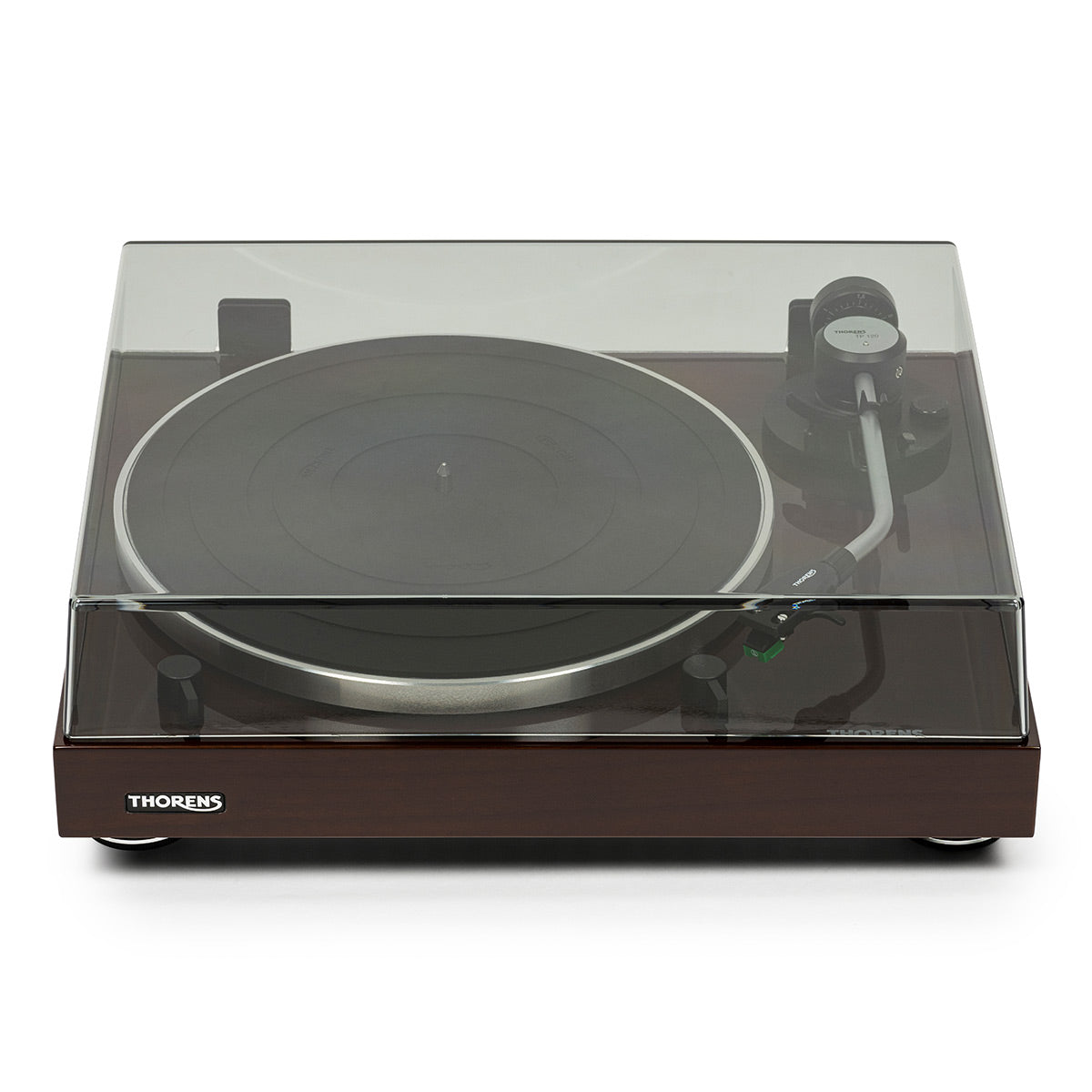

  • Dust Cover
  • Power Cord
  • Manual
