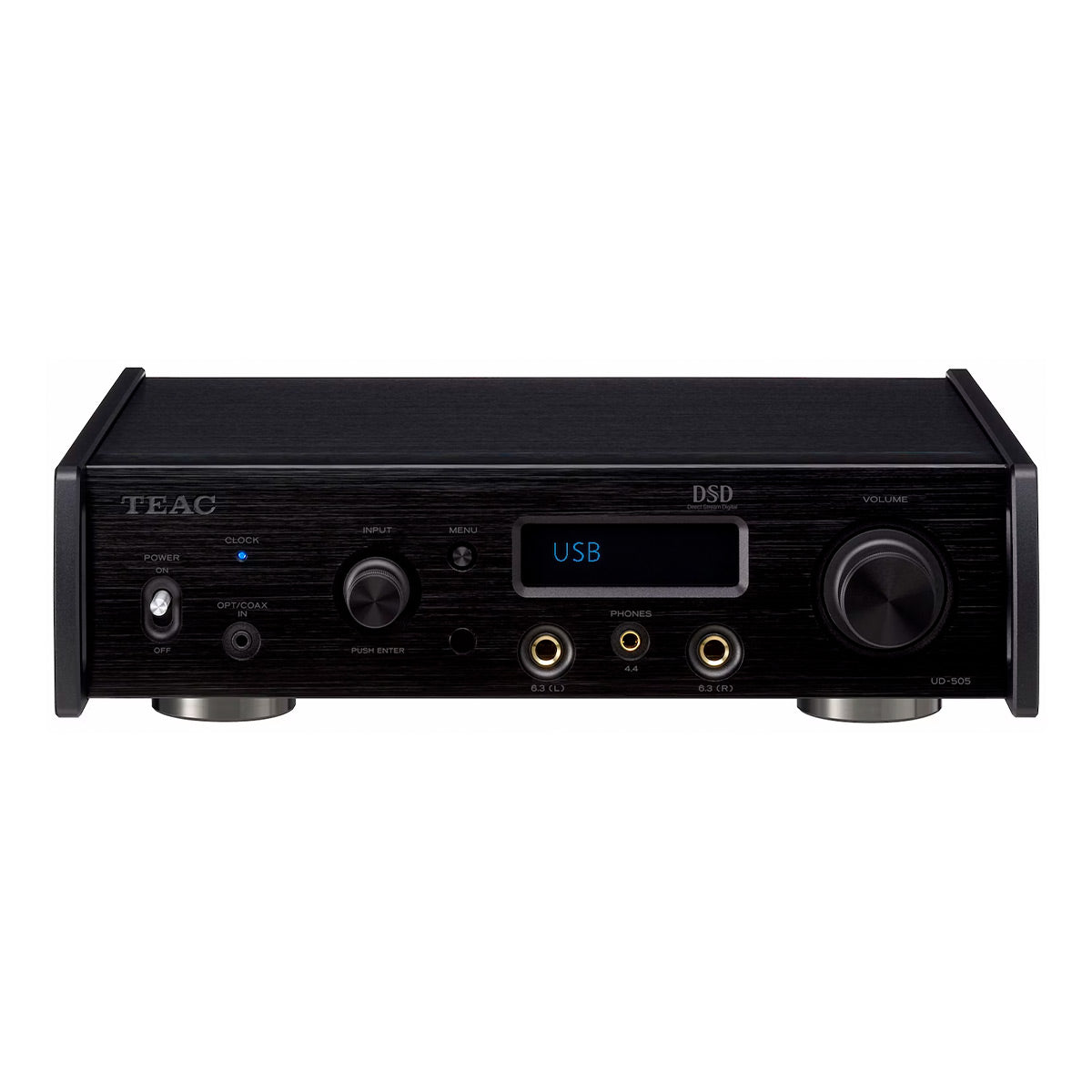

TEAC UD-505-X USB DAC & Headphone Amplifier

Regular price $1,849.99
Sale price $1,849.99 Regular price
Save $-1,849.99 (%)

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: UD505XB | UPC: 043774035120


What's In The Box

Product Information

Model: UD505XB | UPC: 043774035120

The UD-505-X is a class-leading dual monaural USB DAC with an integrated fully-balanced headphone amplifier that fuses high-end audio design concepts and TEAC’s decades of audio design experience, sized to fit in any space.


  • Hi-Res audio playback supporting DSD512 (22.5MHz) and PCM 768kHz/32-bit PCM
  • Dual monaural circuit design with an ESS Technology ES9038Q2M converter each for left and right channels
  • Dual on-board clocks for 44.1kHz and 48kHz frequencies
  • 7 types of PCM digital filters
  • Up-conversion up to 24.5MHz DSD and 384kHz/32-bit PCM
  • 10MHz external clock input
  • Bluetooth® receiver supporting LDAC™, Qualcomm® aptX™ HD, AAC and SBC
  • Original TEAC-HCLD2 enhanced-current output buffer circuit
  • Dual monaural circuit design
  • Dual toroidal-core power transformers for each channel
  • TEAC-QVCS quad volume control system
  • 4.4mm 5-polar Pentaconn jack and dual 1/4” (6.3mm) TRS jacks for balanced and active-ground drives
  • Full-dot OLED display with dimmer function
  • Newly-developed “Stressless Foot” design with three support points
  • “Bulk Pet” USB transferring technology with four transfer modes for various sound characters
  • Free TEAC HR Audio Player for Windows/Mac

ESS Technology ES9038 Q2M High-Performance DAC

TEAC has employed one DAC chip, which is a crucial component for digital audio, in each of the stereo channels. The ESS Technology ES9038Q2M SABRE32 Reference DAC that TEAC uses has a strong reputation in the high-end audio market. Using 32-bit HyperStream® II DAC architecture and Time Domain Jitter Eliminator, which are ESS original technologies, an outstanding dynamic range is realized and linearity is increased in the D/A conversion. As a result, clear and accurate audio playback with superior.

Dual Monaural Circuit and Fully-Balanced Design

A dual monaural circuit configuration is used throughout, from the power supply (including power transformers) to the D/A converters in the digital section and the Analog output stage. From the high-performance D/A converters to the massive toroidal-core power transformers, each element is configured for single-channel processing. This prevents mutual interference effects while reproducing a rich acoustic expressiveness. In addition, the Analog audio signals of both the left and right channels are processed in full balanced mode for lossless audio.

High-quality wireless audio streaming via Bluetooth®

In addition to conventional SBC and AAC codecs, the UD-505-X also supports LDAC™ (24bit/96kHz Hi-Res audio transmission), and Qualcomm® aptX™ HD, a codec that uses 24bit/48kHz format transmission. These allow you to playback playlists on your smartphone and tablet wirelessly.

Dual on-board clocks for 44.1kHz and 48kHz, and an external clock input

Instead of referencing an unstable and noisy PC clock during USB audio playback, a more accurate and on-board clock is generated by a high-precision, low phase-noise, audio-grade crystal oscillator for USB asynchronous transfer mode. The UD-505-X accommodates two onboard clocks exclusively for 44.1kHz and 48kHz sampling frequencies and applies the appropriate one to incoming digital signals - those that are multiples of 44.1k or 48k - to reproduce identical sound to the original by eliminating jitter effects on the audio signal.

In addition, an external 10MHz clock input is also provided, to synchronize with an even higher-precision master clock generator, such as the TEAC CG-10M/CG-10M-A, for yet further upgraded audio playback with excellent sound quality.

Up-conversion up to 384kHz/32bit PCM and 24.5MHz DSD

Employing RDOT-NEO (Refined Digital Output Technology NEO), a fluency algorithm that renders digital audio signals smoothly, the UD-505-X up-converts PCM digital signals up to 384kHz/32bit PCM and 24.5MHz DSD. With the up-conversion function activated, you will hear an improvement in quality, even with music you are familiar with.

"Bulk Pet" USB transfer technology for enhanced audio quality

When transferring large volumes of digital data for Hi-Res audio through USB cables, large variations can occur in the processing loads of the sending computer and the receiving USB DAC. This can cause sound to drop out and other problems to occur. However, with TEAC's USB transmission technology – dubbed "Bulk Pet" – a fixed amount of data is transmitted constantly, leveling out the processing burden on both devices and contributing to stable data transmission. Changing the processing burden on the computer directly affects audio quality so users can select the setting they prefer (from four transmission modes).

Seven types of PCM digital filter

This allows you to choose the best filter according to the input file format and music style. Since the filter can be changed with a single operation of the included remote control, you can easily enjoy the differences in the subtle sound nuances of each filter type. The unit can also be used with no enabled filters.

Dual high-capacity toroidal-core power transformers

Two oversized, high-capacity toroidal-core power transformers are employed in the UD-505-X, supplying stable, individual current sources for each of the left and right channels. This means neither channel will be affected by changes in the power consumption of the other during digital processing.

Improved TEAC-HCLD2 enhanced-current output buffer amp circuit

TEAC employed the TEAC-HCLD 2 for the analog output circuit. This is a further improved version of the TEAC-HCLD circuit enhanced-current output buffer amp that increases crucial current output capacity (HCLD: High Current Line Driver). This model now uses line buffer ICs with extremely high current output capacity. By using a positive-negative two-circuit structure for each channel, the drive can be differential with balanced output and parallel with unbalanced output. Transmitting audio signals without degrading their dynamism becomes possible with increased current supply capacity.

TEAC-QVCS four-circuit-structure high-precision volume control

TEAC-QVCS (Quad Volume Control System) is used for the volume circuit. This electronic volume control is a variable gain amp type comprised of four discrete circuits for left, right, positive and negative (L+, L−, R+, R−). By placing the variable gain amp volume control, which processes in analog, in the audio signal path on the circuit board, issues with noise resulting from diverging wiring are avoided. Furthermore, this TEAC-QVCS enables volume adjustment in 0.5dB increments, allowing you to set the perfect volume for your audio system or headphones.

Discrete circuit design with balanced drive

The UD-505-X's headphone amplifier circuit provides a balanced drive by using the TEAC-HCLD2 circuit, – comprised of four output transistors for each left and right channel – for headphone output. With challenging 600Ω high-impedance headphones, for example, the UD-505-X allows you to bring out the potential of these types of headphones.

Pentaconn, a single-plug connector for a balanced headphone drive

In addition to the dual conventional 6.3mm (¼") TRS jacks for a balanced connection, the UD-505-X employs a 4.4mm 5-pole headphone jack for a balanced drive. At the 6.3mm TRS jack, you can enjoy 3 kinds of drive types, an unbalanced connection to drive up to 2 sets of headphones, and an active-ground drive that is effective to improve the silence and present the sensitive sound, as well as a balanced connection.

An active-ground drive offers a new headphone drive mode

It forcefully drives the ground, by lowering the ground level to 0V, providing an ideal ground condition (rather than just connecting to the conventional ground). This means it also suppresses hum noise from the power supply and enhances the purity of silent pauses by lowering the noise floor. Subtle detail, such as the breathing of artists and the textures of sounds, will feel even more convincing.

Full-metal body for functionality and beauty

Since the entire body is constructed from metal panels that are resistant to external noise, intrusion of electromagnetic noise generated by computers and other devices is suppressed. A clean internal environment with little noise has been realized even in conditions that are difficult for audio equipment. Furthermore, 8mm-thick aluminum panels covering both sides of the all-metal chassis provide a strong and stable structure that prevents twisting and bending. Place it on a desk, side table, or in any other small space.

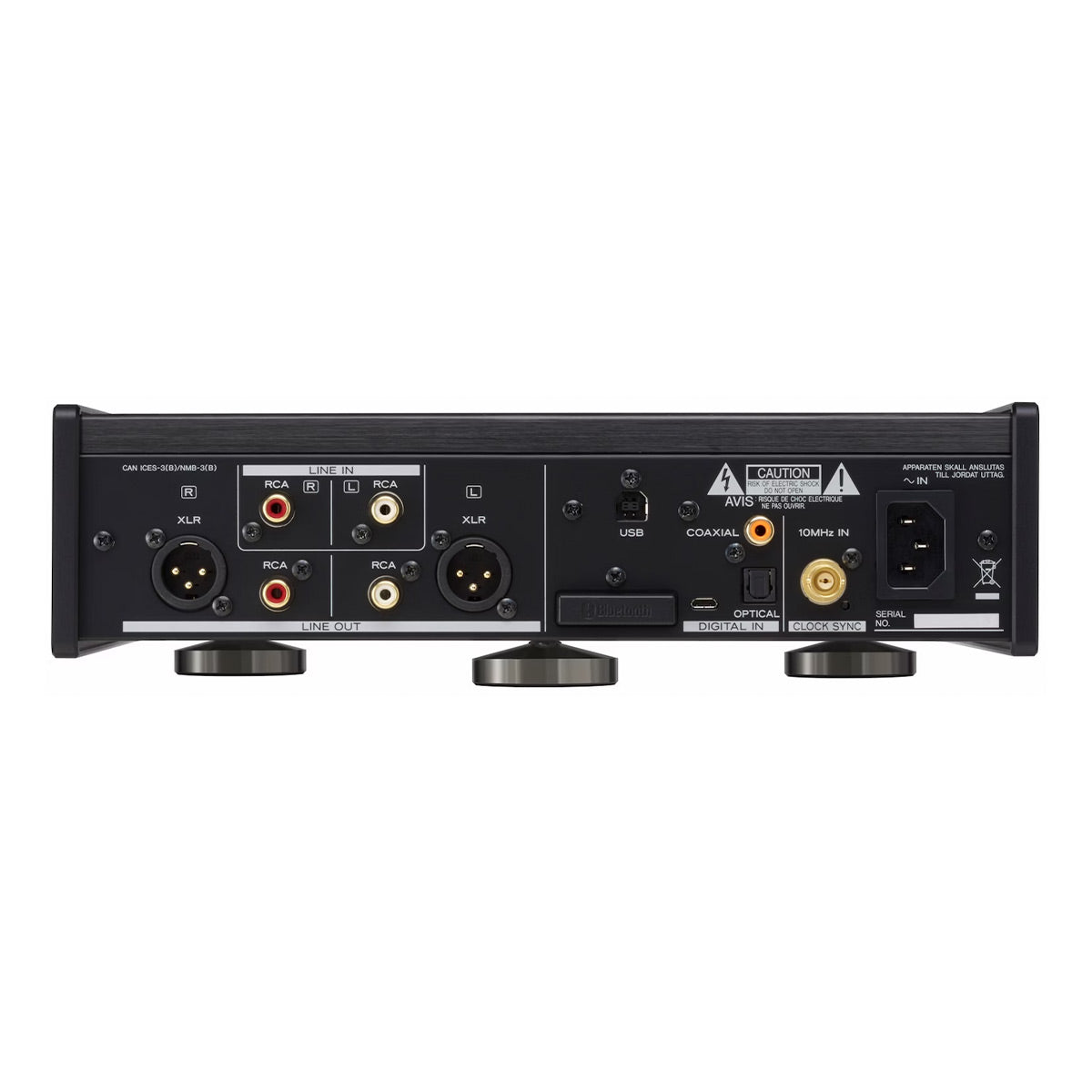

Symmetrically laid out XLR and RCA output jacks

The UD-505-X is equipped with both balanced and unbalanced analog audio outputs. A pair of XLR connectors and another pair of RCA connectors - each gold-plated - are symmetrically laid out, hinting at the dual monaural arrangement inside, and allowing a wide range of possible audio configurations. A wide-spaced pitch layout for the RCA outputs accommodates professional-grade plugs with large-diameter shells. The UD-505-X has a total of 5 digital inputs: USB audio, coaxial, optical on the rear panel, and a combination jack on the front panel (for coaxial and optical, supporting PCM 24bit/192kHz and DSD64 (2.8MHz) in DoP format).

Newly-developed Stressless Foot design

TEAC's newly-developed original Stressless Foot design with three support points enables stable placement of the unit so that it is not impacted by slight irregularities in the surface beneath it. Compared to the original feet used in previous designs, these feet are only partially fixed to the chassis. This design was developed based on the concept that by allowing the feet to vibrate freely, more natural sound reverberations could be achieved. The tops of the conical feet, which are made of machined steel, are attached so that they hang from the bottom of the chassis and swing freely when the unit is lifted. While maintaining a sense of placement like that of the pin-point spiked feet used by previous models, this design enables more natural rich reverberations.

Semi-floating design Top Panel

A semi-floating structure is newly used for the top panel. It has achieved a sound with an excellent sense of openness.


  • Supported formats
    • USB Input
      • PCM: 16/24/32-bit (44.1/48/88.2/96/176.4/192/352.8/384/705.6/768kHz)
      • DSD: 2.8/5.6/11.2/22.5MHz
    • Coaxial digital input
      • PCM: 16/24-bit (32/44.1/48/88.2/96/176.4/192kHz)
      • DSD: 2.8MHz (supported with 176.4kHz/24-bit DoP transmission)
    • Optical digital input
      • PCM: 16/24-bit (32/44.1/48/88.2/96/176.4/192kHz)
      • DSD: 2.8MHz (supported with 176.4kHz/24-bit DoP transmission)
  • DAC
    • USB DAC: Dual ES9038Q2M D/A converters made by ESS Technology, Inc.
    • Upconversion (maximum): 384kHz/32-bit PCM or 24.5MHz DSD
    • Digital filters
      • PCM filters: Linear phase fast roll-off, linear phase slow roll-off, minimum phase fast roll-off, minimum phase slow roll-off, apodizing fast roll-off, hybrid fast roll-off, brick wall, off
  • Audio inputs
    • USB (rear): USB B port, USB 2.0, asynchronous mode transfer/bulk transfer
      • Compatible software: TEAC HR Audio Player
    • Coaxial digital (rear): RCA pin x1 (gold-plated)
      • Input level: 0.5Vp-p
      • Input impedance: 75Ω
    • Optical digital (rear): TOS-link x1
      • Input level: -24.0 to -14.5dBm peak
    • Coaxial digital (front): 1/8” (3.5mm) mini×1 (combined with optical digital input, detected automatically)
      • Input level: 0.5Vp-p
      • Input impedance: 75Ω (1/8” Mini - RCA conversion cable included.)
    • Optical digital (front): 1/8” Mini Optical×1 (combined with coaxial digital input, detected automatically)
      • Input level: -24.0 to -14.5dBm peak
    • Line in (rear): RCA pin x1 (gold-plated)
      • Input impedance: 24kΩ
      • Input sensitivity: 130mV9
  • Bluetooth ®
    • Bluetooth version: v4.2
    • Output class: Class 2 (Range: approx. 33ft/10m)
    • Supported profiles: A2DP, AVRCP
    • Content protection: SCMS-T
    • Supported codec: LDACTM, Qualcomm® aptXTM HD, aptXTM, AAC, SBC
    • No. of paired devices: Maximum 8 devices
  • Audio Outputs
    • XLR balanced: XLR x1 pair (gold-plated)
      • Output level Fixed: (0dB), Fixed (+6dB), variable, output off (selectable)
      • Maximum output level
        • 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB))
        • 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB))
        • 12.0Vrms (1kHz, full scale, into 10kΩ, when set to variable)
      • Output Impedance: 188Ω
    • RCA unbalanced: RCA pin x1 pair (gold-plated)
      • Output level: Fixed (0dB), Fixed (+6dB), variable, output off (selectable)
      • Maximum output level
        • 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB))
        • 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB))
        • 6.0Vrms (1kHz, full scale, into 10kΩ, when set to variable)
      • Output impedance: 150Ω
  • Headphone outputs
    • Connector 1: 1/4” (6.3mm) TRS stereo jacks×2 (gold-plated)
      • Polarity (balanced): Tip: HOT, Ring: COLD, Sleeve: NC (GND)
      • Polarity (unbalanced): Tip: L, Ring: R, Sleeve: GND
    • Connector 2: 4.4mm 5-pole Pentaconn×1 (gold-plated)
      • Polarity (balanced) Tip: L+, Ring1: L-, Ring2: R+, Ring3: R-, Sleeve: GND
    • Maximum output
      • Balanced: 700mW + 700mW (into 32Ω)
      • Unbalanced
        • 500mW + 500mW (into 32Ω×1)
        • 350mW + 350mW (into 32Ω×2)
        • Active-ground: 500mW + 500mW (into 32Ω)
    • Supported impedance: 16 to 600mW
  • Clock
    • Internal clock
      • Type: Crystal oscillator
      • Number of clocks: 2 (44.1kHz and 48kHz)
    • External clock input
      • Connector: BNC (gold-plated)
      • Input frequency: 10MHz
      • Input impedance: 50Ω
    • Input level
      • Rectangle wave: equivalent to TTL levels
      • Sine wave: 0.5 to 1.0 Vrms
  • Audio performance
    • Frequency response: 5 – 80,000 Hz (+1/–5 dB, 192kHz PCM input, RCA output, digital filter on)
    • Total harmonic distortion: 0.0015% or less (192kHz PCM input, RCA output, digital filter on)
    • S/N ratio: 110dB or higher (192kHz PCM input, RCA output, digital filter off)
  • Operating systems supported by drivers
    • Windows
      • Windows10
      • Windows 8.1 (32/64-bit editions)
      • Windows 8 (32/64-bit editions)
      • Windows 7 (32/64-bit editions)
    • Macintosh
      • Big Sur (macOS 11.0)
      • Catalina (macOS 10.15)
      • Mojave (macOS 10.14)
      • High Sierra (macOS 10.13)
      • Sierra (macOS 10.12)
      • El Capitan (OS X 10.11)
      • Yosemite (OS X 10.10)
  • General
    • Power Supply: AC 120V 60Hz (US/Canada)
    • Power Consumption: 18W (0.3W at Standby)
    • Dimensions (W x H x D including protrusions): 11.4” × 3.3” × 9.8”
    • Weight: 9.03 lbs

What's In The Box

  • UD-505-X USB DAC & Headphone Amplifier
  • Power Cord
  • RCA mini plug adapter cable
  • Remote control (RC-1330)
  • (3) Feet cushions
  • Owner's Manual
