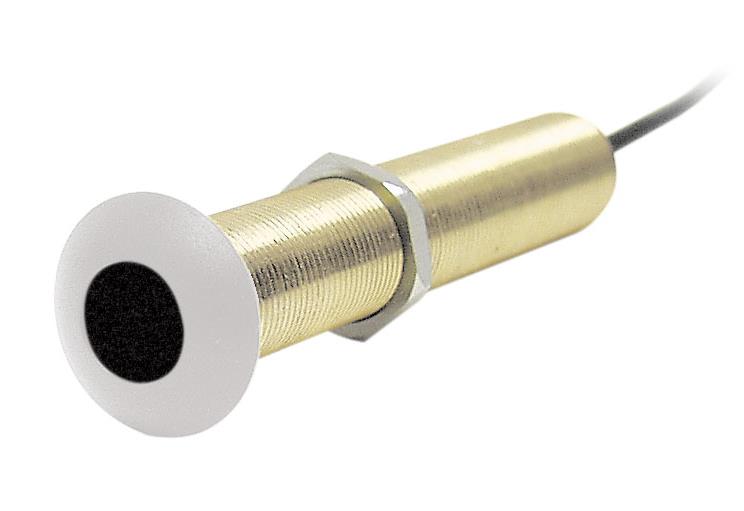

SpeakerCraft IRC 1.0 Flush Mount Mini Infared Receiver

Regular price $246.00
Sale price $246.00 Regular price
Save $-246.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

SpeakerCraft IRC 1.0 Flush Mount Mini Infared Receiver Overview

Product Information

Model: ELT01100 | UPC: 664254283741

Product Documents

Product Information

Model: ELT01100 | UPC: 664254283741
  • Unique Quad 3.5mm Mini-Phone Type Connector
  • Exclusive Ambient Noise Suppressor
  • Includes Four Snap-On Color Cap Bezels (Almond, Black, Bone and White)
  • Small Unit Designed To Mount Flush with a Cabinet or Wall, Leaving Only a Circular Bezel Exposed to the Room
  • May Be Mounted Behind Grilles of In-Wall Speakers
  • IR Activity and System Status LEDs
  • Frequency Range: 28 - 90 kHz
  • Requires Regulated Power Supply, Terminator Block, and Emitters
  • Includes ALR Bezels for Use in Situations with Interference from Plasma Displays or CFL Units
  • The Two Sizes of Ambient Light Restrictor Bezels Reduce the IR Reception Angle from 100 to 60 or 70
  • Dimensions: (Shaft Dia x L) 15/32" x 2 5/8" (12 mm x 67 mm) Color Cap Bezel: (Dia x L) 47/64" x 1/8" (19 mm x 3 mm) ALR Bezel: (Dia x L) 47/64" x 23/64" (19 mm x 9 mm)
Among the unique features of these receivers is an exclusive Ambient Noise Suppression (ANS) system. It acts to push down IRI, CFL, EMI, or ESI noise sources so that stronger signals from IR remotes have adequate margin for command of the controlled component.
