Sony Mobile XM-GS6DSP GS-Series 6-Channel Amplifier with Built-In DSP

Regular price $398.00
Sale price $398.00 Regular price
Save $-398.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Nov 30 – Thu, Dec 7

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Sony Mobile XM-GS6DSP GS-Series 6-Channel Amplifier with Built-In DSP Overview

Product Information

Model: XM-GS6DSP | UPC: 027242905733

Specifications

What's In The Box

Product Information

Model: XM-GS6DSP | UPC: 027242905733

XM-GS6DSP GS-Series 6-Channel Amplifier with Built-in DSP

Supercharging Your Car Audio, Behind the Scenes

This powerful class-D amplifier boosts the sound of your factory-fitted car stereo, without changing the look of your dashboard.

6-Channel Class-D Amplifier

Transform in-car sound with up to 780W RMS (1500 W max) of total power.

DSP with 4.1-Channel Time Alignment

Control speaker setup, time alignment, and sound settings.

Customized Sound with App Control

Personalize from your smartphone using Sony I Music Center.

Time Alignment Optimizes Sound for Every Seat

Wherever you sit in your car, you’ll be closer to some speakers than others, which affects how the music sounds. Time Alignment re-calibrates the signal so you’re always in the correct sound field for a more natural listening experience.

Customization at Your Fingertips

Pair your smartphone with the XM-GS6DSP and take charge of the sound. Adjust equalizer and speaker settings, volume levels, and fader controls from the comfort of your seat with a simple touch of your smartphone screen.

Stream the Music You Love

Unleash your tracks and playlists. Stream music to your car stereo from all of your favorite apps with BLUETOOTH wireless connection.

Power Meets Precision

With 6 channels of class-D amplification, the XM-GS6DSP drives a variety of speaker configurations. Fill your car with 45 W x 4 (4 Ω) of clean and dynamic sound plus 600W (2 Ω bridged) of subwoofer power. All from a compact amp, with minimal interference for audio that’s crystal clear, even at its loudest.

Premium Components

High-quality electrolytic capacitors at power input and output stages provide responsive bass. Premium inductors with low resistance OFC wire cut RF noise for a rich, lively sound.

Heavy Duty Aluminum Case

A sturdy, heat sink-integrated aluminum case protects the amp during your drive, preventing unwanted vibrations so music stays stable and true.

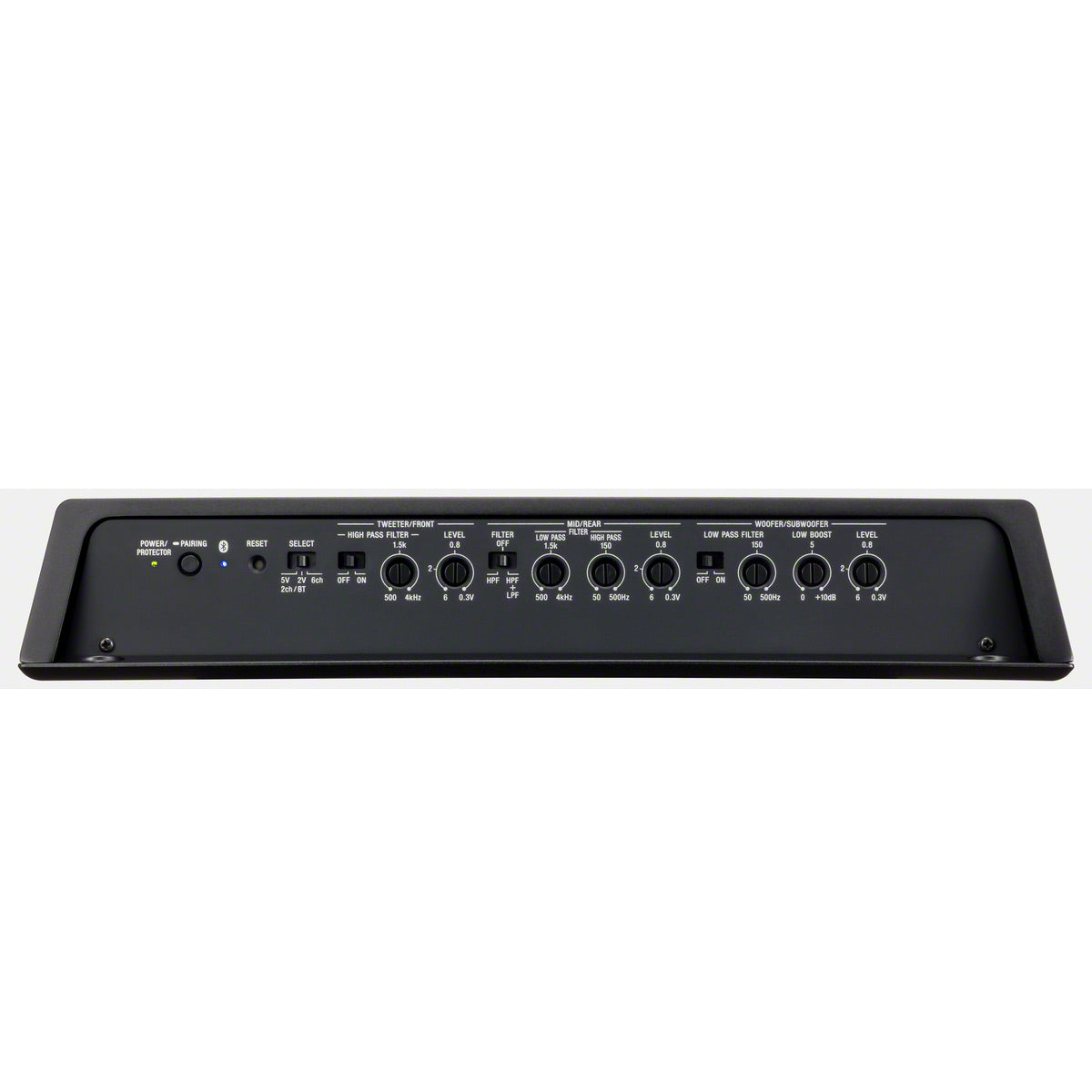

Low and High Pass Filters

Highly customizable low and high pass filters can be applied across the system, allowing you to drive component high frequency tweeters and subwoofers, plus everything in between, all from the same amp.

Precision Meets Versatility

Install your amp under a seat or in the boot, then connect to your existing car radio. Select from a variety of speaker configurations to complete your new audio system, with easy set up to drive subwoofers and component speakers, as well as regular coaxial speakers.

Specifications

Size & Weight

  • Dimensions (W x H x D): 11.61 in x 2.17 in x 7.85 in
  • Weight: 5.95 lbs (Approx.)

Amplifier

  • Channel Configuration: 4.1ch, 6ch
  • High Pass Filter: Variable: FRONT (500-4 kHz), REAR (50-500 Hz)
  • High-Pass Filter Slope: 12 dB/oct
  • Low Pass Filter: Variable: REAR (500-4 kHz), SUBWOOFER (50-500 Hz)
  • Low-Pass Filter Slope: 12 dB/oct

CTA Rated Output Power

  • 4 ohms: 45 W × 4 (FRONT/REAR), 90 W × 2 (SUBWOOFER)
  • 4 ohms — BTL (Bridge-Tied Load): 350 W (SUBWOOFER) at 1 kHz
  • 2 ohms: 175W × 2 (SUB) at 1 kHz, 600 W × 1 (SUBWOOFER bridged) at 1 kHz

Rated Output Power (14.4V, 20Hz-20kHz)

  • 4 ohms: 45 W × 4 (FRONT/REAR), 90 W × 2 (SUBWOOFER)
  • 4 ohms — BTL (Bridge-Tied Load): 350 W (SUBWOOFER) at 1 kHz
  • 2 ohms: 175 W × 2 (SUBWOOFER) at 1 kHz, 600 W × 1 (SUBWOOFER bridged) at 1 kHz

Maximum Output Power (1 kHz)

  • Max. Channel Configuration at 4 ohms BTL (Bridge-Tied Load): 600 W (SUB)
  • Max. Channel Power Configuration at 2 ohms: 300 W × 2 (SUB), 1100 W × 1 (SUBWOOFER bridged)
  • Max. Channel Output Power Configuration at 4 ohm: 100 W×4 (FRONT/REAR), 200 W×2 (SUBWOOFER)

General Features

  • Frequency Response: 20-20 kHz (FRONT/REAR) 20-10 kHz (SUBWOOFER)
  • Tolerance: +0.5/-3 dB
  • Signal to Noise Ratio: Rated Output: 100 dB/CTA Rated Output: 83 dBA (FRONT/REAR), 80 dBA (SUBWOOFER)
  • Total Harmonic Distortion at 1 kHz (%): Less than 0.08%

Details

  • Input: Line In/High Level (Speaker Level) Input
  • MOSFET: Output Stage/Power Supply
  • Subsonic High Pass Filter: No
  • Bass Boost: Frequency (0 - 10 dB): Yes
  • Line In: Input Sensitivity: 0.3-6 V (6ch input mode only)
  • Gold Plated Connectors: Yes
  • Current drain (A) - rated output power at 4 ohm: 36 A

DSP Functions with Sony l Music Center App

  • Time Alignment: Yes (4.1ch)
  • Equalizer: Yes (10-band)
  • Balance/Fader: Yes

Bluetooth® Specifications

  • Version: 3.0
  • Secure Simple Pairing: Yes
  • Profile: A2DP, AVRCP

Bluetooth® General Features

  • Voice Control: No
  • Microphone: No
  • Device Name: XM-GS6DSP
  • Auto-Pairing for iOS Devices: No
  • Sony | Music Center (iOS): Yes
  • Sony | Music Center (Android™): Yes
  • Siri Eyes Free Mode: No

What's In The Box

  • One XM-GS6DSP amplifier
  • Speaker level input plug
  • Line input plug
  • Speaker output plug
  • Mounting hardware
  • Owner's manual
