Shure

Shure GLXD24R+/SM58-Z3 Dual Band Wireless System with GLXD4R+ Half-Rack Receiver & GLXD2+/SM58 Handheld Microphone

Regular price $649.00
Sale price $649.00 Regular price
Save $-649.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, Apr 19 – Fri, Apr 26

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: GLXD24R+/SM58-Z3 | UPC: 042406696227

Specifications

What's In The Box

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Information

Model: GLXD24R+/SM58-Z3 | UPC: 042406696227

Ready-to-go. Every time. Automatically.

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

Features

  • Includes GLXD2+ Handheld Transmitter with SM58 capsule
  • Dual Band Wireless Technology
  • Automatic Frequency Management
  • Smart Rechargeability
  • Up to 16 Compatible Systems

Dropouts Won’t Steal the Show

With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling your available bandwidth for reliable dropout-free audio.

Wireless Without Complication

GLX-D+ Dual Band Digital Wireless System is the ideal solution to go wireless without complication. Every aspect of its operation is managed automatically, allowing you to focus on your performance.

Smart Rechargeability

End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 batteries can be charged directly in the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15-minute charge.

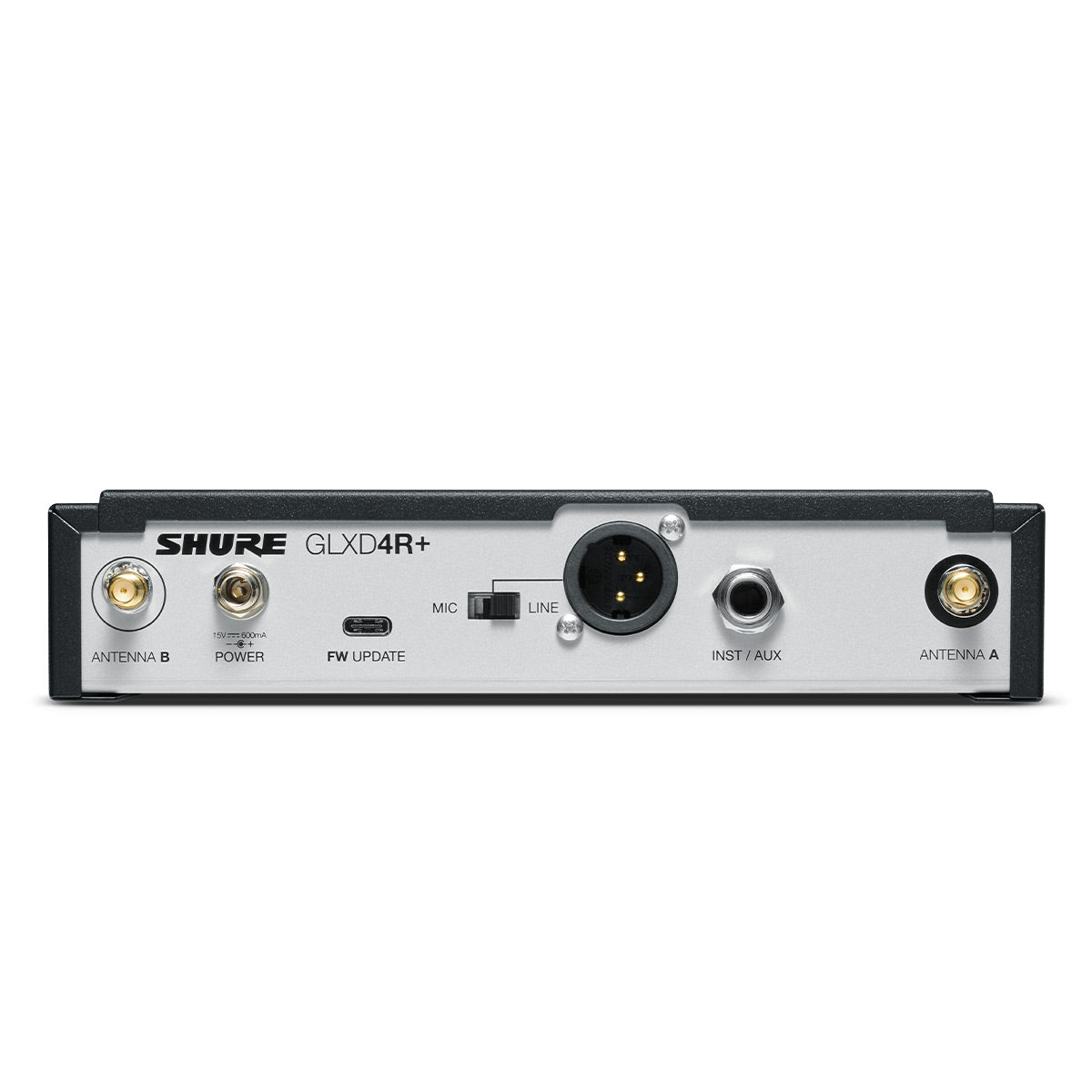

GLXD4R+ Wireless Receiver

  • Rack-Mountable
  • Removable antenna for Shure Frequency Manager compatibility
  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Automatically moves away from interference without audio interruption
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range

GLXD2+/SM58 Microphone

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise. Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoor.

Specifications

  • System
    • Compatibility
      • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
      • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
    • System Operating Range
      • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
      • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
    • Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
    • Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
    • Dynamic Range: 120 dB, A-weighted
    • RF Sensitivity: -88 dBm, typical
    • Total Harmonic Distortion: 0.07%, typical
    • RF Output Power: 10 mW E.I.R.P. max
    • Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
    • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
    • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
    • Battery Life: Up to 12 hours
  • GLXD4R+ Dual Band Rack Receiver
    • Dimensions (without antenna) (W x H x D): 7.7” x 6.4” x 1.6”
    • Weight (without batteries): 30.5 oz (866 g)
    • Housing: Steel
    • Power Requirements: 14.5 V - 17 V, 600mA
    • Spurious Rejection: >35 dB, typical
    • Gain Adjustment Range: −18 to 42 dB in 1 dB steps
    • Phantom Power Protection: Yes
    • Audio Output
      • Configuration
        • XLR Output: Balanced
        • 6.35 mm (1/4") output: Impedance balanced
      • Impedance
        • XLR Output: 100 Ω
        • 6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
      • Full-Scale Output
        • XLR: LINE setting= +18 dBV, MIC setting= −12 dBV
        • 6.35 mm (1/4"): +12 dBV
      • Pin Assignments
        • XLR Output: 1=ground, 2=hot, 3=cold
        • 6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
    • Mic/Line Switch: 30 dB Pad
    • Receiver Antenna Input
    • Impedance: 50 Ω
    • Antenna Type: Dual Band 1/2 WaveSleeve Dipole
    • Maximum Input Level: −20 dBm
  • GLXD2+ Dual Band Handheld Transmitter (SM58)
    • Dimensions (W x H x D): 2” x 9.9” x 1.5”
    • Weight (without battery): 275 g (9.70 oz)
    • Housing: Aluminum alloy, ABS plastic
    • Power Requirements: 3.6 V Rechargeable Li-Ion
    • RF Output Power: 10 mW E.I.R.P. max
    • Maximum Input Level: 146 dB SPL

What's In The Box

  • GLXD24R+/SM58-Z3 Dual Band Wireless System
    • GLXD4R+ Half-Rack Receiver
    • GLXD2+/SM58 Handheld Microphone
  • SB904 Battery
  • Power Supply
  • (2) 22" RSMA Cable
  • (2) Antennas
  • (2) Hardware Kit
  • (2) Bulkhead Adapter
  • Swivel Adapter
  • Zippered Carrying Bag
  • Manual
