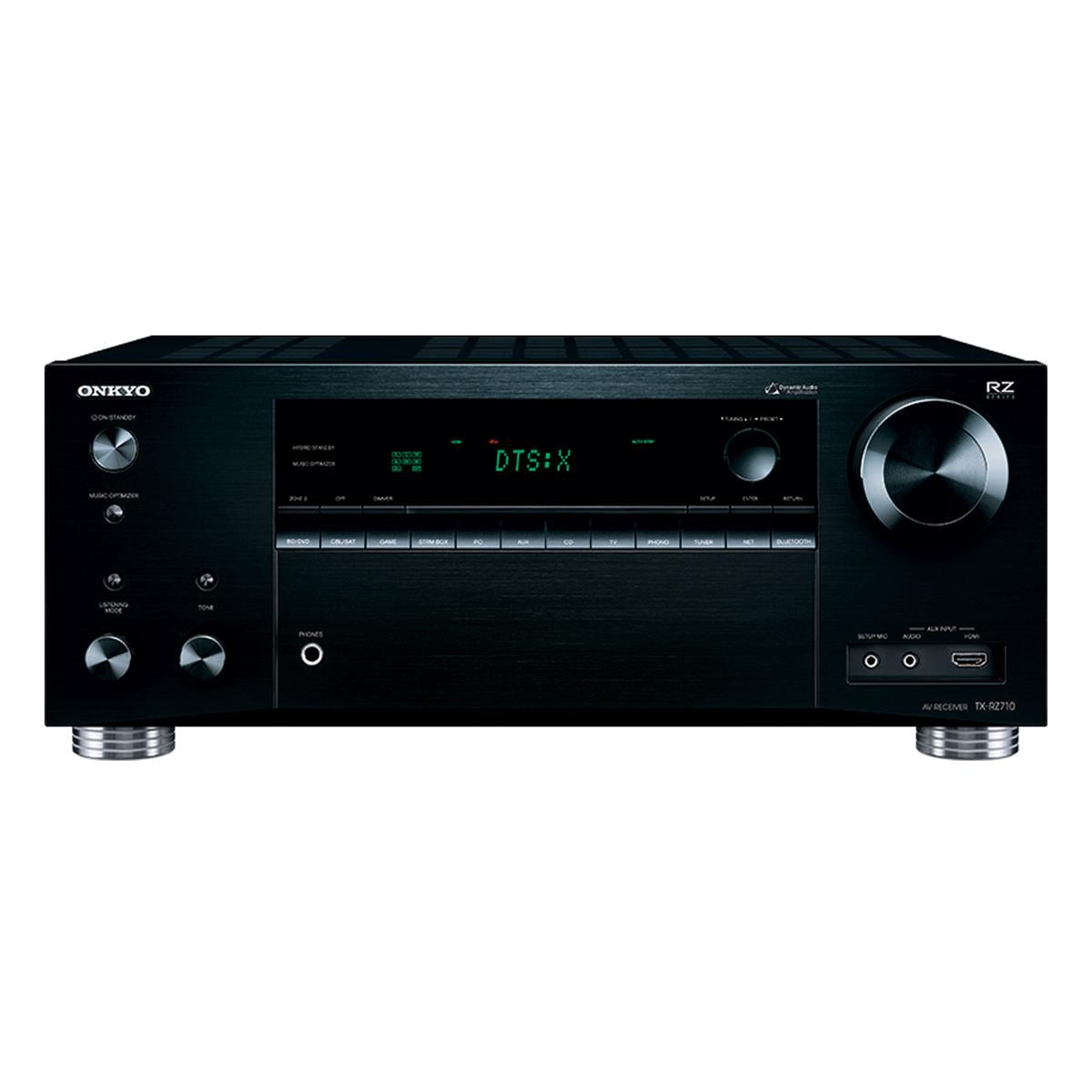

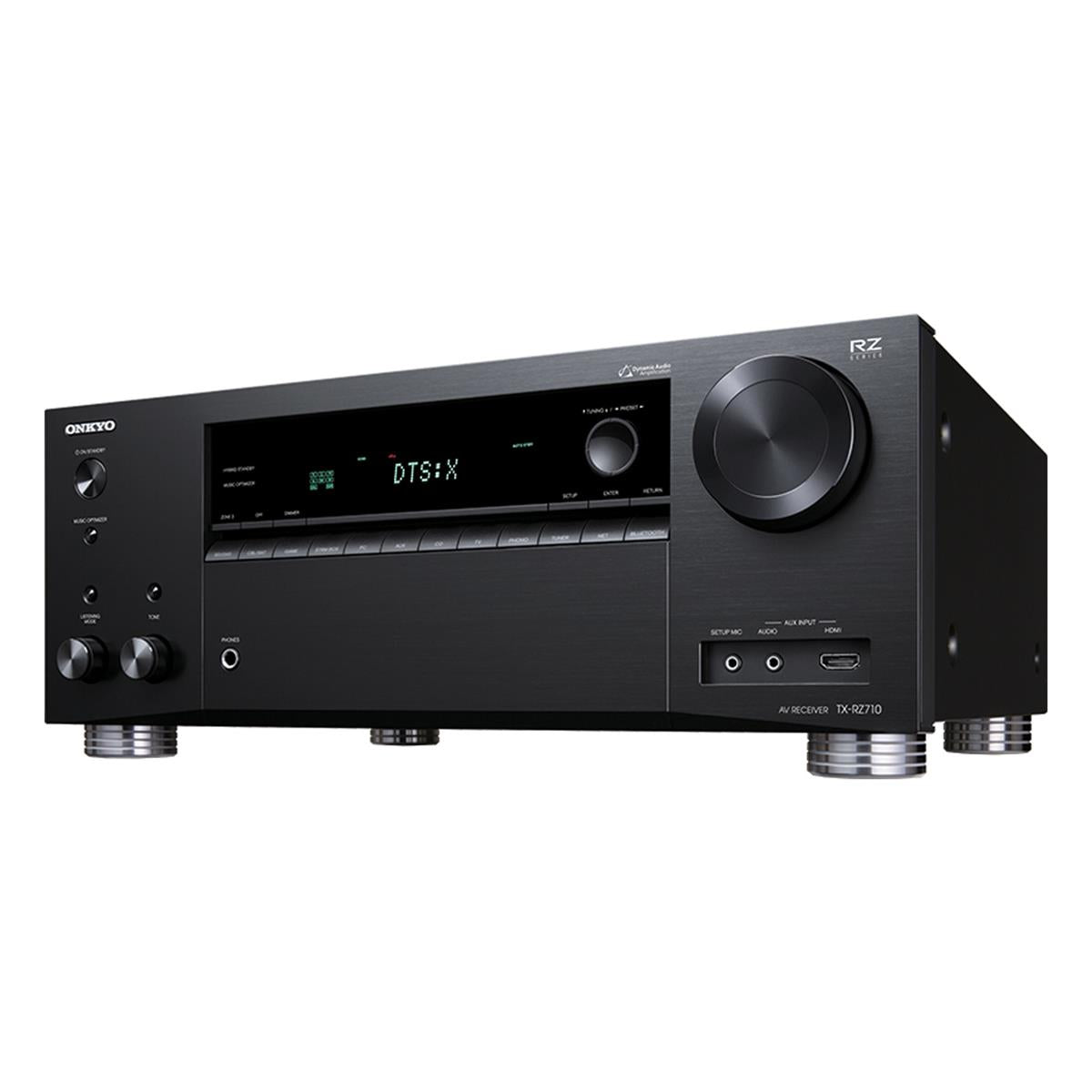

Onkyo TX-RZ710 7.2 Channel A/V Wireless Network Receiver with HDCP2.2/HDR & Bluetooth

Model: TX-RZ710 UPC: 889951000136 Item: 166530

In Stock
Shipping Information
Show Store Details
Address:
104 E Vine St. Hatfield, PA 19440
Hours:
  • Mon - Fri: 9am - 5pm
  • Sat: By appointment only
  • Sun: Closed
Phone:
(866) 961-7781
Show Store Details
Address:
754 Route 309 (Bethlehem Pike) Montgomeryville, PA 18936
Hours:
  • Mon: 9:30am - 8pm
  • Tues - Fri: 9:30am - 6pm
  • Sat: 9:30am - 6pm
  • Sun: 11am - 5pm
Phone:
(215) 368-8343
Show Store Details
Address:
38 Greenfield Avenue, Ardmore, PA 19003
Hours:
  • Mon - Tues: 10am - 6pm
  • Wed: 10am - 8pm
  • Thurs - Fri: 10am - 6pm
  • Sat: 10am - 5pm
  • Sun: 12pm - 5pm
Phone:
(610) 649-7002
Choose a Store Location

More Product Details

Questions? We're here to help.

Product Information

Big sound to match big 4k screens, the TX-RZ710 is THX® Certified for Theater Reference Sound. Its premium RZ build quality boasts non-phase-shift amps, huge capacitors, and high-output transformer to pull every drop of emotion from object-based soundtracks, which are precisely phase-aligned with new AccuReflex calibration technology. Music blooms with vibrant energy thanks to high-current amplification, whether it’s a stream from Spotify via Google Cast, Hi-res audio from home media servers, or classic vinyl from your turntable. FireConnect streams any of these sources from the receiver to a wireless speaker in another room, while Zone 2 HDMI® sends 4k video to a second TV. Gathering your media and giving easy access across the home, the TX-RZ710 will make nightly entertainment an event to look forward to.

Multi-Zone Audio and Video

Pre/Line Out for Zone 2 as well as Powered Zone with Zone 2 A/B capability opens up distributed audio options throughout the home backed by a dedicated Zone 2 DAC.

Select HDMI terminals support 4K/60 Hz video, HDCP 2.2 copy protection, and High Dynamic Range (HDR), with BT.2020 support, for next-generation UltraHD streaming and broadcasting. A 4k and HDCP 2.2/HDR-compatible Zone 2 HDMI output allows you to enjoy AV sources connected to the receiver in another room.

THX®-Certified for Theater Reference Sound

THX® certification guarantees the same high volume and low distortion levels you experience in a commercial theater in your listening room. THX® Select2™ Plus is recommended for screen-to-seat viewing distances of 10 –12 feet (3 – 4 m).

To achieve THX® certification, amplifiers must undergo a barrage of the industry's toughest independent bench testing to satisfy THX® requirements.

Your Speakers Will Thank You

Speakers are built to be driven hard, and most amps out there can't do it. The RZ710 delivers a high instantaneous current to grip and control speakers, moving them through their entire range. It's a significant boost to the dynamism, detail, and accuracy of music and movie soundtracks for a thrilling listening experience.

Dynamic Audio Amplification. It's Serious.

Upgraded components, such as the massive transformer and custom capacitors, provide high instantaneous current for lightning-fast transient response and a frequency range that extends down to 5 Hz.

Discrete amp circuits prevent phase shifting for an accurate audio image, cutting distortion even at floor-shaking volumes. It's a serious build for those serious about sound.

Noiseless Audio Processing

Vector Linear Shaping Circuitry is a mouthful, so Onkyo calls it VLSC™. This circuitry virtually removes digital pulse noise for a smooth analog signal. RZ710 focuses VLSC on the front left and right channels.

Data is converted between sampling points and these points are joined with analog vectors in real time to produce a smooth output wave form. The result is a virtually noiseless, smooth, analog signal based on the digital source. It brings out even the most subtle of nuances in audio sources.

Listen! Up in the Sky!

Make object-based Dolby Atmos® and DTS:X™ surround sound reality in your living room. Sound flows naturally above and around in three dimensions, with discrete effects—such as birdcalls, rain, or the sound of a helicopter—originating from overhead. In fact, every element in an "object-based" soundtrack is mixed separately, so it's free to travel from speaker to speaker with lifelike realism.

FIRECONNECT™ Multi-Room Audio

A firmware update enables any audio source connected to the receiver—from vinyl to streaming audio—to be sent wirelessly via FireConnect™ powered by Blackfire, to an optional speaker placed anywhere in your home. Stable, fast, and easy to control with a mobile, it's the smart way to set audio free.

Dial in Audio with ACCUEQ

AccuEQ equalizes the surround-sound to suit the room acoustics for crisply focused sound, while AccuReflex aligns the phase of upfiring height speakers with sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.

Priority Support & Three Year Warranty

Onkyo RZ Series specialists are specifically trained to troubleshoot any issues you encounter on an install via a dedicated support line. Onkyo RZ Series products are backed by a three-year warranty should a product ever require service or replacement.

TX-RZ710 Features

Integration

  • Powered Zone 2 w/ Zone 2 Speaker A/B
  • Zone 2 Pre/Line Out
  • Zone 2 HDMI Output for 4K/60 Hz Video
  • 12 V Trigger Out (Assignable)
  • IR Input
  • Supports IP
  • Supports RS232
  • RIHD (Remote Interactive Over HDMI)
  • Optional Rack Mount Kit
  • Detachable Power Cable
  • AccuEQ Room Calibration w/ AccuReflex
  • Supports Free Onkyo Remote Control & Streaming Apps for iPod touch®/iPhone®*1 and Android™Devices*2

Advanced

  • THX® Select2™ Theater Reference Certification
  • DTS:X™ and Dolby Atmos® Object-based Sound Decoding
  • 4K/60 Hz-Capable 4:4:4 HDMI®Terminals with HDCP 2.2 and HDR for UltraHD and Full HD Video Content (Supports BT.2020)*3
  • Google Cast, AirPlay, Wi-Fi®, & Bluetooth Specification Version 4.1 (Compatible Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer
  • Supports TuneIn Radio, Pandora®, Spotify, TIDAL*4
  • MP3, WMA, WMA Lossless, FLAC, WAV, AAC, and Apple Lossless Playback Over Network and USB Network Hi-Res Audio (DSD 5.6 MHz, 192/24 PCM, Dolby®TrueHD)
  • FireConnect™ Multi-Room Wireless Technology for Wireless Digital and Analog Audio Transmission to Optional Wireless Speakers

Amplifier

  • 110 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC)
  • 180 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC)
  • Dynamic Audio Amplification with Non-Phase-Shift Amps and Discrete Power Transistors
  • Separate Analog Amp and Digital Processing Block Construction to Reduce Interference
  • Custom RZ Grade Parts: Massive Transformer and Custom 15,000 μF Audio Capacitors for Instantneous High-Current Power
  • Copper Bus Bars and Rigid Insulators to Reduce Signal Interference
  • VLSC™ (Vector Linear Shaping Circuitry) for High-Fidelity Analog Signal
  • PLL (Phase Locked Loop) Jitter-Cleaning Circuitry for S/PDIF Audio
  • Bi-Amping Capability for Front Channels PROCESSING FEATURES
  • HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby®TrueHD, DTS:X™, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
  • HDCP 2.2 supported on HDMI inputs 1/2/3, Main Out, and Sub Out.
  • Dolby®TrueHD and DTS-HD Master Audio™ Decoding
  • AK4458 384 kHz/32-bit DAC (8 Channels x 1)
  • 32-bit Digital Signal Processing Engines
  • 4 DSP Gaming Modes: Rock, Sports, Action, and RPG
  • Theater-Dimensional Virtual Surround Function
  • Direct Mode

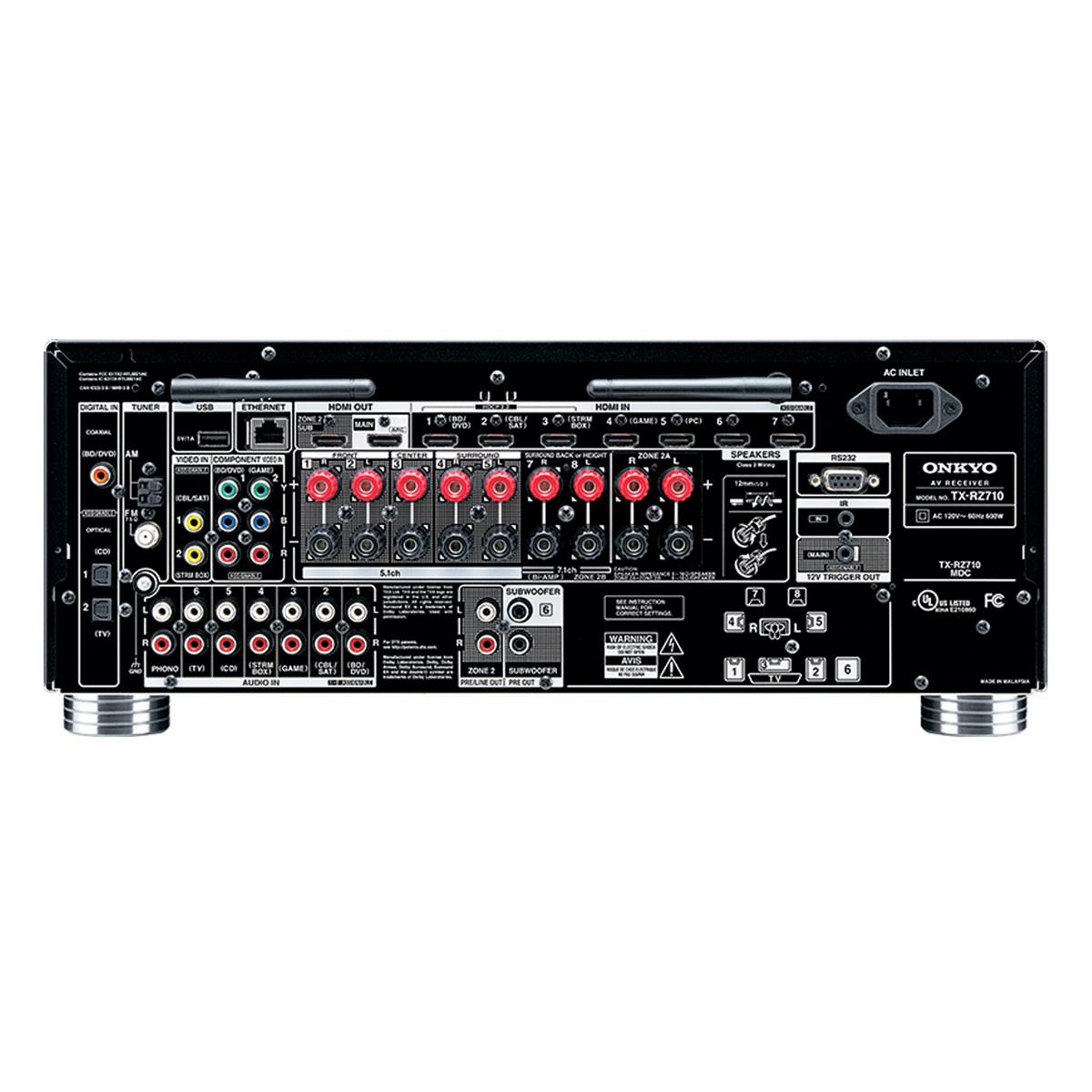

Connection

  • 8 HDMI In (1 Front/7 Rear)
  • 2 HDMI Out (Main & Zone 2/Sub)
  • Mass Storage Class USB Memory Playback Capability
  • Component Video Switching (2 Inputs) and 2 Composite Video Inputs
  • 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
  • 7 Analog Audio Inputs
  • Phono Input (MM)
  • 2 Parallel Subwoofer Pre-Outs

Other

  • Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
  • A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
  • New Graphical Overlaid On-Screen Display (OSD) via HDMI
  • Hybrid Standby Function with HDMI Passthrough
  • 40 FM/AM and 40 Internet Radio Station Presets
  • Certified with DLNA Version 1.5
  • Aluminum Front Panel and Volume Control Knob

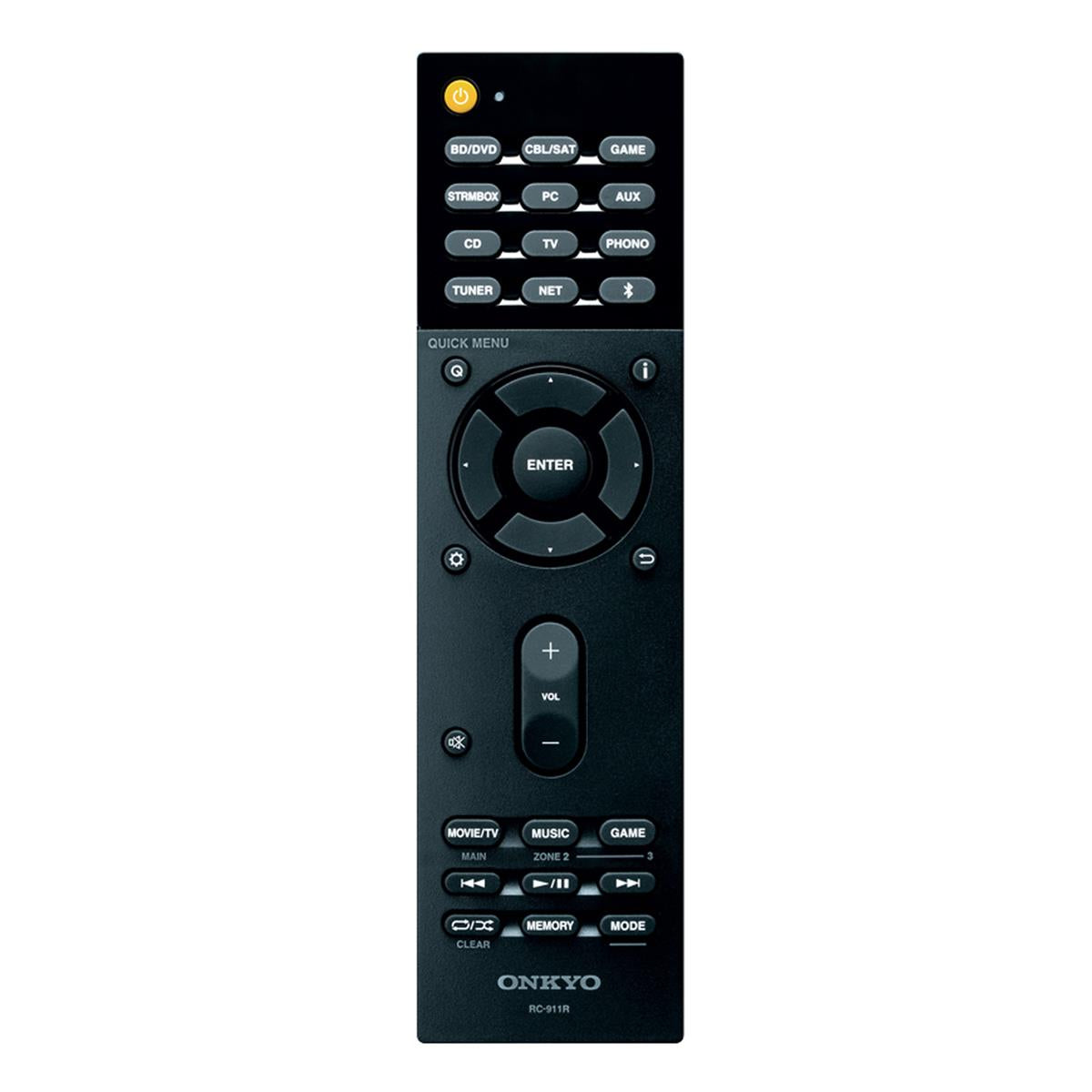

  • Simple Remote Control

What is the RZ Series?

Onkyo’s premium RZ Series audio-video receivers deliver a significant boost to the dynamism, detail, and accuracy of music and movie soundtracks for a listening experience that packs stunning emotional impact. Upgraded components, such as the massive transformer and custom capacitors, provide high instantaneous current for lightning-fast transient response and a frequency range that extends down to 5 Hz. Discrete amp circuits prevent phase shifting, clearly focusing the audio image and cutting distortion even at floor-shaking volumes. It’s a serious build if you’re serious about sound.

Dynamic Audio Amplification for Thrilling Sound

Dynamic Audio Amplification lets music live and breathe thanks to accurate, noise-free signal processing and hi-current power that dynamically controls your speakers, producing rich and authentic sound that fills you with emotion.

THX®-Certified for Theater Reference Sound

THX® certification guarantees the same high volume and low distortion levels you experience in a commercial theater in your listening room.THX® Select2™ Plus is recommended for screen-to-seat viewing distances of 10-12 feet (3-4 m).

To achieve THX® certification, amplifiers must undergo a barrage of the industry’s toughest independent bench testing to satisfy THX® requirements.

Experience DTS:X™ and Dolby Atmos®

Make object-based Dolby Atmos® and DTS:X™ surround- sound reality in your living room. Sound flows naturally above and around in three dimensions, with discrete effects—such as birdcalls, rain, or the sound of a helicopter—originating from overhead. In fact, every element in an “object- based” soundtrack is mixed separately, so it’s free to travel from speaker to speaker with lifelike realism.

FireConnect™ Multi-room Audio

A firmware update enables any audio source connected to the receiver—from vinyl to streaming audio—to be sent wirelessly via FireConnect™ to an optional speaker    placed anywhere in your home. Stable, fast, and easy to control with a mobile, it’s the smart way to set audio free.

Go Wireless with Google Cast, AirPlay, Wi-Fi®, and Bluetooth

Google Cast and AirPlay free your music from your smartphone. You can stream audio from compatible applications to your home theater; or stream virtually any mobile or PC audio via Bluetooth technology. Available internet radio and music subscription services include Pandora, Spotify and more.

Note: Support for some features including Google Cast, TIDAL and Deezer will be enabled via future firmware update. Please consult the Onkyo website for scheduling information as it becomes available.

Latest Spec HDMI® with Zone 2 Video

Select HDMI terminals support 4K/60 Hz video, HDCP 2.2 copy protection, and High Dynamic Range (HDR) for next-generation UltraHD streaming and broadcasting.

A 6G- and HDCP 2.2/HDR-compatible Zone 2 HDMI output allows you to enjoy AV sources connected to the receiver in another room.

Powered Zone 2 for Audio in a Second Room

If you choose, Powered Zone 2 capability can bring audio to speakers in a second room connected to the receiver. Now with a dedicated Zone 2 DAC, you can share Digital Audio input sources such as Spotify or Internet podcasts.

AccuEQ Calibration Featuring AccuReflexTechnology

AccuEQ equalizes the surround-sound to suit the room acoustics for crisply focused sound, while AccuReflex aligns the phase of upfiring height speakers with sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time.The result is cohesive reproduction of object-based soundtracks.



*1 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later.

*2 Requires Android 2.1 or later.

*3 6G video and HDCP 2.2 is supported on HDMI inputs 1/2/3, Main Out, and Sub Out.

*4 Availability of services depends on region. Some services may require a paid subscription and firmware update.Availability of third-party services advertised may be subject to change without notice.



Specifications

TX-RZ710 Specifications:

Amplifier

  • # Channels          7.2
  • Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC)  180, 1.0% THD
  • Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC)       110, 0.08% THD
  • Dynamic Audio Amplification      Y (for Clear and Realistic Sound)
  • H.C.P.S. (High Current Power Supply)     Y
  • Non-Phase Shift Amplifier           Y
  • THX Certified     Y
  • Continuous 6 Ohms Rated           Y
  • Certified 4 Ohms Performance  -
  • Discrete Output Stage Circuitry  Y
  • 3-Stage Inverted Darlington Circuitry      -
  • PUSH-PULL Design          -
  • Independent Block Construction (Amp/Preprocessor)   -
  • High-Grade Toroidal Transformer             -
  • Independent Power Supply        -
  • Bi-amp Capability For Front         Y

Power Output

All Channels

  • 180 W/Ch (6 Ohms, 1 kHz, 0.9%THD, 1 Channel Driven, FTC)
  • 110 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08%THD, 2 Channels Driven, FTC)

Dynamic Power

  • 250 W (3 Ohms, Front)
  • 220 W (4 Ohms, Front)
  • 130 W (8 Ohms, Front)

THD+N (Total Harmonic Distortion + Noise)

  • 0.08% (20 Hz-20 kHz, Half Power)

Input Sensitivity and Impedance

  • 200 mV/47 k-ohms (Line)
  • 3.5 mV/47 k-ohms (Phono MM)

Rated RCA Output Level and Impedance

  • 200 mV/2.3 k-ohms (Zone Line Out)
  • 1V/470 Ohms (Subwoofer Pre Out) 2.0V/2.3 k-ohms (Zone Pre Out)

Phono Overload

  • 70 mV (MM, 1kHz, 0.5%)

Frequency Response

  • 5 Hz-100 kHz/+1 dB, -3 dB (Direct/Pure Audio)

Tone Control

  • ± 10 dB, 90 Hz (Bass)
  • ±10 dB, 7.5 kHz (Treble)

Signai-to-Noise Ratio

  • 106 dB (Line, iHF-A)
  • 80 dB (Phono)

Speaker Impedance

  • 6 Ohms-16 Ohms

Processing

  • Dolby Atmos      Y
  • 32-Bit Digital Signal Processing Engine     Y
  • Dolby Decoder  Atmos, True HD, DD Plus
  • DTS:X    Y
  • DTS Decoder      DTS:X, DTS-HD Master Audio
  • ONKYO GAME Surround Modes                Y (Rock, Sports, Action, RPG)
  • VLSC for Noiseless Audio Processing       Y (Fronts)
  • THX Processing Mode    Y
  • CinemaFILTER    -
  • AccuEQ Room Calibration             Y (w/ AccuReflex)
  • Phase-Matching Bass Boost        Y
  • Direct/Pure Mode           Y / -
  • Pure Direct Analog Path Mode   -
  • Advanced Music Optimizer          Y
  • 384K/32 Bit DACs              Y
  • 192K/24 Bit DACs              -

Connectivity

  • Analog Audio IN               7
  • Phono Input       Y
  • Digital Audio IN (OPT/COAX)       2 / 1
  • Composite Video I/O     2 / 0
  • Component Video I/O   2 / 0
  • Front Panel HDMI            Y
  • Front-Panel A/V               Stereo Mini
  • USB Input            Y (Rear)
  • HDMI I/O             8 / 2 (Main/Zone 2/Sub)
  • HDMI 4K/60 Hz- Capable HDMI Terminals             Y
  • HDCP 2.2 Copy-Protection Compatibility                Y
  • HDMI Support for High Dynamic Range  Y
  • HDMI Support for 3D, Audio Return Channel and CEC     Y
  • BT.2020 Support               Y
  • HDMI Support for Deep Color, x.v.Color, LipSync               Y
  • HDMI Support for DVD-Audio, SACD, Multichannel PCM               Y
  • Analog To HDMI Upconversion  Y
  • 1080p to 4K Upscaling    Y
  • 4K Passthrough Y
  • Analog Pre-Outs               0.2
  • Speaker A/+B    -
  • Powered Zone 2               Y (and Zone 2 A/B)
  • Powered Zone 3               -
  • Zone 2 Line Out                Y (Pre/Line)
  • Zone 2 Video Out             -
  • Zone 2 Digital to Analog Audio Conversion            Y (Net/SPDIF/HDMI)
  • Zone 3 Line Out                -
  • Whole House Mode       -
  • FireConnect Multi-room Audio  Y
  • Airplay  Y
  • Google Cast        Y
  • Supports Onkyo Remote App     Y
  • Internet Radio Capable Y
  • Spotify Connect Support              Y
  • Tidal       Y
  • Streaming Audio From PC / Network      Y
  • Hi-Res Streaming Audio Formats               Y
  • Streaming Audio From USB memory       Y
  • Wireless Network            Y
  • Bluetooth            Y (Built-in)

Video Input Sensitivity/Output Level and Impedance

Video

  • 1.0Vp-p/75 Ohms (ComponentY)
  • 0.7Vp-p/75 Ohms (Component PB/CB, PR/CR)
  • 1.0Vp-p/75 Ohms (Composite)

Component Video Frequency Response

  • +0clB,-3dB

Tuner Section

Tuning Frequency Range

  • FM         87.5 MHz-107.9 MHz
  • AM         530 kHz-1,710 kHz

FM/AM Preset Memory

  • 40 Stations

Integration Access

  • RS-232  Y
  • IR Input                Y
  • IR Output            -
  • Ethernet              Y
  • ONKYO-RI System Control           -
  • RIHD (Remote Interactive Over HDMI)   Y
  • 12V Trigger         Y

General

Power Supply

  • AC l20V~,60Hz

Power Consumption

  • 600 W

Standby Power Consumption

  • 0.1 W

Dimensions (W x H x D)

  • 17 1/8” x 6 15/16” x 14 7/8”
  • (570 x 288 x 468 mm)

Weight

  • 29.8 lbs. (13.5 kg)

Miscellaneous

  • Pre-Programmed Remote           -
  • Hybrid Standby Function              Y
  • Smart Grid-Ready            Y
  • Auto Speaker Calibration W/Mic.              AccuEQ w/AccuReflex
  • OSD Out               Y
  • Solid Aluminum Front    -
  • Transparent High-Grade Speaker Terminals         -
  • Detachable AC Cord        Y
  • Warranty             3 YEARS

What's in the Box

What's In the Box

  • (1) Onkyo TX-RZ710 A/V Receiver
  • Indoor FM antenna
  • AM loop antenna
  • Speaker set-up microphone
  • Instruction manual
  • Remote controller
  • AAA (R03) batteries x 2
Top
