McIntosh MI502 2-Channel Digital Amplifier

Regular price $4,500.00
Sale price $4,500.00 Regular price
Save $-4,500.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: MI502 | UPC: 842548112223

Specifications

What's In The Box

Product Documents

Product Information

Model: MI502 | UPC: 842548112223

The McIntosh MI502 2-Channel Digital Amplifier is a versatile powerhouse designed to enhance your home audio or theater system. Delivering 500 Watts into 8 Ohm speakers and 800 Watts into 4 Ohm speakers, it ensures exceptional sound quality for an immersive listening experience. Whether you're setting up a custom home theater or upgrading your music system, the MI502 offers the performance and flexibility to meet your needs.

Features

  • High Power Output
  • Advanced Class D Amplification
  • Versatile Application
  • Rack-Mountable Design
  • Enhanced Protection Features

Unmatched Power and Performance

Equipped with advanced closed-loop digital switching amplifiers and robust power supplies, the MI502 delivers audio performance levels rarely heard in custom installations. Its high-efficiency Class D design eliminates the need for noisy cooling fans, ensuring that the only sound you hear is from your audio source.

Versatile Applications for Any Setup

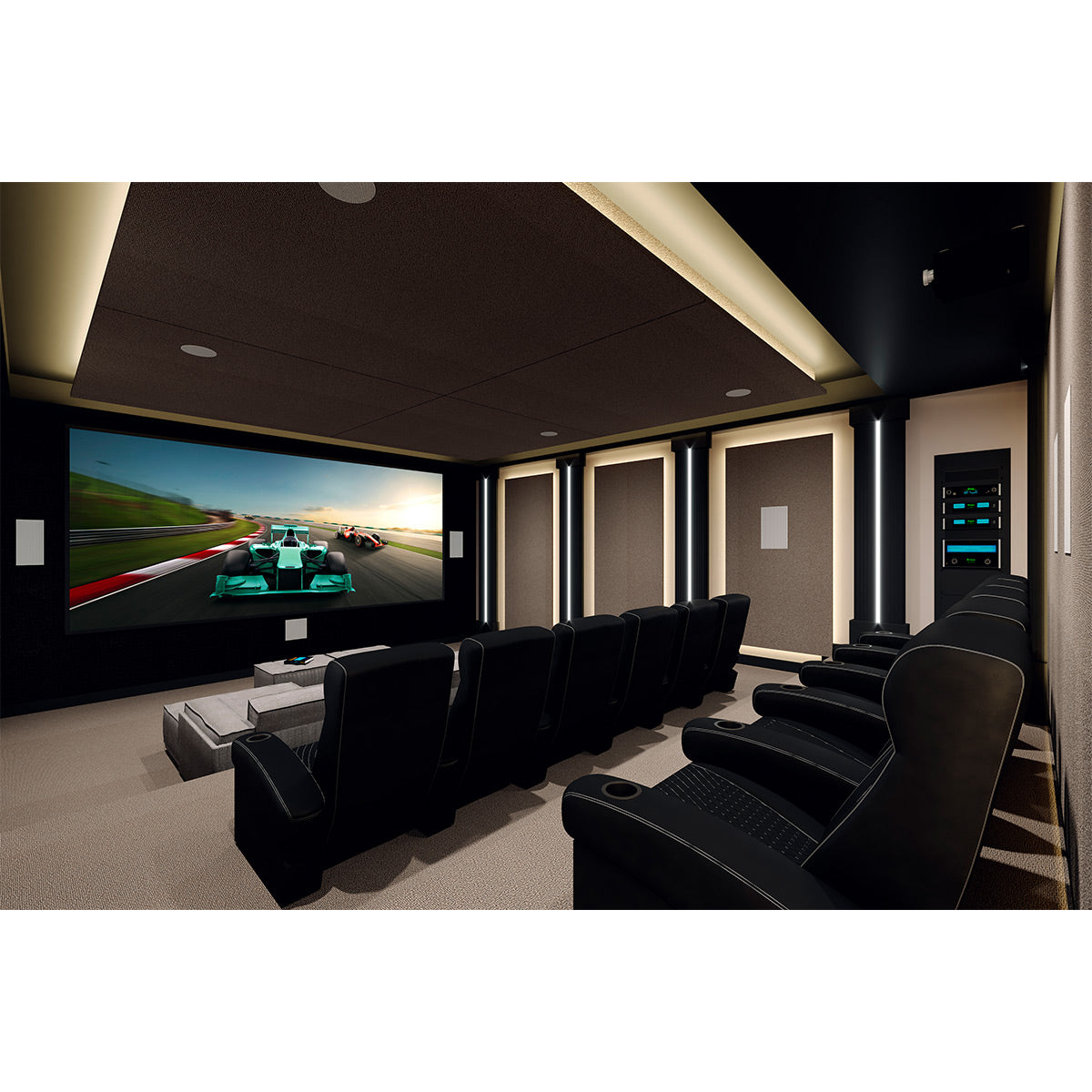

  • Home Theater Enhancement: Power your front left and right speakers for a dynamic cinematic experience.
  • Subwoofer Drive: Effortlessly drive two in-wall subwoofers for deep, resonant bass.
  • Outdoor Entertainment: Bring high-quality audio to your outdoor spaces by powering a pair of outdoor speakers.
  • Distributed Audio Systems: Utilize multiple MI502 units to power speakers throughout your home for a cohesive audio experience.

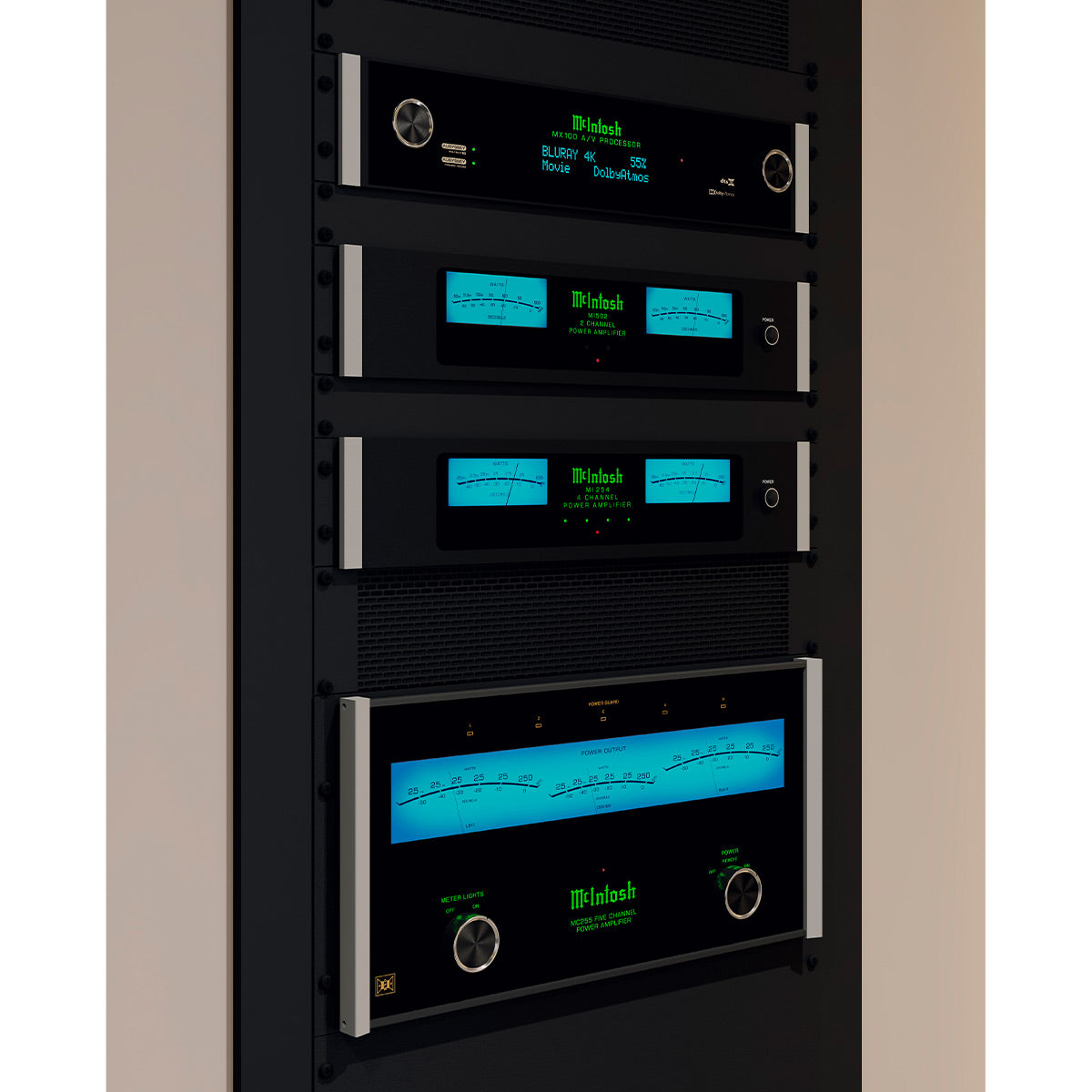

Rack-Mountable Design for Easy Installation

With a 2U rack-mountable height and included mounting brackets, the MI502 is designed for easy integration into your existing equipment rack. The removable brackets also allow for non-rack installations, providing flexibility to suit your setup preferences.

Iconic McIntosh Aesthetics

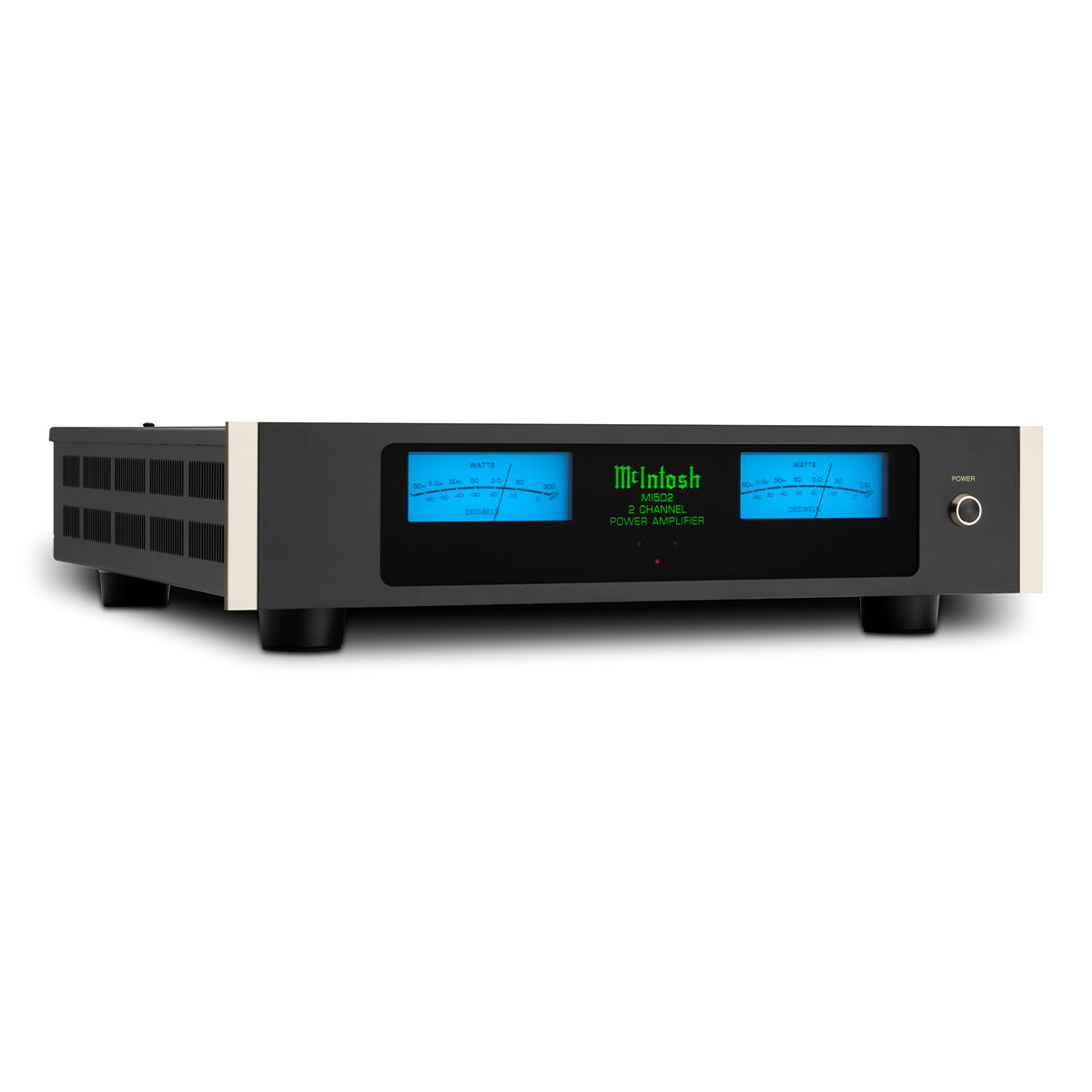

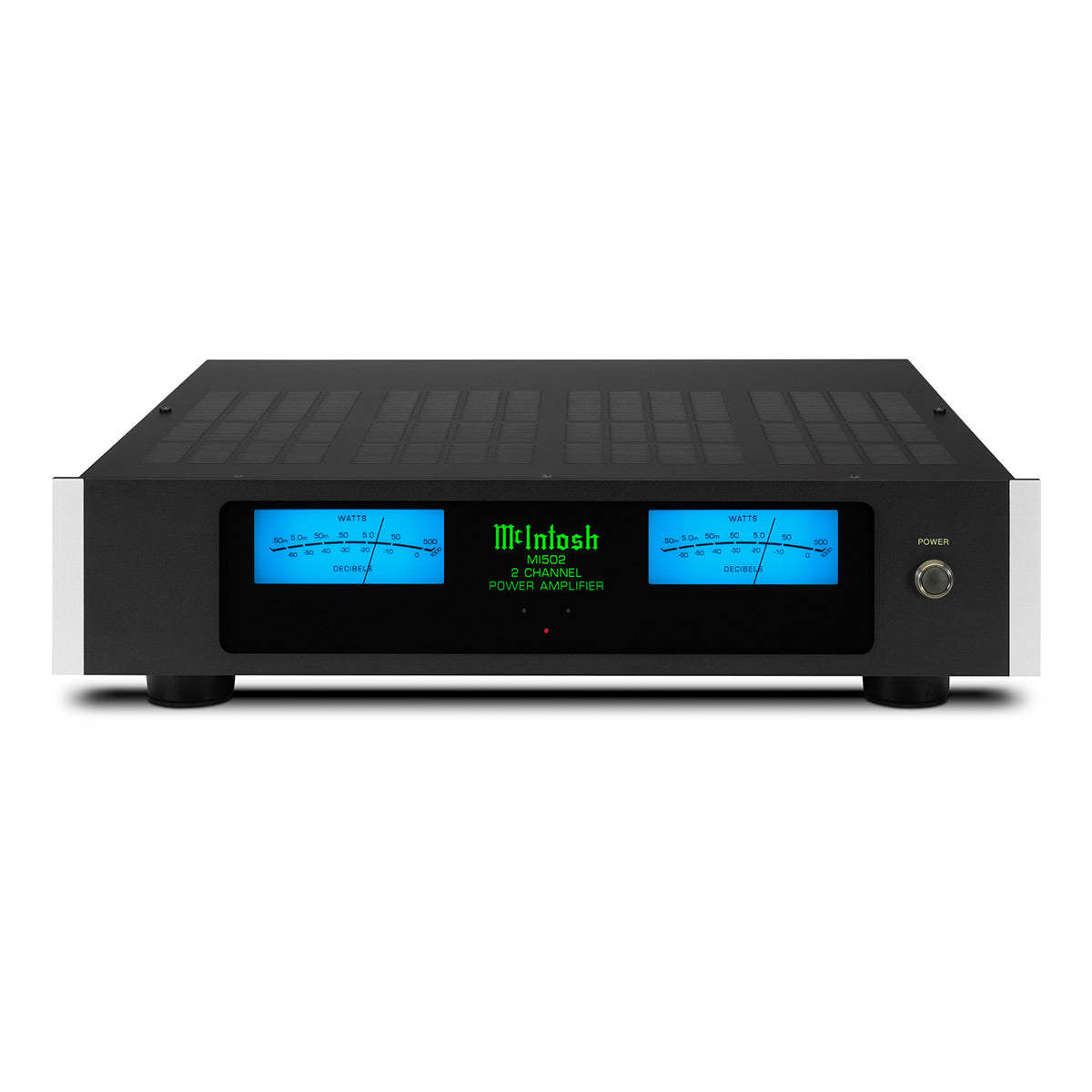

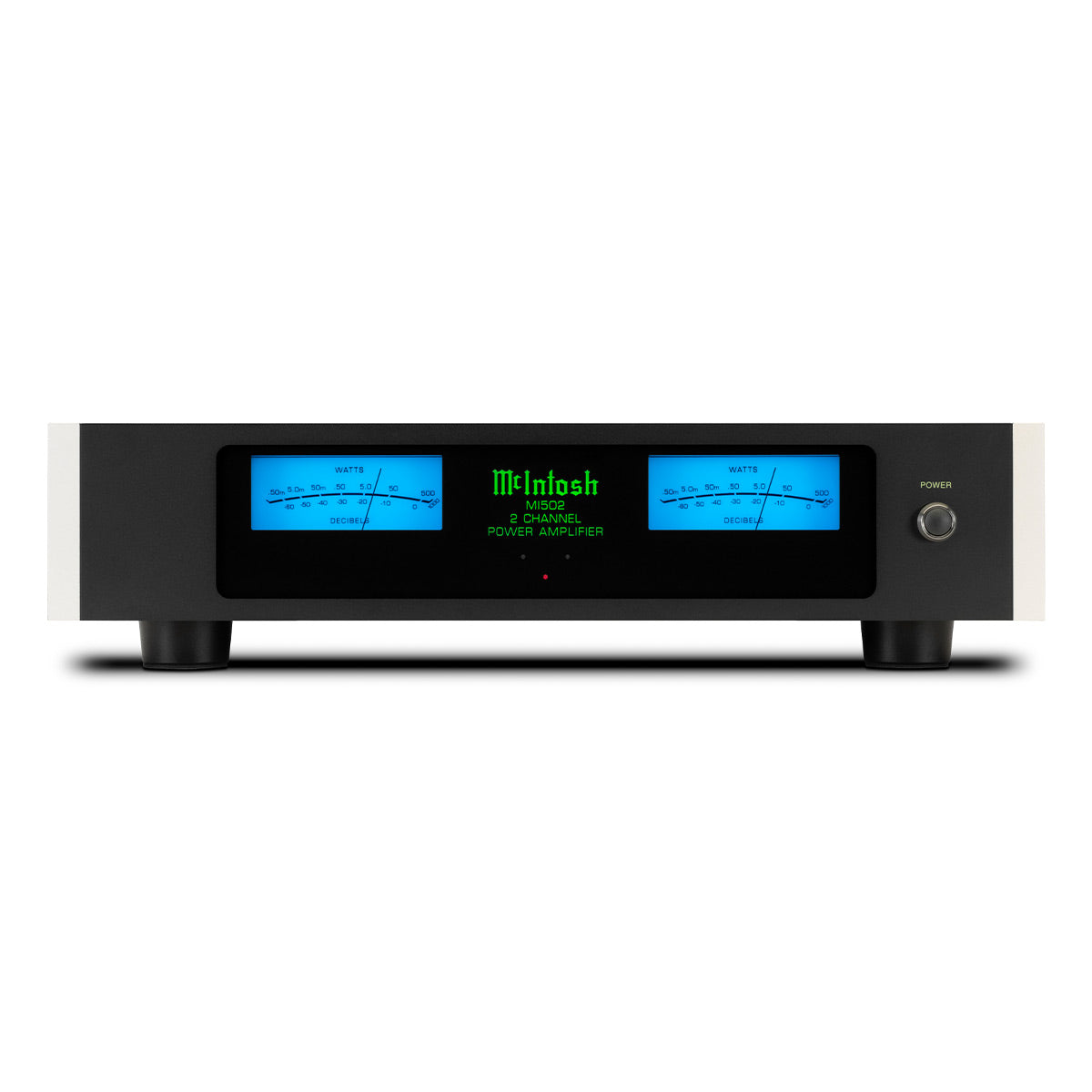

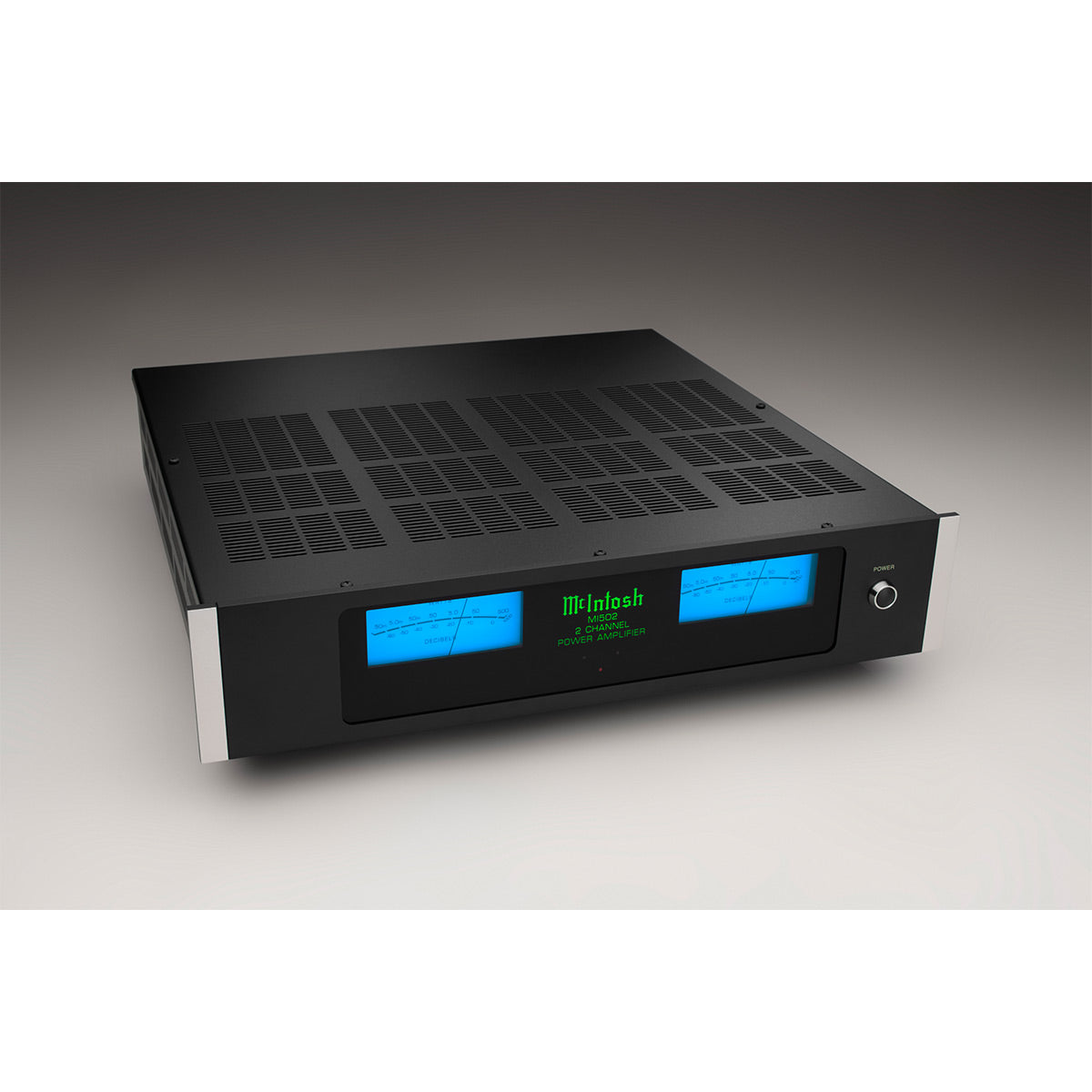

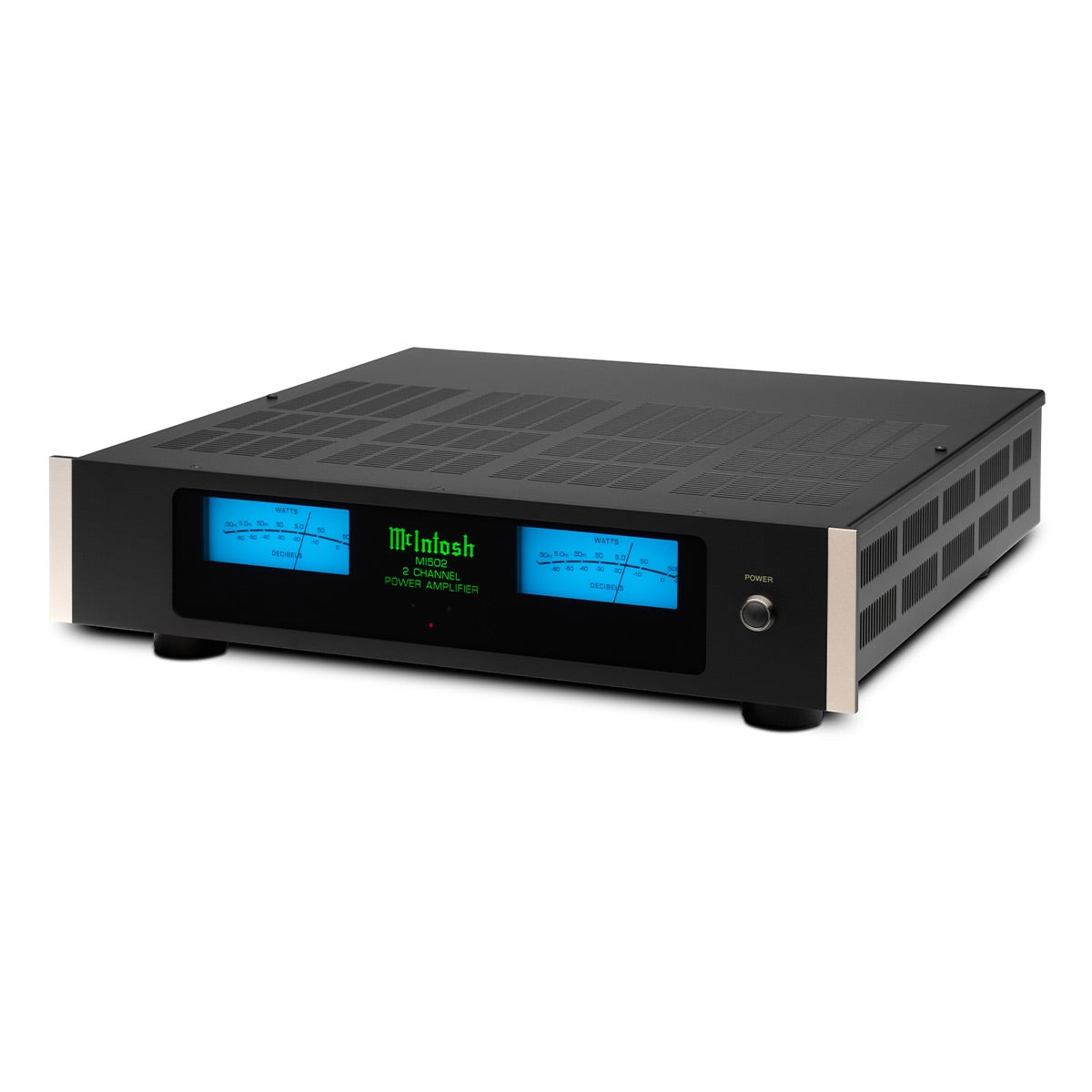

The MI502 features the classic McIntosh design elements, including a black glass front panel, illuminated logo, and the signature blue Watt meters that display the power output of each channel. Multi-color LED indicators provide real-time status updates, combining functionality with timeless style.

Advanced Protection & Control Features

  • Power Guard®: Prevents speaker overdrive by monitoring and adjusting the audio signal.
  • Sentry Monitor™: Provides short-circuit protection by disengaging the output stage before current exceeds safe levels, automatically resetting when conditions normalize.
  • Eco-Friendly Signal Sensing: Automatically powers the amplifier on or off based on the presence of an input signal, promoting energy efficiency.

Specifications

  • Electronics
    • Power Output per Channel
      • 500 Watts into 8 Ohms
      • 800 Watts into 4 Ohms
      • Number of Channels: 2
    • Total Harmonic Distortion: 0.05%
    • S/N below rated output: 98dB
    • Dynamic Headroom
      • 8 Ohms: 2.7dB
      • 4 Ohms: 3.7dB
    • Damping Factor
      • 8 Ohms: >85
      • 4 Ohms: >45
    • Rated Power Band: 20Hz to 20kHz
    • Frequency Response: +0, -0.9dB from 20Hz to 20,000Hz
  • Control
    • Remote Power Control: Yes
    • Multi-Channel DB25 Cable: N/A

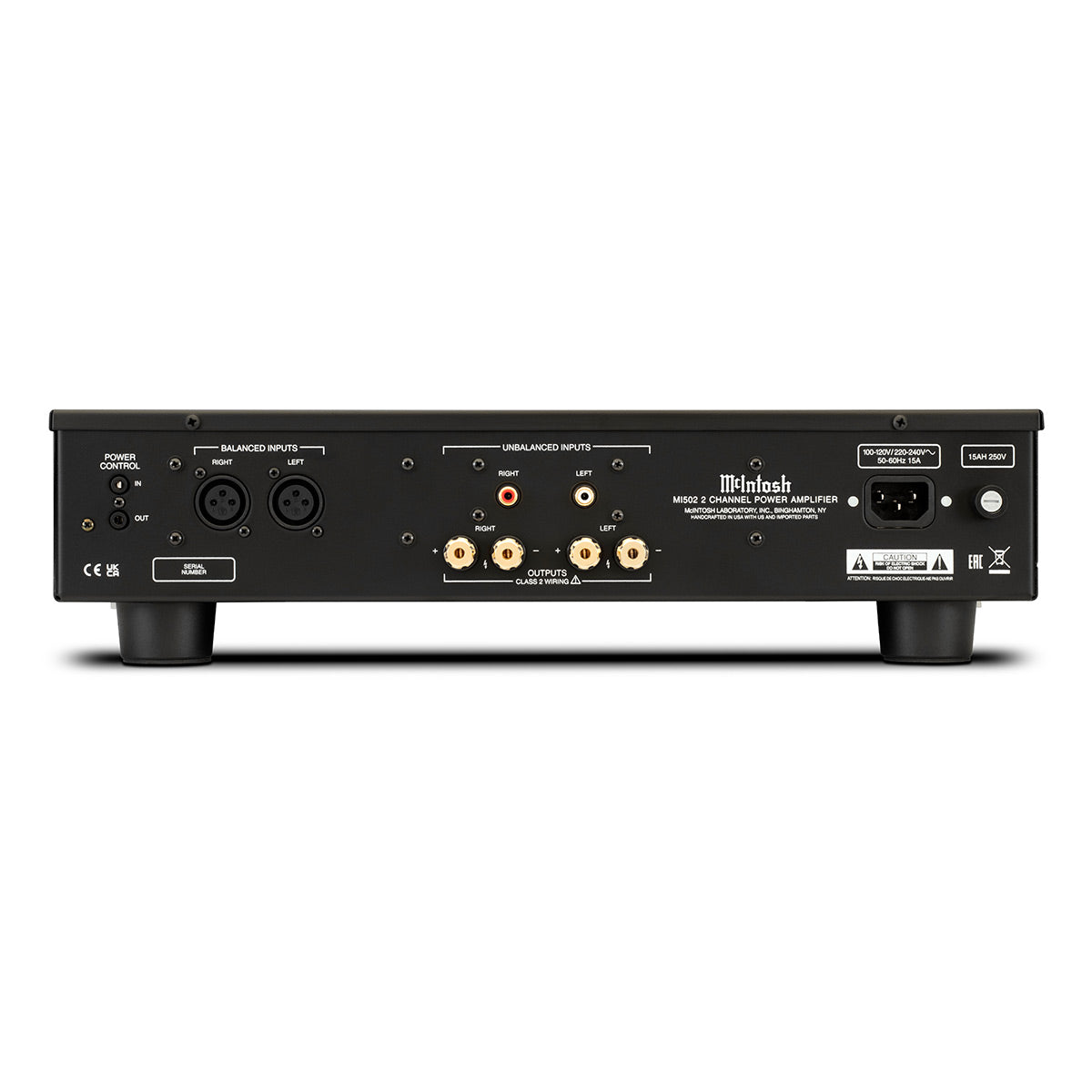

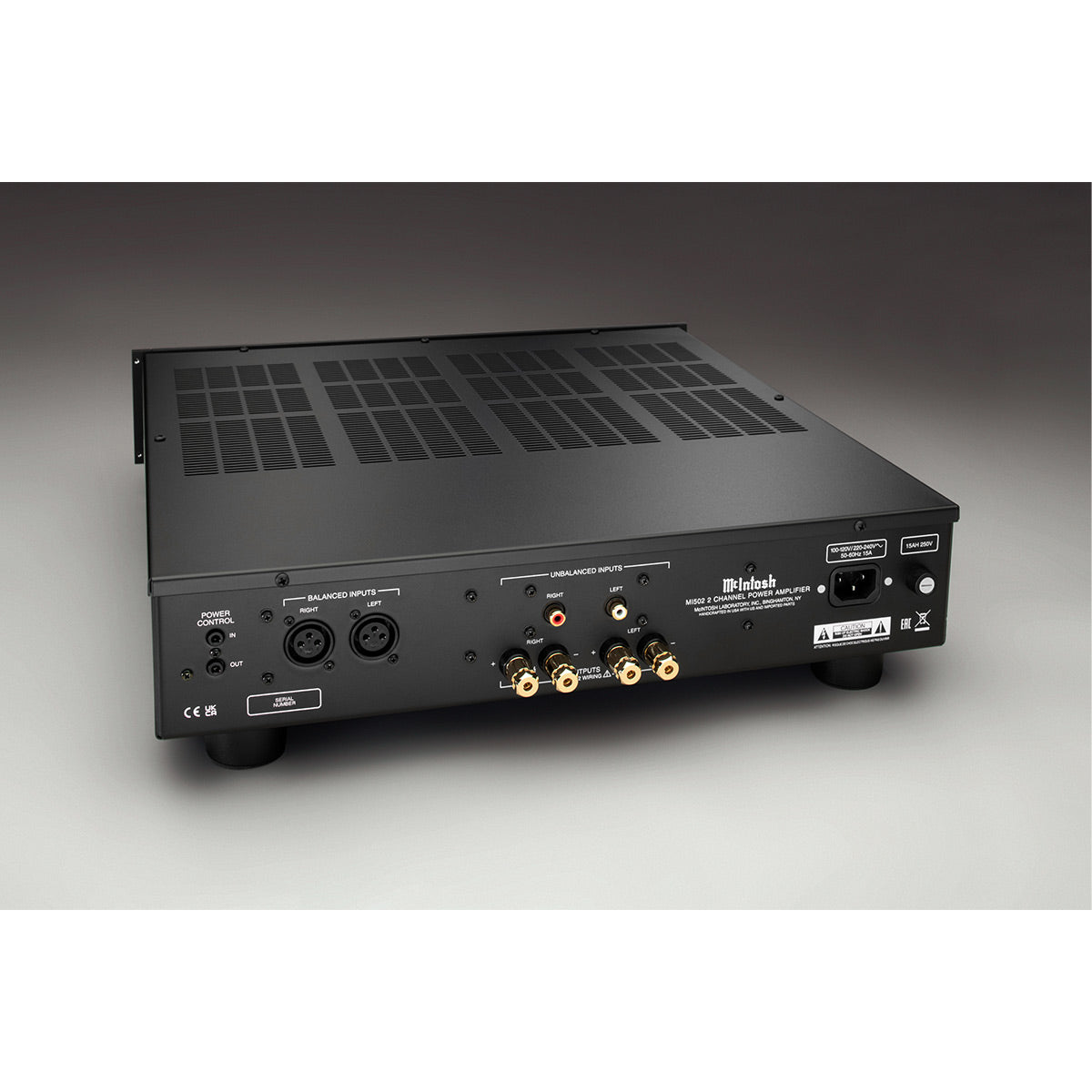

  • Connectivity
    • Speaker Binding Post Type: Standard
  • General
    • Circuit Configuration: Closed-loop digital switching
    • Circuit Design: Digital
    • Mono Bridge: N/A
    • Mono Parallel: N/A
    • Output Type: Direct Coupled
    • Meters: Yes
    • Meter Light Switch: No
    • Balanced Input: 1
    • Front Panel: Glass with removable rack mounting ears
    • Illumination: Direct LED
    • Chassis Style: Black painted steel
  • Weights & Dimensions (W x H x D)
    • Unit Dimensions: 17-1/2" x 4-5/16" x 21"
    • Unit Dimensions (Including mounting ears, feet, and front panel): 19" x 4-5/16" x 21"
    • Unit Weight: 21.5 lbs

What's In The Box

  • MI502 2-Channel Digital Amplifier
  • (2) Side Rack Mounted Brackets
  • Screw Fasteners
  • Power Cord
  • Manual
