McIntosh

McIntosh MEN220 Room Correction System (Black)

Regular price $6,000.00
Sale price $6,000.00 Regular price
Save $-6,000.00 (%)

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: MEN220 | UPC: 842548103870

Specifications

What's In The Box

Product Documents

Product Information

Model: MEN220 | UPC: 842548103870

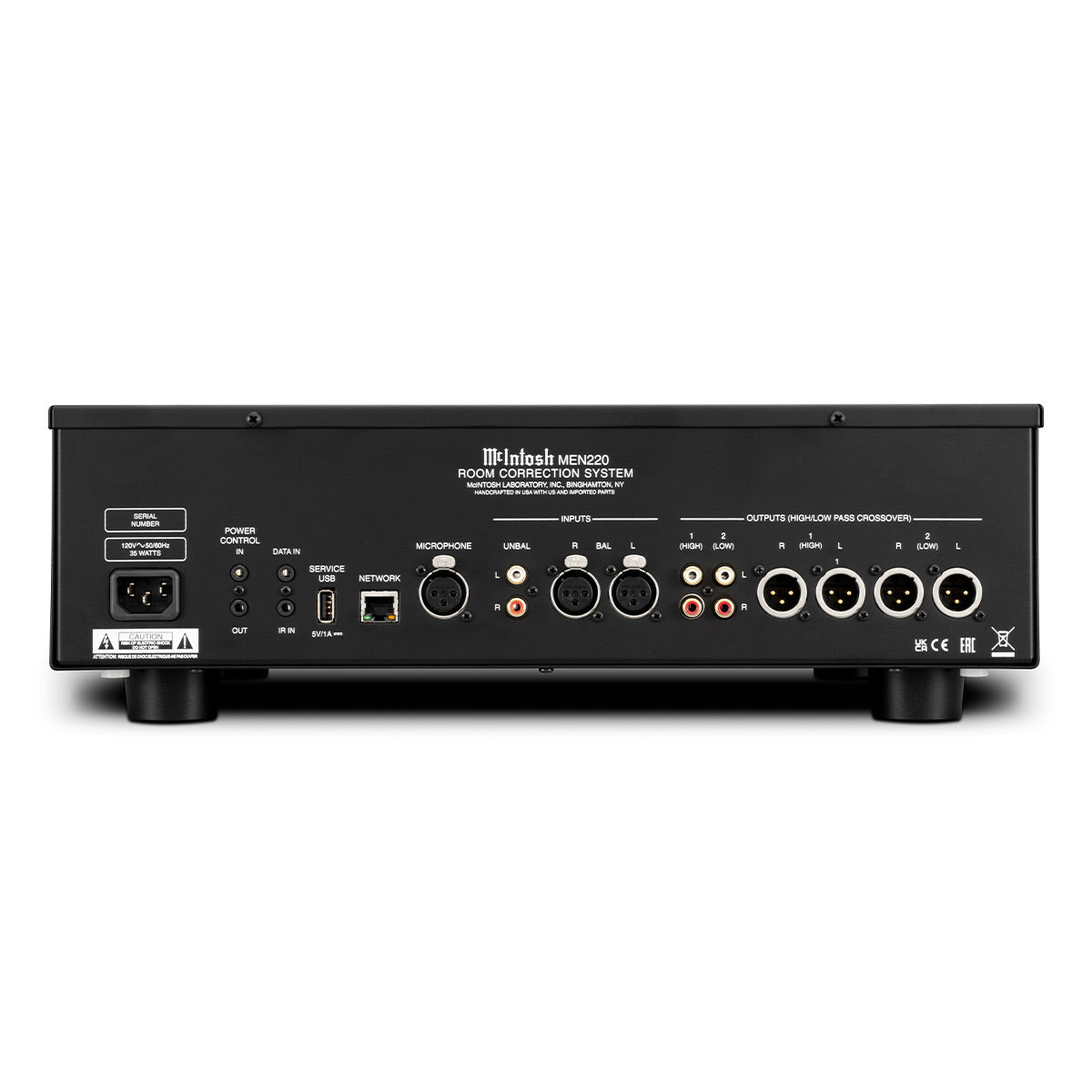

The MEN220 delivers a potent suite of room correction, Custom-EQ, and 2-way crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining the features can reveal a level clarity and resolution unattainable by any other means. Full system control and PC link are provided via RS232 while McIntosh Data, Power Control, and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported.

Specifications

Electronic

  • Frequency response: +0, -0.5dB from 20Hz to 20,000Hz
  • Total harmonic distortion: 0.002% from 20Hz to 20,000Hz
  • Maximum input voltage
    • 4.5V unbalanced and balanced (preamp - power amp)
    • 2.25V unbalanced and balanced (processor loop)
  • Signal-to-noise ratio (A-weighted)
    • 100dB
  • Input impedance: 10K ohms unbalanced and balanced
  • Voltage gain: 0dB
  • Output impedance: 50 ohms
  • Crossover filter types, order and slope
    • Butterworth, 1st order, 6dB/octave
    • Butterworth, 2nd order, 12dB/octave
    • Butterworth, 4th order, 24dB/octave
    • Linkwitz-Riley, 2nd order, 12dB/octave
    • Linkwitz-Riley, 4th order, 24dB/octave
    • Linkwitz-Riley, 8th order, 48dB/octave

General

  • Dimensions (W x H x D): 17 1/2" x 6" x 18"
  • Weight: 25.5 lbs.

What's In The Box

  • MEN220 Room Correction System
  • IR remote

Product Documents
