Marantz

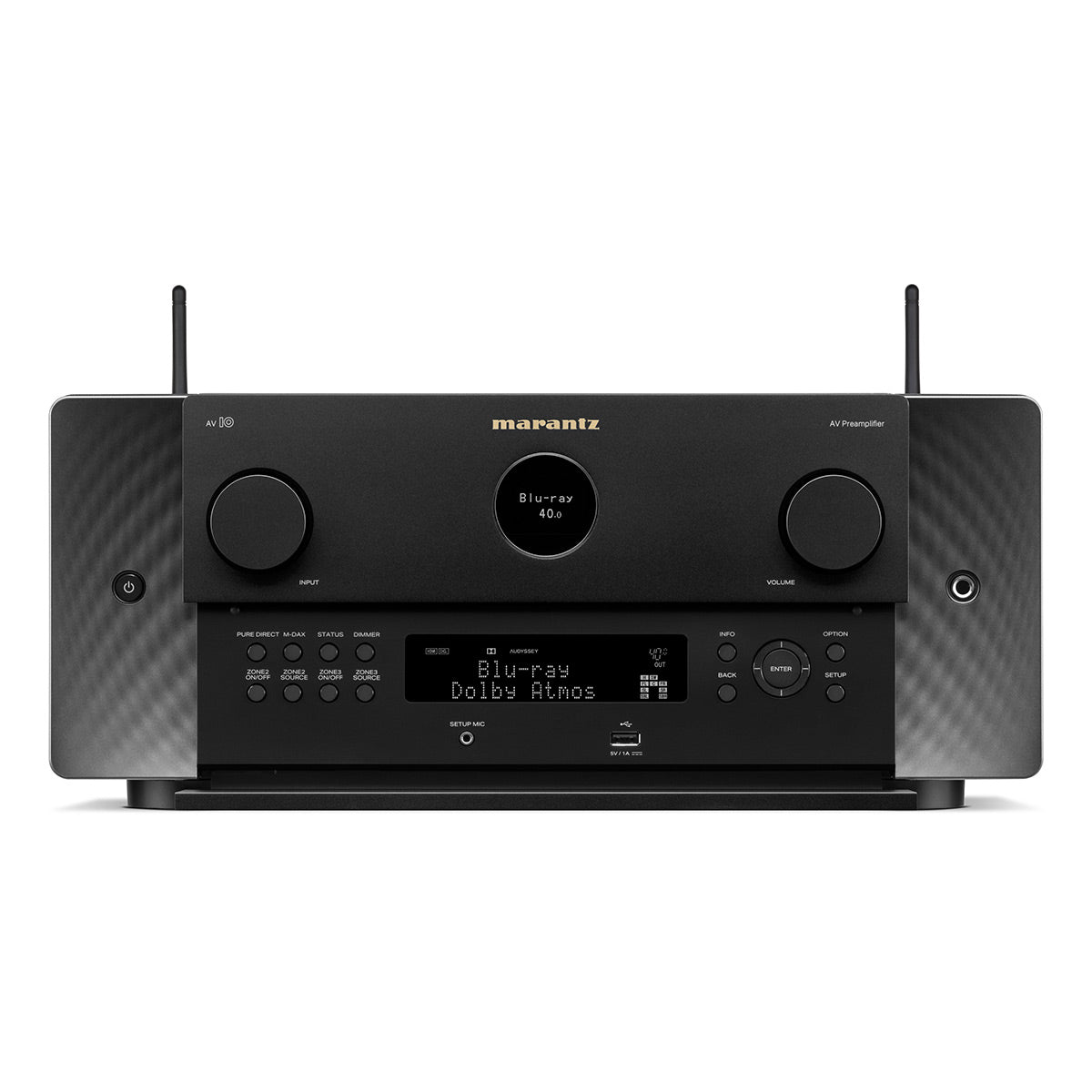

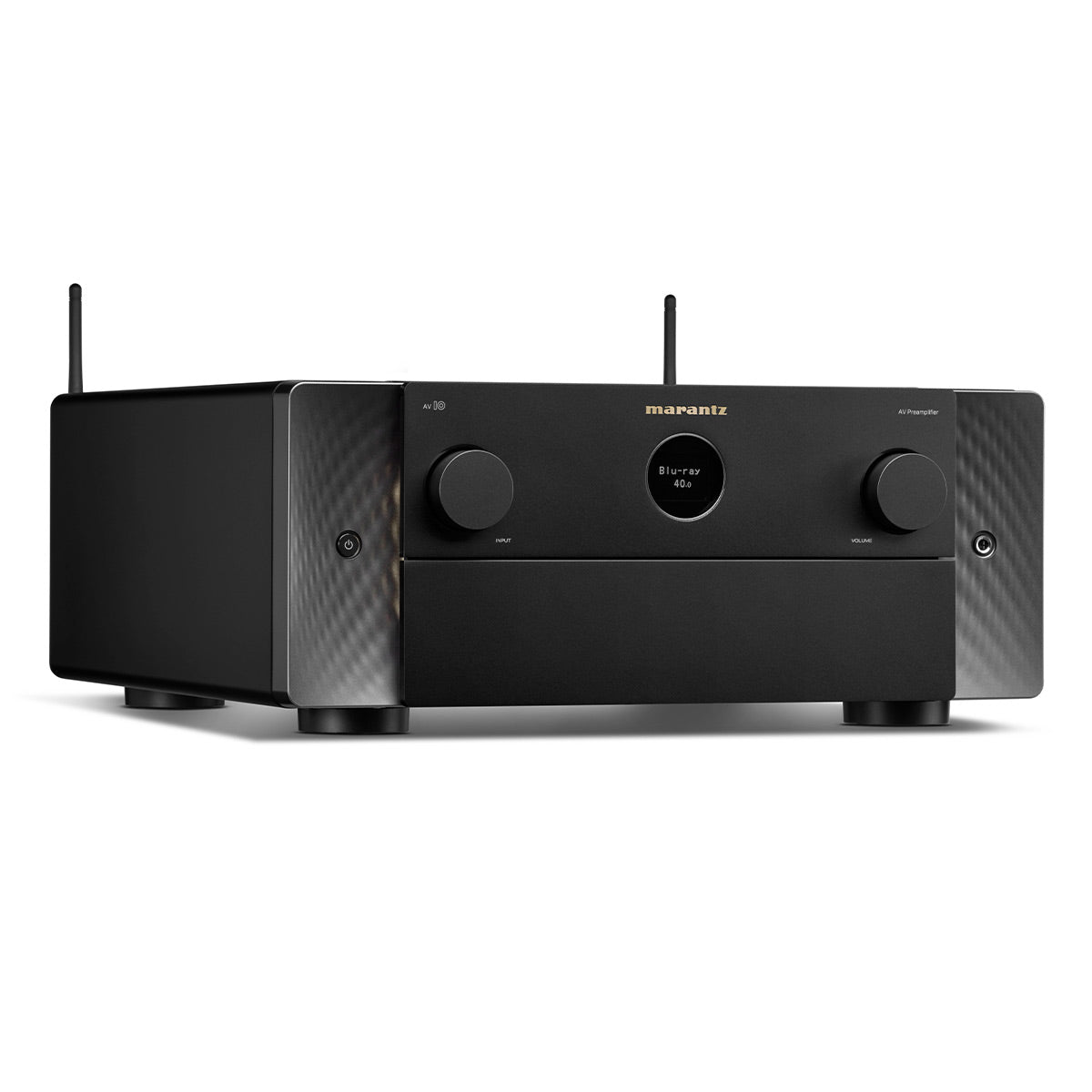

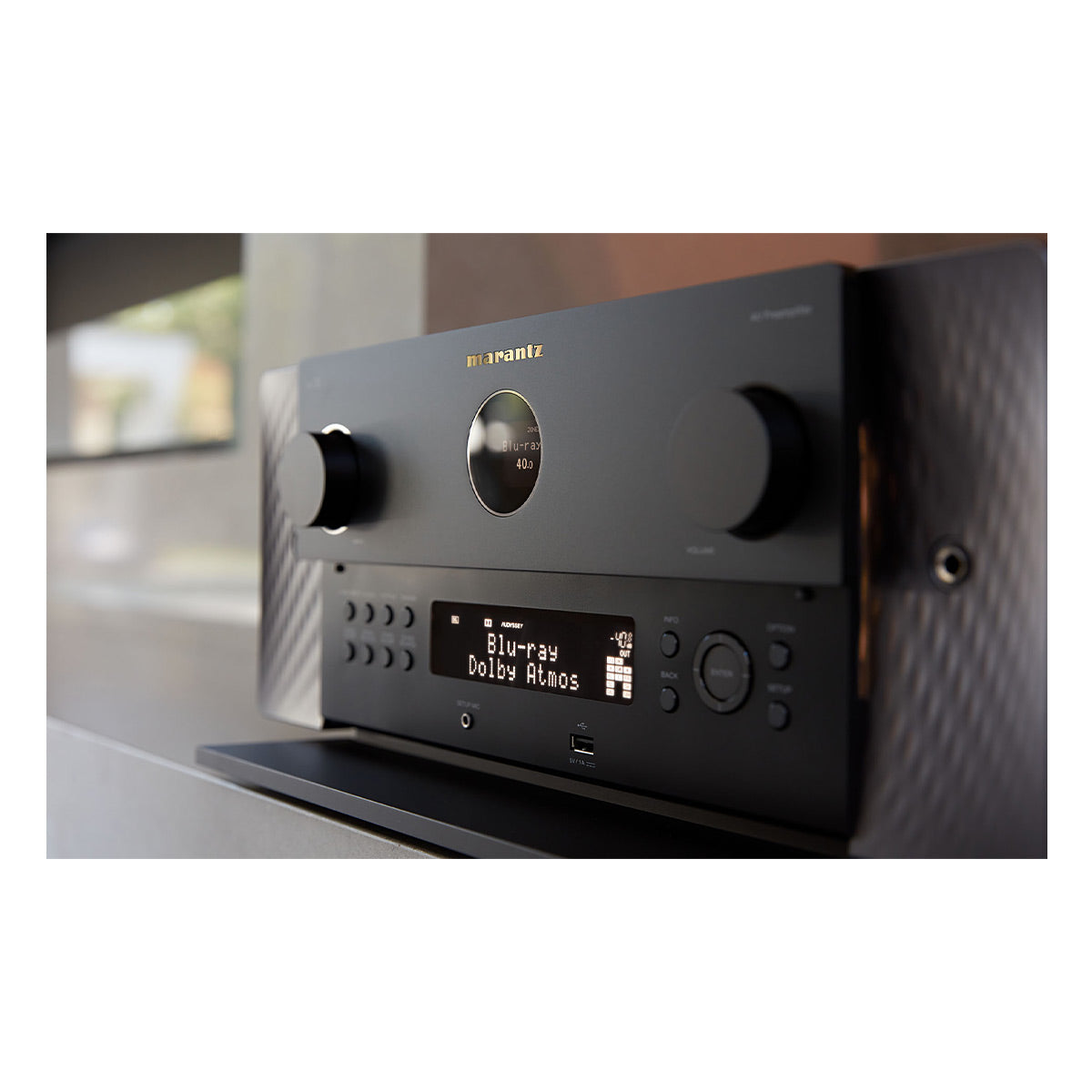

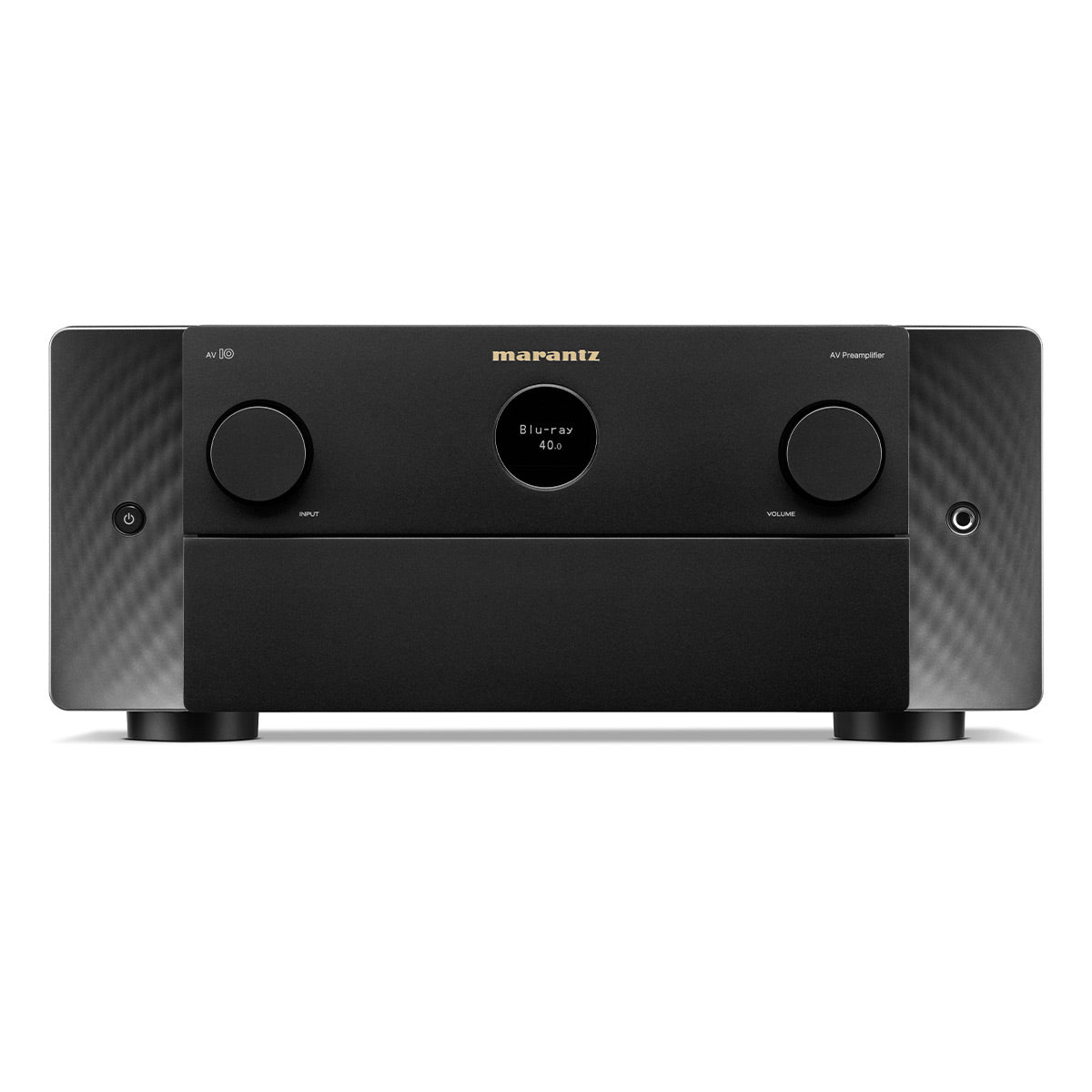

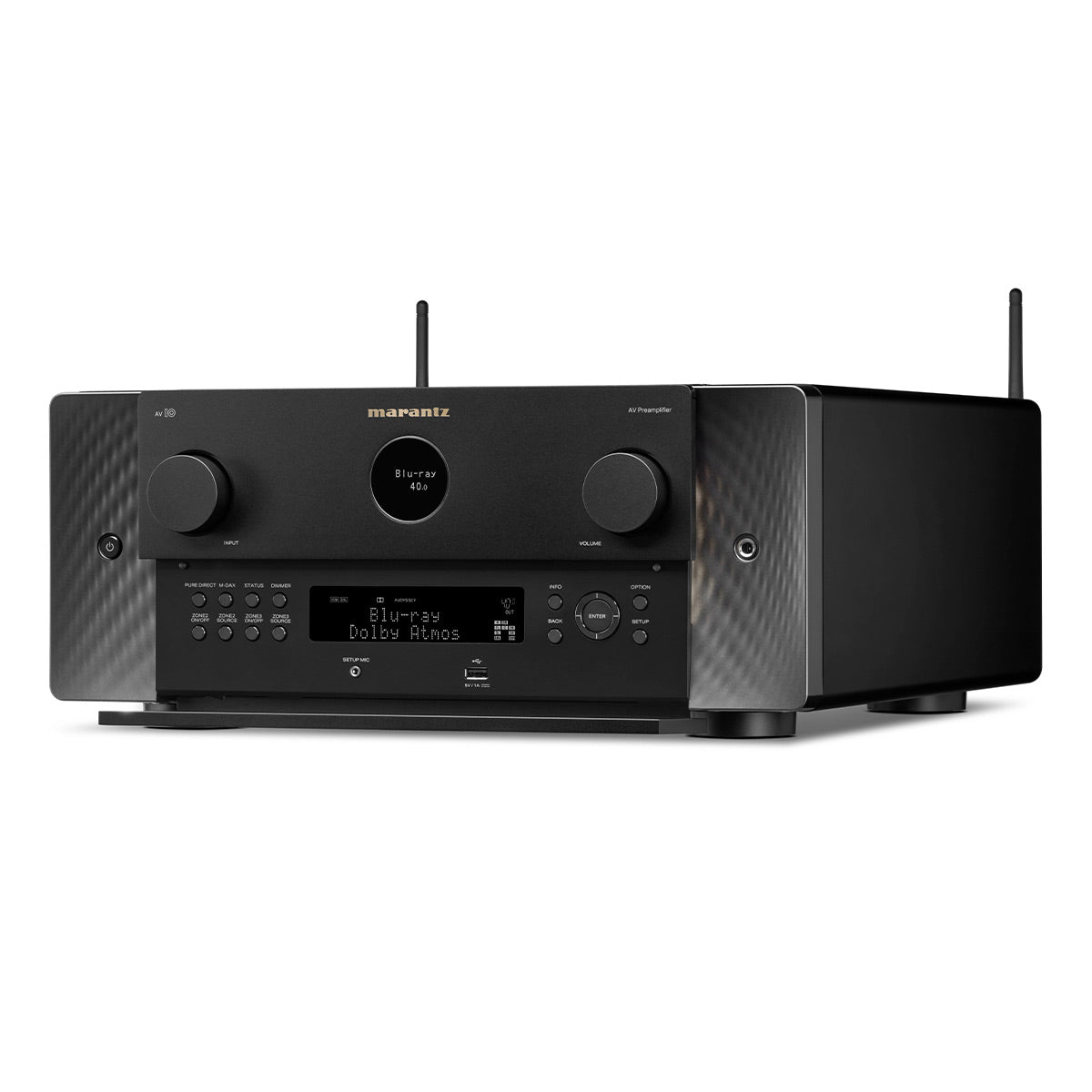

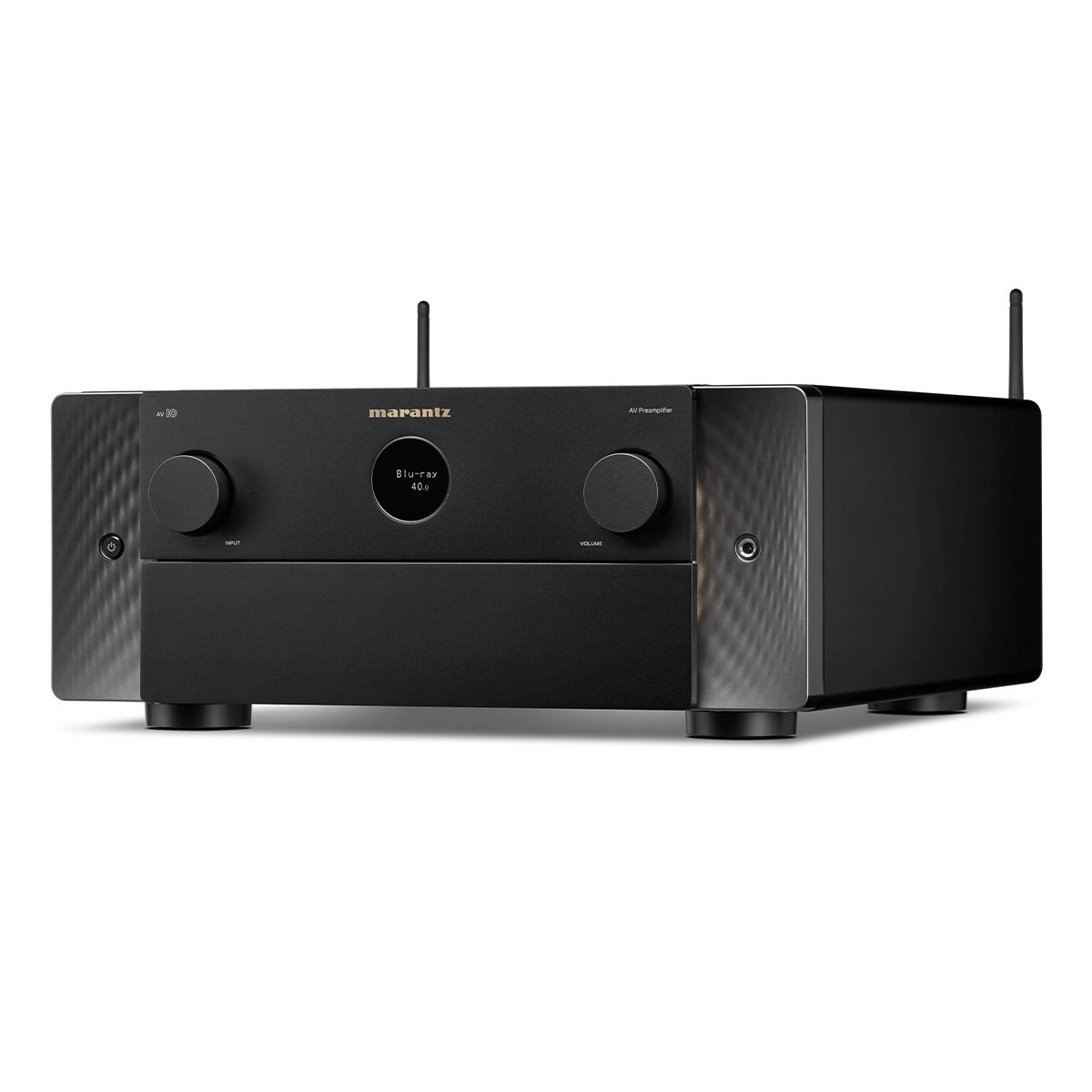

Marantz AV 10 Reference 15.4 Channel 8K Ultra HD Home Theater Pre-Amplifier/Processor with Dolby Atmos, DTS:X Pro, IMAX Enhanced and HEOS® Built-in
Overview
Product Information
Specifications
What's In The Box
Product Information
Excellence Only Begins with Performance
AV 10 represents the highest measure of performance and capability for reference-level home theater systems. It features legendary Marantz HDAM discrete circuitry, seven HDMI inputs each of which is 8K UHD compatible, HEOS® Built-in, room correction with Audyssey MultEQ XT32, Dolby Atmos and DTS:X Pro, Auro 3D, plus multiple of inputs and balanced pre-amp outputs for all channels and four independent subwoofers.
Features
- Detailed and immersive sound transforms your listening room
- Beautiful design matches rich, warm sound
- 17.4 channel output via RCA and XLR supports myriad reference
- Loudspeaker configurations
- Extraordinarily clear digital to analog conversion with switchable filter settings.
- Decodes Dolby Atmos and DTS:X audio and Auro 3D
- Acoustic room tuning with Audyssey MultEQ XT32
- Seven HDMI inputs (all 8K) and three outputs for highest resolution video
- Sound Master tuned for warm, rich and detailed Marantz sound
- Attractive new HD on-screen interface makes setup intuitive
- Pre-amp outputs for all channels enable amplifier upgrades
Performance
The Marantz Sound Master meticulously tuned AV 10 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Style
Excellence is heard and seen. AV 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
Customizability
Thoughtfully curated connectivity options and fine tuning ability allow you to make AV 10 your own.
Effortless

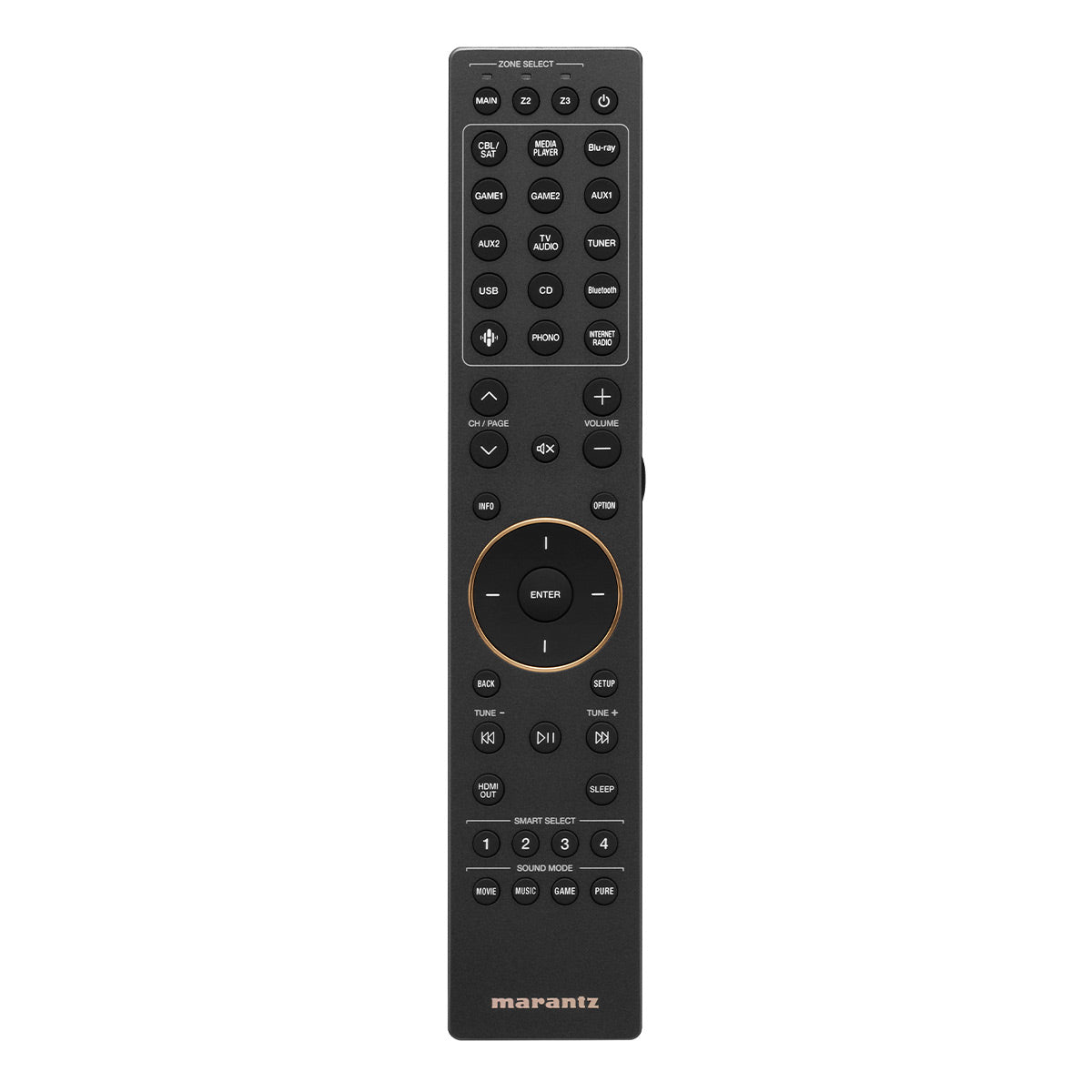

Included aluminum remote, accessible front-panel controls, and an intuitive onscreen setup process make you feel like an expert user right away.
Compatibility
Seven HDMI inputs, plus digital, analog and phono inputs plus loudspeaker and pre-amp outputs ensure connectivity to virtually any other components you may have.
Upgradeability
Extensive input and output options plus a powerful software ecosystem make AV 10 easy to upgrade as your home theater grows.
Specifications
- Multichannel Surround
- DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / Yes
- DTS Neo:X / DTS Neural:X: No / Yes (15ch)
- DTS Virtual:X: Yes
- IMAX Enhanced: Yes
- Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music: Yes / Yes / Yes / Yes
- Dolby ProLogic Ilz / Dolby Surround: No / Yes
- Auro 3D: Yes
- 360 Reality Audio / MPEG H: Yes / Yes
- Multichannel Stereo: Yes
- Max Number of Processing (Preamp) Channels: 15.4
- Sound Enhancements
- Copper Plated Chassis: Yes
- Power Transformer: Toroidal / EI: Yes / No
- Current Feedback Topology: Yes
- Hyper Dynamic Amplifier Modules (HDAM): Yes
- Pure Direct: Yes
- Gold plated RCA terminals: Yes
- Clock Jitter Reducer: Yes
- Audyssey: MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
- Audyssey LFC: Yes
- Dirac Live upgradability: Yes
- Compressed Audio Enhancer: MDAX2: Yes
- Network
- HEOS Multi-room and Streaming: Yes
- Bluetooth Re-transmit for Bluetooth headphones: Yes
- Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes
- Network Audio Sharing: Yes
- Lossy formats: MP3 / WMA / AAC: Yes / Yes / Yes
- Lossless formats: FLAC / ALAC / WAV: Yes / Yes / Yes
- Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
- DSD Audio Streaming: Yes (2.8/5.6MHz)
- FLAC HD 192/24: Yes
- WAV 192/24: Yes
- ALAC 192/24: Yes
- Gapless Playback: Yes (FLAC, WAV ,ALAC ,DSD)
- AirPlay Audio Streaming : Yes (AirPlay2)
- Internet radio: Yes (TuneIn)
- Spotify*: Yes (connect)
- Pandora: Yes
- SiriusXM: Yes
- Other Streaming Services: Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
- Roon Tested: Yes
- Compatible with Remote APP for Smart Phones: Marantz AVR Remote
- Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle
- Ethernet Ports: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
- HDMI
- HDMI Inputs: Back / Front: 7 / No
- HDCP2.3 support: Yes
- HDMI Outputs: Main / Zone: 2 / 1
- HDMI to HDMI Scaling: 1080P/4K to 8K
- GUI Overlay on HDMI: Yes
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes
- Enhanced ARC: Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
- Variable Refresh Rate / Quick Frame Transport: Yes / Yes
- 3D Signal Pass-Through: Yes
- 8K signal pass-through / scaling / GUI Overlay: Yes / Yes / Yes
- 4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
- HDMI pass-though in standby mode: Yes
- Picture Adjust / Noise Reduction: No / No
- CEC: Yes
- DSD Audio Capability: Yes
- Audio Return Channel: Yes
- Auto LipSync: Yes
- Multi-Room / CI
- HEOS Multi-Room Integrated: Yes
- HEOS Link Compatibility: IR/ IP: Yes / Yes
- Multi-Room Zones: 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout: No / Yes
- Zone HDMI Output from HDMI Source: Yes
- IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
- IR Flasher In: Yes
- Marantz Remote Bus: Yes
- DC Trigger Output: 2
- HDMI Diagnostics: Yes
- Others
- Auto Speaker Setup by Microphone: Audyssey MultEQ XT32 / Dirac Live (upgrade)
- Front Display: 2 line FLD + port hole OLED
- Graphic User Interface – GUI: Modern HD GUI
- GUI Languages: 3
- Setup Assistant: Yes
- Smart Select: Yes
- Firmware Update by Network / USB: Yes / Yes
- Variable Cross Over: Yes
- Optimized Bass Redirection: Yes
- Bass Sync: Yes
- Auto Power off: Yes
- Sleep Timer: Yes
- Inputs/Outputs
- Composite In / Out: No / No
- Component In / Out: No / No
- HDMI In / Out: 7 / 3
- Multi-Room Video Out: Video / HDMI: No / Yes
- Analogue In / Out: 5 (1x XLR) / No
- Phono (MM) In: Yes
- Digital In: Optical / Coaxial: 2 / 2
- Multi-Room Out: analog / digital: 2 / No
- Multichannel Pre Out: Yes (17.4 RCA & 17.4 XLR)
- Subwoofer Out: 4 (independent)
- Speaker A / B: Assignable pre-out
- Bi-amp drive: Assignable pre out
- Multi-Room Speaker Terminal: pre out
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes
- USB Audio / Made for iPod / Made for iPhone: Yes / No / No
- AM/FM Tuner: Yes
- General
- Metal Front Panel: Yes
- System Remote Control: RC047SR
- Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
- Power Consumption in W: 100
- Standby Consumption in W: 0.2
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0
- Maximum Dimensions
- Antenna (Horizontal) (W x D x H): 17.4” x 7.4” x 19.8”
- Antenna (Vertical) (W x D x H): 17.4” x 9.9” x 19.8”
- W/o Antenna (W x D x H): 17.4” x 7.4” x 19.0”
- Weight: 37.0 lbs
What's In The Box
- AV 10 Reference 15.4 Channel 8K Ultra HD Home Theater Pre-Amplifier/Processor with Dolby Atmos, DTS:X Pro, IMAX Enhanced and HEOS® Built-in
- Remote Control
- Batteries
- AM/FM Antennas
- Wire Labels
- Quick Start Guide
- Audyssey Microphone
- Card Board Microphone Stand
- 2 External Detachable Antenna
- AC cord
Expert Review

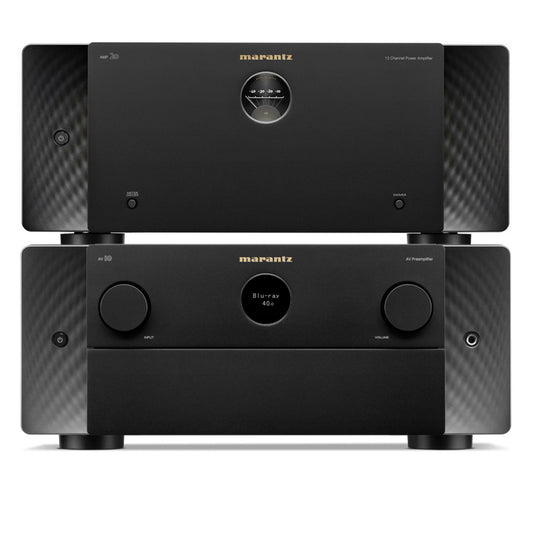

Explore Packaged Solutions
