Klipsch R-605FA Reference Floorstanding Speaker with Built-In Elevation Up-Firing Dolby Atmos Tweeter - Each (Black)

Regular price $769.00
Sale price $769.00 Regular price
Save $-769.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, May 24 – Fri, May 31

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 1069853 | UPC: 743878046311

Specifications

What's In The Box

Product Information

Model: 1069853 | UPC: 743878046311

All New 90° X 90° Tractrix Horn Take Your Movies and Music To New Heights

Klipsch’s proprietary speaker technologies are ideal for delivering the most immersive, impactful 360° Dolby Atmos® listening experience. Controlled directivity and high-performance have been an integral part of Klipsch acoustic design principals for the better part of a century.

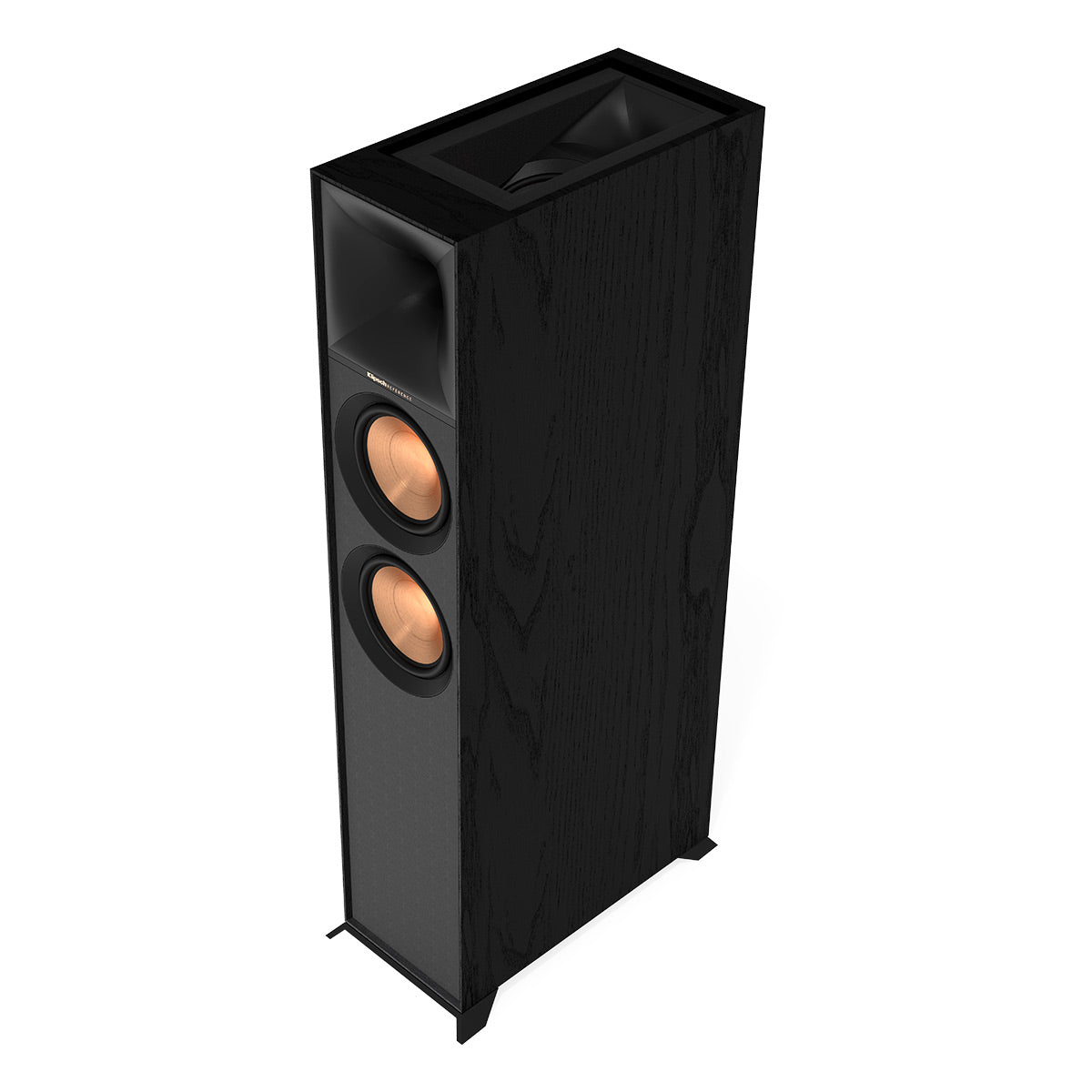

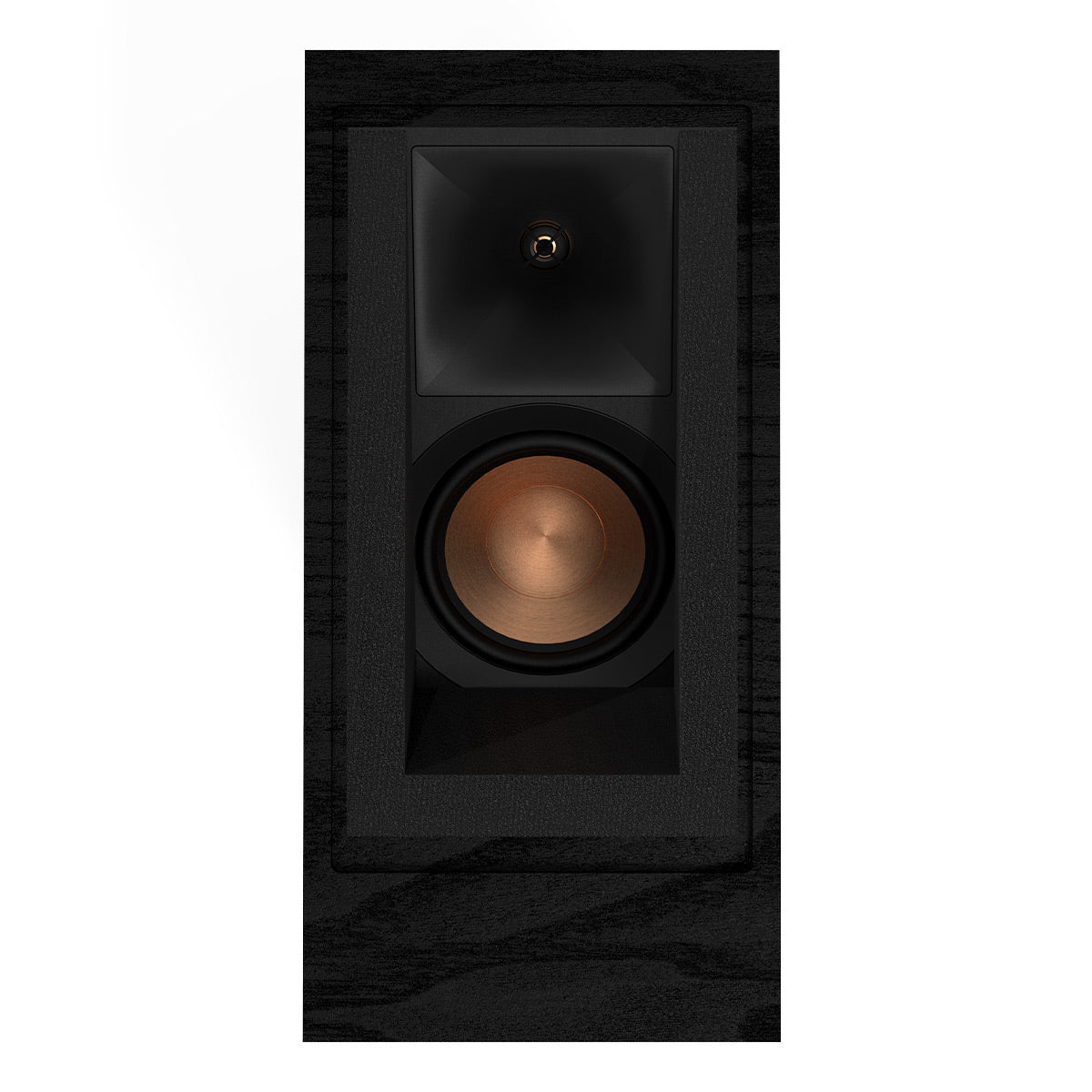

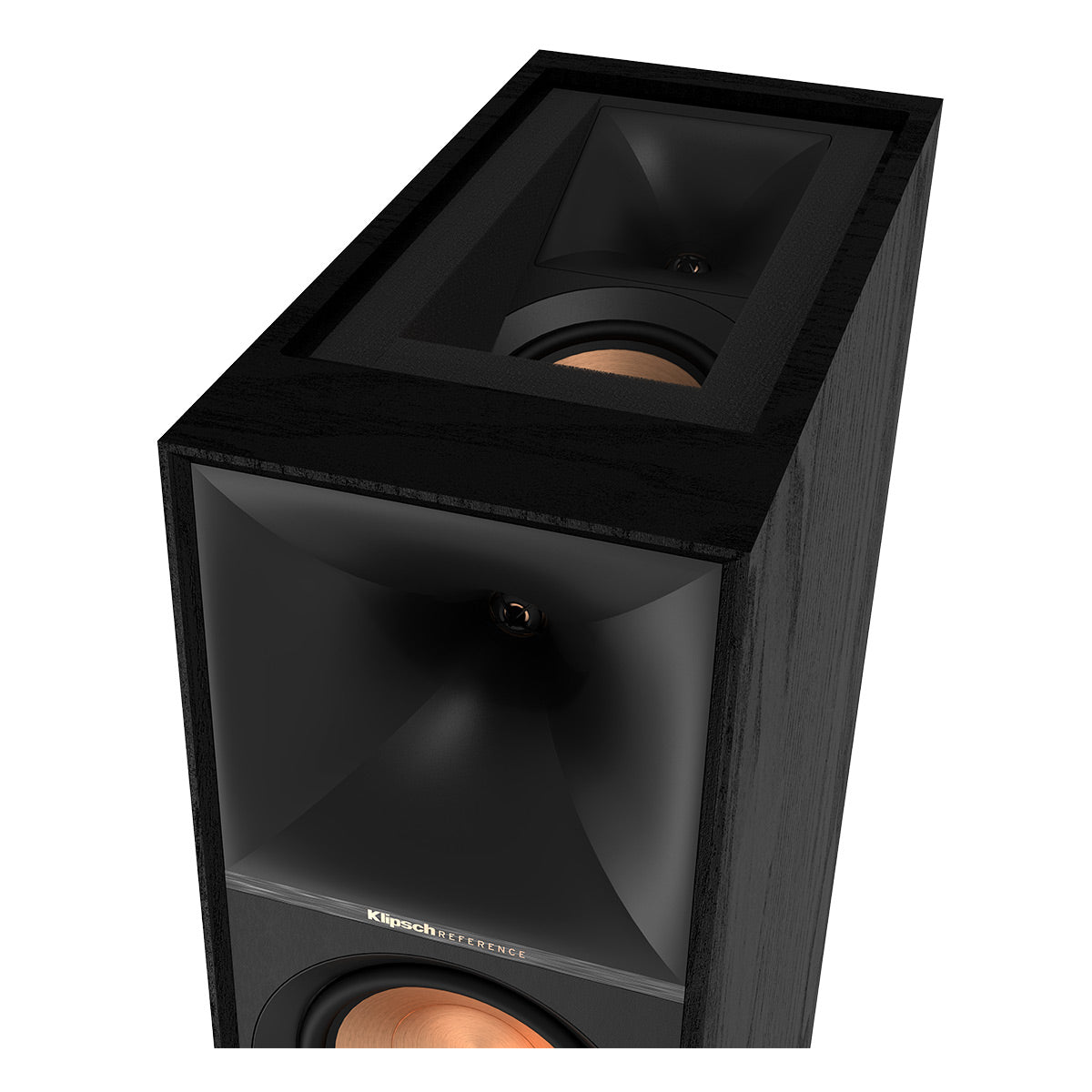

Built-In Elevation Speaker

Not just your typical full-range tower speaker, the R-605FA features a high-performance up-firing Dolby Atmos speaker integrated in the top for an enveloping soundstage. It’s a perfectly matched set up that virtually disappears.

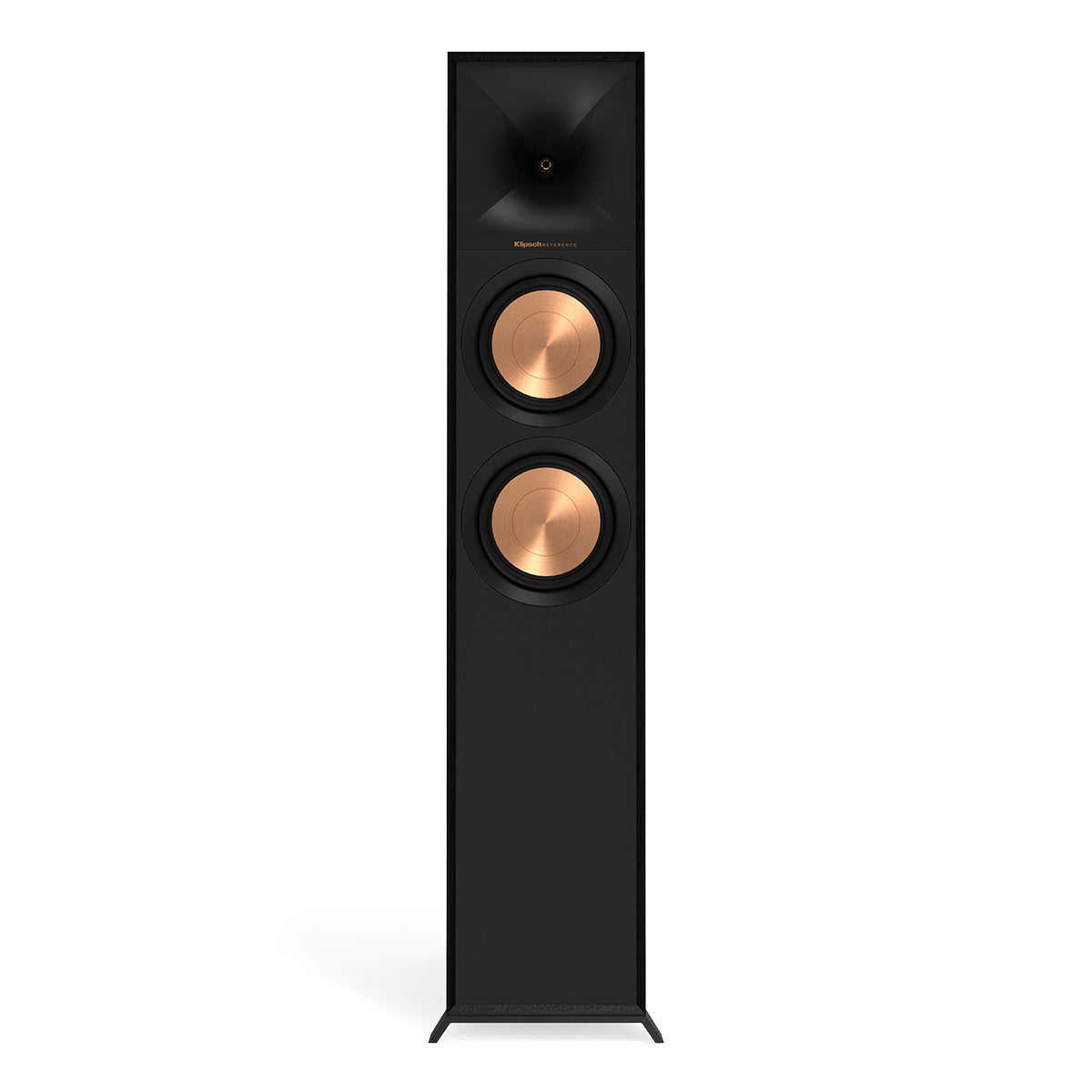

All New 90° X 90° Tractrix Horn

Klipsch's exclusive Tractrix® horn technology delivers the power, detail and emotion of the live music experience with the cleanest, most natural sound possible. The increased outer horn dimensions allow for directivity control over a larger bandwidth of frequencies, resulting in improved high-frequency directivity and a more accurate sound stage.

Linear Travel Suspension (LTS) Aluminum Tweeter with Kapton Suspension

The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced, detailed performances. Aluminum is an extremely light and rigid material used in the tweeter assembly to provide high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making it a core component of some of the best speakers in the world.

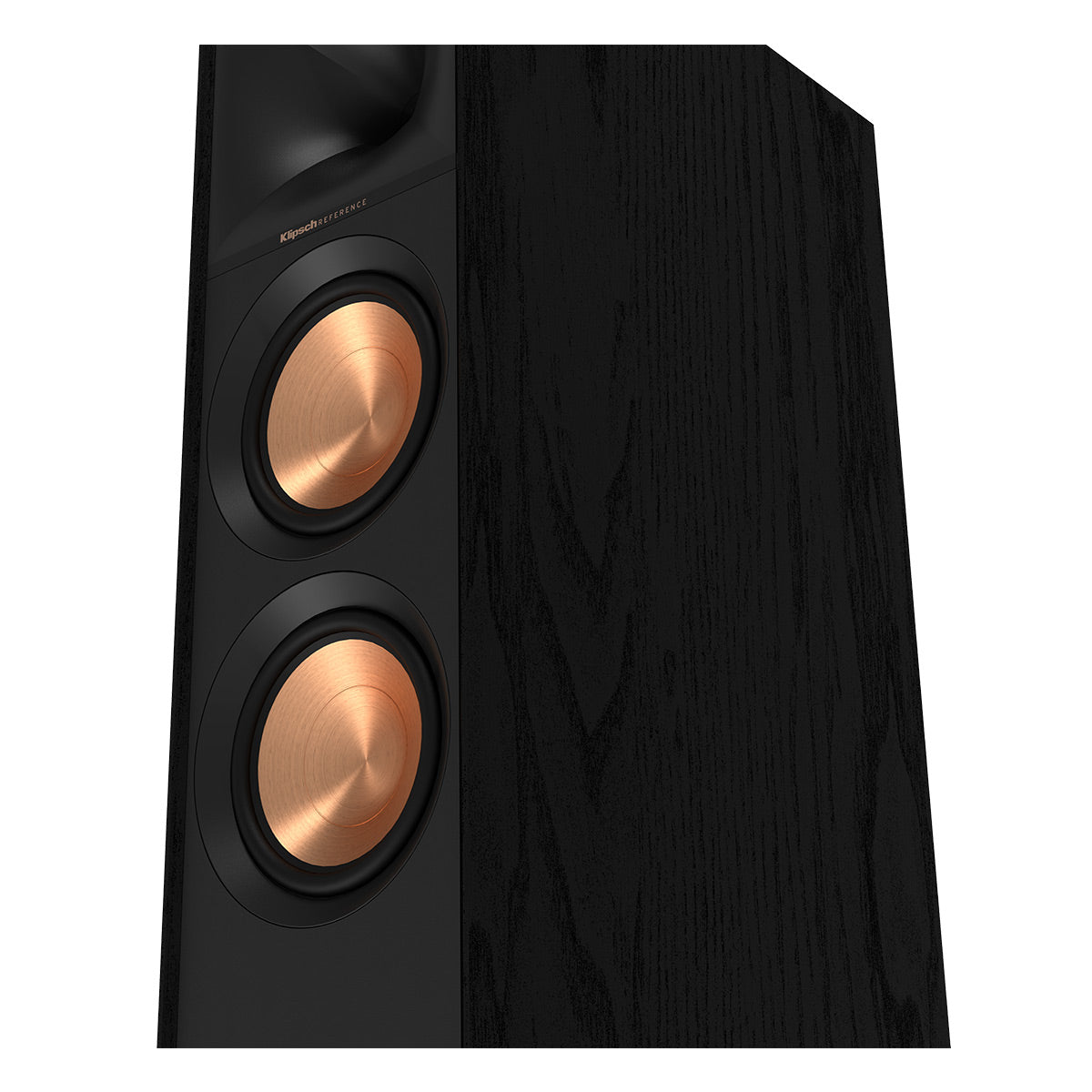

Spun-Copper Thermoformed Crystalline Polymer (TCP) Woofers

Utilizing trickle-down technology from Klipsch’s highly acclaimed Reference Premiere series, the TCP woofers have steeper angling of the cones for a smoother response and improved accuracy and transparency. The additional ribbing increases the overall rigidity for less cone breakup at higher frequencies.

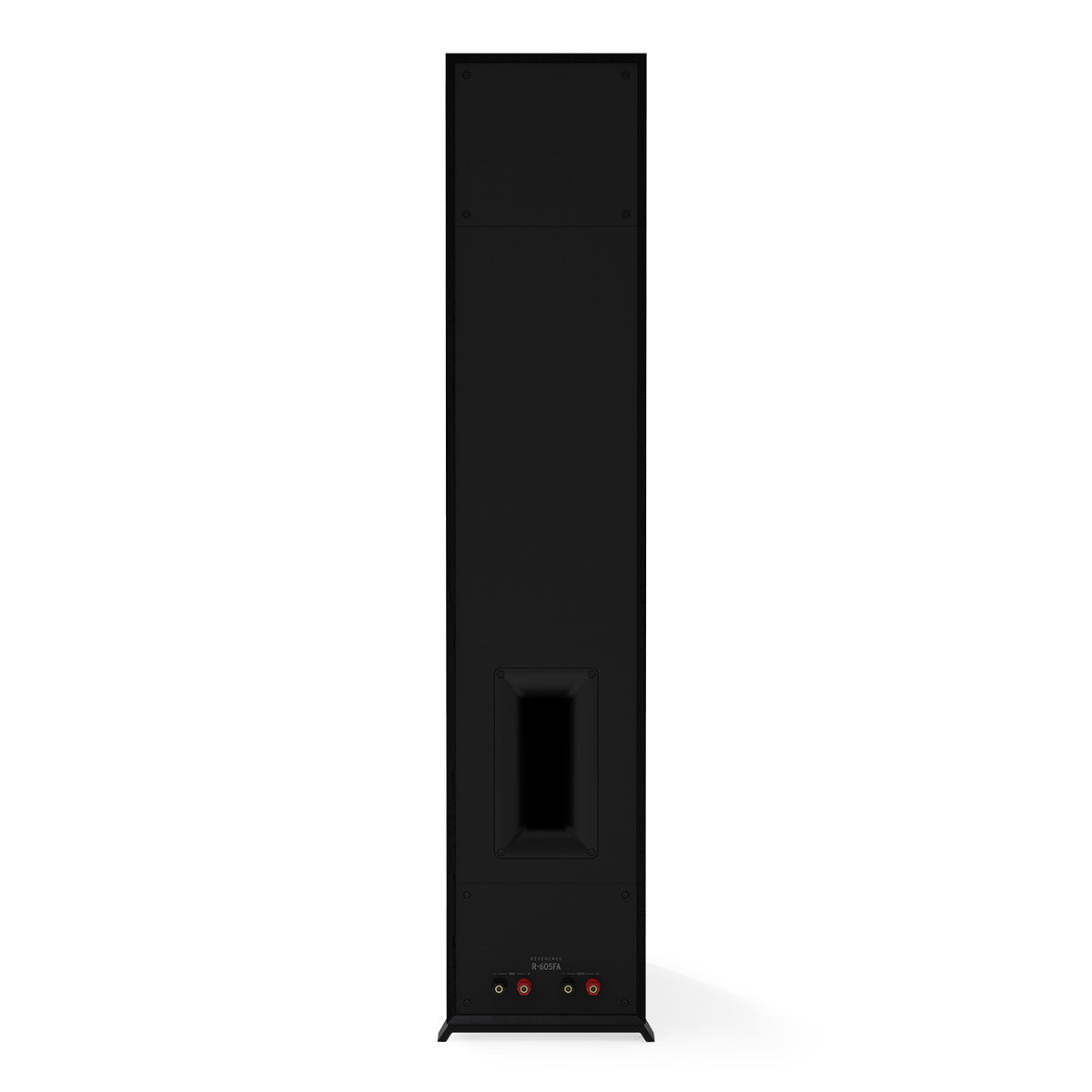

Rear Tractrix Port

The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

Sleek, Modern Appearance

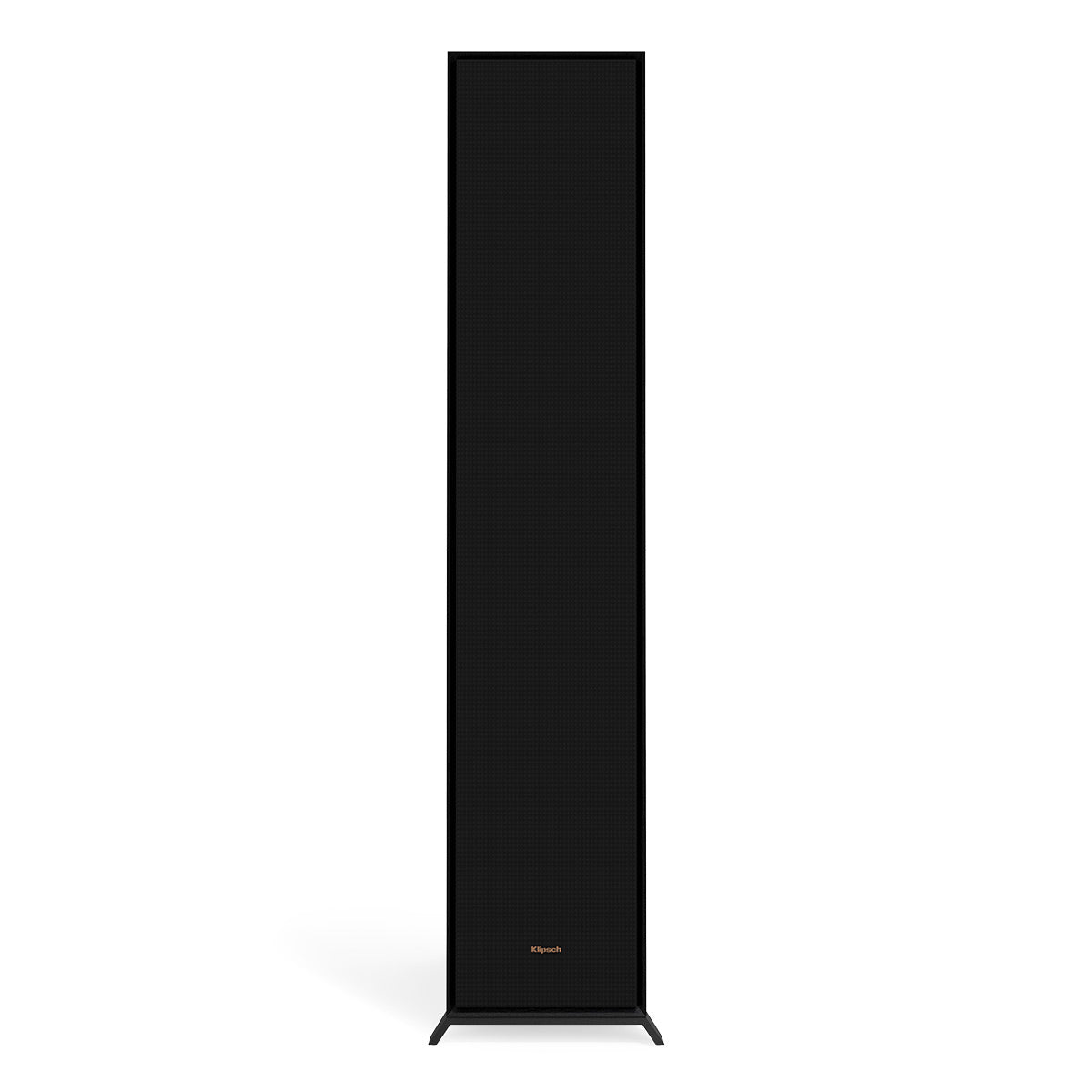

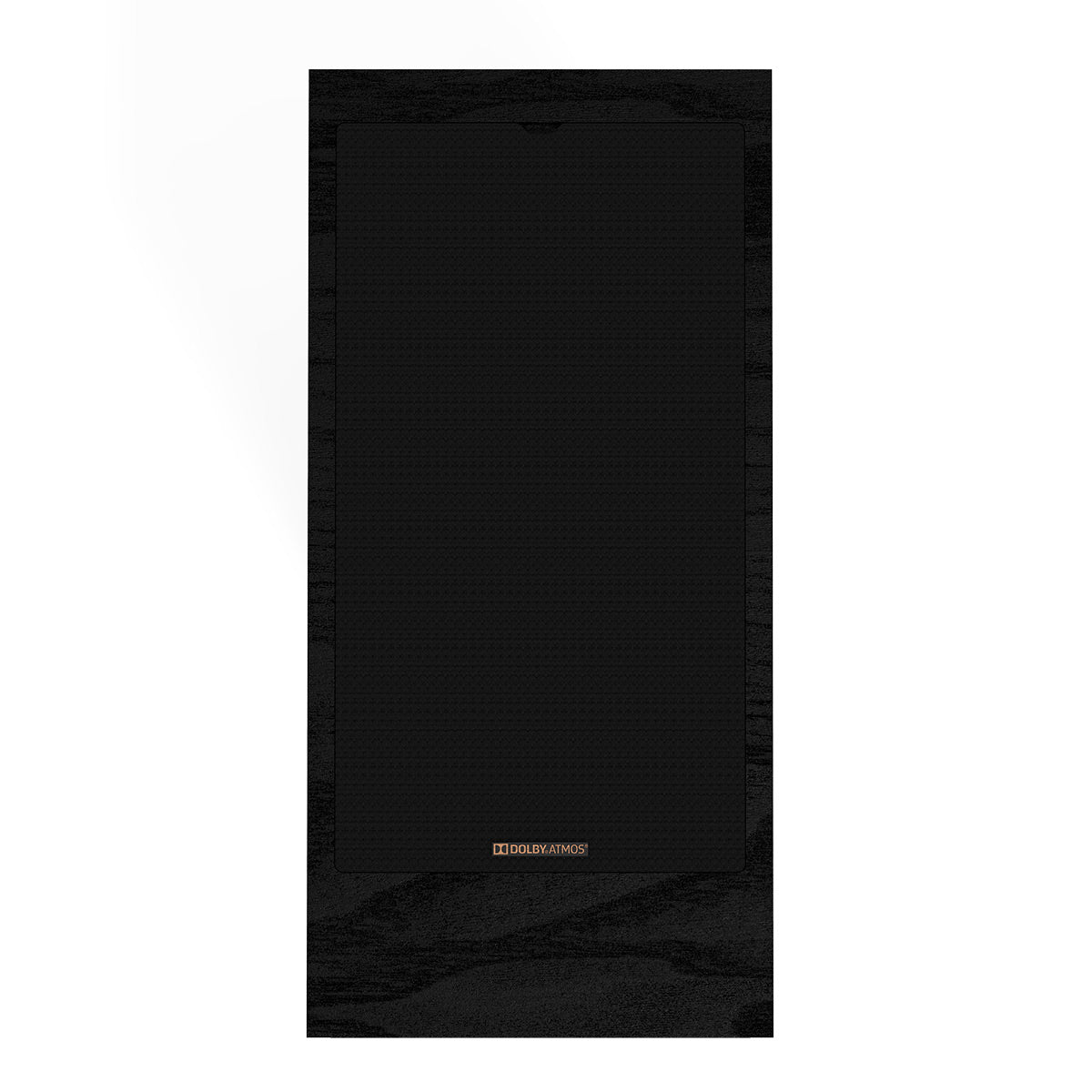

Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the speakers a polished, modern appearance.

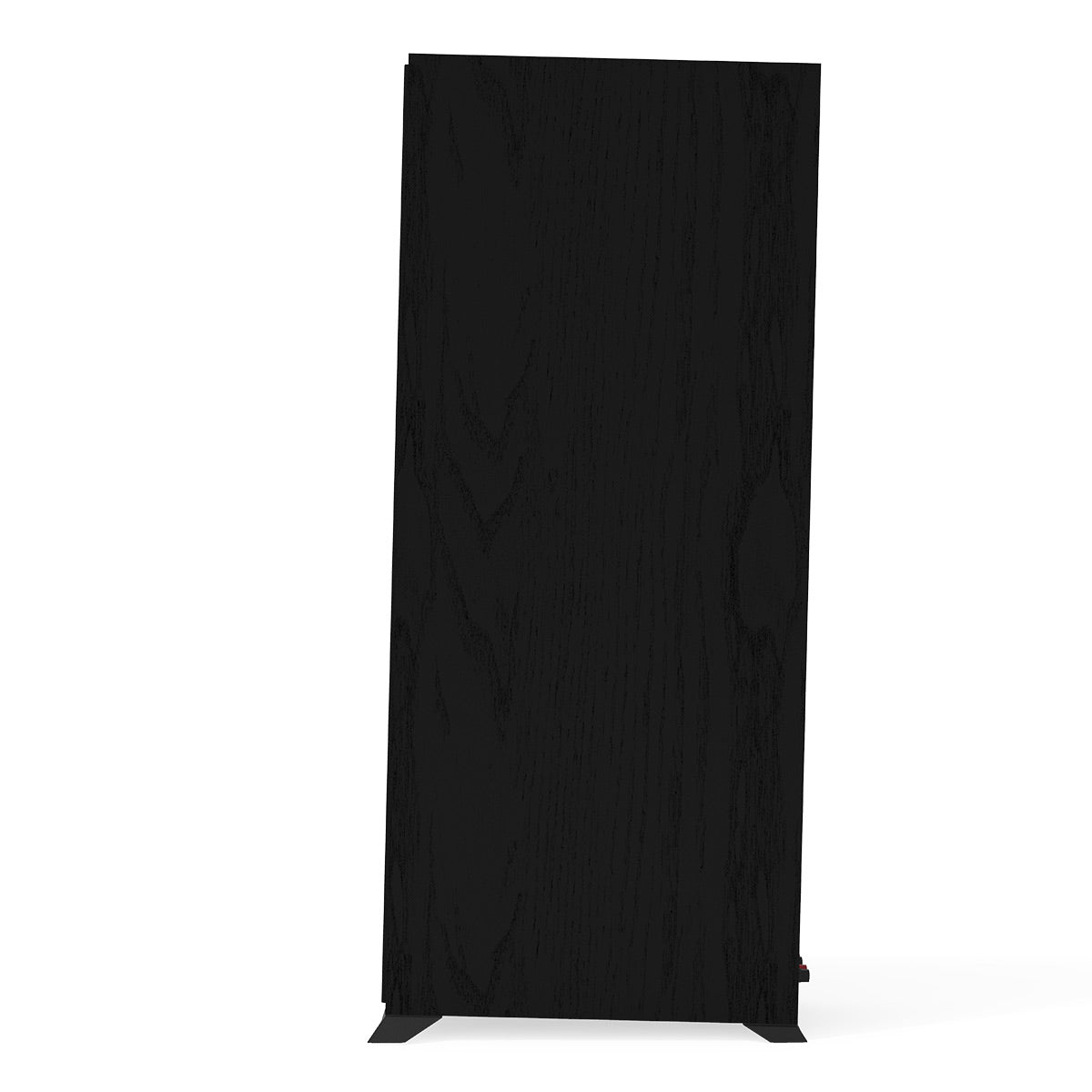

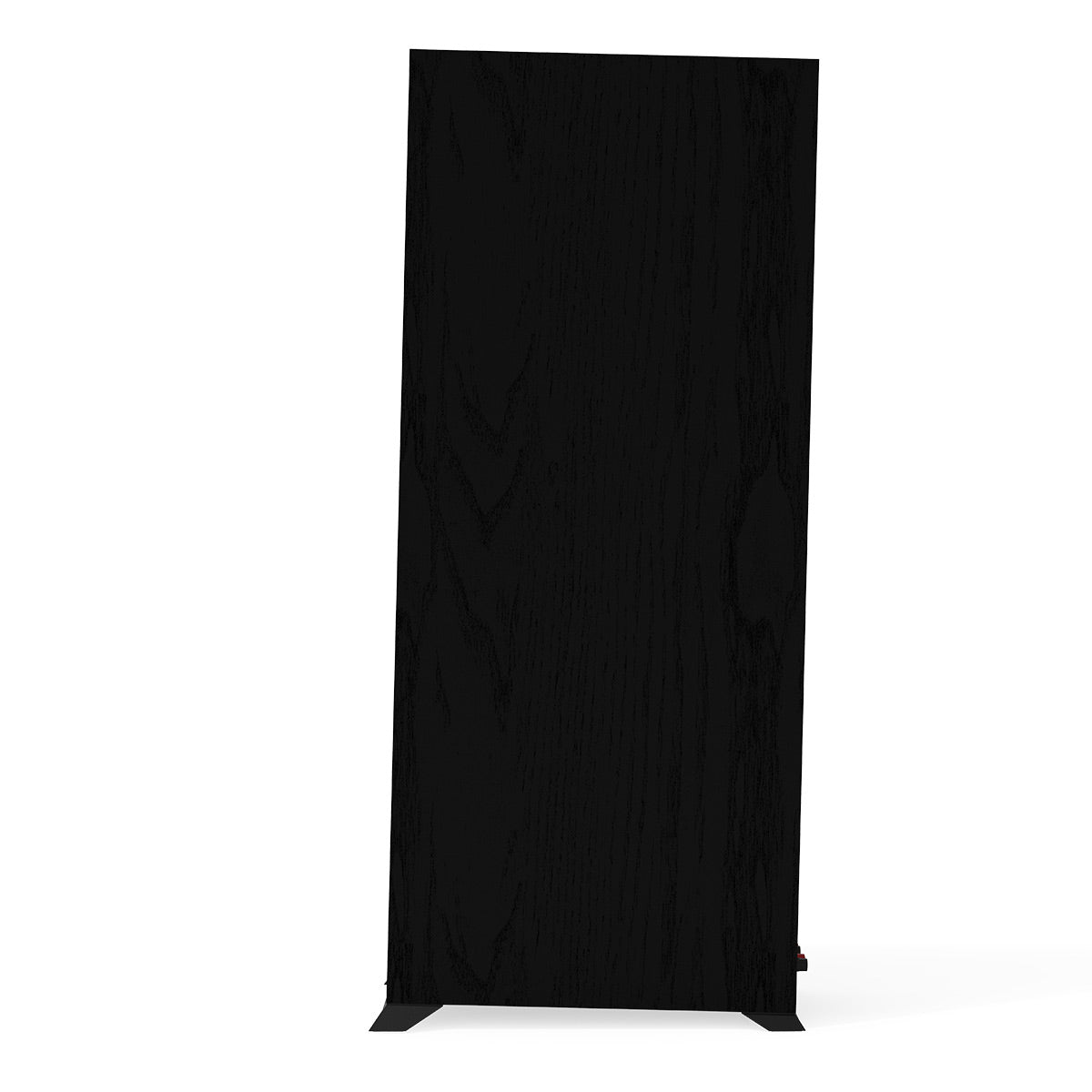

MDF Cabinet with Scratch-Resistant, Textured Wood Grain Vinyl

Stylish aesthetic with absolute durability that results in a seamless integration into any décor.

High-Quality Cabinet Design

Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet vibration for less audible coloration and improved sonic accuracy.

Specifications

  • Main Channel
    • Frequency Response: 38Hz - 21kHz +/- 3dB
    • Sensitivity 96 dB (In-Room)
    • Power Handling (Cont/Peak): 100W/400W
    • Nominal Impedance: 8 ohms Compatible
    • Crossover Frequency: 1,440 Hz
    • High-Frequency Driver: 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
    • Low-Frequency Driver: Dual 6.5" spun-copper TCP woofers
    • Enclosure Material: MDF
    • Enclosure Type: Bass-Reflex via rear-firing Tractrix®ports
    • Inputs: Single Gold Plated Binding Posts
    • Dimensions (W x H x D): 9.5” x 40” x 18.2”
    • Product Weight: 50 lbs
    • Finish: Black Textured Wood Grain Vinyl
  • Height Channel
    • Frequency Response: Conforms to Dolby Atmos Specifications
    • Sensitivity: Conforms to Dolby Atmos Specifications
    • Power Handling: 75W/150W
    • Nominal Impedance: 8 ohms Compatible
    • High-Frequency Driver: 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
    • Low-Frequency Driver: 5.25" spun-copper IMG woofer
    • Enclosure Type: Acoustic Suspension
    • Inputs: Single Gold Plated Binding Posts

What's In The Box

  • R-605FA Reference Floorstanding Speaker with Built-In Elevation Up-Firing Dolby Atmos Tweeter - Each (Black)
  • Grille
  • Injection Molded Feet
  • Screws
  • Manual
