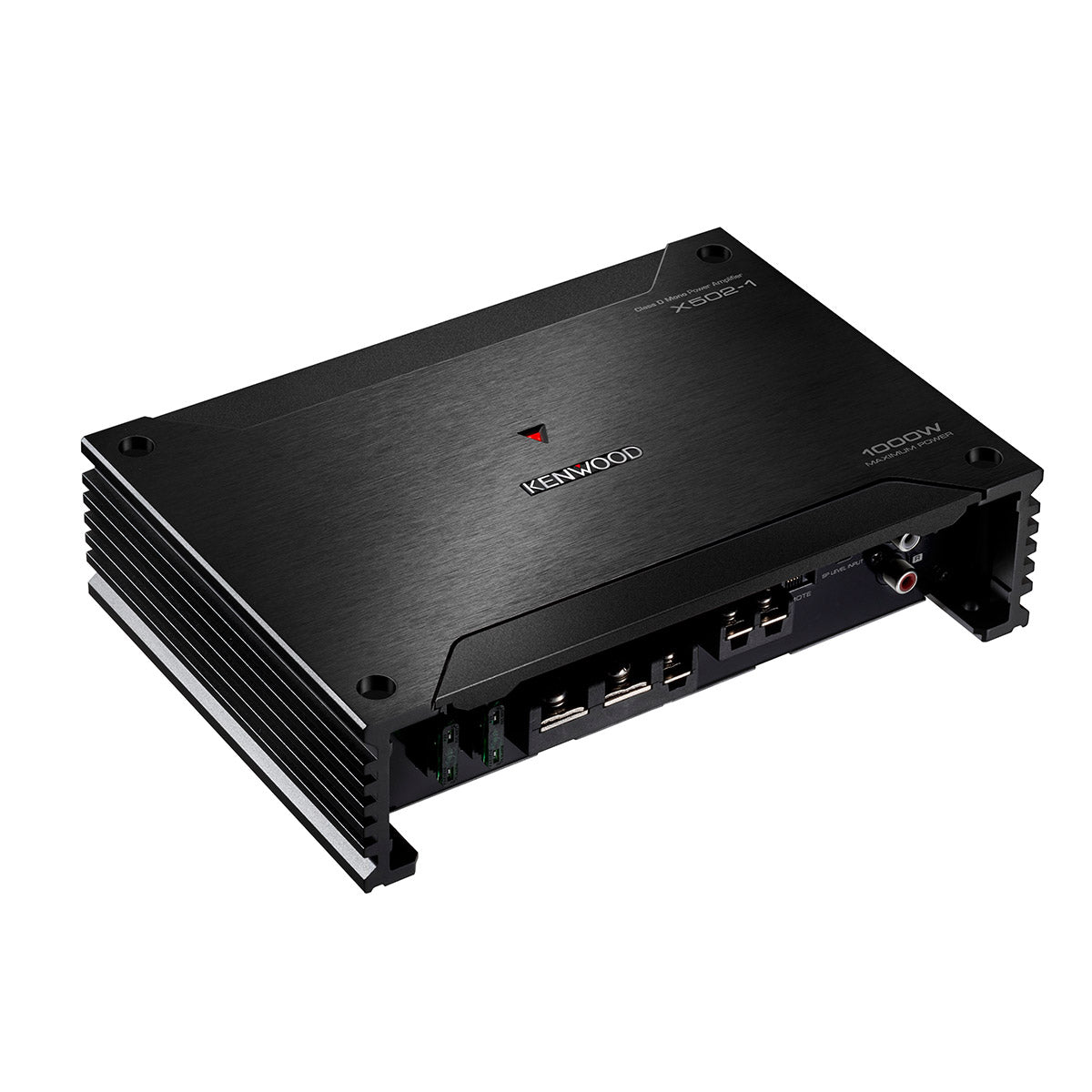

Kenwood X502-1 eXcelon 500-Watt @ 2 Ohms Class D Subwoofer Amplifier

Model: X502-1 UPC: 019048226273 Item: 173298

$199.00

Regular Price: $300.00

Save: $101.00 (34%)

Out of Stock

More Product Details

Questions? We're here to help.

Product Information

Highlights:

  • Max Power 1000W
  • Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
  • Variable Low Pass Filter
  • Bass Boost
  • Optional Wired Remote Ready

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

Variable Gain Circuit

Improved Signal to Noise Ratio.

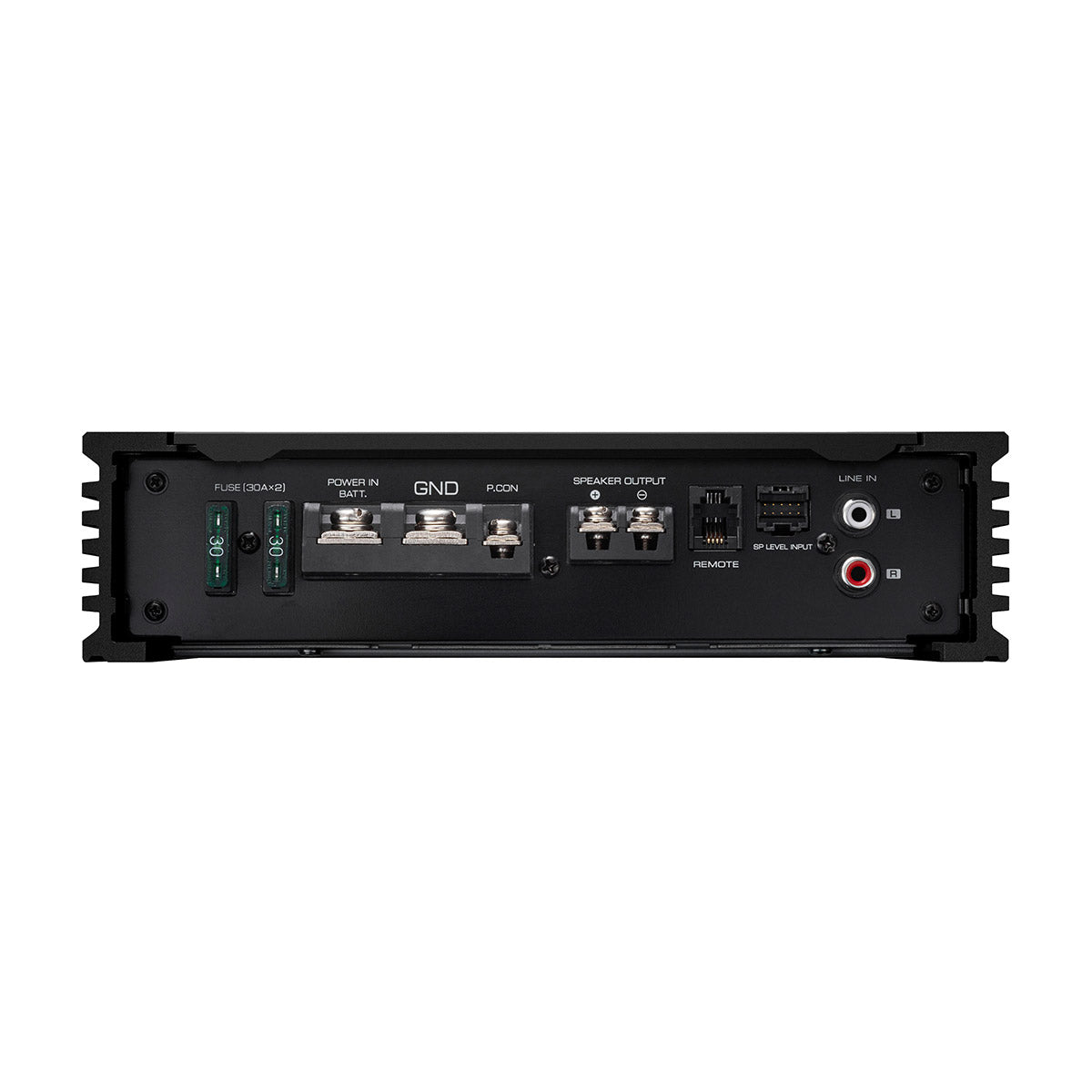

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.

Specifications

Specifications:

CTA-2006 Primary Ratings

  • Power Output: 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
  • Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)

Maximum Power Output

  • MAX POWER: 1000W

Rated Power Output at 14.4V

  • A/B (4 Ohms): -
  • A/B (2 Ohms): -
  • SUB (4 Ohms): 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
  • SUB (2 Ohms): 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
  • A/B (Bridged 4Ohms): -

Specifications

  • Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
  • Frequency Response: 20Hz-200Hz (+0dB, -3dB)
  • Frequency Response: -
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
  • Bridged Connection: -

Audio Section

  • Low-Pass Filter: 50Hz-200Hz, -24dB/oct
  • High-Pass Filter: -
  • Bass Boost: 40Hz, 0dB - +18dB
  • Infrasonic Filter: 25Hz, -24dB
  • RCA Input Sensitivity: 0.2[V] - 5.0 [V]
  • Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

Terminals

  • Battery & Ground: M6 Screw Type Terminal Block
  • Speaker Output: M4 Screw Type Terminal Block

General

  • Dimensions(WxHxD): (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
  • Dimensions(WxHxD): (W) 213cm x (H) 53cm x (D) 149cm
  • Weight: 3.3 lbs ( 1.5kg)
  • Operating Voltage: 14.4V(11-16V allowable)
  • Current Consumption: 25 [A]

Key Features

  • CTA-2006 Compliant
  • 2 Ohms Load Capability
  • One Sided Connection
  • Speaker Level Input with Signal Sensing Turn-on
  • Signal Sensing Turn-On

Accessories

  • Remote Level Control Ready ( Optional KCA-RC01A)
  • Terminal Cover
  • Power MOS-FET Switching Power Supply
  • Extruded Aluminum Heat Sink Design

What's in the Box

What's in the Box

  • X502-1 subwoofer amplifier
  • Speaker level input harness
  • Mounting screws
  • Owner's manual
