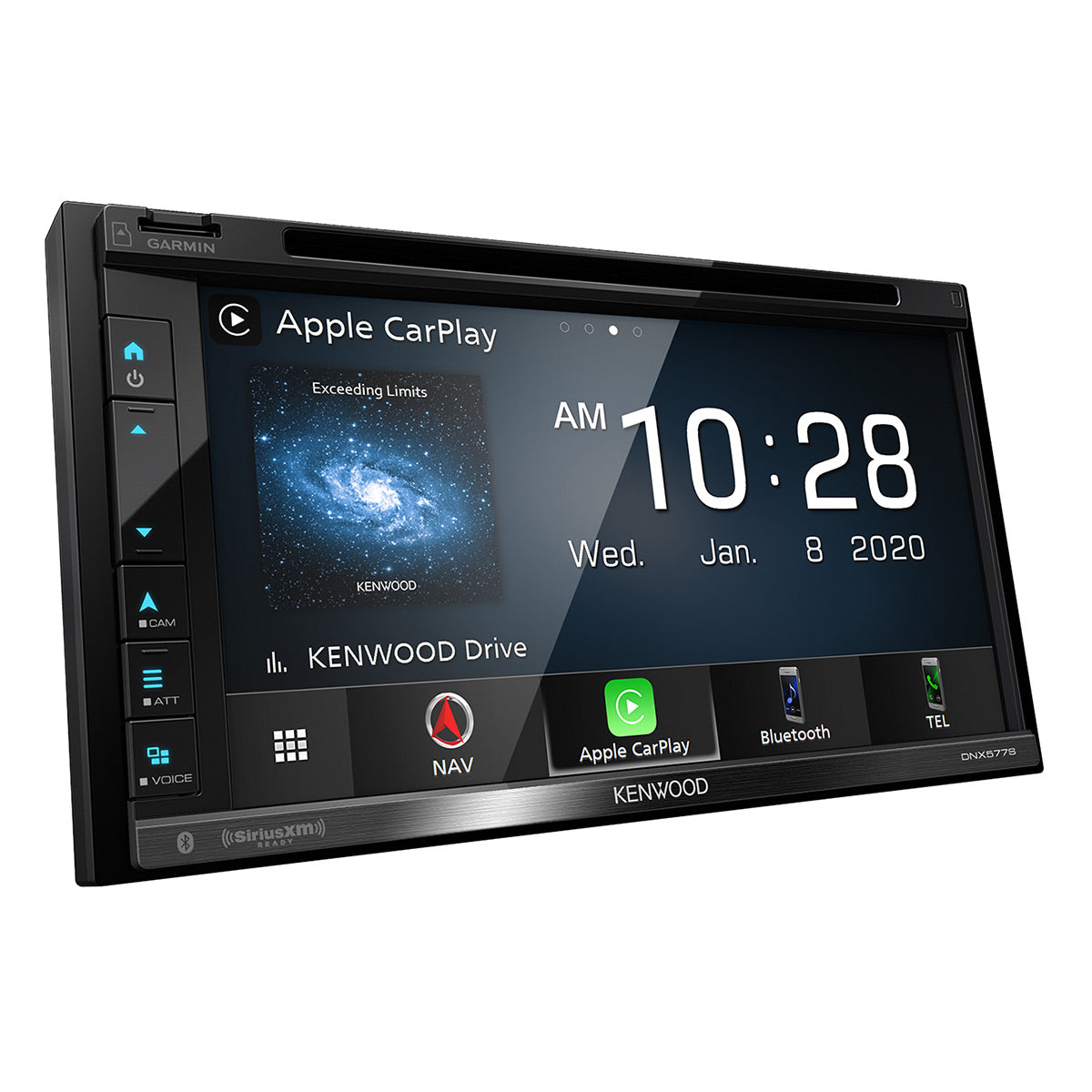

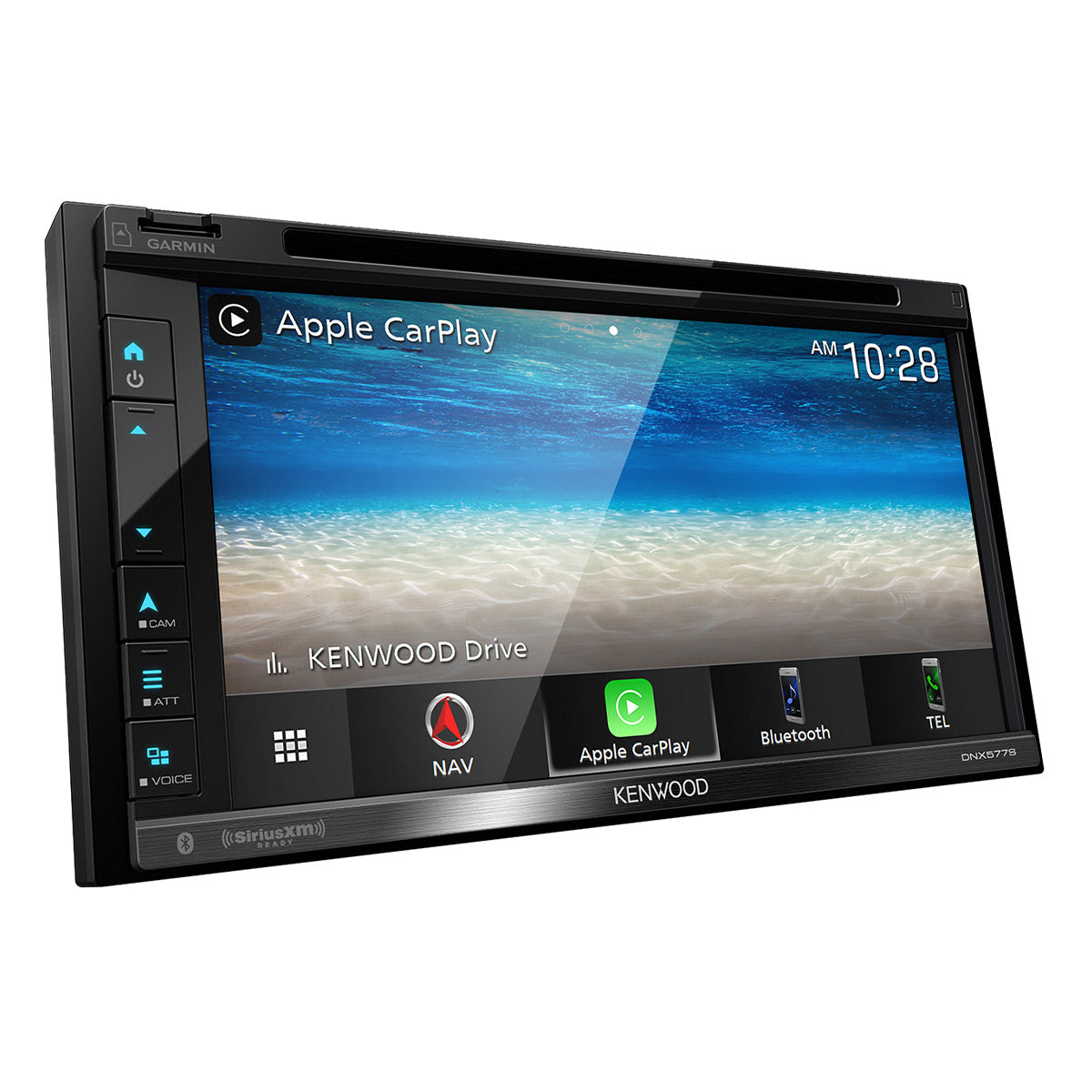

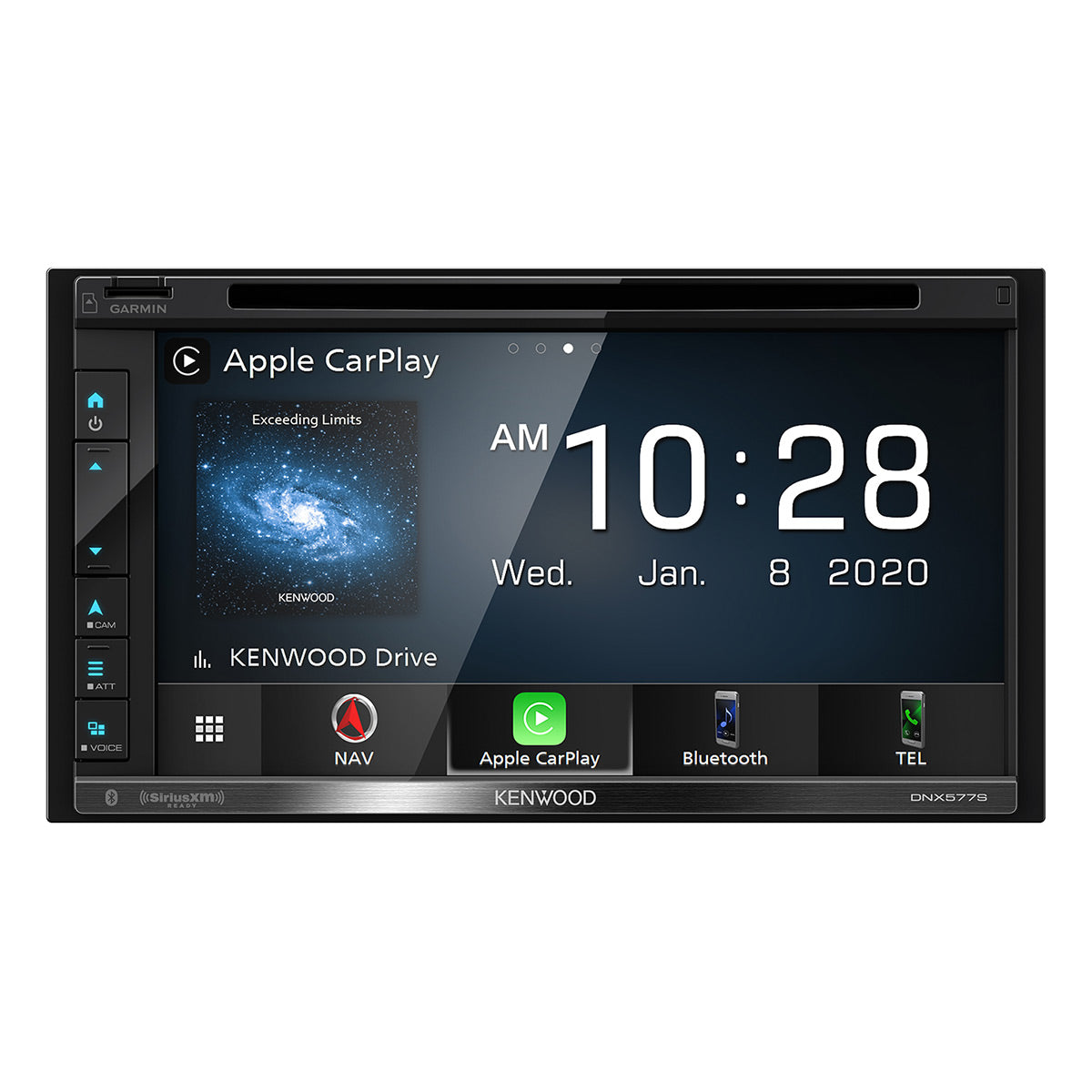

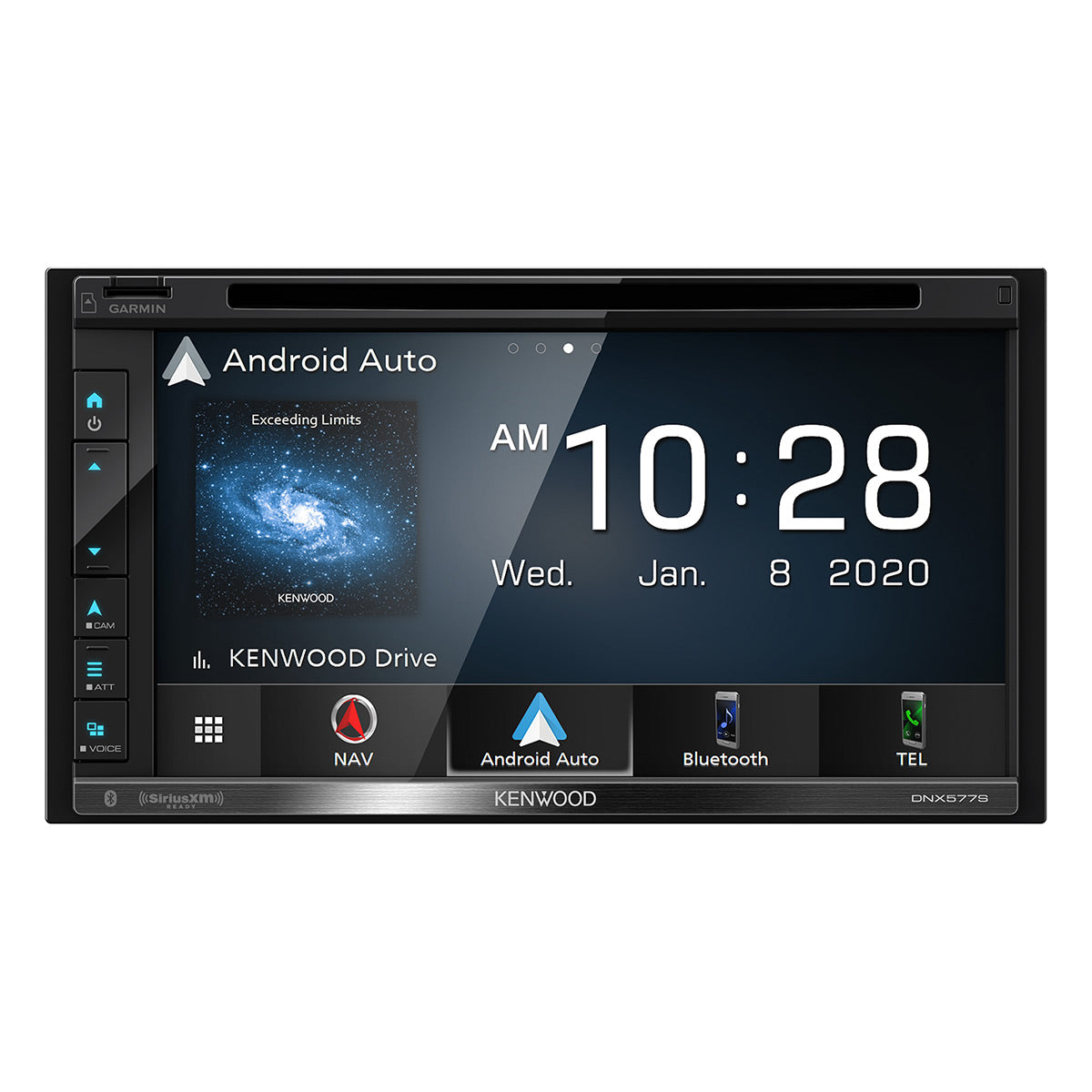

Kenwood DNX577S 6.8" Garmin Navigation Touchscreen Receiver w/ Apple CarPlay and Android Auto

Product Information

Clear Resistive Touch Panel

A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation.

Customizable Multi Widget

Customize your Home Screen by selecting four shortcuts/information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, and more.

USB Mirroring

USB Mirroring via USB for iPhone & Android, 2-way Touch Control for Android.

4 Camera Inputs

Optional camera connection method for up to 4 cameras in various configurations.

Parking Guide Lines

Parking guidelines (requires the installation of compatible backup cameras) that enhance the effectiveness of a backup camera.

Dash Cam Link

Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.

3 Years of Map Care

KENWOOD offers 3 years map updates enabling you to keep up to date. Download the latest maps online to an SD card and insert it into your navigation system.

Lane Assist

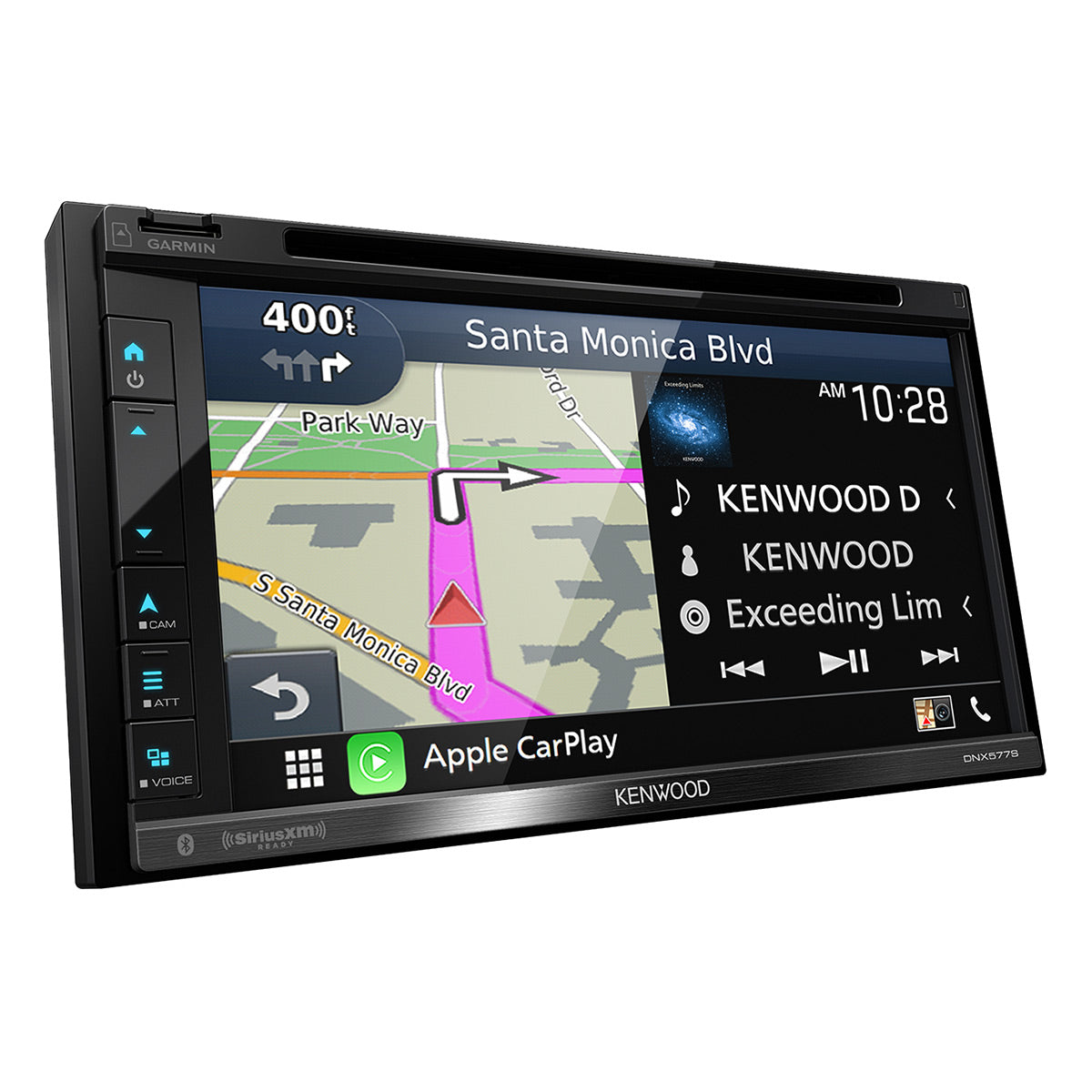

Lane Assist guides you to the correct lane for an approaching turn or exit, making unfamiliar intersections and exits easy to navigate.

Music Mix

Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

FLAC Supported

Compatible with various audio file formats from FLAC and WAV, to MP3, WMA, and AAC.

Variable Color Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.

Specifications

Monitor
- Picture size: 6.75" (diagonal) wide
- W x H: 5-31/32" x 3-1/8"
- Display system: TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 1,152,000
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Backlighting: LED
DVD
- Audio Decoder
  - Linear PCM
  - Dolby Audio
  - MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2, MPEG4 / WMV / H.264 / MKV
- Wow & Flutter: Below Measurable Limit
- Frequency response 96k Sampling: 20 - 44,000 Hz
- 48k Sampling: 20 -22,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.010%
- Signal to Noise Ratio: 90.5dB (DVD-Video 96k)
- Dynamic range: 89dB (DVD-Video 96k)
- DISC Format: DVD-Video / VIDEO-CD / CD-DA
- Quantifying bit number: 16 / 20 / 24bit
USB I/F
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32, exFAT, NTFS
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24/32 Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2, MPEG4 / WMV / H.264 / MKV
SD
- SD Standard: SD / SDHC / SDXC
- Compatible File System: FAT 16/32, exFAT, NTFS
- Capacity: Maximum 2T Byte
- Data Transfer Rate: Maximum 25MB/sec
- Audio Decoder: MPE / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2, MPEG4 / WMV / H.264 / MKV
Bluetooth
- Technology: Version 5.0
- Frequency: 2.402 - 2.480 GHz
- RF Output Pwer (E.I.R.P): +4dB (MAX), Power Class 2
- Maximum Communication range: Line of sight approx. 10m (32.8 ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile
  - HFP (V1.7) (Hands Free Profile)
  - SPP (Serial Port Profile)
  - A2DP (Advanced Audio Distribution Profile)
  - AVRCP (V1.6) (Audio/Video Remote Control Profile)
  - PBAP (Phonebook Access Profile)
DSP
- Graphics Equalizer
  - BAND: 13Band
  - Frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
  - Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
- 2Way X'Over
  - High Pass Filter Frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
  - Slope: -6/-12/-18/-24[dB/Oct.]
  - Low Pass Filter Frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
  - Slope: -6/-12/-18/-24[dB/Oct.]
- Position
  - Front / Rear / Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
  - Gain: -8 to 0dB
  - Subwoofer Level: -50 to +10dB
FM
- Frequency Range: 87.9MHz - 107.9MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 9.3dBf
- S/N30dB: 0.8μV/75Ω
- Quieting sensitivity: 10.2dBf
- DIN S/N 46dB: 1.13μV / 75Ohms
- Frequency Response (±3.0dB): 30Hz - 15kHz
- S/N (dB): 65dB (MONO)
- Selectivity: Over 80dB (±400kHz)
- Stereo separation: 45dB (1kHz)
AM
- Frequency Range: 530kHz - 1700kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 28dBμ
Video
- Color system of external video input: NTSC/PAL
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video output level (RCA jacks): 1 VP-p / 75 Ohms
- Audio Output level (Mini jacks): 0.9 V / 10 kOhms
Audio
- Maximum Power Output (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1% THD) 22Wx4
- Output frequency band: 20 - 88,000 Hz
- Preout level (V): 4V / 10kOhms
- Preout impedance (Ω): =< 300 Ohms
- Speaker Impedance (Ω): 4-8 Ohms
Navigation
- Receiver: High-sensitivity GPS receiver
- Receiving frequency: 1575.42MHz (C/A code)
- Acquisition Times
  - Cold: 29 seconds (typ)
  - All satellites at -130dBm without aiding
- Update Rate: 1/second, continuous
- Accuracy: Position: <2.5meters, CEP, at -130dBm
- Accuracy: Velocity: 0.1meter/sec
- Positioning Method: GPS
- Antenna: External GPS Antenna
- Installation Dimensions (W x H x D): 7" x 3-15/16" x 6-1/8"
  - With Sleeve: 7-3/16" x 4-7/16" x 6"
- Weight (Excluding trim plate and sleeve): 4.6 lbs
