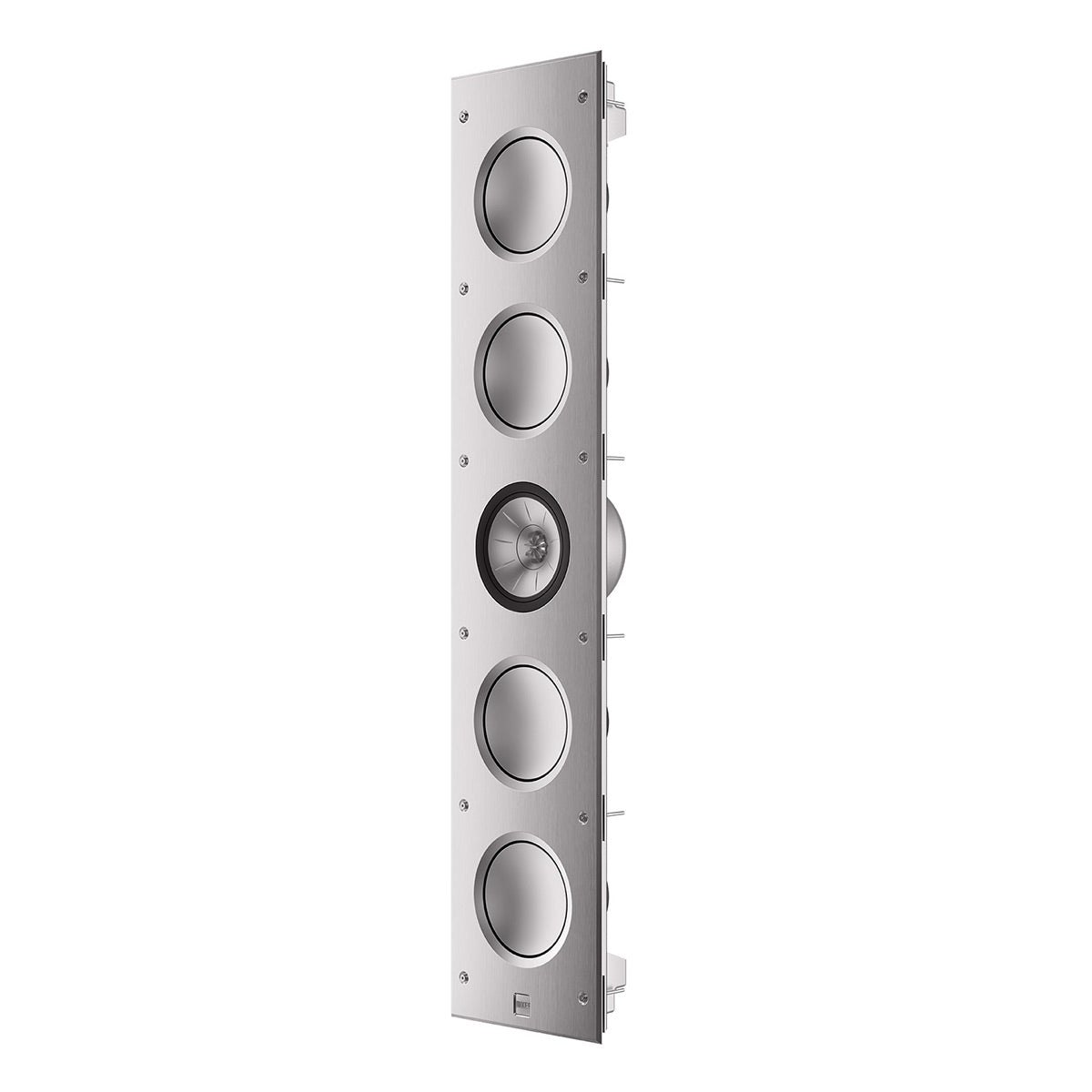

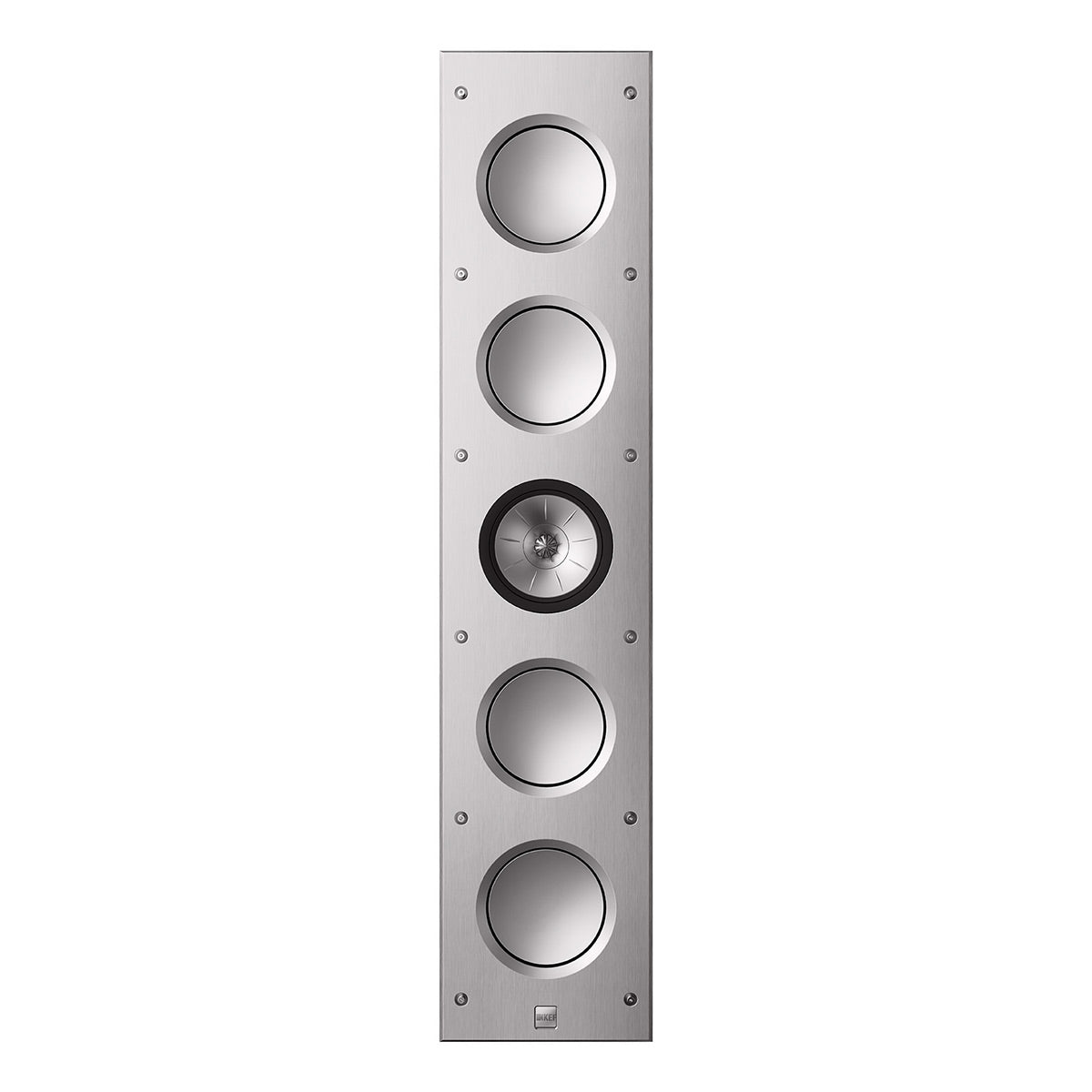

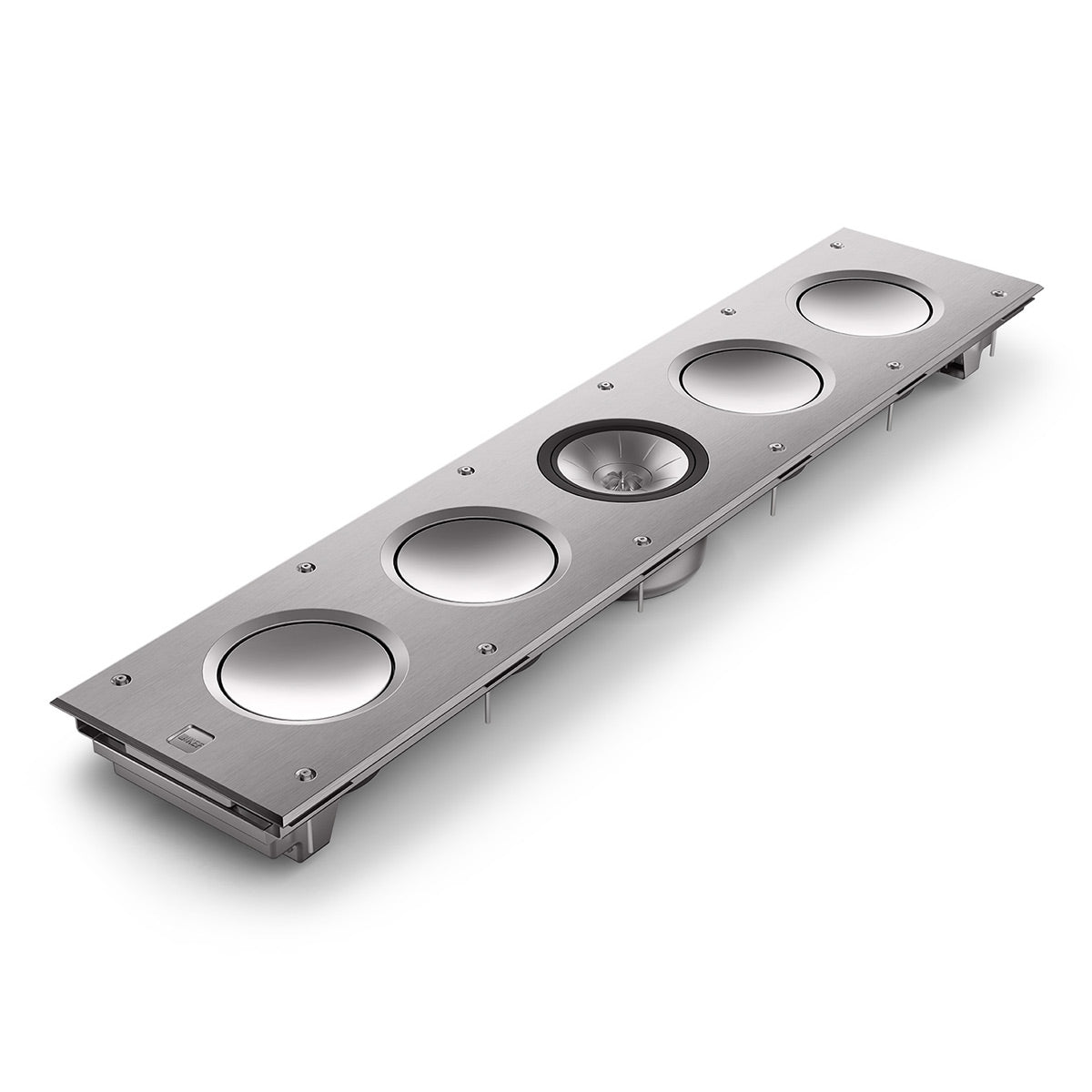

KEF Ci5160RLM-THX Meta In-Wall Speaker (Silver)

Now on demo at:

1 of 5
KEF

KEF Ci5160RLM-THX Meta In-Wall Speaker (Silver)

Regular price $3,299.99
Sale price $3,299.99 Regular price
$0.00 Save $-3,299.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

KEF Ci5160RLM-THX Overview

Product Information

Model: CI5160RLM-THX | UPC: 637203218811

Specifications

What's In The Box

Product Information

Model: CI5160RLM-THX | UPC: 637203218811

Ultra-High Performance Architectural Speaker with MAT™

The Ci5160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximize its full potential and proudly carries the THX Certified Ultra designation. Together with four 6.5” hybrid aluminum bass drivers, it delivers the most dynamic audio experience for home theatres.

Metamaterial Absorption Technology

Absorbs 99% of the unwanted sound.

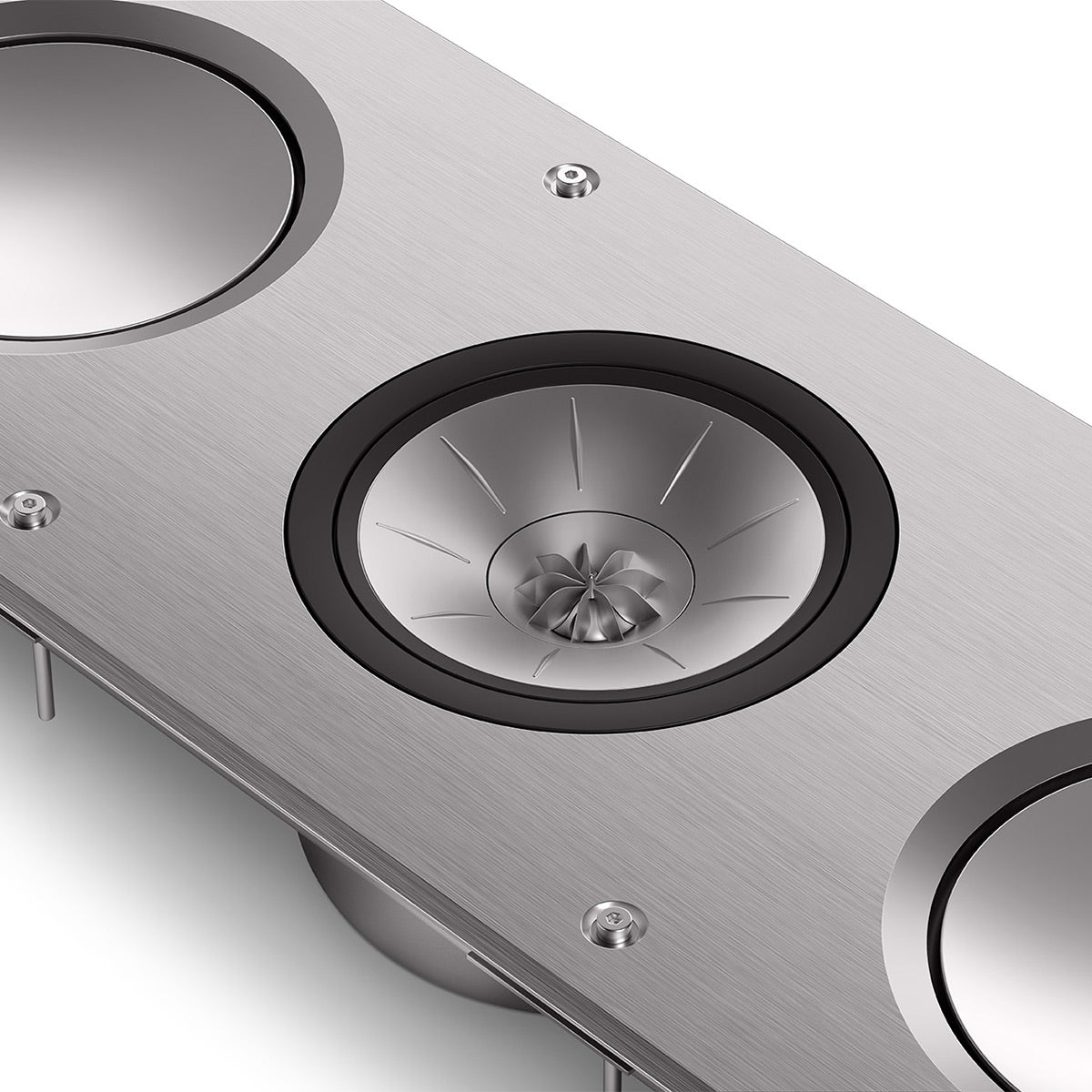

Uni-Q®

Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.

THX Certified

Ci5160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

True Bass Definition

Four hybrid aluminium bass drivers for tight, deep, controlled bass.

Total Attention to Detail

The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.

Hide Your Speakers, Not Your Sound

The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

Specifications

  • Series: R Series
  • Nominal Impedance: 4Ω
  • Sensitivity (2.83V/1m): 89dB
  • Frequency Response (±6 dB) open-backed: 40 - 28kHz
  • Frequency Range (-10 dB): 32 - 45kHz
  • Nominal Coverage (degrees): 150°
  • Crossover Frequency: 640Hz, 2.6kHz
  • Drive Units:
    • LF: 4 x 160mm (6.5in.)
    • MF: 160mm (6.5in.) Uni-Q
    • HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
  • Recommended Amplifier Power: 50 - 350 W
  • Recommended High-pass Filter (Hz): 35Hz - 80Hz
  • Product External Dimensions (H x W x D): 1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.)
  • Cut-out Dimensions (H x W): 1052 x 209mm (41.42 x 8.23in.)
  • Net Weight: 18.7kg (41.1lbs.)
  • Mounting Depth From Surface: 99mm (3.9in.)
  • Optional Rough In Frame: RIF5160L
  • Max SPL (dB): 110dB
  • Certification: THX® Certified Ultra
  • Wall Thickness (Maximum): 40mm (1.58in.)
  • Wall Thickness (Minimum): 6mm (0.24in.)

What's In The Box

  • Ci5160RLM-THX Meta In-Wall Speaker
  • Paintable Metal Grille
  • Cutout Template
  • (4) Gasket
  • Hex Drill Tool
  • (3) Wall PRotection Tape
  • Manual
