JL Audio FiX-86 OEM Integration DSP

Model: 98103 UPC: 699440981033 Item: 167847

Product Information

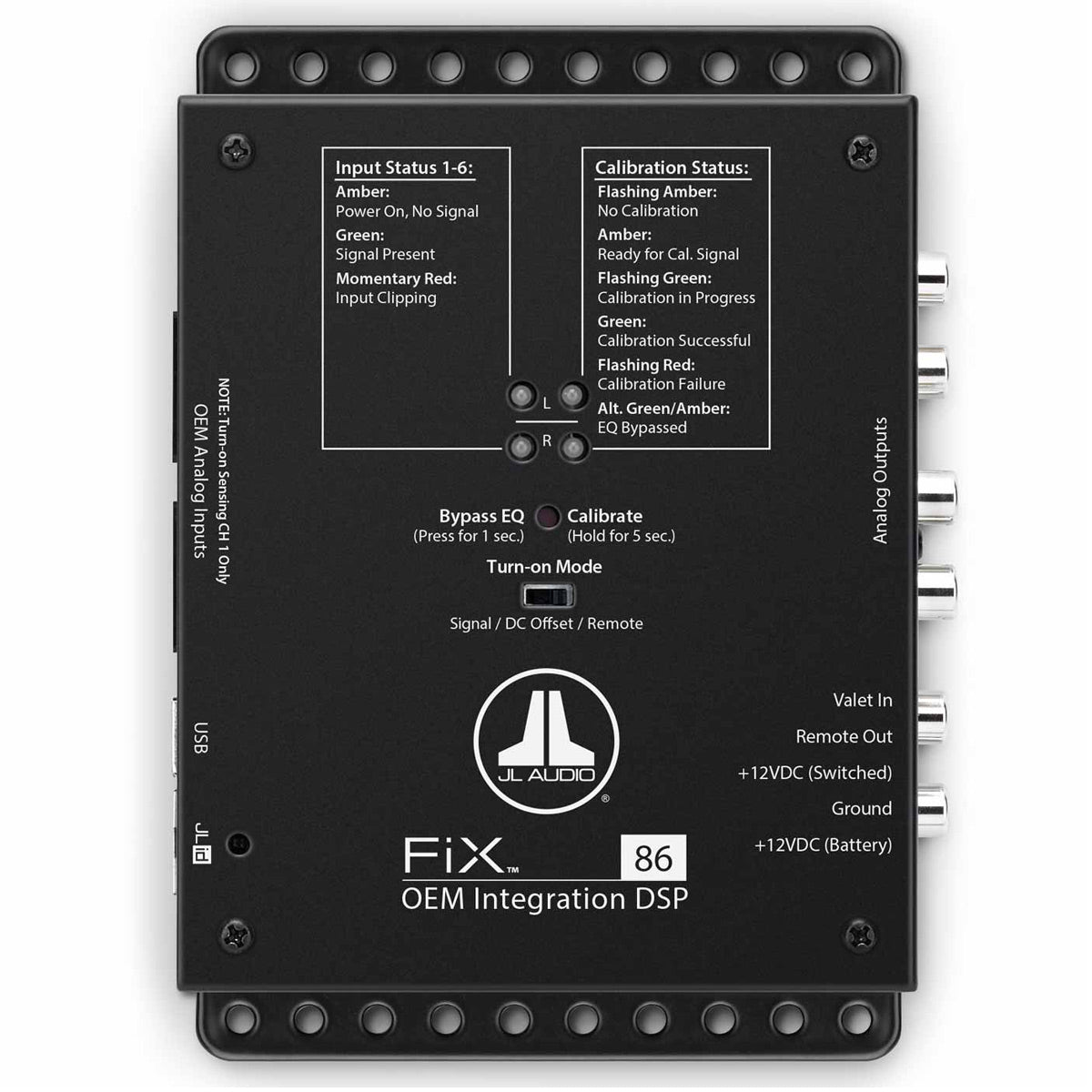

FiX-86 OEM Integration DSP

The FiX 86 is a state-of-the-art digital signal processor engineered to deliver outstanding sound from factory source units, while retaining OEM fader control. Unlike typical OEM interface products, the FiX 86 automatically corrects time-delayed factory outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, with no special equipment needed.

With a powerful 24-bit DSP processor and quad 1/3 octave equalizers onboard, complex factory signals, up to 3-way front and 2-way rear, are combined and level matched automatically into six, full-range stereo signals: Front (fader-controlled), Rear (fader-controlled) and Subwoofer (non-fading, front+rear summed) outputs. Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage line-level to high-power amplified speaker-level outputs (up to 30V RMS).

Activation methods include 12-volt or Auto Turn-On (Signal/DC-Offset Sensing) to trigger a dedicated remote turn-on output for aftermarket equipment. An optional DRC-100 or DRC-200 Digital Remote Controller (sold separately) adds Master Volume Control, Subwoofer Level Control, and preserves hands-free calling features, all from the driver’s seat.

Achieving great sound from your factory stereo has never been easier, or sounded better... Now with fader retention and subwoofer output!

Specifications

Specifications

General

Power Supply Type Regulated DC-DC SMPS
Input Operating Voltage 10 - 16 VDC
Standby Current Draw <1.5 mA
Operating Current Draw 0.7 A
Recommended Fuse Value 1 A
Input Channels Eight
Input Type Differential-Balanced
Input Voltage Range 250 mV - 30 V RMS
Minimum Input Voltage 10 mV RMS
Input Level Setting Fully automatic
Output Channels Six (Front/Rear/Sub Output Pairs)
Analog Output Unbalanced, stereo RCA jacks
Digital Output N/A
Output Impedance 450 Ω
S/N Ratio 96 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output 0.02% (20 Hz - 20 kHz)

Signal Processing

Audio Resolution 24 bit / 48 kHz
Number of EQ Bands 30 x 2 channels
EQ Resolution 1/3 octave (25 Hz - 20 kHz)
Remote Level Control Optional (DRC-100 or DRC-200)
Remote Level Functions

Master Volume Control, Handsfree Optimization, LED Status Reporting (DRC-200 adds Subwoofer Level Control)

Physical Specifications

Height (H) 1.85 in / 47 mm
Width (W) 4.29 in / 109 mm
Depth (D) 6.14 in / 156 mm
Net Weight 2.58 lb / 1.17 kg

What's in the Box

What's in the Box:

  • FiX-86 processor
  • 5-pin power connector plug
  • Four 4-pin OEM analog input plugs
  • Four mounting screws
  • FiX calibration CD
  • Owner's manual
