JBL

JBL R4500 Marine Digital Media Receiver with Color LCD Display

Regular price $449.95
Sale price $449.95 Regular price
$499.95 Save $50.00 (10%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Aug 28 – Thu, Sep 4

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: JBL-R4500 | UPC: 648701264514

Specifications

What's In The Box

Product Information

Model: JBL-R4500 | UPC: 648701264514

The JBL R4500 is a fully marine-rated digital media receiver designed for boats and powersports vehicles, featuring a waterproof IPX7 front panel and a 4″ color TFT display. It supports Bluetooth 5.0 streaming with album art, rear USB and AUX inputs, and a built-in amplifier that delivers up to 55 watts per channel and is stable at 2 ohms. With three-zone RCA outputs, it can support complex audio systems, while NMEA 2000 compatibility allows integration with marine electronics. Additional features include AM/FM/weather-band radio, 3-band EQ with presets, and support for wired remotes, all in a compact and durable form factor.

Tuner

Understanding the need to listen to the ballgame, talk radio, or your favorite radio pop station, this source unit was thoughtfully engineered to master AM, FM and WB

2 Ohm Stability

If you’re looking to add additional speakers, such as 4 hardtop speakers to your existing 4 interior speakers, JBL’s 2 ohm stability will allow you to do just that. And no need to purchase an additional amplifier to do so!

Bluetooth 5.0

While lesser stereos integrate older BT technology, the JBL-R4500 incorporates BT5.0. This primary advantages of BT5.0 are improved speed and greater range. In fact, BT5.0 includes transfer speeds of up to 2Mbps and a range of up to 800 ft.

Color Screen

With JBL’s most vivid color screen yet, your dash just received an upgrade! A full 4” of LCD is available, which results in easy viewing on the water. Compare that to the competition, and you will appreciate the improved imagery.

Reliability Testing

The R4500 undergoes a testing process that leaves the competition in its wake. From UV to salt spray to rain to beer spillage, we test so that you enjoy your music all day.

JBL Legendary and Historical Sound

This is JBL. You know the speaker brand used onstage at Woodstock and the speakers used at music venues, cinemas and cars worldwide. If you know audio, then JBL is your co-captain on the water!

Specifications

  • General & Display

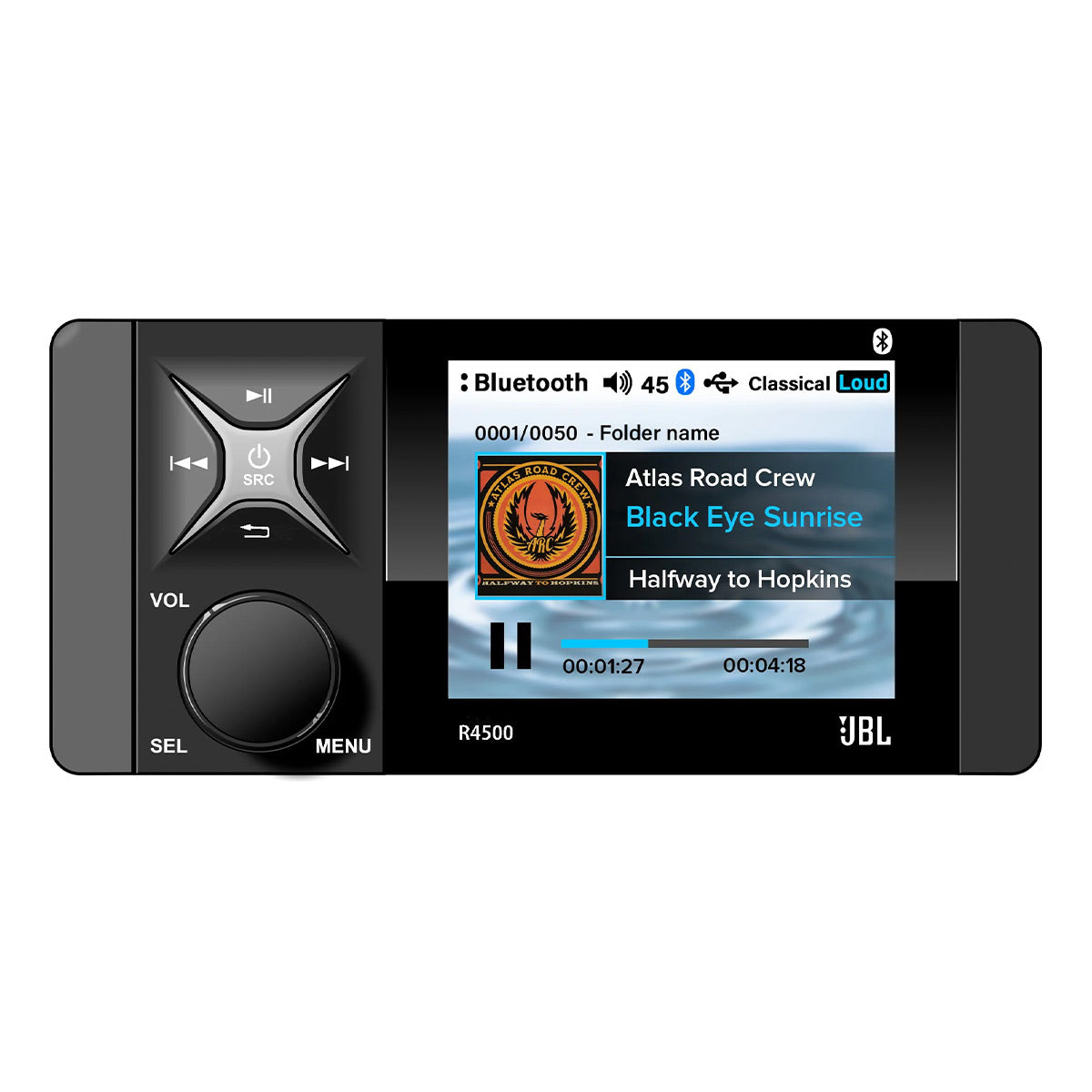

    • 4″ color TFT LCD display showing artist, song, album info, and album art via Bluetooth or USB
    • IPX7-rated waterproof front panel with UV-resistant marine-grade construction
    • Rotary encoder knob and backlit buttons for intuitive control in wet or low-light conditions
  • Built-in Amplifier
    • 4 × 55?W peak power output (20?W RMS per channel) at 4?Ω, 2?Ω stable
    • Three zone-capable preamp outputs (front, rear, subwoofer) with three sets of RCA outputs
  • Connectivity & Inputs
    • Bluetooth 5.0 streaming with ID3-tag display and iPhone album art support
    • Rear USB-A port (5?V/0.5?A) for MP3/WMA playback and device charging
    • Rear auxiliary input via RCA pigtail
  • Radio & Audio Features
    • AM/FM/Weather-band tuner with US and European region support
    • 3-band EQ with eight preset modes including Pop, Rock, Classic, and Flat
    • Independent bass, treble, balance, fader, and loudness control
    • Turn-on volume setting adjustable from 0 to 50
  • Expandability & Networking
    • 2-ohm stable internal amplifier capable of powering up to eight speakers
    • NMEA 2000 compatible for integration with marine electronics and multifunction displays
    • Compatible with wired remotes such as MIL-REM80 and Infinity INF-REM1
  • Physical Dimensions & Installation
    • Faceplate dimensions: approximately 6.46″?W × 2.99″?H × 0.90″?D
    • Chassis/cutout: approximately 5.08″?W × 1.91″?H × 5.25″?D
    • Includes internal 15?A fuse for marine power protection

What's In The Box

  • R4500 Marine Digital Media Receiver with Color LCD Display

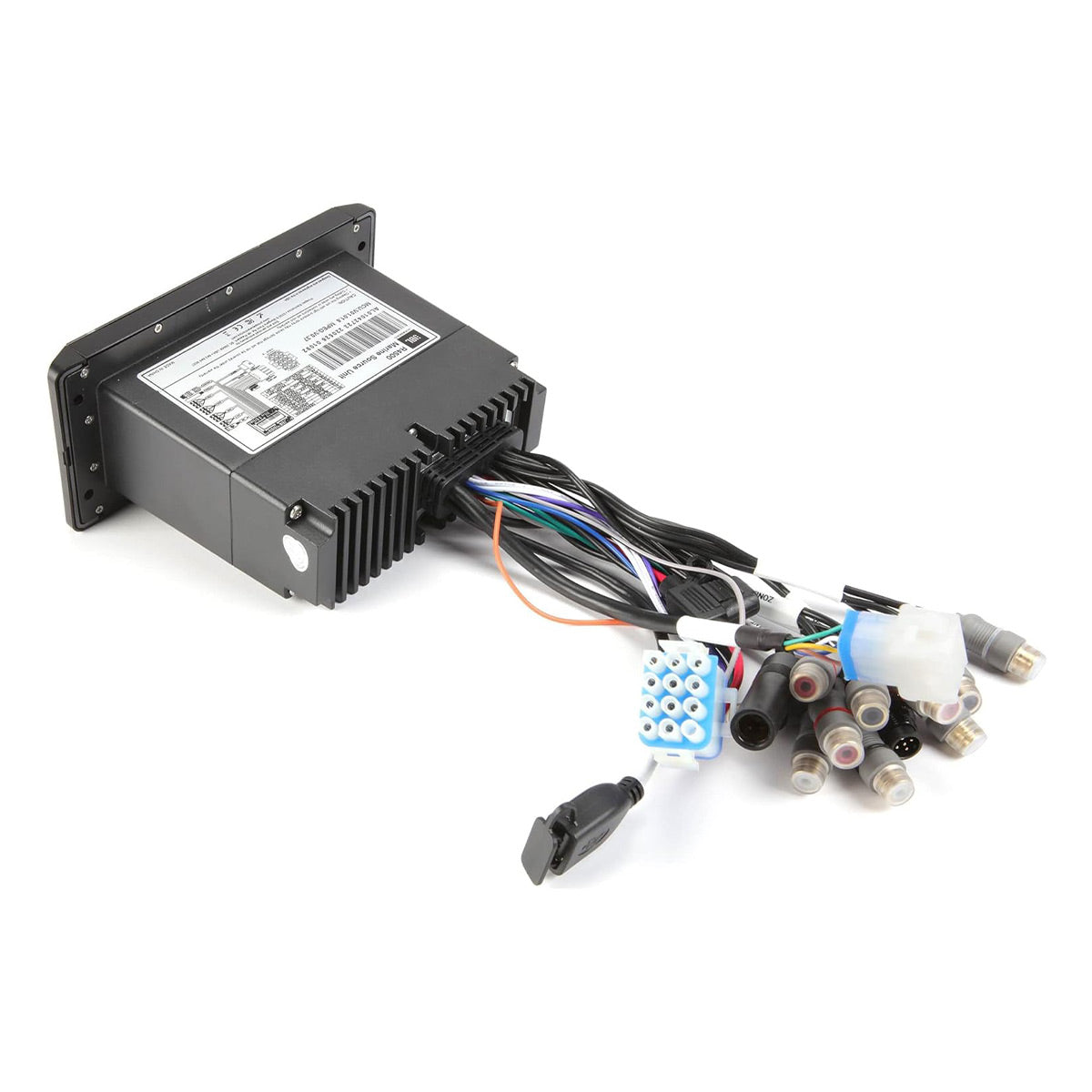

  • Wiring Harness for Power, Speaker, And Input Connections
  • Pre-Installed Endcaps (2)
  • Foam Mounting Gasket
  • Mounting Hardware
  • Manual
