iFi Audio

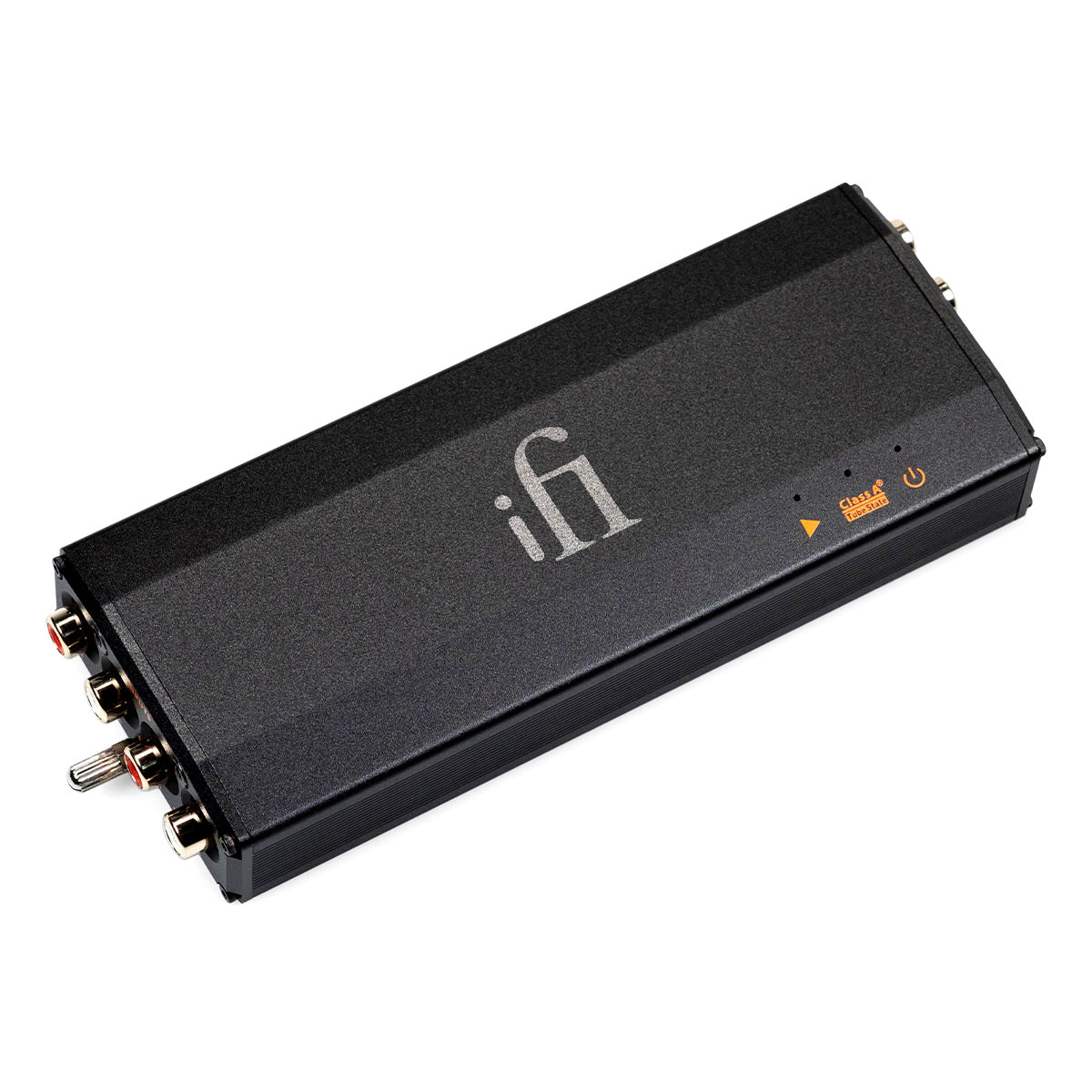

iFi Audio iPhono3 Black Label Phono Preamp for Turntables

Regular price $999.00
Sale price $999.00 Regular price
Save $-999.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 303016 | UPC: 5060738780884

Specifications

What's In The Box

Product Information

Model: 303016 | UPC: 5060738780884

Beauty & Beast.

Matt polished black. Super quiet noise floor.

iFi Audio's phono stage circuitry uses only the best audiophile components. Computer matched op-amps, high-gain bi-polar output transistors to Nichicon audio-grade capacitors. And much more.

The iPhoneo3 Black Label sounds stellar. Hear into your LP.

Silent nights in

With a stunning, super-low 85dB noise floor (per Stereophile standard) the iPhono3 Black Label is out there. One of the quietest phono stages. Period.

Like any good phono stage, it amplifies the signal, not the noise. The whisper-quiet noise floor is there for any home audio system to discern. Take it for a test drive from the comfort of your favorite listening chair.

Precise EQ curve and explosive 108dB dynamic range.

The AMR PH-77, the larger sibling with 23 equalization curves, remains the vinyl benchmark to this day. Trickle-down tech used in the iPhono3 Black Label means it features the 6 most popular stereo EQ curves.

Set and Forget

Your pickup (stylus) has been lovingly crafted. Whether it’s MM or MC, no two cartridges are identical in performance.

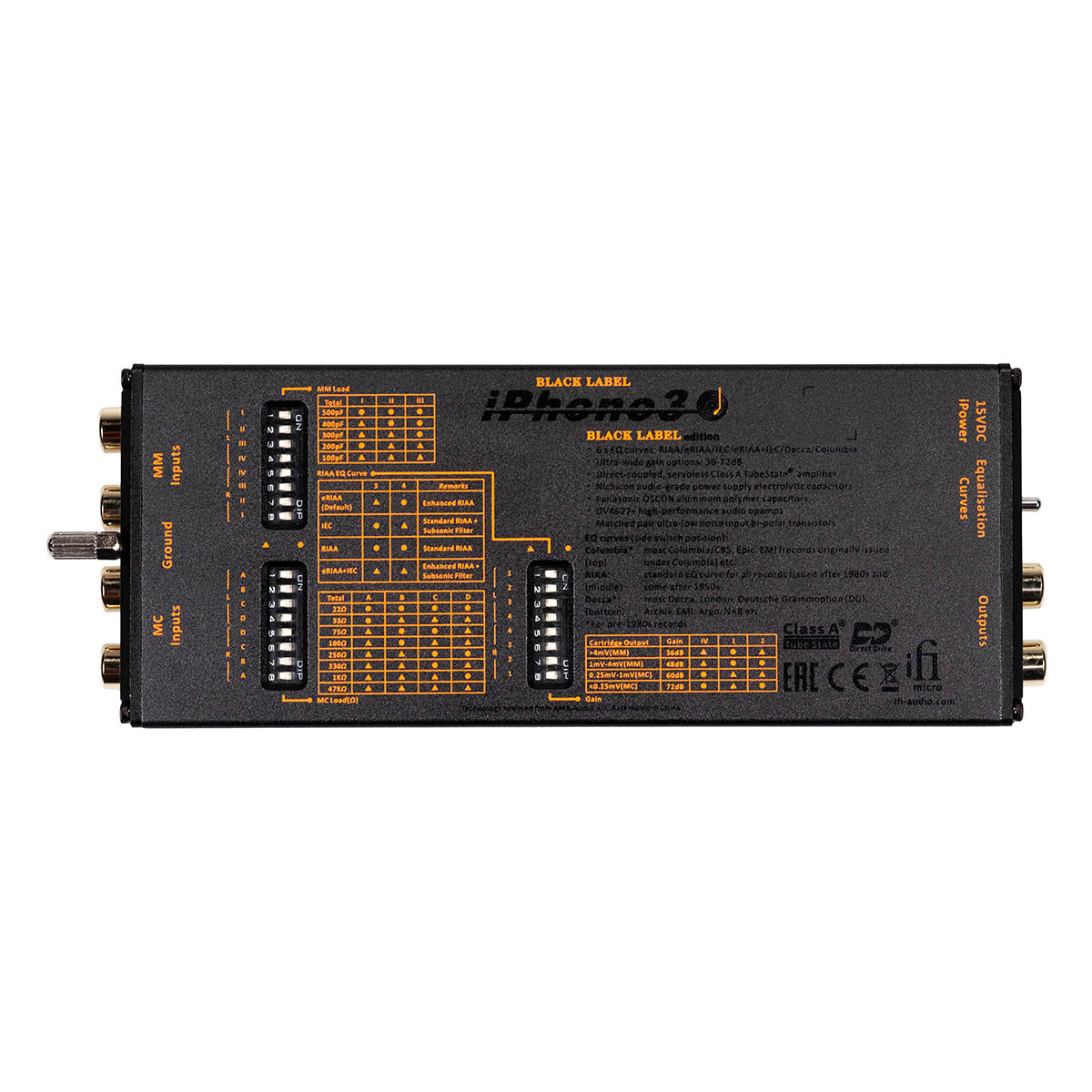

The iPhono3 Black Label, like the AMR PH-77 from which it descends, enables you to set the precise load/gain for the cartridge you have. Squeeze every last drop of performance out of your precious pickup.

Spec'd to thrill

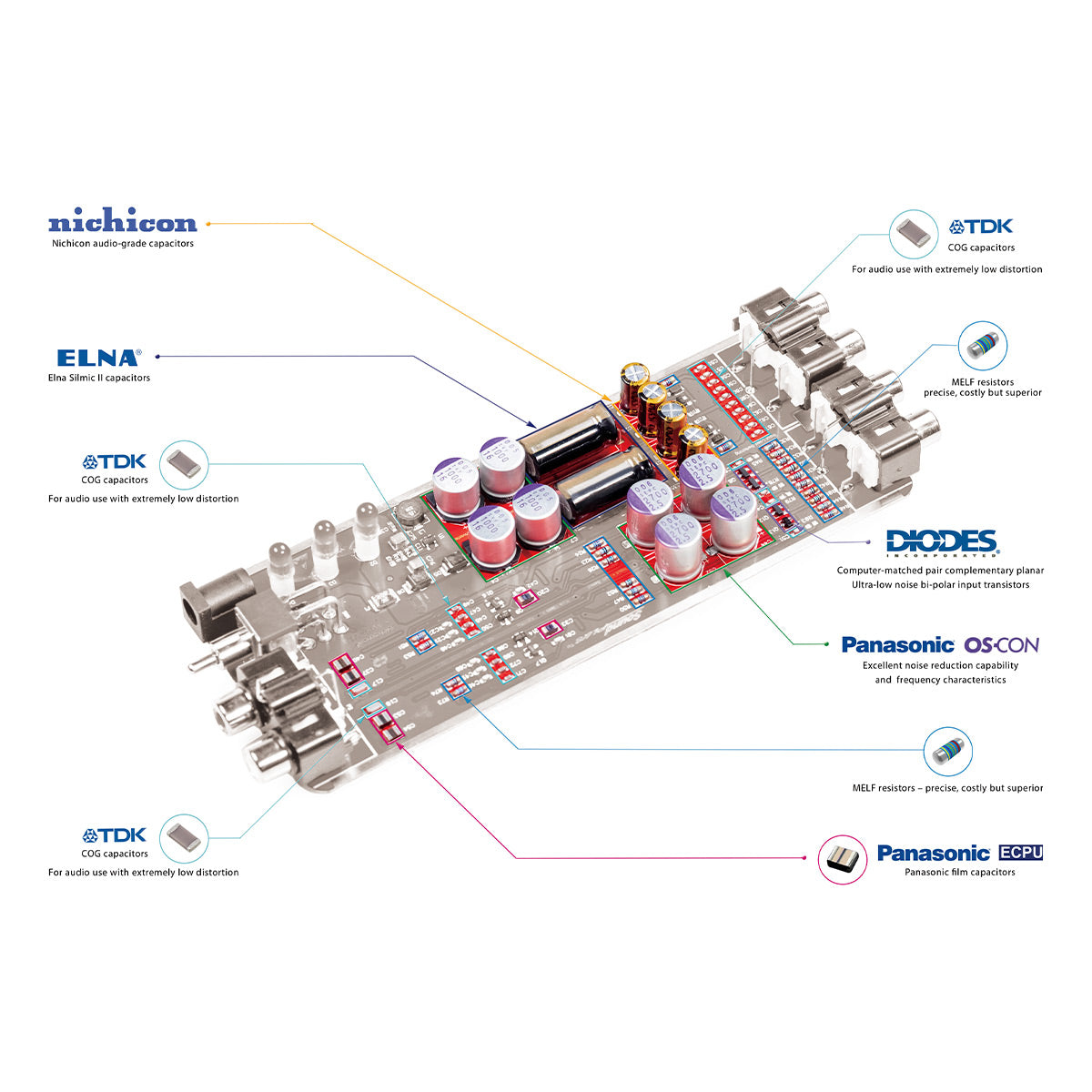

Beneath the modest footprint of the iPhono3 Black Label are Class A TubeState and DirectDrive Serverless technologies. Specially developed by AMR for iFi audio. All underpinned by some quite special audiophile components from Burr-Brown, TDK, and Nichicon. To name but a few.

X-Men

The iPhono3 Black Label is special. It should be powered by something special. It comes with the iPower X, the very latest in power supply technology.

Specifications

  • Frequency Range
    • 10Hz - 100kHz (±0.3dB)
    • 20Hz - 20kHz (±0.2dB)
  • Dynamic Range
    • MM (36dB): > 108dB (A-weighted)
    • MC (60dB): > 106dB (A-weighted)
  • Signal-to-Noise Ratio
    • MM (36dB): > 85dB (A-weighted re. 5mV)
    • MC (60dB): >85dB (A-weighted re. 0.5mV)
  • Overload Margin
    • MM (36dB): > 26dB (re. 5mV, @ 1% THD)
    • MC (60dB): >22dB (re. 0.5mV, @ 1% THD)
  • Crosstalk: <-71dB (1kHz)
  • Maximum undistorted output: 7V (Load >= 600 Ohm, THD <= 1%)
  • Total Harmonic Distortion (THD): <0.005% (MM 36dB 1V out 600R Load)
  • Output Impedance: <100Ω
  • Input Voltage: AC 100 - 240V, 50/60Hz
  • Power Consumption: <5W. Use with iPower X (15V) do NOT use any other power supply.
  • Dimensions: 6.2" x 2.3" x 1.1"
  • Weight: 0.58 lbs

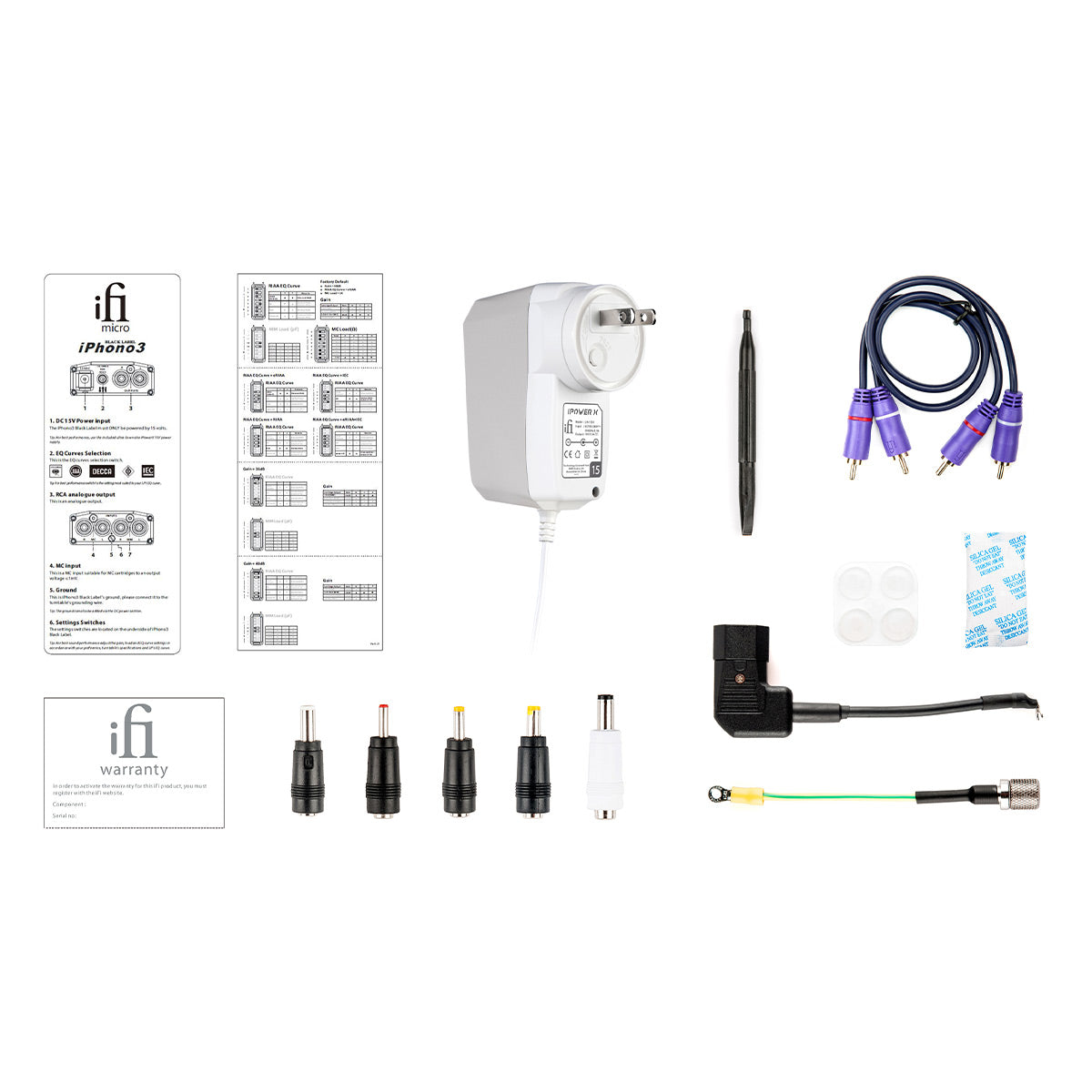

What's In The Box

  • iPhono3 Black Label Phono Preamplifier
  • RCA patch cable
  • AC adapter
  • US 2-prong plug adapter
  • 4" Ground wire
  • 6" Grounding adapter
  • Plastic micro screwdriver
  • 4x Adhesive-backed rubber feet
  • User Manual
  • DIP Switch diagram
  • Audio Band Noise Floor diagram
  • Warranty card
  • iPower X
  • iPower X AC adapter
  • Center pin polarity adapter
  • 4x DC tip adapters
  • Warranty
