Focal

Focal ACX 690 6" x 9" 3-Way Elliptical Coaxial Kit

Regular price $143.99
Sale price $143.99 Regular price
$179.99 Save $36.00 (20%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Focal ACX 690 6" x 9" 3-Way Elliptical Coaxial Kit Overview

Product Information

Model: ACX690 | UPC: 3544050750241

Specifications

Product Information

Model: ACX690 | UPC: 3544050750241

A Reliable, Convincing System

ACX 690 is the only 3-way kit in the Auditor line. Measuring 6-1/2" x 9-1/4" (16.4 × 23.5cm) and with an elliptical profile, this coaxial kit provides a large sound diffusion surface while reducing the height of the product to deliver deep bass and is easy, quick and invisible to install in the vehicle. Like all the Auditor kits, it has a polypropylene cone and an adjustable, inverted dome mylar tweeter for precise treble and an improved soundstage.

ACX 690 can be linked with other electronics or directly connected to the vehicle’s original amplifier to enhance your in-car listening experience. Its high sensitivity guarantees an unrivaled level of performance in its category. It is perfect for a début Focal system and/or for improving your original sound system.

Features:

  • Mylar tweeter/midrange
  • Steel basket
  • ABS and Mesh grille
  • Integrated crossover
  • Polypropylene elliptical cone
  • Butyl surround

Focal Technologies

All Auditor products benefit from Focal know-how and expertise: the mylar inverted dome tweeter – a strong marker of the Focal DNA – for precise treble and an improved soundstage; polypropylene cone for a neutral and dynamic sound; butyl surround for impressive resistance; ferrite magnet.

Easy and Multiple Mounting Options

Very compact, the woofers can be either surface-mounted or installed flush in the vehicle's original locations.

Design

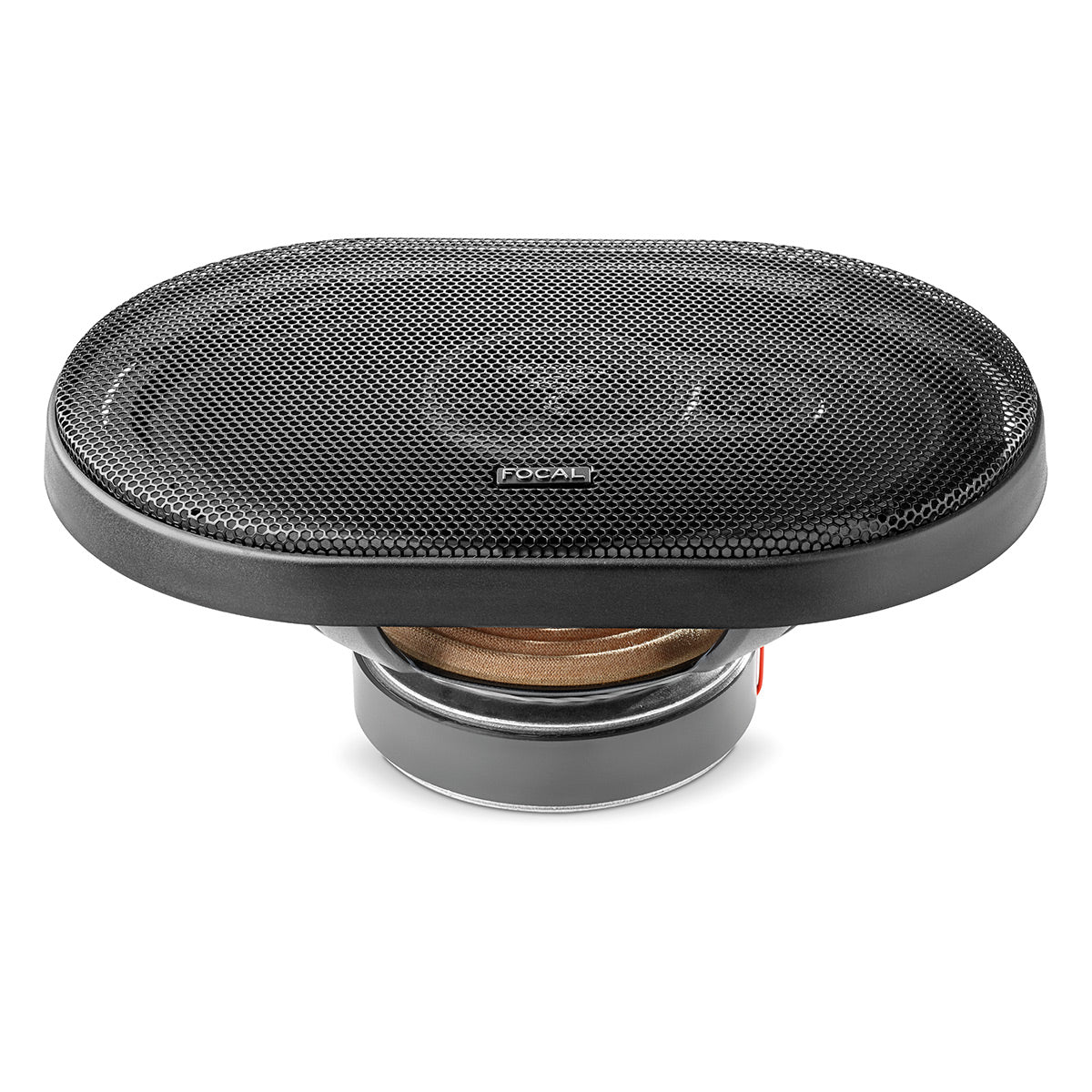

The steel basket of the speaker driver is rigid and durable. The flat grilles supplied, in ABS and Mesh, are just as good-looking as they are inherent in the kit's performance. Finally, the black lacquer finish on the tweeter means it assimilates seamlessly into the cabin of all modern vehicles.

Specifications

  • Type: 3-way elliptical coaxial kit
  • Woofer: 164x235mm
  • Depth: 78mm
  • Cone: Polypropylene
  • Maximum power: 160W
  • Nominal power: 80W RMS
  • Sensitivity (2.83V/1m): 92dB
  • Frequency response: 50Hz - 20kHz
  • Impedance: 4Ω
  • Voice-coil diameter: 35mm
  • Magnet: Ferrite
  • Suspension: Butyl
  • Tweeter: Inverted dome tweeter
  • Crossover: Integrated
