Eversolo DMP-A6 Master Edition Network Streamer with Built-In DAC

Regular price $1,299.00
Sale price $1,299.00 Regular price
Save $-1,299.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Jul 25 – Thu, Aug 1

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Eversolo DMP-A6 ME Overview

Product Information

Model: DMP-A6ME | UPC: 6975200360077

Specifications

What's In The Box

Product Information

Model: DMP-A6ME | UPC: 6975200360077

A New Epoch Is Beginning

With years of development, DMP-A6 Master Edition has reformed traditional streamers by solving pain points across the industry, implying the beginning of a new epoch. DMP-A6 Master Edition is an all-in-one player, with quad-core processors and large memory, tailored for lossless music playback. Rich digital input and outports, HDMI DSD multi-channel output, dual ESS9038Q2M professional DAC, full balanced differential circuit, and professional audio tuning, all contribute to the superior performance of DMP-A6 Master Edition. Unprecedented experience is offered to music lovers with music streaming series, local music management, mobile app, and exclusive control system.

Features

  • Master Recording Playback and Decoding (FLAC WAV, APE, DSD512, MQA)
  • Large 6” LCD Color Touchscreen
  • Support for Amazon Music, TIDAL, Qobuz, HIRESAUDIO, Roon Ready, & more
  • Eversolo Music Library
  • Customizable VU Meters
  • Audio Inputs: Coaxial, Optical, Type-C, & HD Bluetooth
  • Supports USB, Optical, Coaxial, & HDMI bit-perfect output

EOS Audio Engine

EOS (Eversolo original sampling-rate audio engine) is developed by Eversolo engineers, with the support of outputting original sampling rate, that is, audio playback completely bypasses the Android SRC restriction, supporting the Direct audio output of third-party apps (Apple Music hi-res Direct output).

Master Recording Playback and Decoding

Almost all ultra-high sampling master recording formats are supported by DMP-A6 Master Edition, including CD-quality formats (FLAC, WAV, APE), DSD512 stereo/multichannel, and MQA.

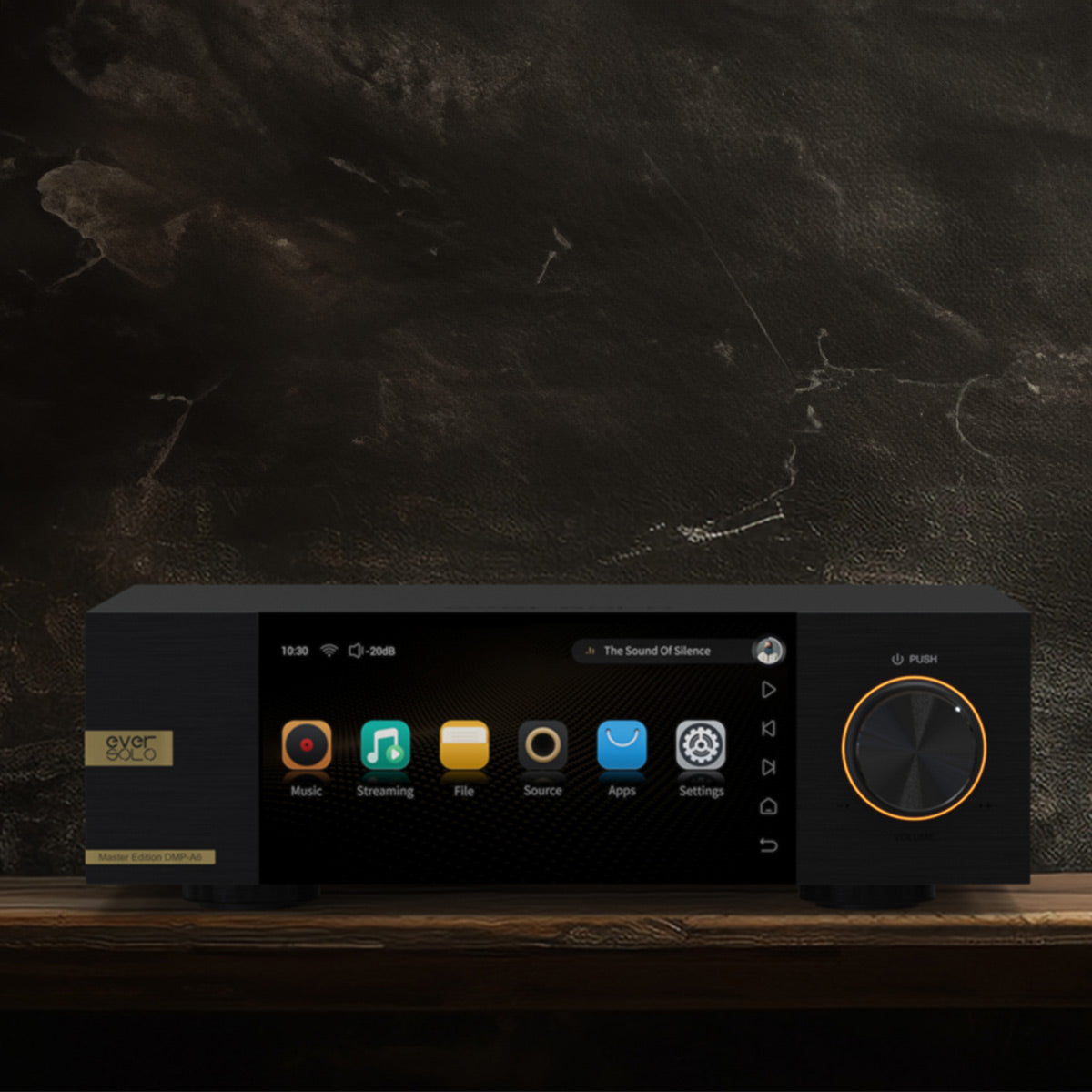

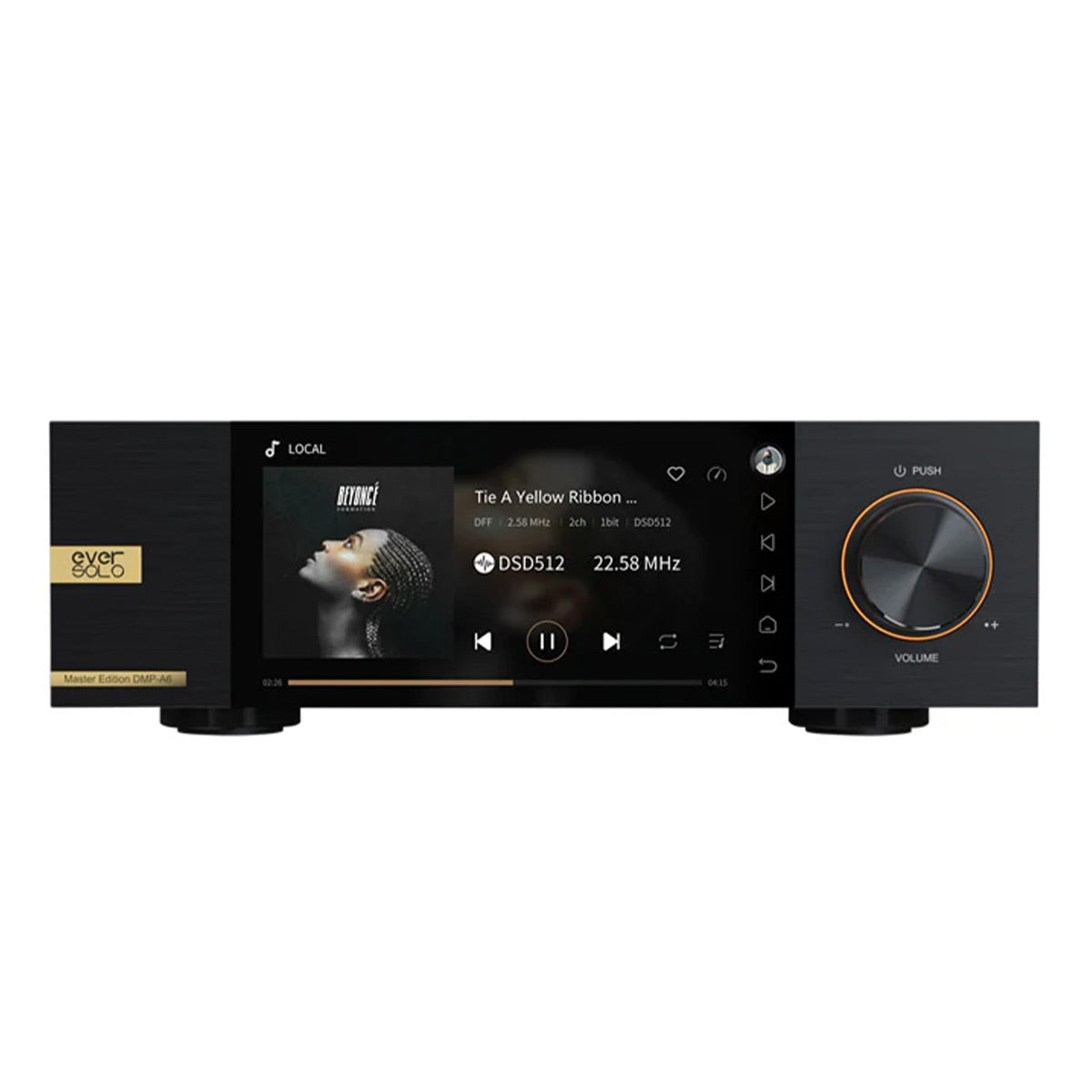

Large LCD Touchscreen for Better User Interaction

The front panel of DMP-A6 Master Edition is embedded with the Master Edition exclusive nameplate and unique golden knob aperture. Equipped with a large 6” LCD high-definition touchscreen, it has a professional streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library, and third-party apps.

DOM Chips for HDMI DSD Multichannel

As a multi-channel streamer, DMP-A6 Master Edition adopts DOG processing chips for HDMI audio especially to play and output master DSD music. Except for the support of DSD Native multi-channel raw output and D2P output (PCM multi-channel output) decoding, it also provides regenerated high-precision independent clock for HDMI so that it can also be used as a digital turntable.

Internal High-speed M.2 SSD Slot

A M.2 NVME 3.0 2280 SSD slot is built in to install SSD without removing the cover, the maximum storage is 4TB. Faster, stable and no noise, it is the key for local high-quality music playback.

Low Ripple High Performance Power Module

The DMP-A6 Master Edition is equipped with a low-noise regulated switching power supply module and several dedicated audio capacitors with less ripple and interference. Choke filter circuit is specifically made for AC input, reducing high-frequency line noise in the region of 100 KHz to 5 MHz, ensuring cleaner power, a softer background noise, and clearer musical details.

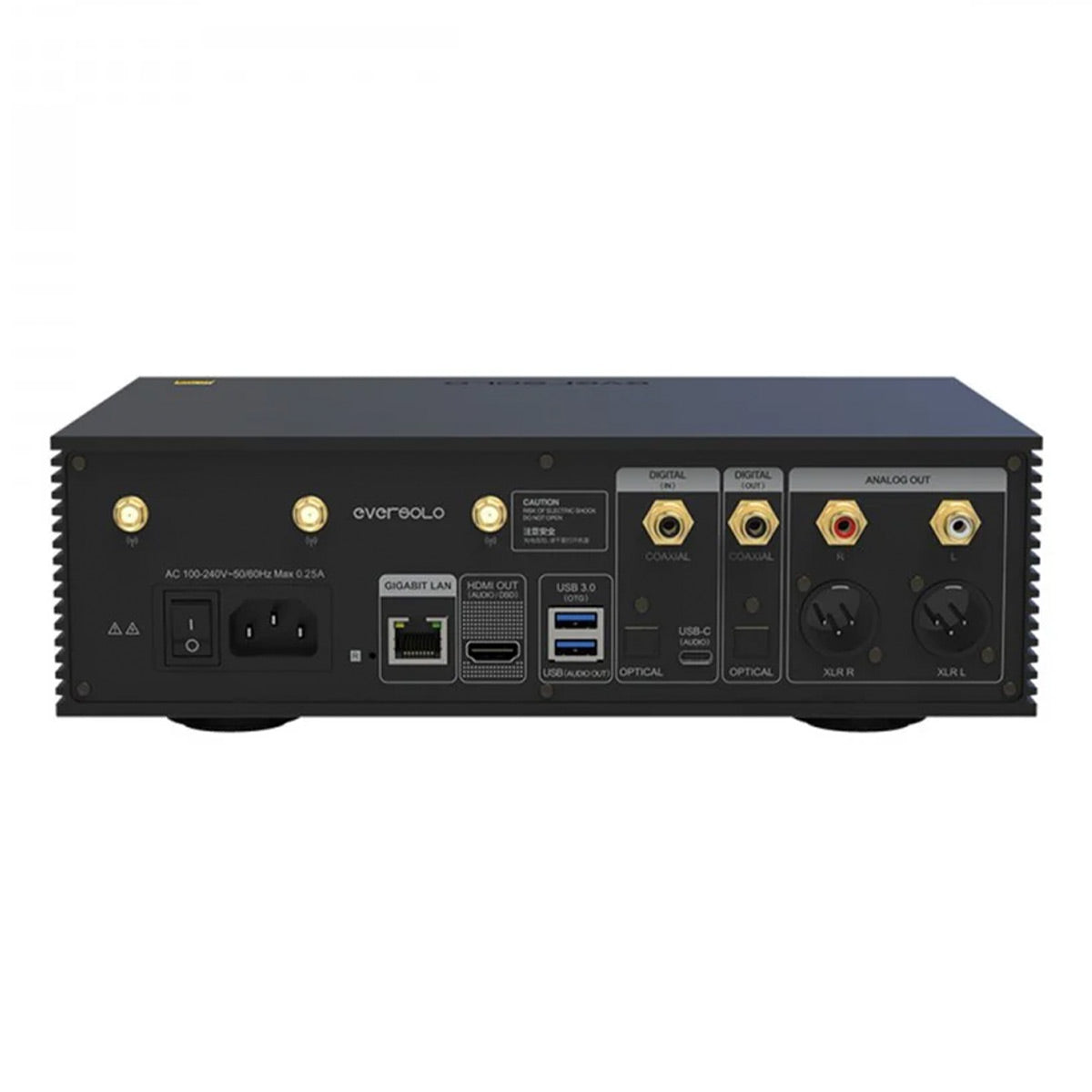

Rich Input and Output Ports

DMP-A6 Master Edition can be used as a digital turntable to connect with various high-end decoding devices by digital output ports including HDMI, USB, Optical and Coaxial. As a decoder, DMP-A6 Master Edition can connect with audio source equipment like PC and mobile devices by Coaxial, Optical, Type-C inputs. XLR and RCA outputs are to connect with active speakers or power amplifiers.

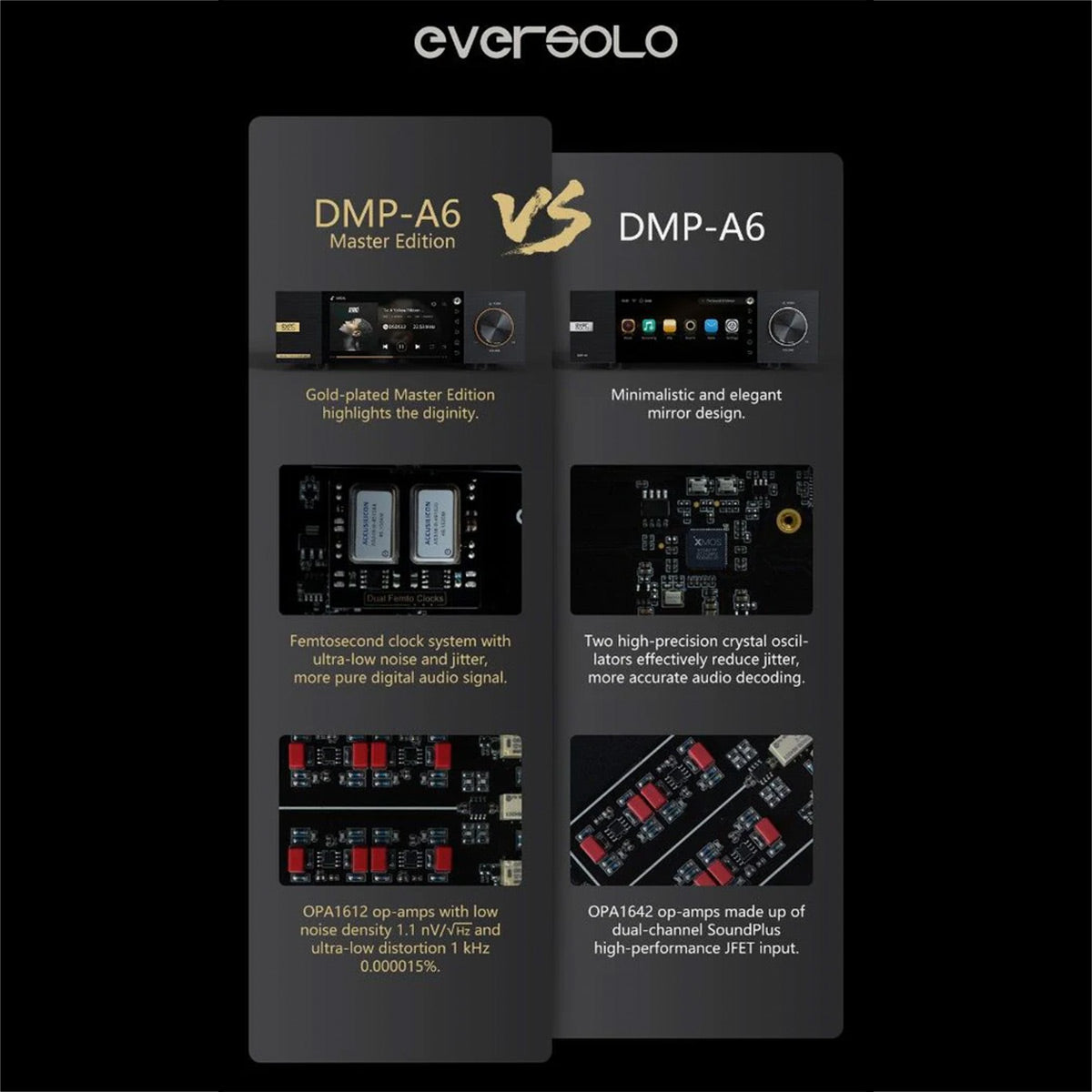

Low Jitter Dual Clock Processing

Low-jitter high-precision dual clocks are designed for DMP-A6 Master Edition. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively correspond to 44.1KHz and 48KHz multiplied sampling, effectively reducing jitter and achieving more precise audio decoding.

Fully Balanced Preamp Circuit

DMP-A6 Master Edition analog circuit adopts fully balanced design from DAC chip to the XLR and RCA stereo output. It provides better noise immunity, improves channel separation by eliminating shared loops for stronger and more consistent signal quality.

2x ES 9038Q2M DAC Decoding

2x ES 9038Q2M are used to establish Double Differential Quadruple Converter for DMP-A6 Master Edition DAC decoding. Two DAC chips correspond to two channels for D/A conversion output independently. So that it effectively avoids the interference between channels, reduces the background noise, obtains better signal-to-noise ratio, and greatly improves the dynamic range and other audio indicators. Supporting DSD512, PCM768@32bit, and MQA hard decoding.

Professional EQ Functionality

The DMP-A6 Master Edition has added an equalizer, which allows users to adjust the equalizer and parametric equalizer according to preferences, and provides EQ gain as well as left and right channel volume balance adjustment.

Bluetooth Module

The Qualcomm QCC5125 Bluetooth audio receiving module used by the DMP-A6 Master Edition is compatible with Bluetooth 5.0. Connecting with mobile phones, tablets, and laptops via Bluetooth allows for simple music playback and CD-quality sound.

Music Services at Your Fingertips

The DMP-A6 Master Edition incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music.

MQA

DMP-A6 Master Edition includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording. Visit mqa.co.uk for more information.

Specifications

  • Model: EVERSOLO DMP-A6 Master Edition
  • Display: 6″ LCD touchscreen
  • Internal Memory: 4GDDR4 +32GeMMC
  • DAC: (2) ES 9038Q2M
  • Audio Processor: XMOS XU316
  • Op-amp Chip: OPA1612 with ultra-low noise and low distortion 1KHz 0.000015%
  • Power Supply: Low noise, high quality switching power supplies
  • HDD Bay: M.2 NVME 3.0 2280 protocol, up to 2TB
  • USB-A Port: (2) USB 3.0
  • Ethernet: RJ-45 (10/100/1000Mbps)
  • WiFi: WiFi 2.4G+5G dual band
  • Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
  • Music Service: Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP
  • Streaming: Air Play, DLNA, Roon Ready, Spotify, Tidal Connect, Qobuz Connect etc.
  • Bluetooth Audio Input: Bluetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
  • USB-C Audio Input: USB Audio Compatibility: Windows (7, 10), Mac, Android, IOS, Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
  • Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
  • Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
  • HDMI Audio Output: DSD64 Native multi-channel/PCM192KHz multichannel raw output
  • Control Method: Mobile App,Touch screen control
  • XLR
    • Output Audio Output level: 5.2V
    • Frequency response: 20Hz~20KHz(±0. 15dB)
    • Dynamic range: > 128dB
    • SNR: >128dB
    • THD+N: <0.00009%(-120dB) @A-wt
    • Crosstalk: >-125dB
  • RCA
    • Output Audio: Output level: 2.6V
    • Frequency response: 20Hz~20KHz (±0. 2dB)
    • Dynamic range: > 124dB
    • SNR: >124dB
    • THD+N: <0.00011%(-119dB)@A-WT
    • Crosstalk: >-124dB
  • PSU: AC 110~240V 50/60Hz
  • Rated Power: 13W
  • Dimensions (W x H x D): 10.63” x 3.54 x 7.36”

What's In The Box

  • DMP-A6 Master Edition Network Streamer with Built-In DAC
  • Power Cable
  • USB Cable
  • Screwdriver
  • Manual
