Elac DPA2 Alchemy Stereo & Mono Amplifier

Regular price $1,749.00
Sale price $1,749.00 Regular price
Save $-1,749.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Aug 27 – Wed, Sep 3

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

ELAC AS-DPA2-BK Overview

Product Information

Model: AS-DPA2-BK | UPC: 858552007493

Specifications

What's In The Box

Product Information

Model: AS-DPA2-BK | UPC: 858552007493

Introducing the pinnacle of audio precision and power: the ELAC Audio Alchemy DPA-2. This exceptional stereo power amplifier represents the epitome of engineering finesse and sonic excellence. Designed to deliver uncompromising performance, the DPA-2 embodies ELAC's commitment to crafting audio components that transcend expectations. With a blend of innovative technology and meticulous craftsmanship, this amplifier stands as a testament to the pursuit of audio perfection. Whether driving speakers with finesse or effortlessly handling dynamic range, the DPA-2 promises an immersive, true-to-life sound experience that resonates with the soul of every music enthusiast.

High-Quality Audio Reproduction

The DPA-2 is designed to deliver a warm, natural sound with exceptional clarity and detail. The Class A input stage, fully balanced design, and high-efficiency Class D output stage all contribute to the amplifier's excellent audio performance.

Toroidal Transformer

Our custom toroidal transformer delivers clean, stable, and robust power to the amplifier's circuitry. This custom transformer is renowned for their ability to minimize electromagnetic interference and noise, providing a pristine power feed that preserves the integrity of the audio signal. By reducing magnetic field leakage and ensuring efficient voltage regulation, the toroidal power supply significantly mitigates unwanted distortions, delivering a pure and unadulterated power source to the amplifier's components.

Versatility

The DPA-2 can be used in both stereo and mono mode. In stereo mode, the amplifier can deliver up to 220 watts per channel into 8 ohms. In mono mode, the amplifier can deliver up to 650 watts into 8 ohms. This flexibility makes the DPA-2 a great choice for a wide range of speakers.

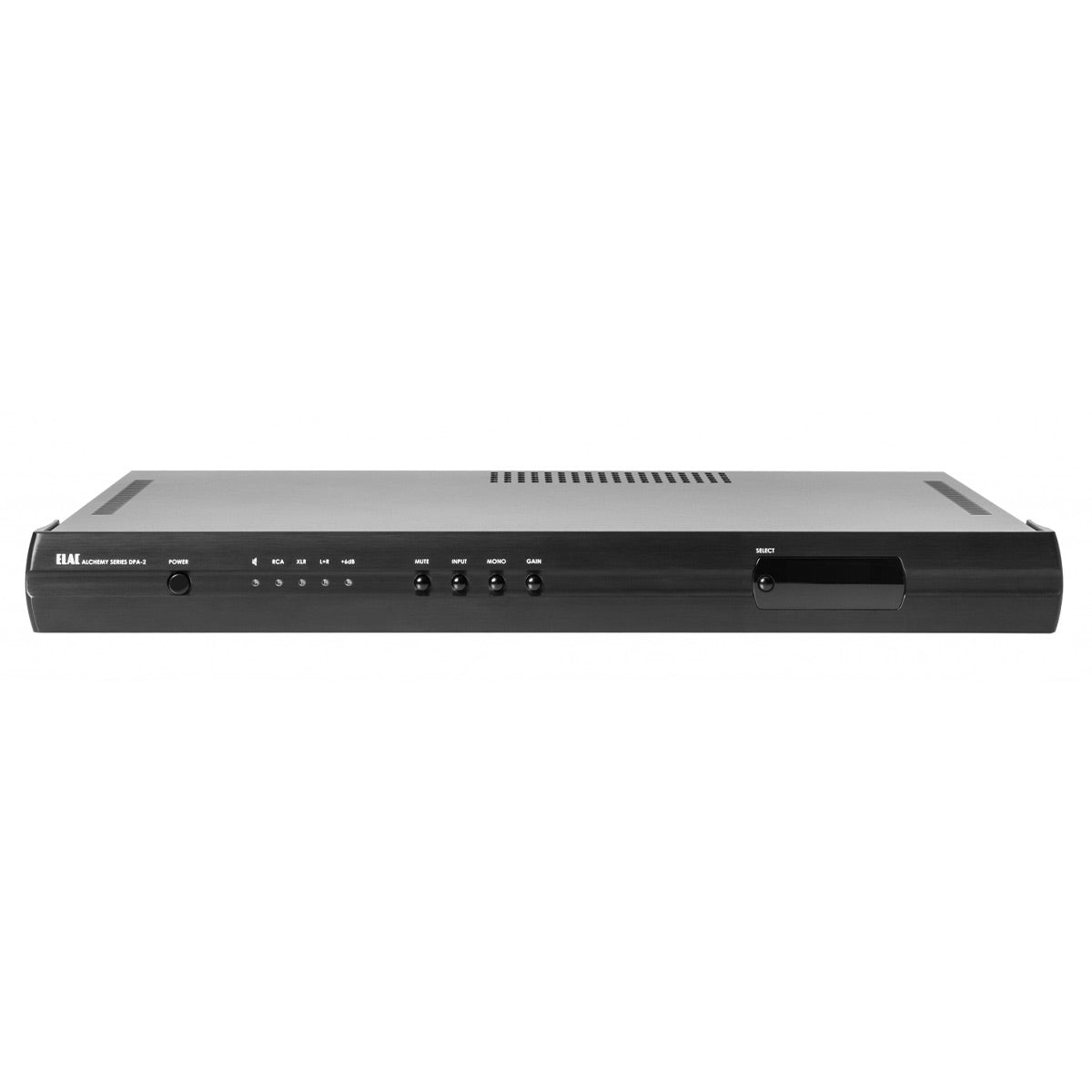

Ease of Use

The DPA-2 is very easy to use. The front panel has a simple layout with just a few controls. The amplifier also has a 12V trigger input/output that allows you to easily integrate it with other components in your system.

Specifications

  • Power output/channel (1% THD+N, 1 kHz): Stereo 325W/ch @ 4 Ohms / Mono 625W @ 8 Ohms
  • Frequency response: 5Hz – 20kHz +/- 0.2dB
  • Nominal THD+N (1 watt into 8?): 0.003%
  • Signal-to-noise ratio (1 kHz): 94dB
  • Input impedance: RCA = 12K, XLR = 19K
  • Output impedance: 0.03 Ohms @ 1kHz
  • Channel separation (1 kHz): 70dB @ 1kHz / n/a
  • Gain: Stereo 24dB / 30dB – Mono 18dB / 24dB
  • Inputs: Unbalanced RCA, Balanced XLR
  • Outputs: Binding post 5-way
  • Dimensions (W x H x D): 17.5" x 2" x 15" including jacks
  • Weight: 14 lbs.

What's In The Box

  • DPA2 Alchemy Stereo & Mono Amplifier
  • Power Cord
  • Manual
