Definitive Technology

Definitive Technology Dymension DM30 Flagship Center Channel Speaker with Built-In Subwoofer and Passive Radiators

Regular price $1,049.00
Sale price $1,049.00 Regular price
$1,499.00 Save $450.00 (30%)

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Definitive Technology Dymension DM30 Flagship Center Channel Speaker with Built-In Subwoofer and Passive Radiators Overview

Product Information

Model: 300566-01-00-101 | UPC: 747192137090


What's In The Box

Product Information

Model: 300566-01-00-101 | UPC: 747192137090

Maximum-Performance Center Channel

The Dymension™ DM30 flagship center channel speaker combines a five-driver array with an integrated subwoofer and 3XR-optimized bass radiators to deliver full-range performance with superior vocal clarity and maximum bass impact. It’s the ultimate centerpiece for immersive home theater and music systems.


  • 5.25" BDSS woofer with Linear Response Waveguide
  • Aluminum oxide tweeter
  • Built-in 8" powered subwoofer
  • 3XR Architecture with dual bass radiators
  • Intelligent Bass Control

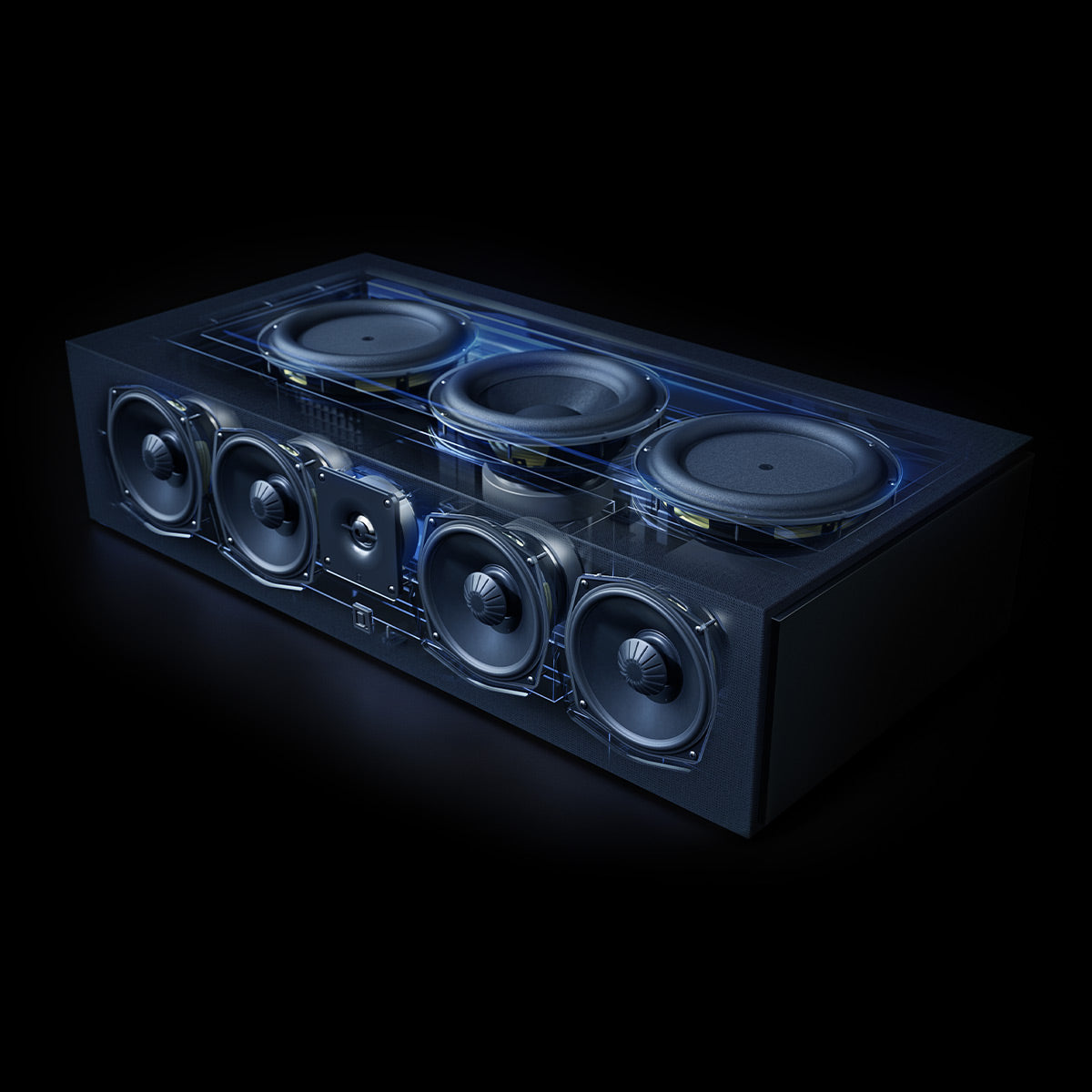

Advanced Five Driver Array

Four 5.25" BDSS midrange woofers and a 1" aluminum oxide tweeter deliver ultra-clear vocals with uncanny realism. Add DM30's integrated 8” powered subwoofer and its full range immersive sound that draws you into the action every time.

Built-In 8” Powered Subwoofer

An integrated 8” powered subwoofer delivers clean, detailed bass that perfectly blends with mids and highs, anchoring voices and effects with rich, full-range sound.

3XR Architecture with Dual Bass Radiators

3XR™ Architecture—introduced in our flagship Descend Series—combines a subwoofer and two passive radiators to produce huge, impactful bass that’s unrivaled in a center channel speaker. Get ready to experience low end you can feel.

BDSS System and Linear Response Waveguide

The DM30’s midrange woofers feature Definitive’s Balanced Double Surround System™ (BDSS), which improves excursion and provides superior midrange detail. Our patented Linear Response Waveguide™ extends off-axis dispersion for total sonic immersion.

Patented Intelligent Bass Control

Sophisticated digital processing seamlessly blends subwoofer output with mids and highs to provide powerful deep-bass performance without impacting midrange clarity. Bass will never get in the way of dialogue and other critical soundtrack elements.

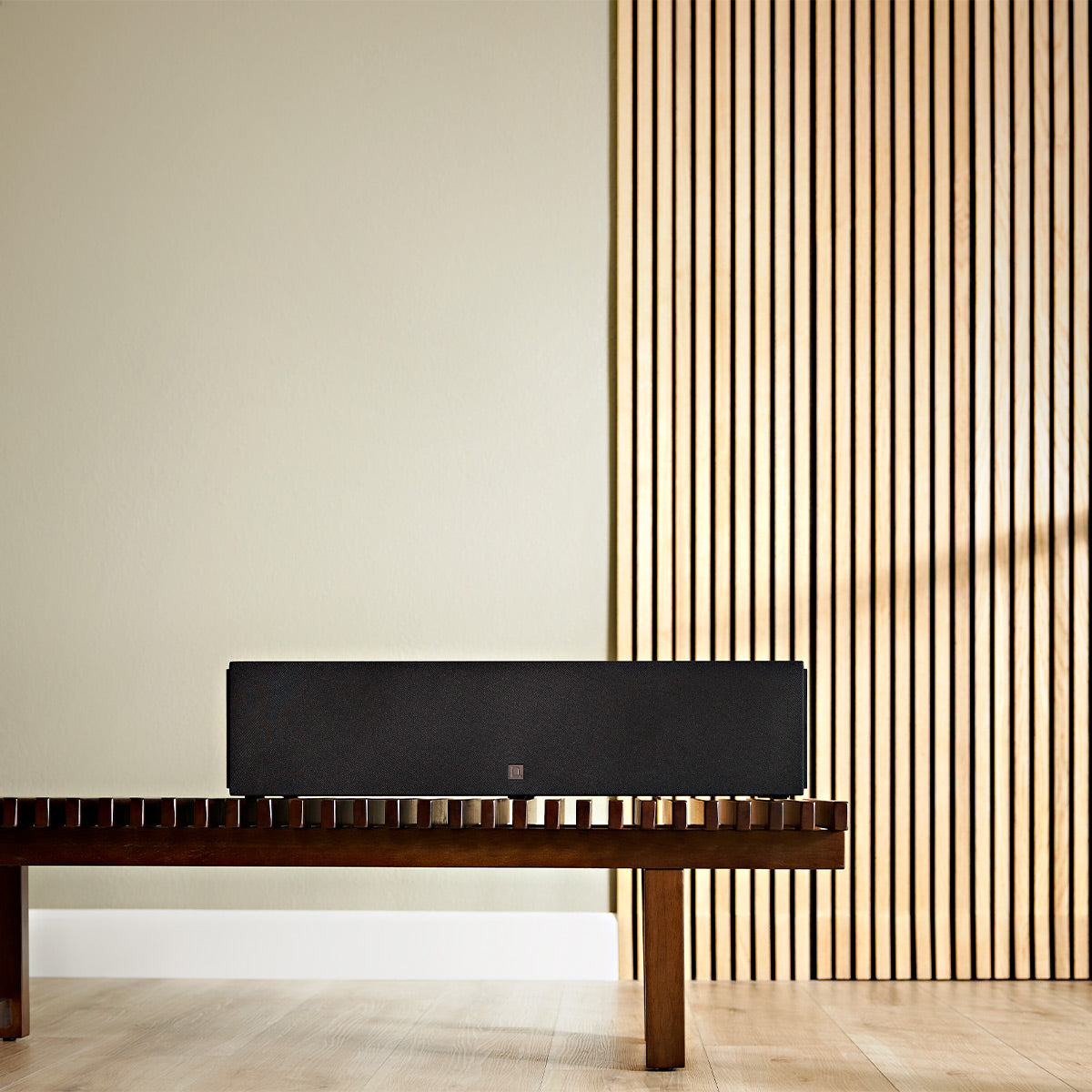

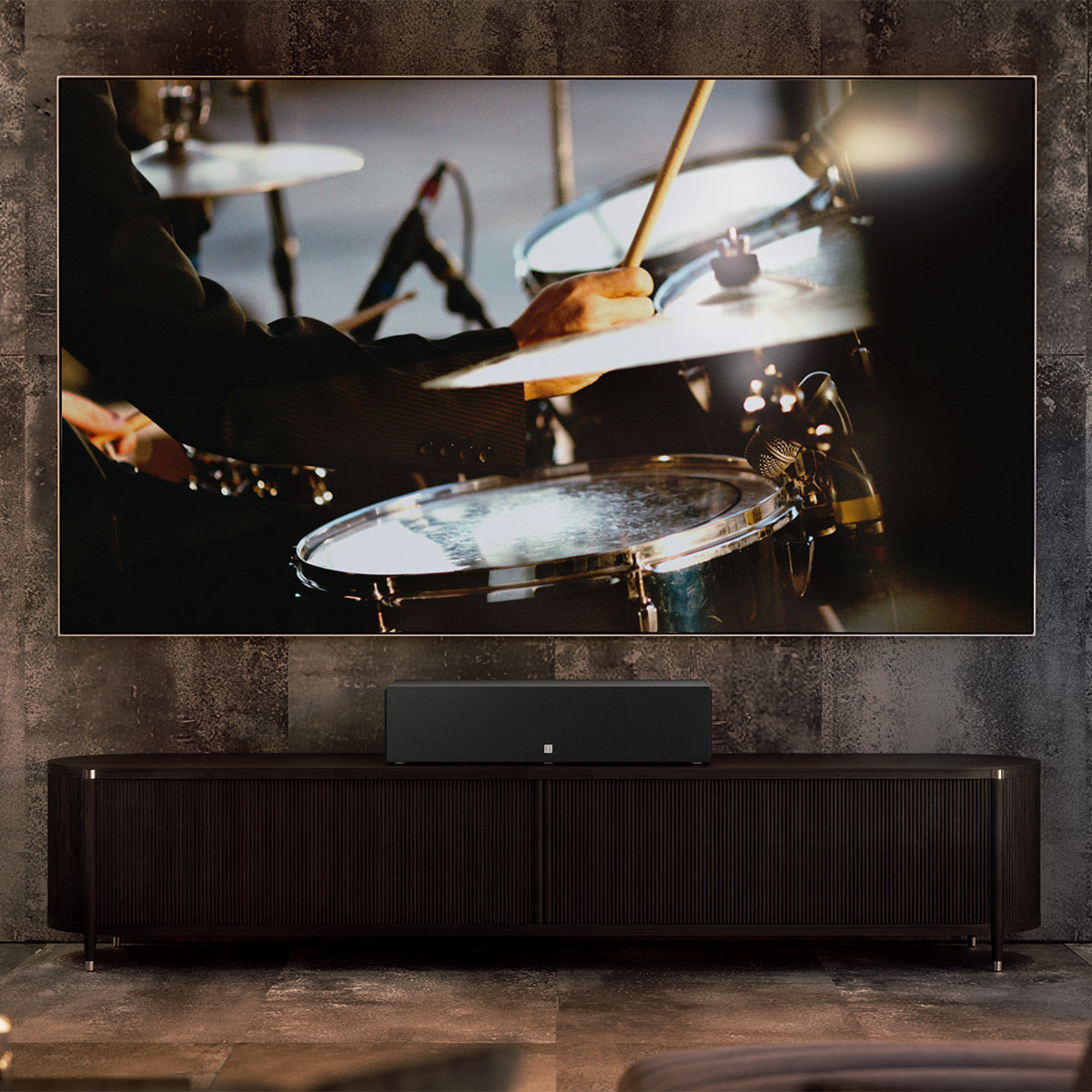

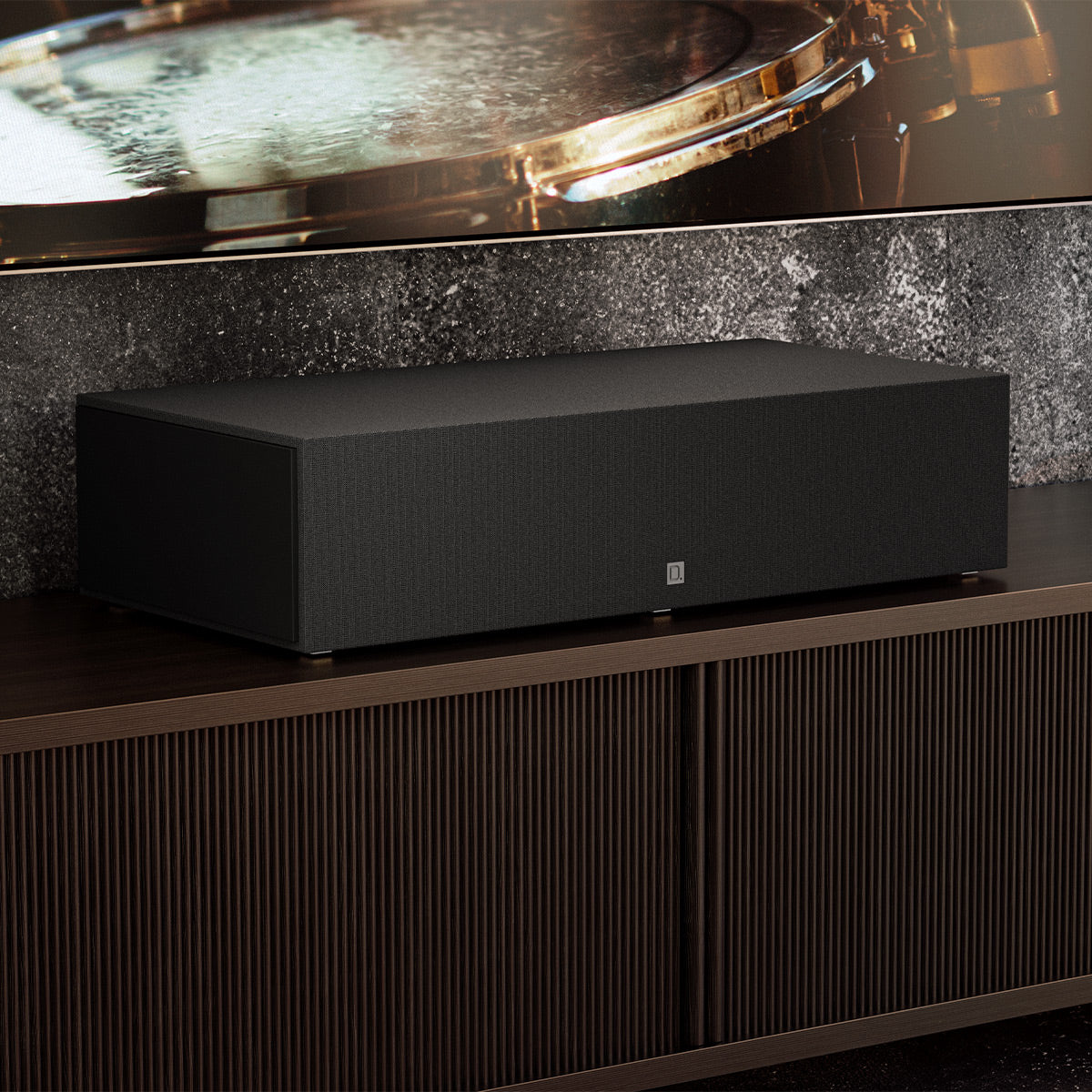

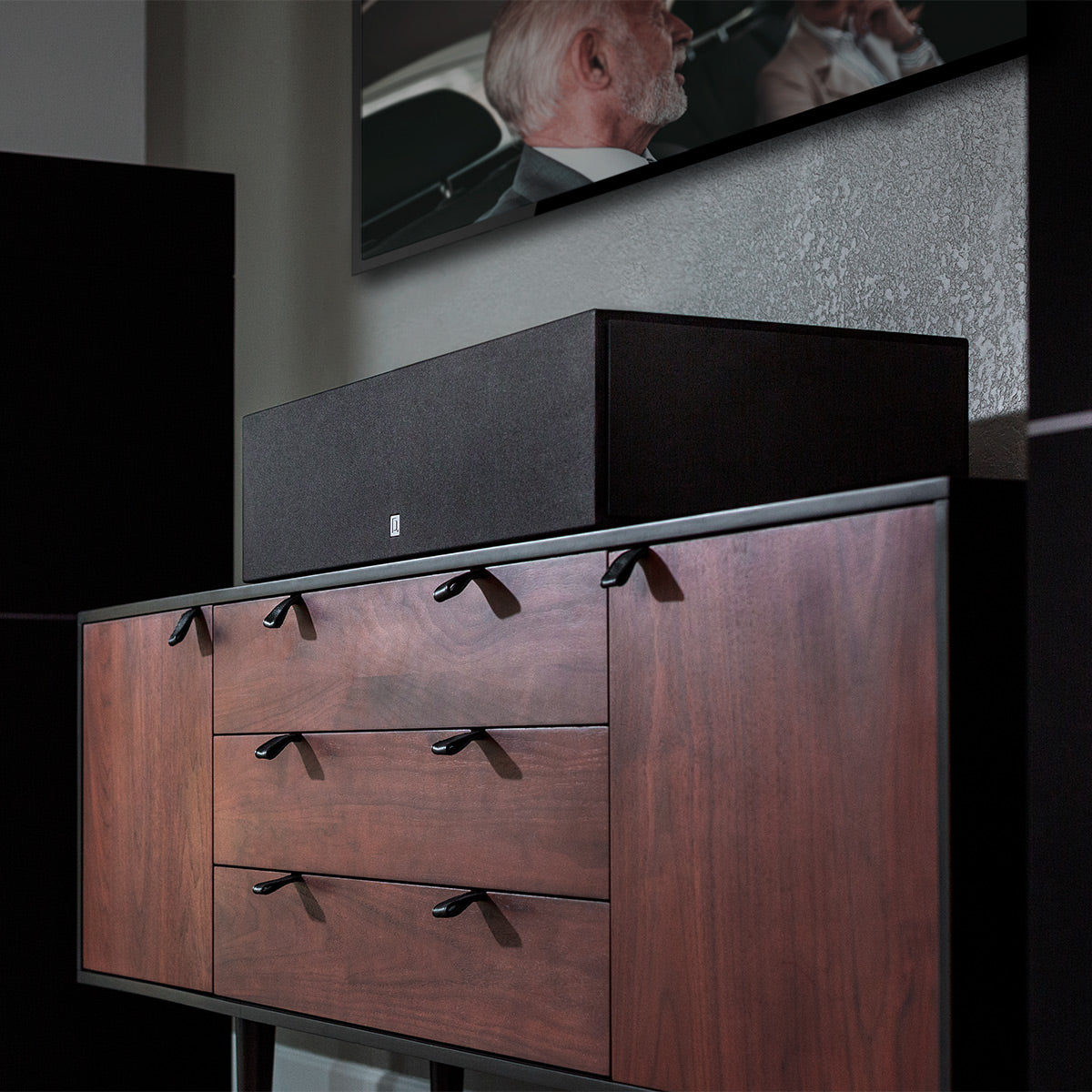

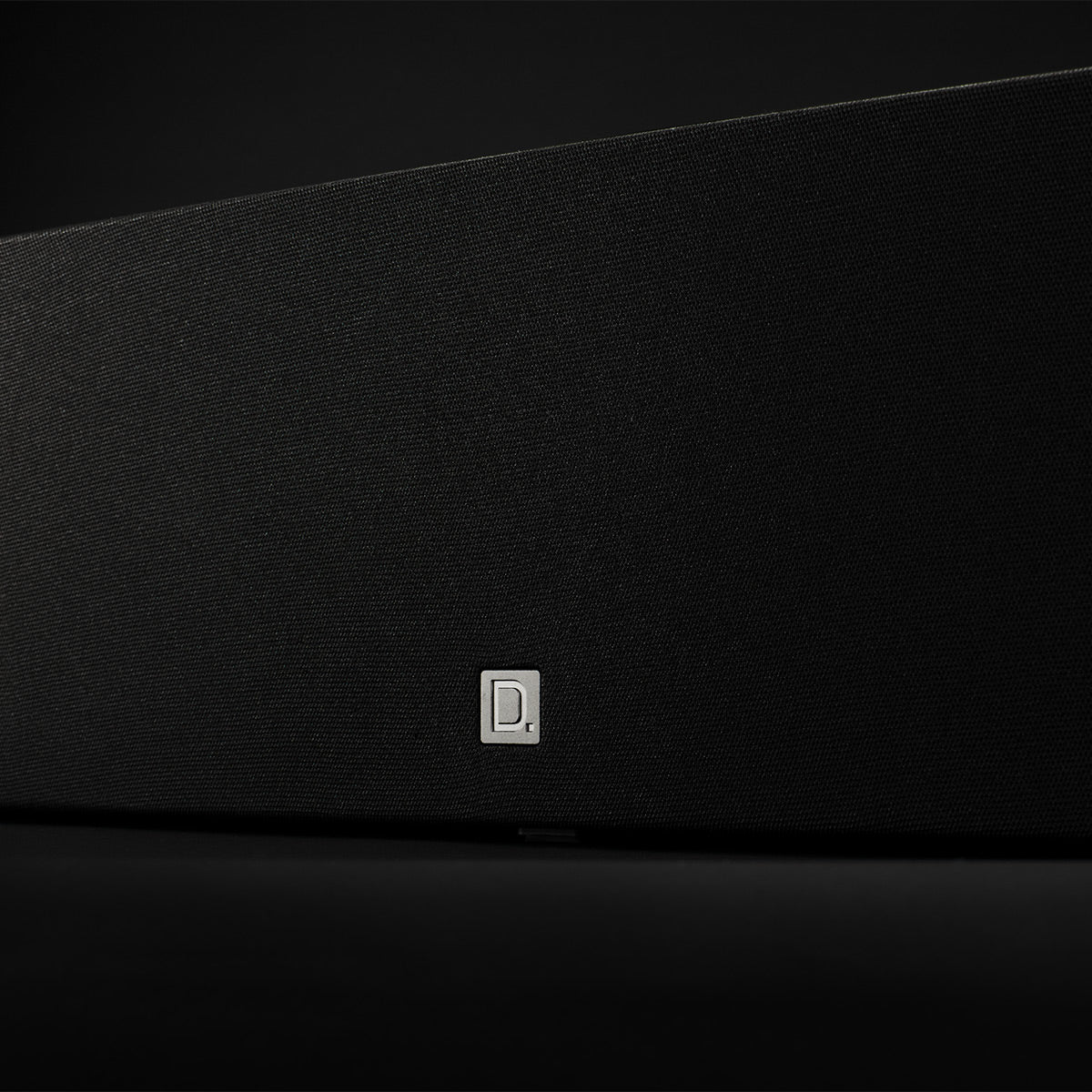

Disappearing Design

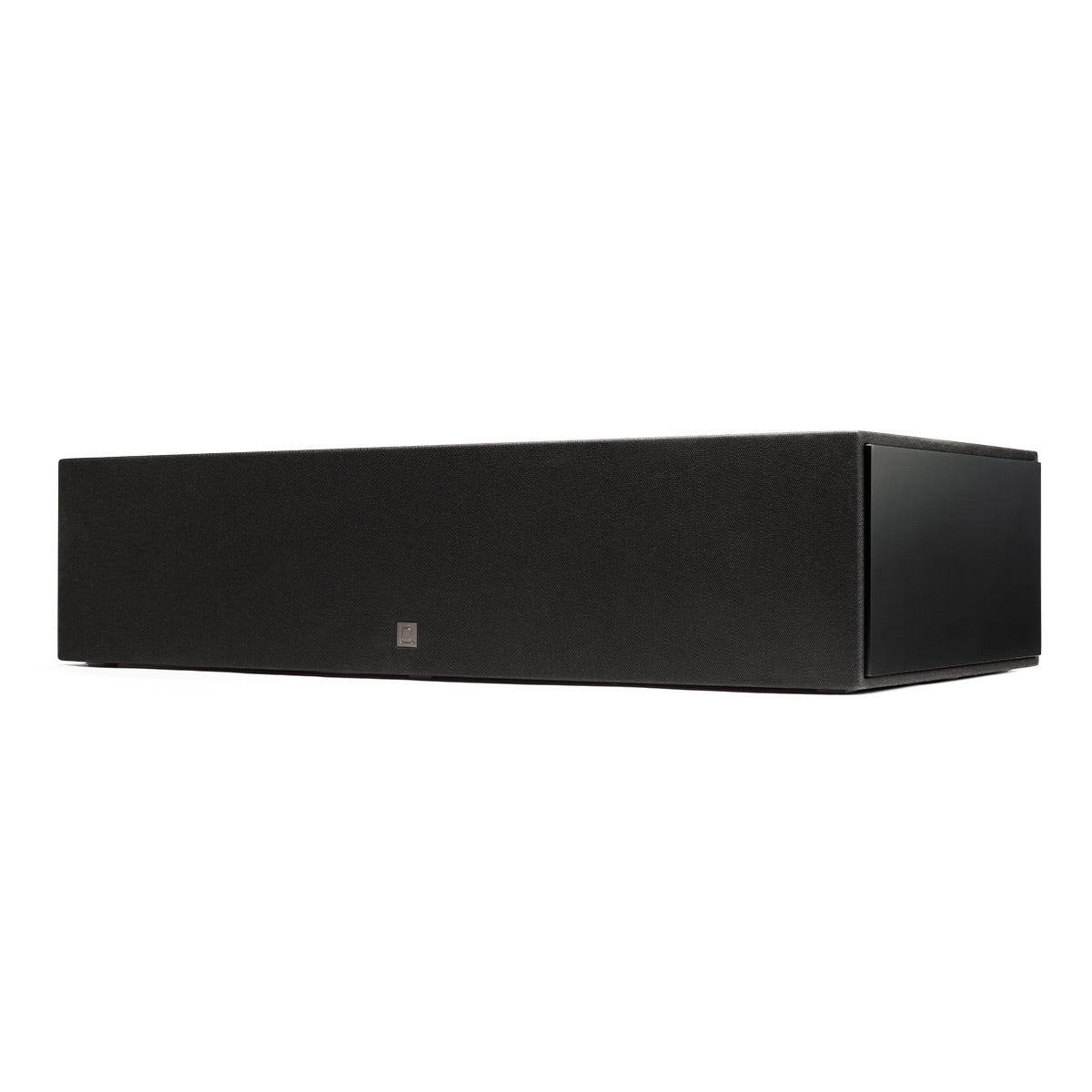

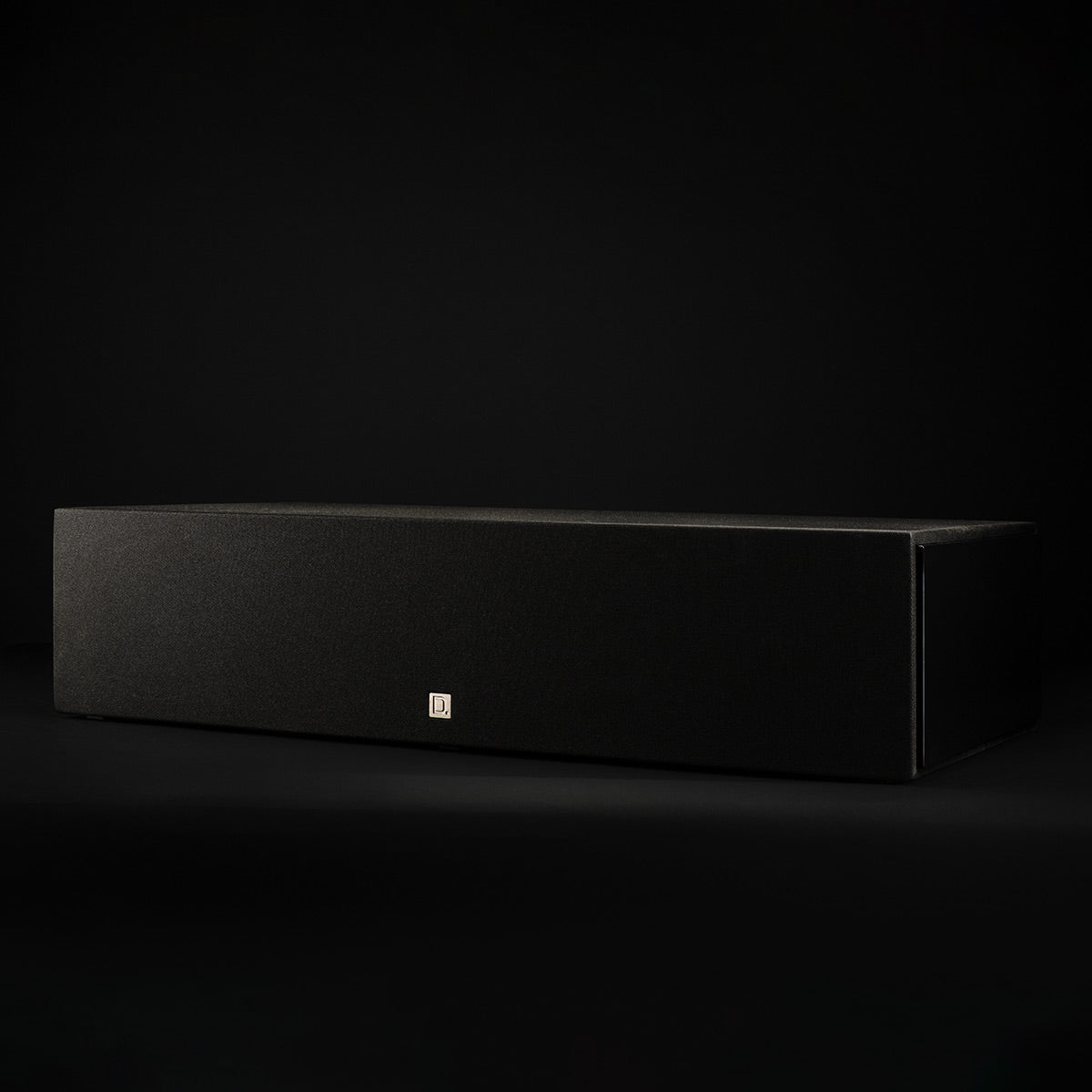

The DM30 features an acoustically transparent cloth wrap. As soon as you dim the lights, it virtually disappears into your room—so you can focus on the movie, not your speakers.


Consistent sound across other Definitive Technology series gives you the flexibility to mix and match Dymension™, Dymension CI, and Mythos speakers to design your dream home theater and whole home system.


  • Dimensions (W x H x D): 31.5” x 7.5” x 15.9”
  • Weight : 54 lbs
  • Grille Material : Acoustically transparent black cloth (not removable)
  • Orientation: Horizontal
  • Tweeter (1): 1 in. aluminum oxide dome
  • Midrange/Midbass (4): 5.25 in. BDSS™ with Linear Response Waveguide™
  • Subwoofer System Driver Complement
    • (1) 8 in. subwoofer
    • (2) 8 in. passive radiators
  • Frequency Response
    • 36 Hz–30 kHz (-10dB)
    • 41 Hz–23 kHz (-3dB)
  • Nominal Impedance: 6Ω (8Ω compatible)
  • Sensitivity: 93dB (2.83V/1m)
  • Recommended Amplifier Power Rating: 50-300W
  • Subwoofer Amplifier: 250W (Peak) Class D

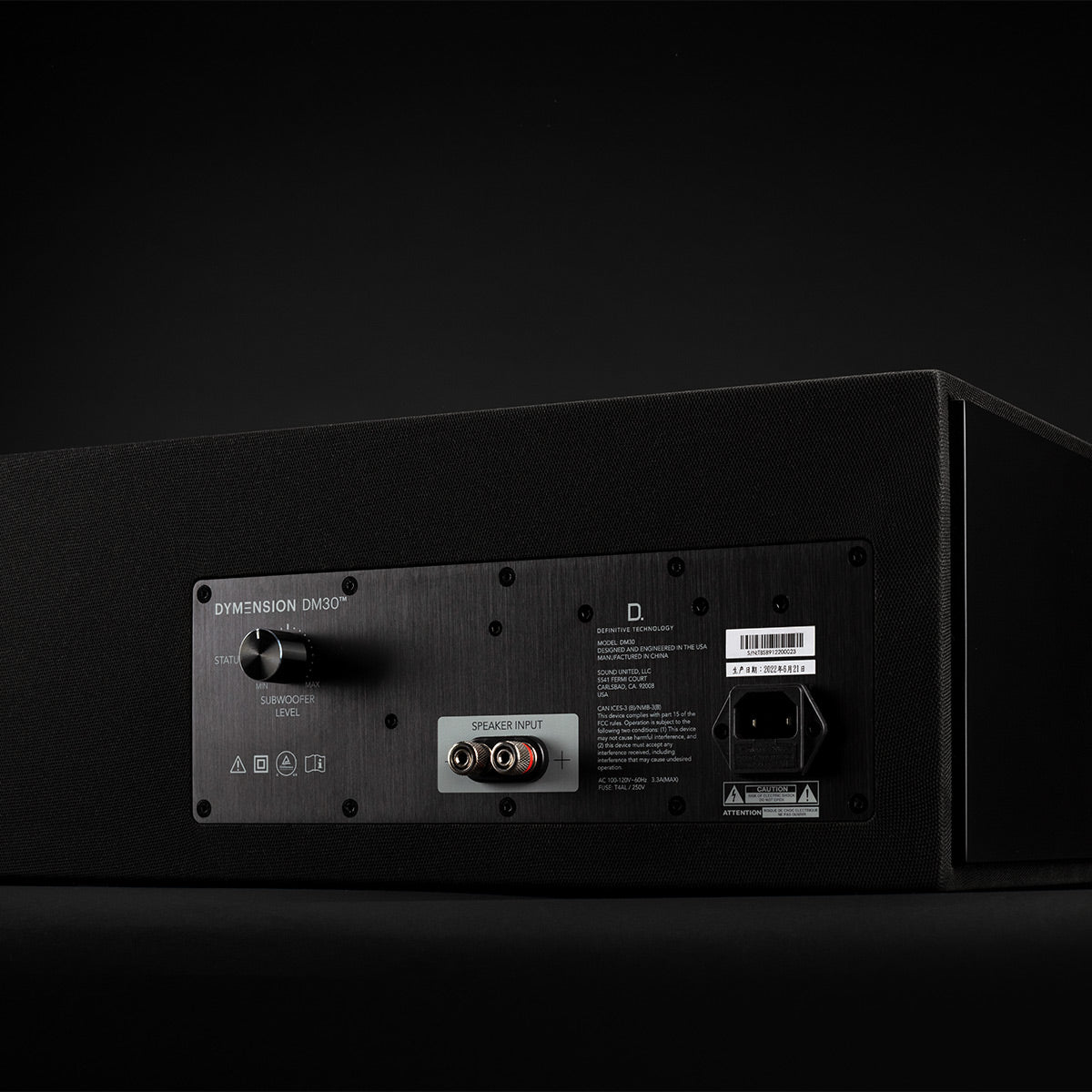

  • Intelligent Bass Control: Variable +12dB/-15dB

What's In The Box

  • Dymension DM30 Flagship Center Channel Speaker with Built-In Subwoofer and Passive Radiators
  • Power Cord
  • Manual
