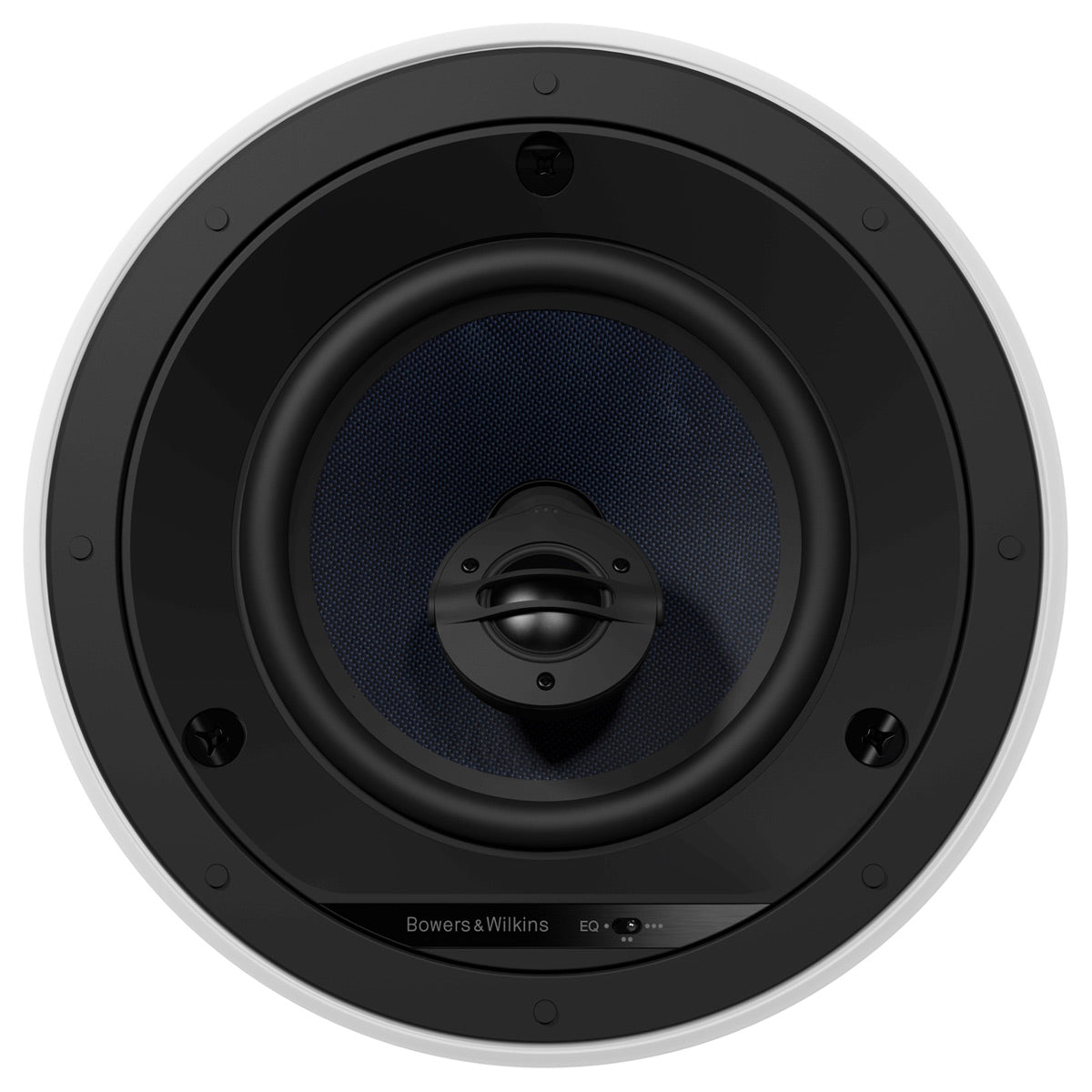

Bowers & Wilkins CCM663 6" In-Ceiling Speaker - Each

$475.00 OR

Out of Stock

More Product Details

Our product experts are here to help

Questions? We're here to help.

Model: FP29572 UPC: 714346310333 Item: 155834

The Bowers & Wilkins CCM663 in-ceiling speaker was built to blend in with surroundings while playing standout sound. This high performance speaker features an innovative design for enhancing frequency reproduction. The thin frame and elegant appearance, make it suitable for any room.

CCM663 Speaker Features:
  • Midrange drivers allow for cleaner, faster bass
  • Innovative design enhances high frequency reproduction
  • Thin frame and elegant design allow it to easily blend with decor
  • Quick and easy installation

Product Information

Bowers & Wilkins CCM663 6" In-Ceiling Speaker

This high-performance 6in in-ceiling speaker features a Nautilus swirl-loaded 25mm (1in) aluminum dome tweeter that pivots for adjustable off-axis treble response. Other highlights include a bass/midrange driver with a rigid die-cast chassis and a three-position EQ switch. The maximum amp power is 130W. Installation couldnt be easier, thanks to our QuickDogsTM fixing system and plug-and-play connection.


Bowers & Wilkins CCM663 In-Ceiling Speaker Specifications:

  • Description: 2-way in-ceiling system
  • Drive Units:
    • 1x @25mm (1in) Nautilus swirl loaded aluminium dome tweeter
    • 1x @150mm (6in) blue Kevlar cone bass/midrange
  • Frequency Range (-6dB): 45Hz – 50kHz
  • Recommended Amp Power: 25 – 130w
  • Sensitivity SPL (2.83V, 1m): 88dB
  • Impedance Nominal (min): 8 ohms (4.5 ohms)
  • Frame diameter: 240mm (9.5in)
  • Cut-out diameter: 202mm (8in)
  • Depth behind surface: 133mm (5.2in)
  • Protrusion: 4mm (0.2 in)
  • Pre-mount Kit: C6
  • Back Box: 6C

What's in the Box

What's in the Box:

  • CCM Series speaker assembly (baffle, frame, and bezel, grille)
  • Cut-out template
  • Paint mask
  • Document pack containing Quick Start Guide and Warranty information
