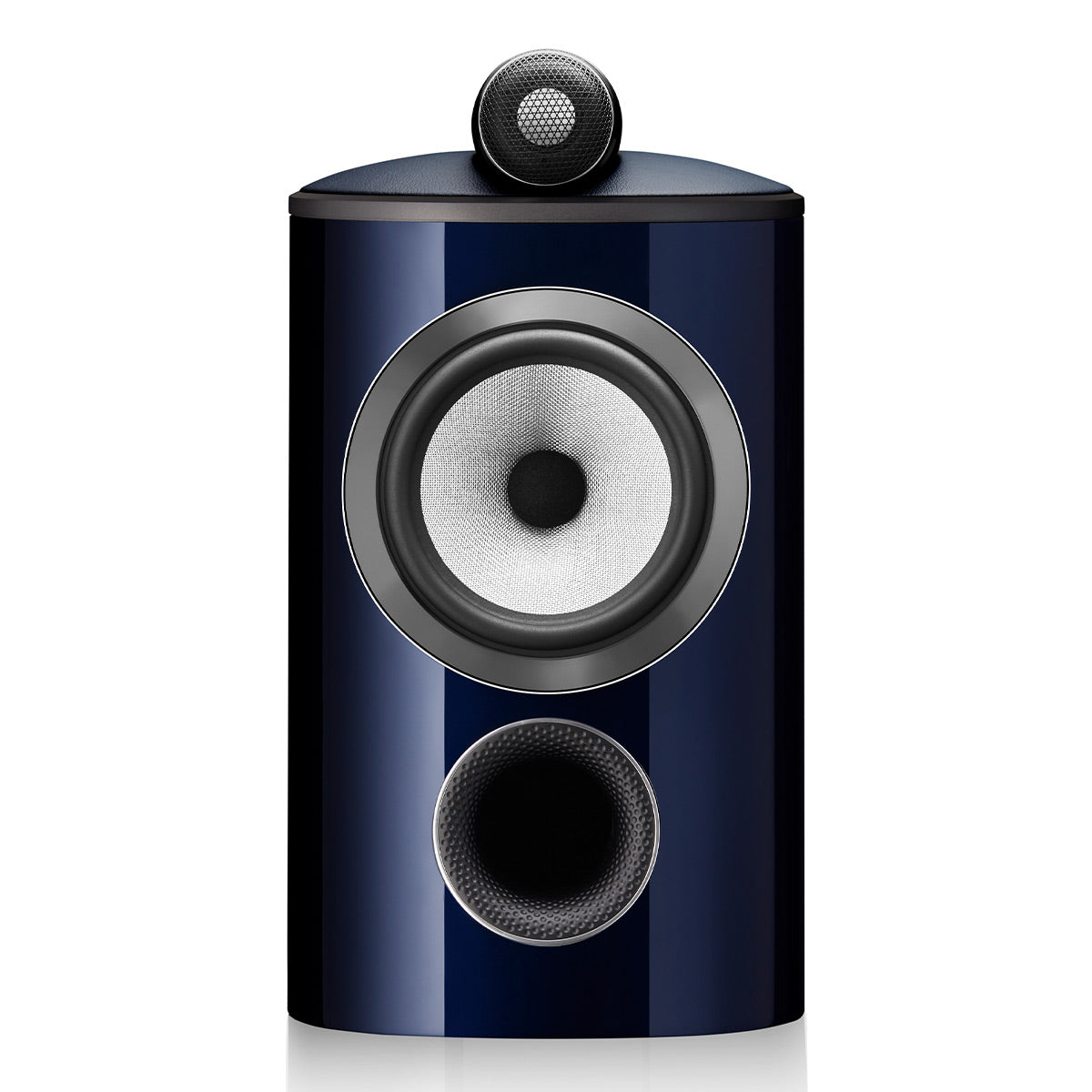

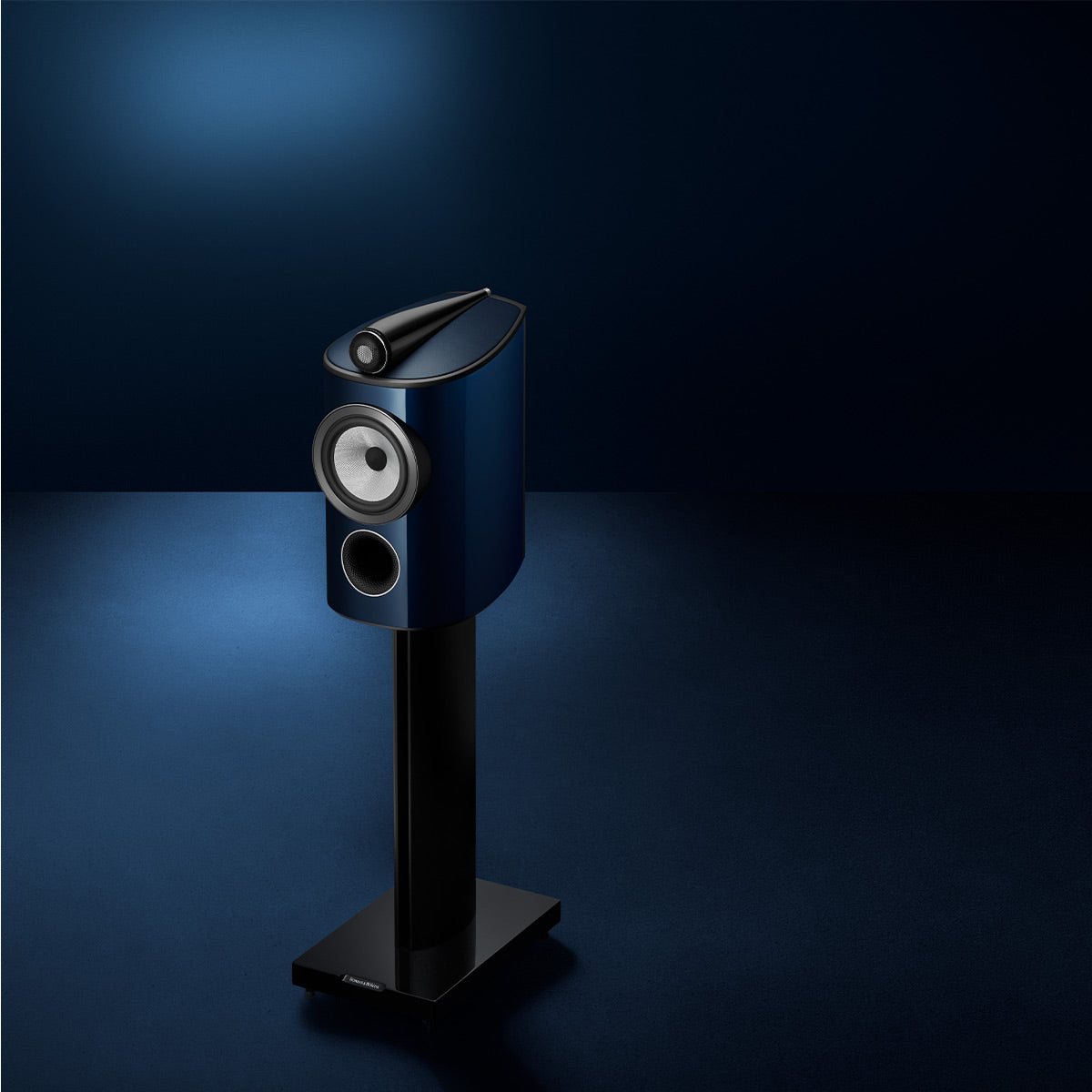

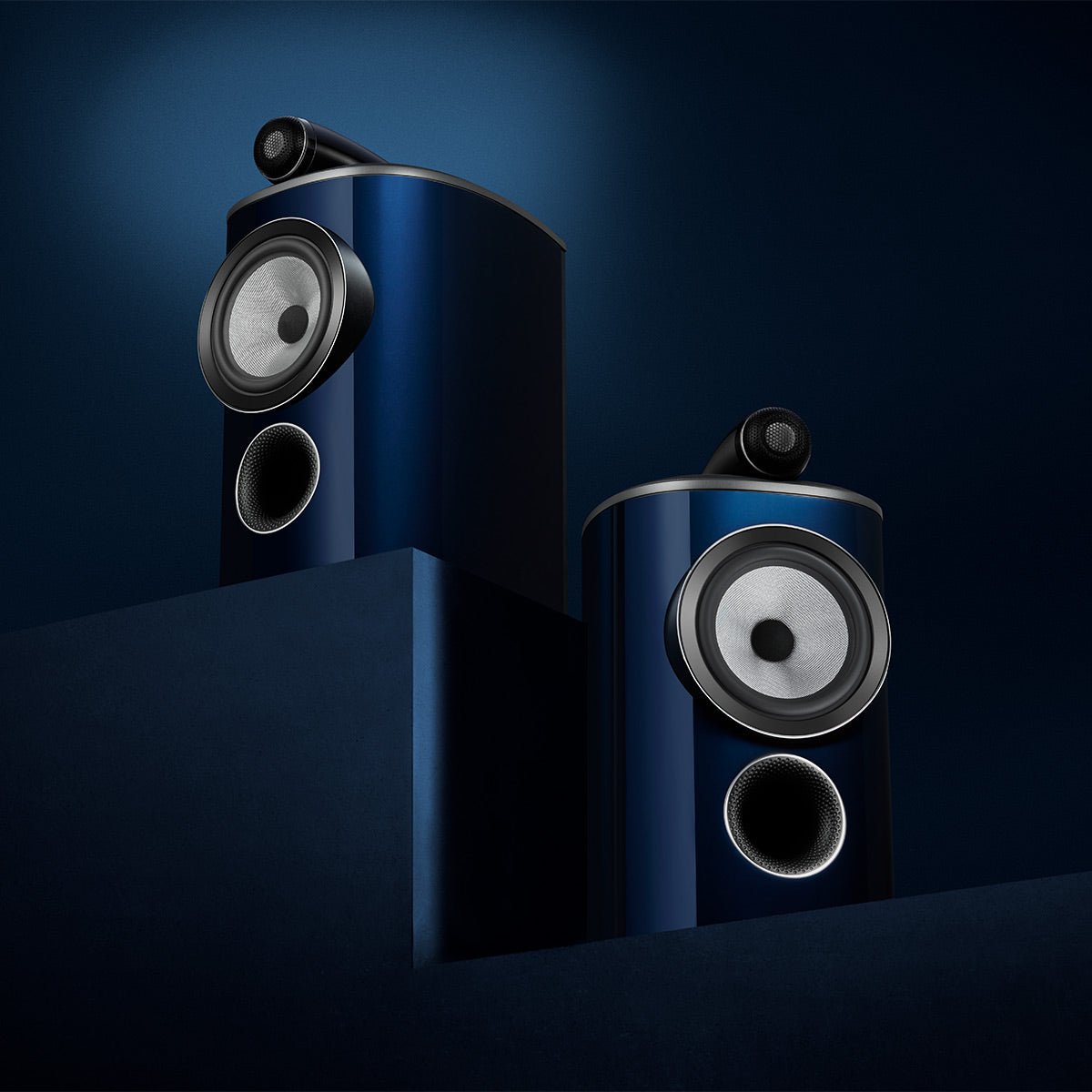

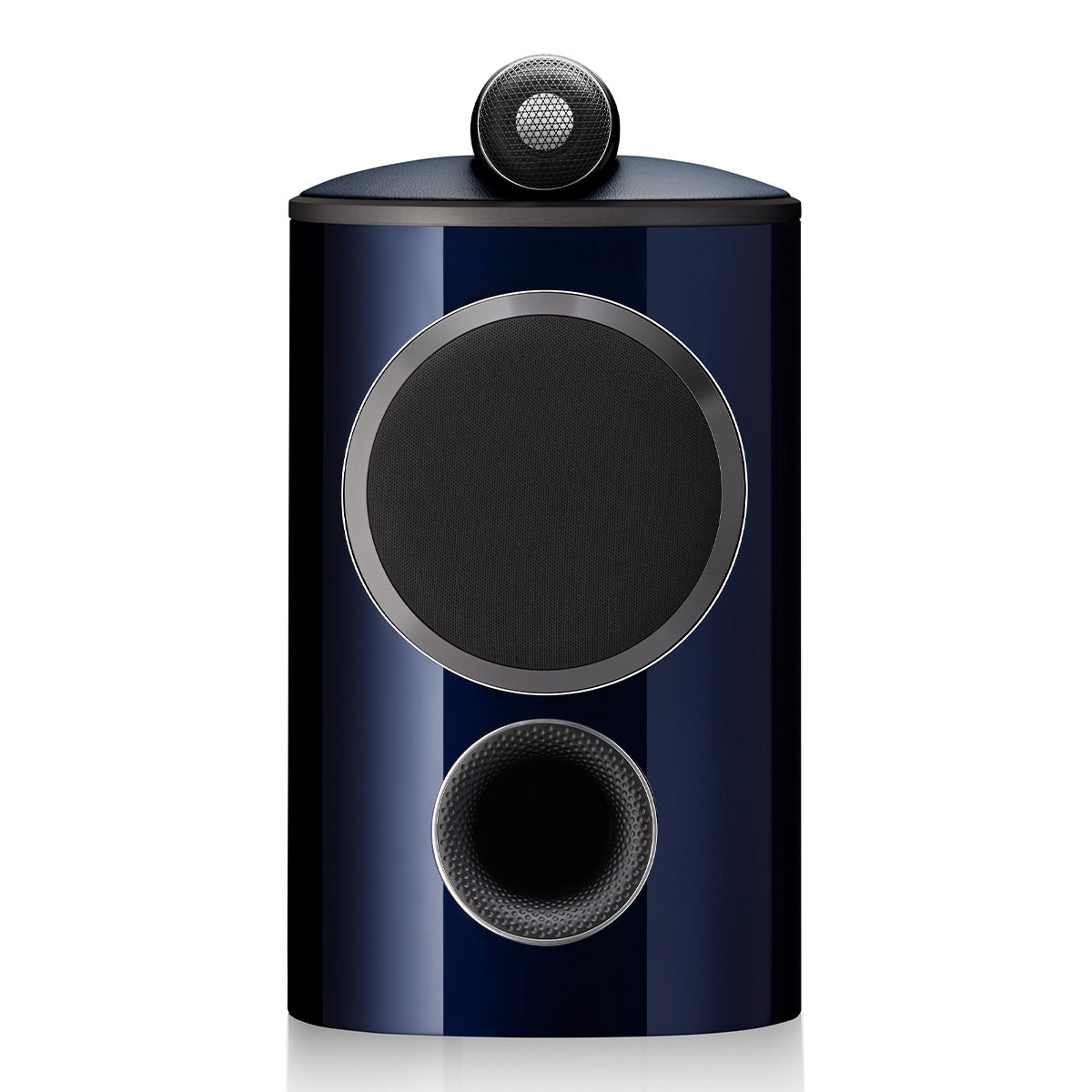

Bowers & Wilkins 805 D4 Signature 2-Way Bookshelf Speaker - Each (Midnight Blue Metallic)

Regular price $6,750.00
Sale price $6,750.00 Regular price
Save $-6,750.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: FP44237 | UPC: 714346341092


What's In The Box

Product Information

Model: FP44237 | UPC: 714346341092

Crafted. Honed. Perfected.

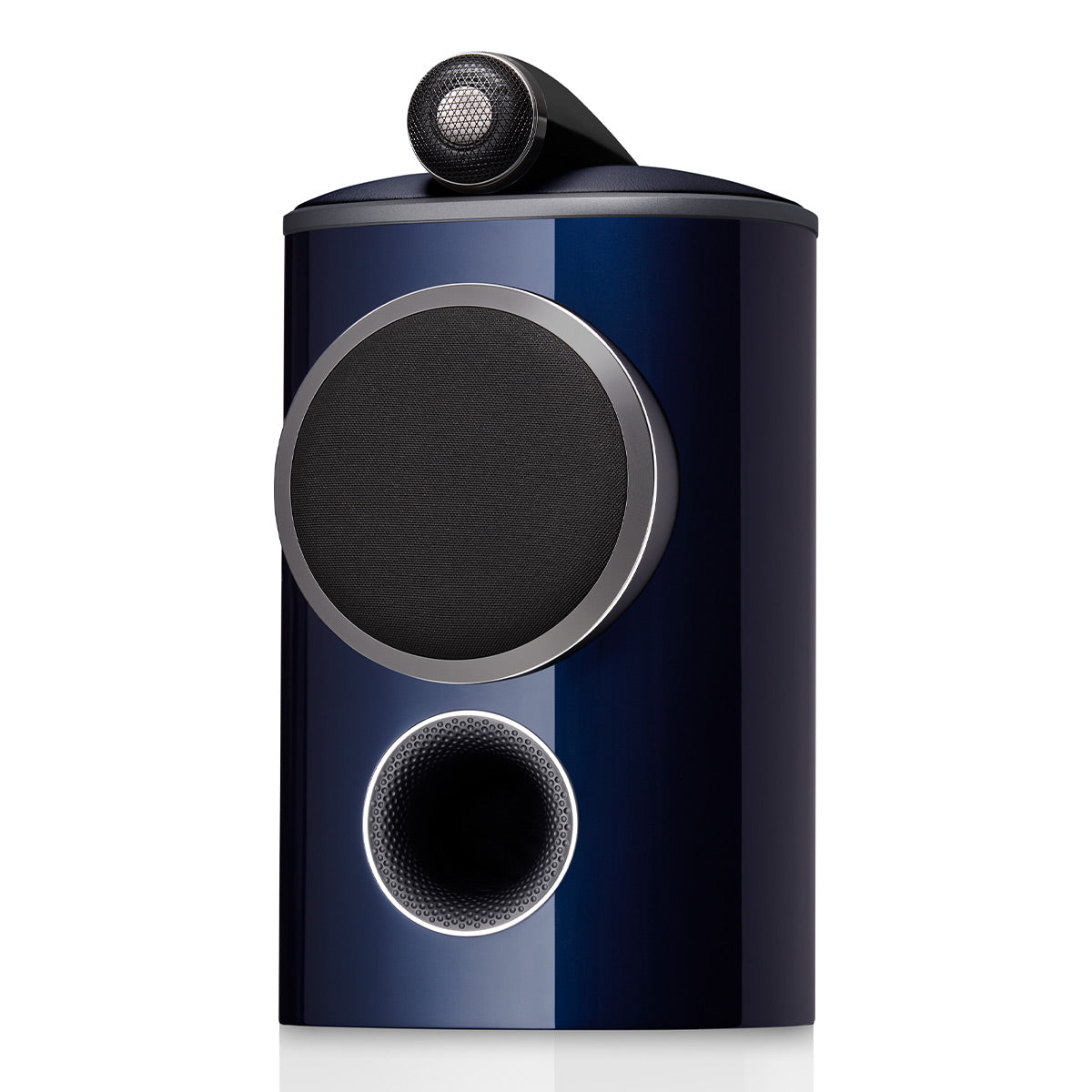

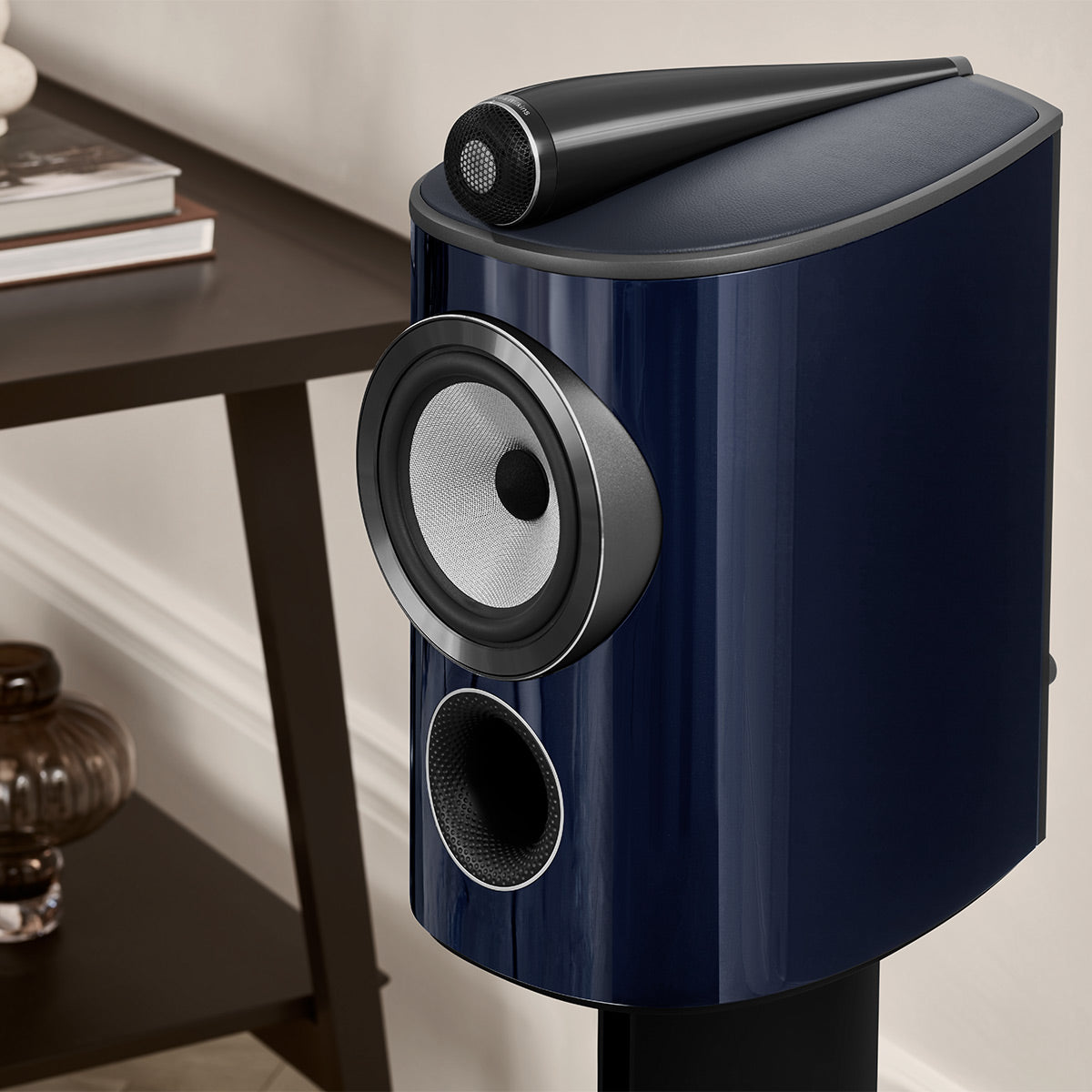

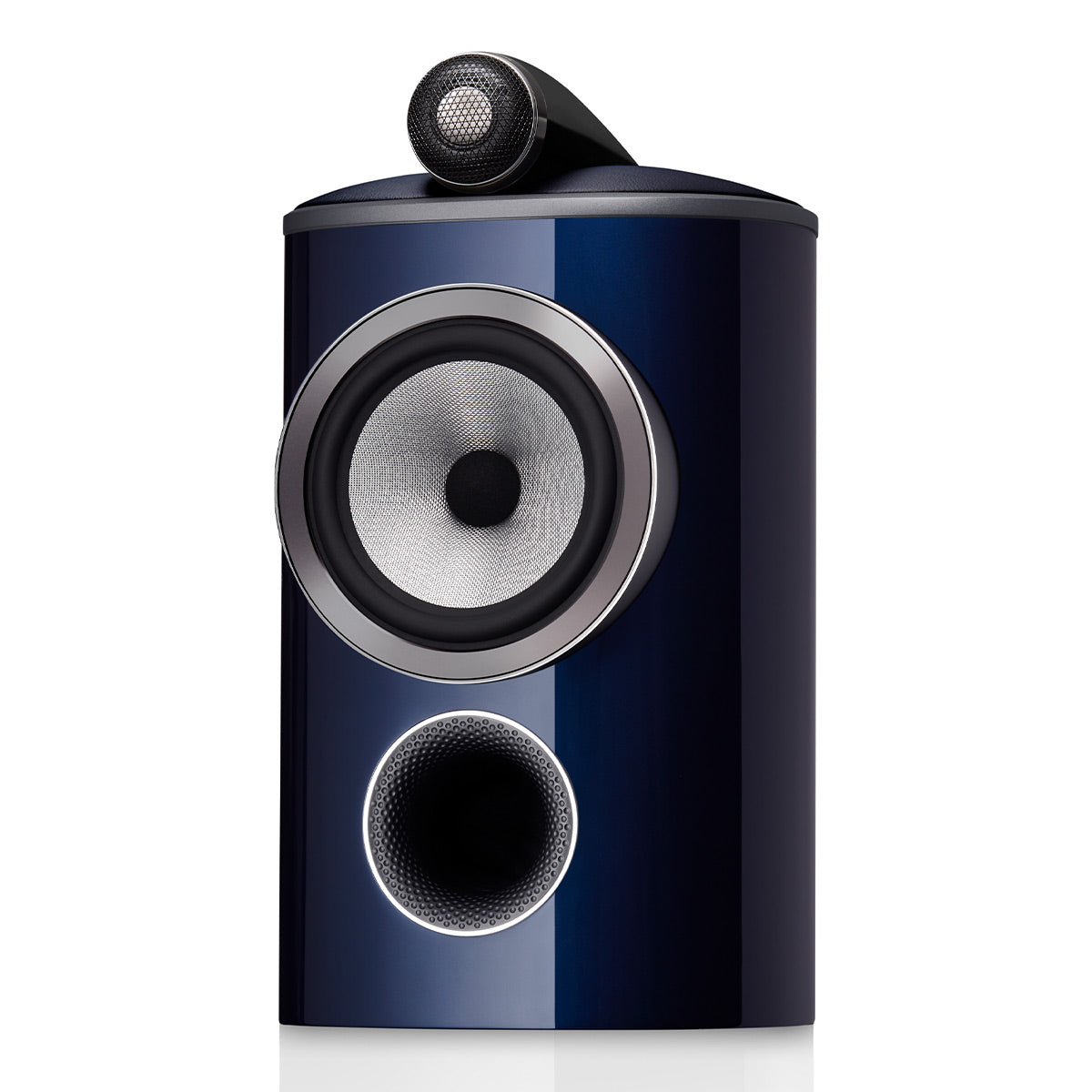

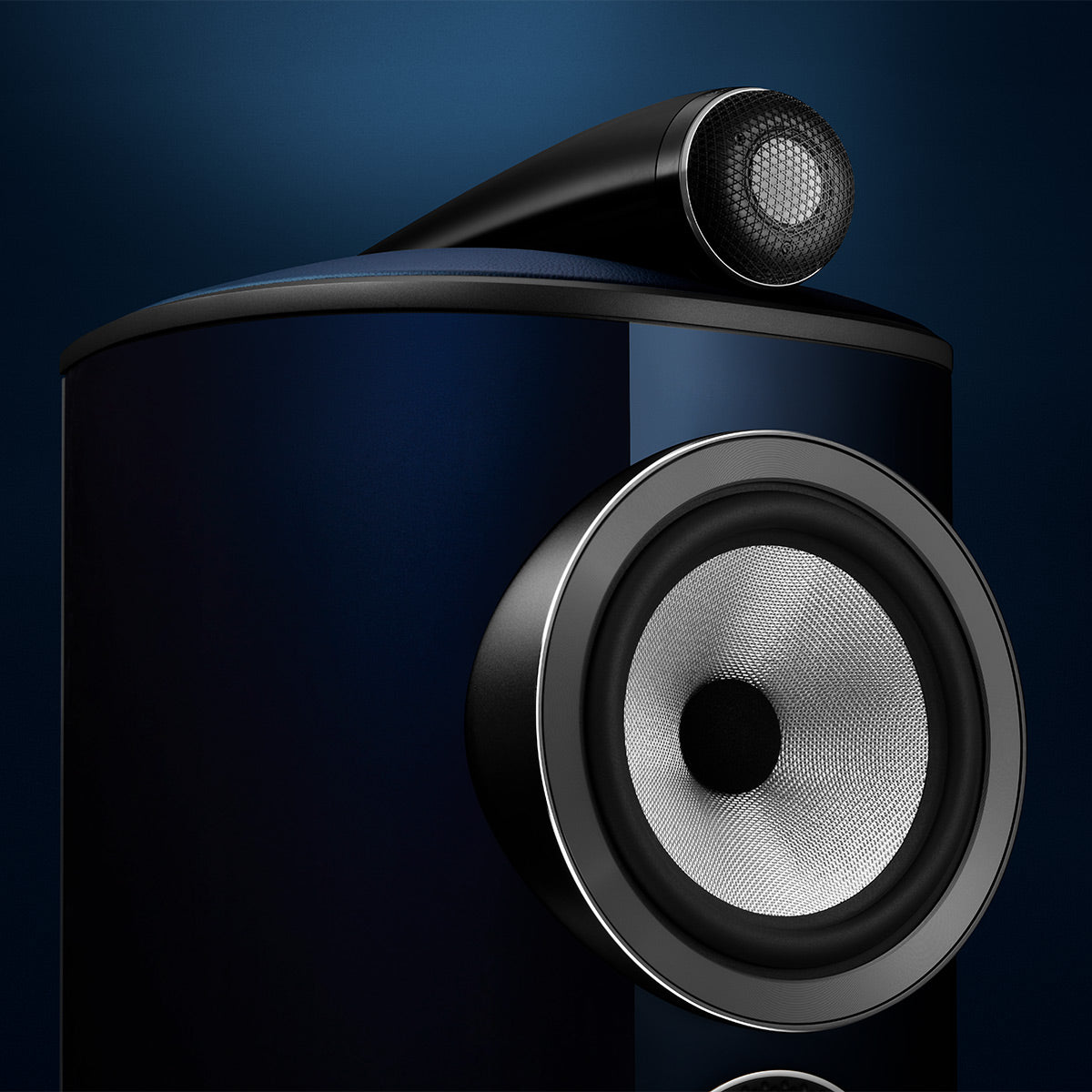

The 805 D4 Signature stand mount loudspeaker is compact and powerful. It features fully optimized technologies, including that all-important Diamond Dome tweeter and Solid Body Tweeter-on-Top. It’s proof positive that small can still be beautiful.

Turbine Head

Hear the sound, not the cabinet. Bowers and Wilkins' all-aluminum Turbine Head is a phenomenally stiff and inert housing for the crucial midrange cone, carefully damped to avoid unwanted resonances and decoupled from both the bass enclosure and the tweeter body. The result? The most realistic midrange sound yet.

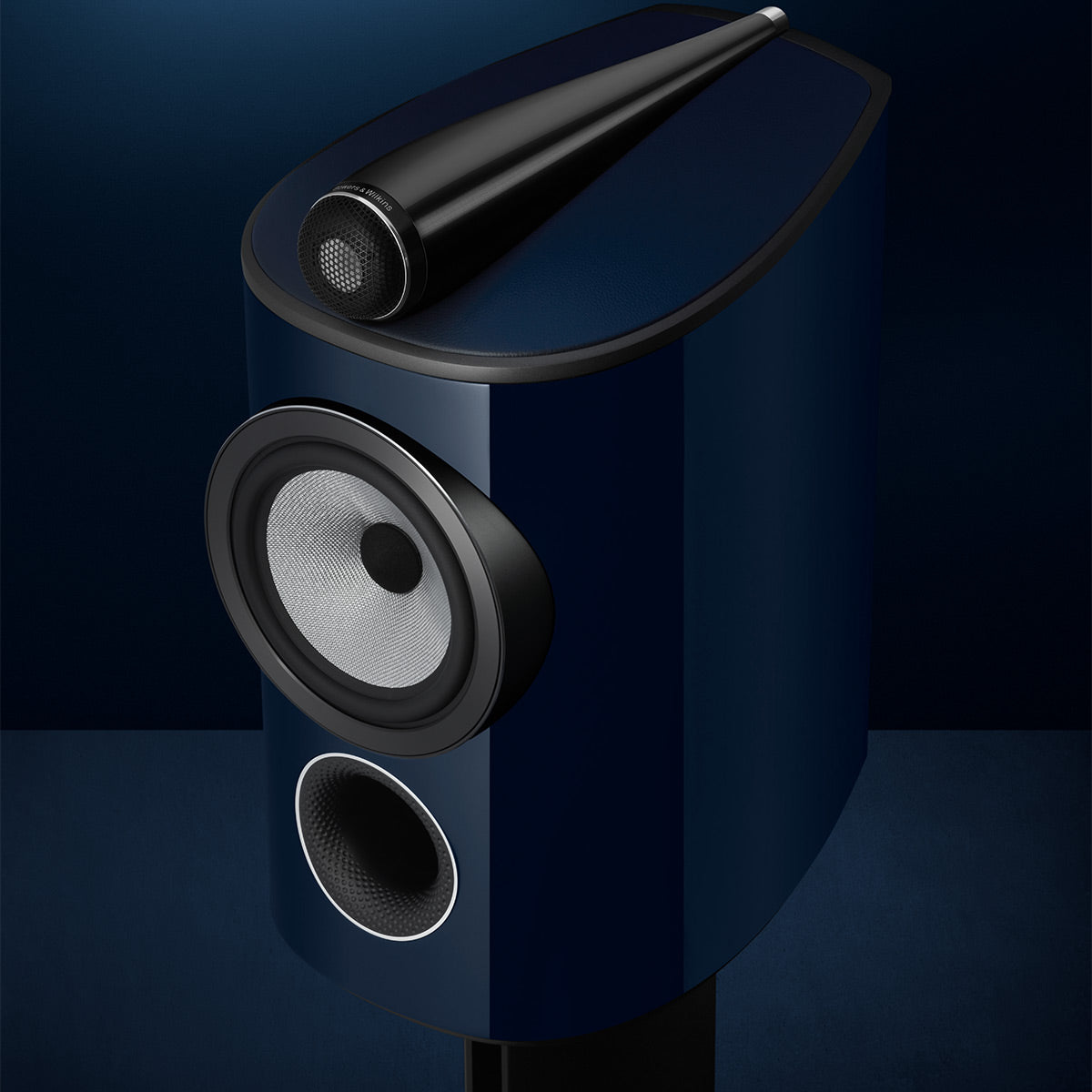

Solid Body Tweeter

The latest incarnation of Bowers and Wilkins' iconic Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille that has been optimized to produce an even more free and open sound with high frequencies. As before, the carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

Reverse Wrap Cabinet

Instead of a flat-fronted speaker with a curving back, Bowers and Wilkins' cabinets are formed from one continuous curve, finished off with a spine of solid aluminum. Fewer joins make for a stiffer, more inert structure, and a curved front means less baffling around the drive units. So sound dispersion is improved, and cabinet reflection is reduced.


Matrix™ bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. Both the new 800 Series Signature models benefit from Bowers and Wilkins' most advanced Matrix design that combines solid plywood construction with aluminum bracing to reinforce key stress points.

Biomimetic Suspension

They have turned their attention to another crucial element in a loudspeaker cone: the fabric spider. Bowers and Wilkins' advanced Biomimetic Suspension revolutionizes midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.

Aluminum top-plate

Every new 800 Series Signature model has a significantly upgraded cabinet design with an all-new, optimized aluminum top section for even greater stiffness. The same design also provides a perfect mounting point for all-new Leather by Connolly cabinet detailing, with luxurious full-grain blue leather for the Midnight Blue Metallic models and full-grain black leather for the California Burl Gloss models.

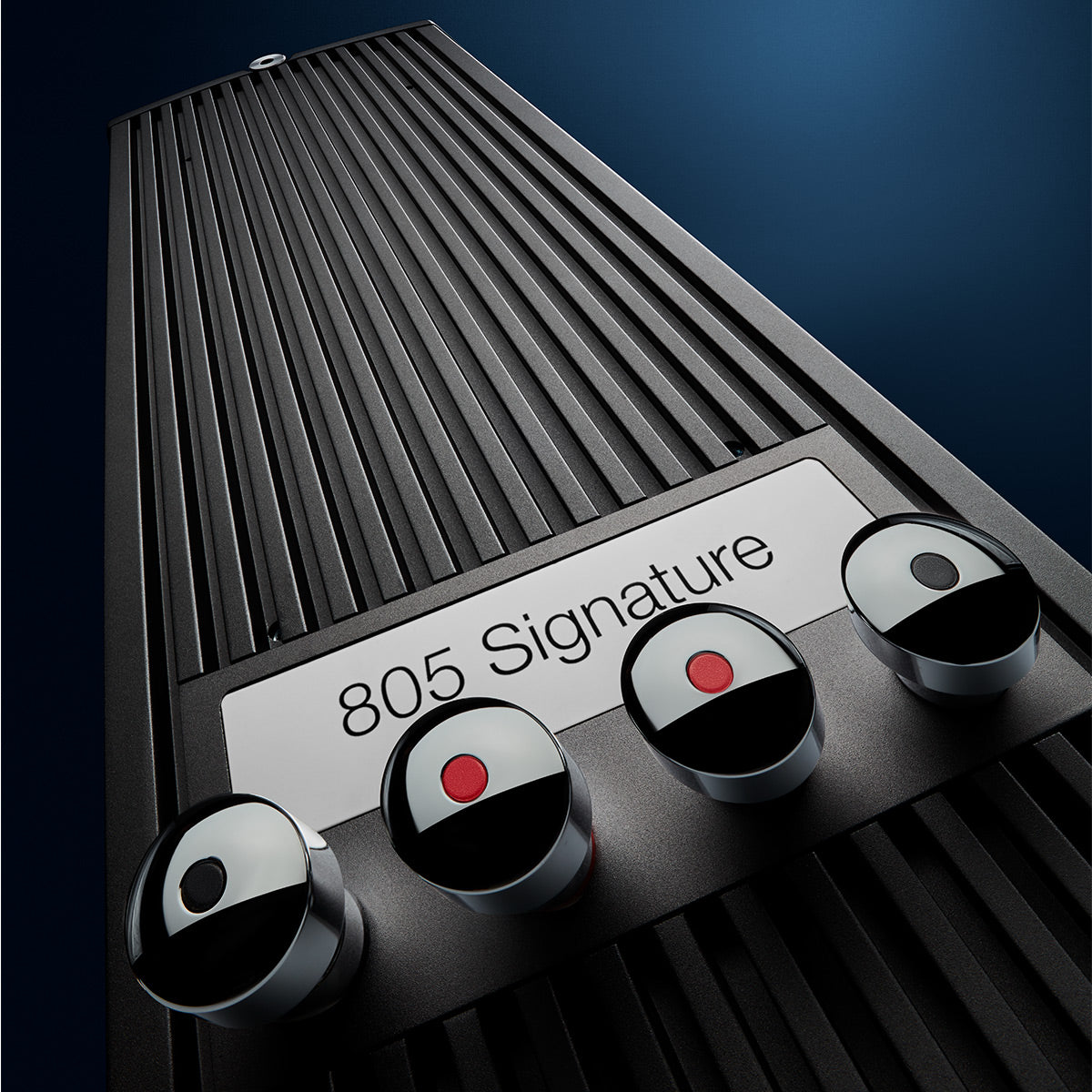

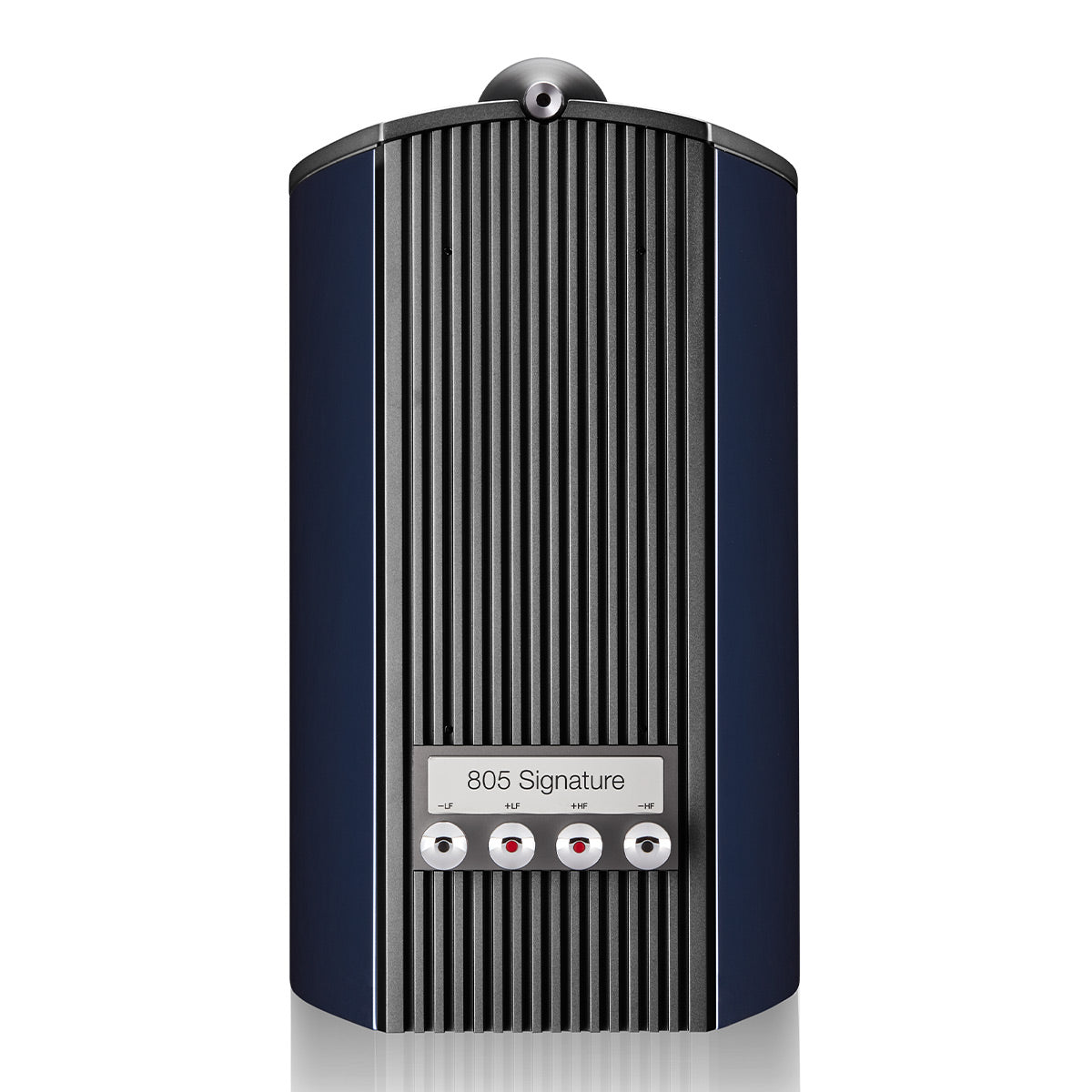

Both new 800 Series Signature models use upgraded rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

Leather by Connolly

The top section of both speakers features an optimized aluminum top-plate, covered in all-new Leather by Connolly trim. Bowers and Wilkins use luxurious, full-grain blue leather for Midnight Blue Metallic, and full-grain black leather for California Burl Gloss.

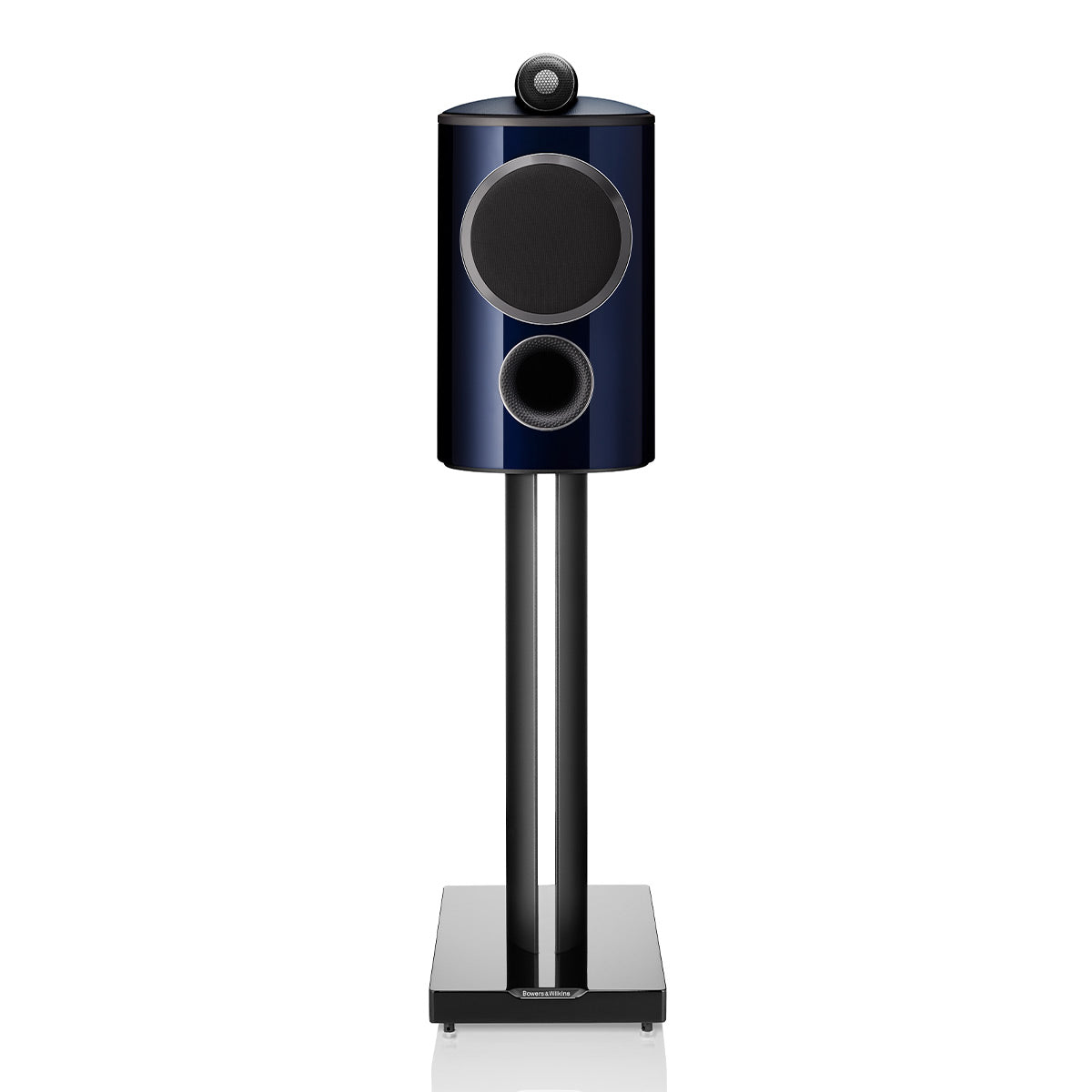

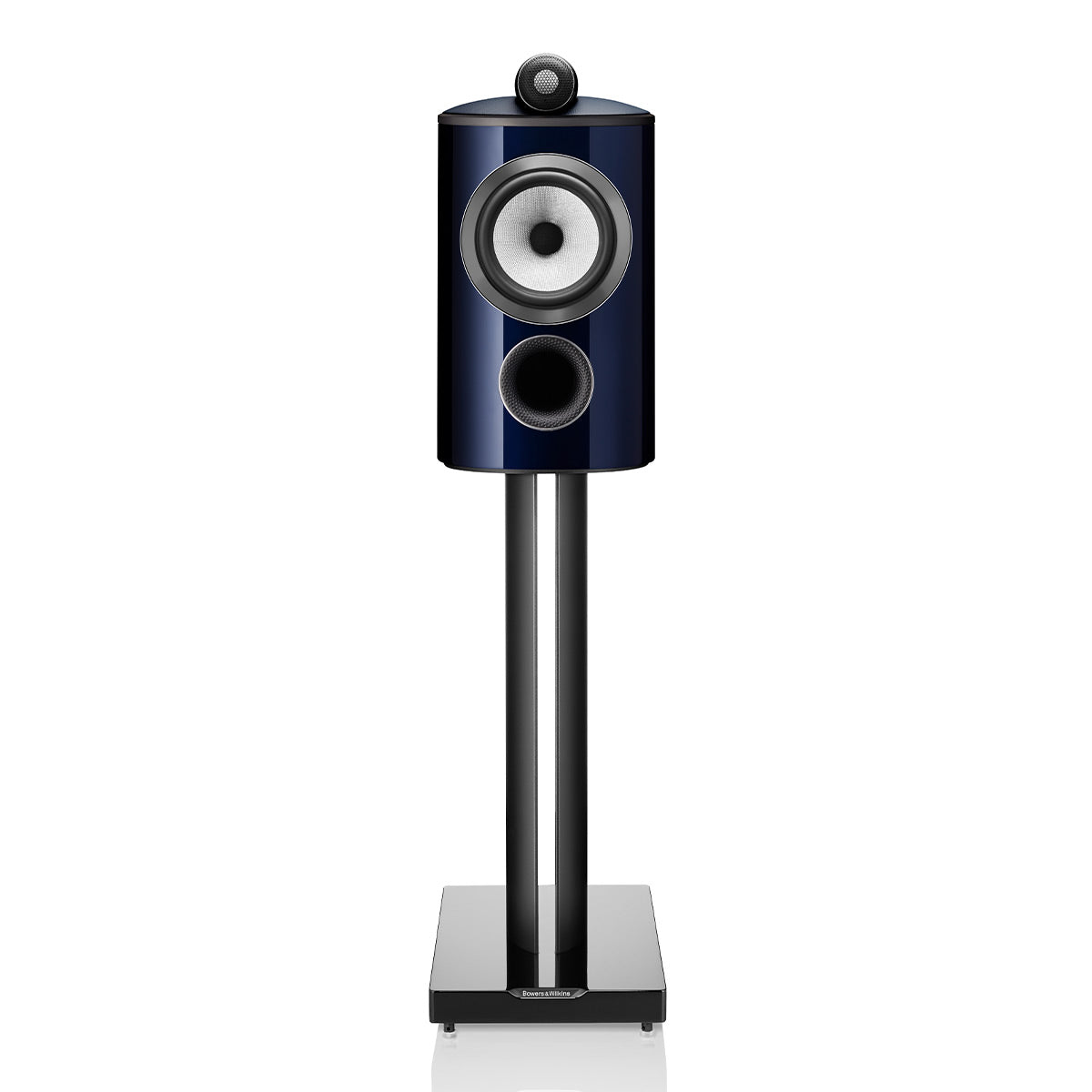

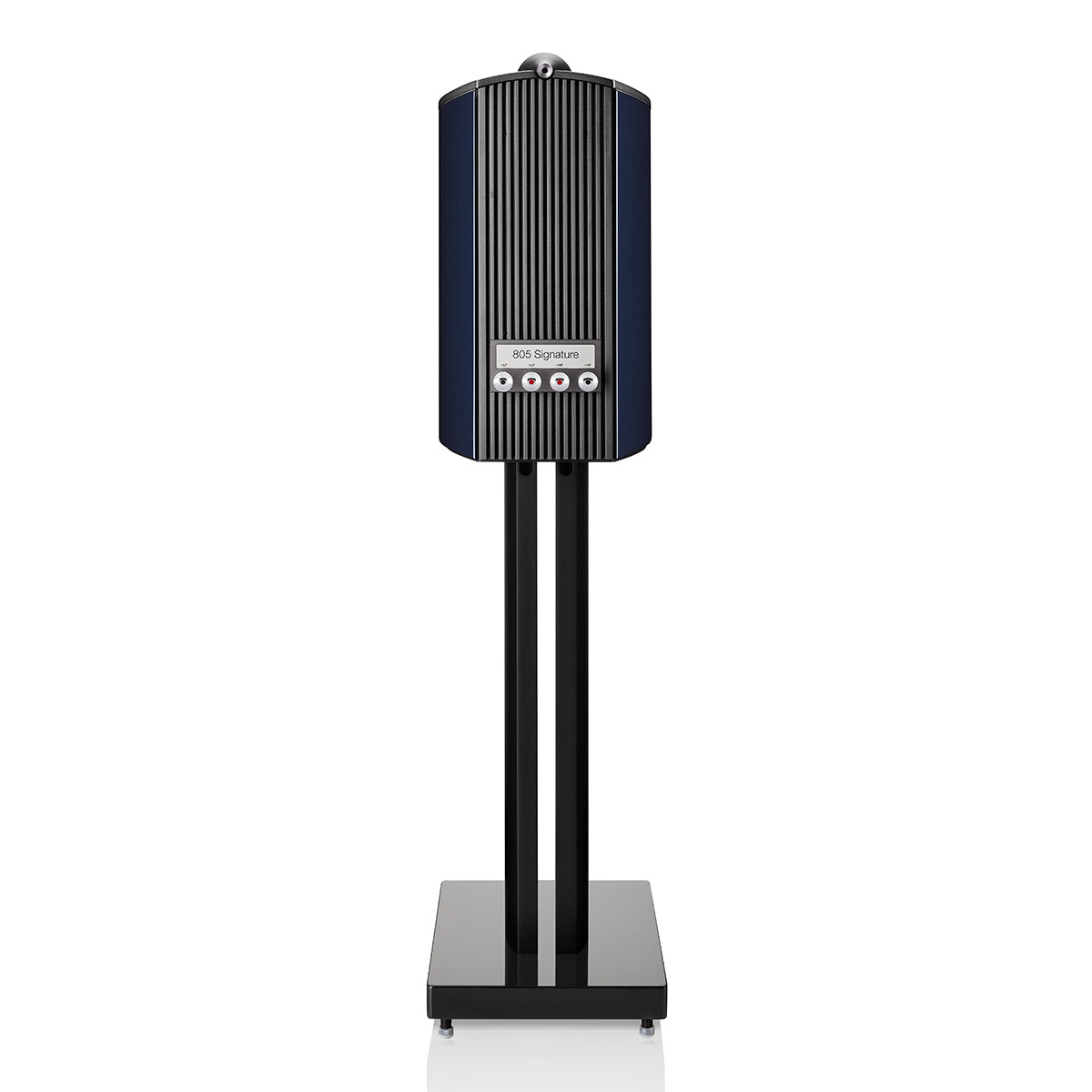

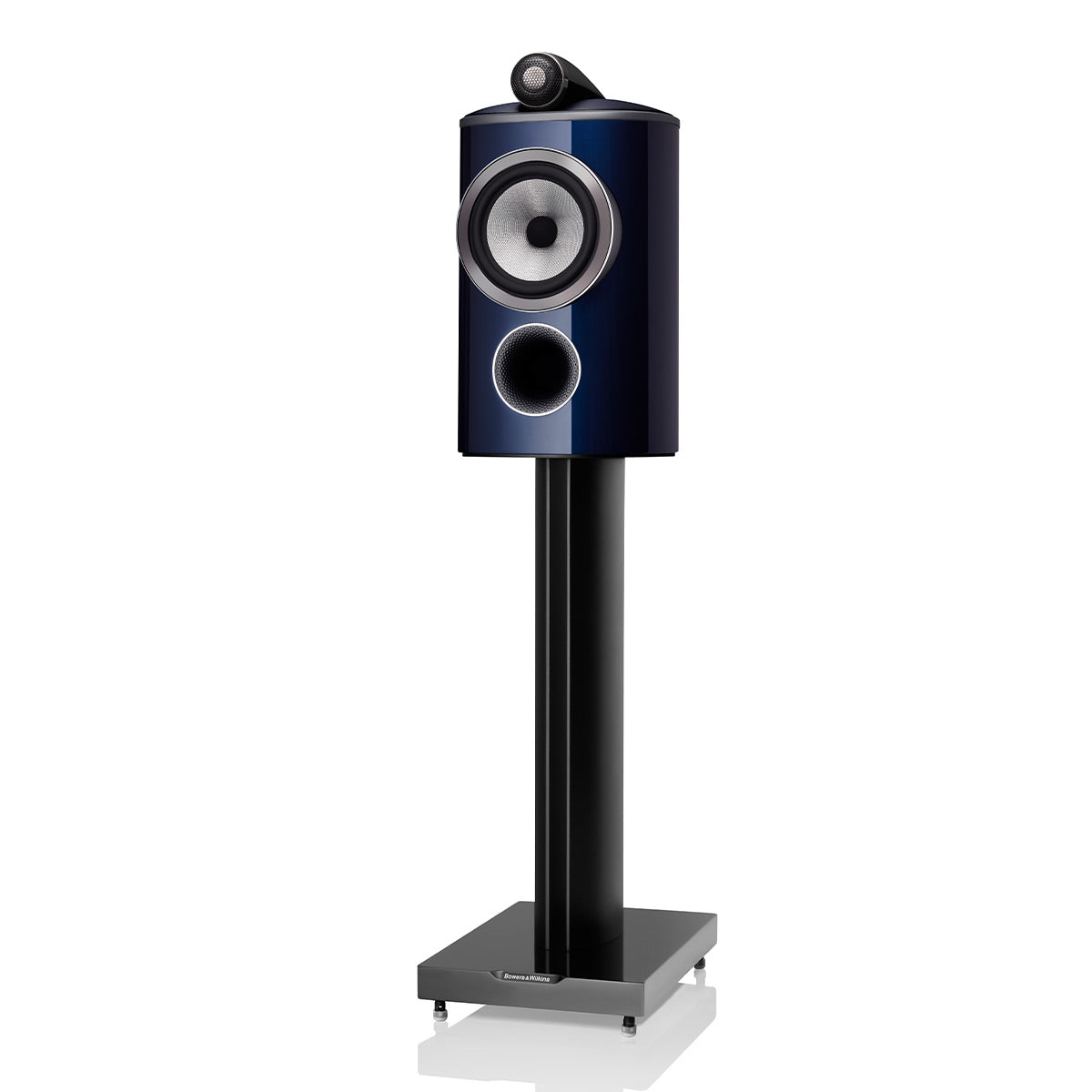

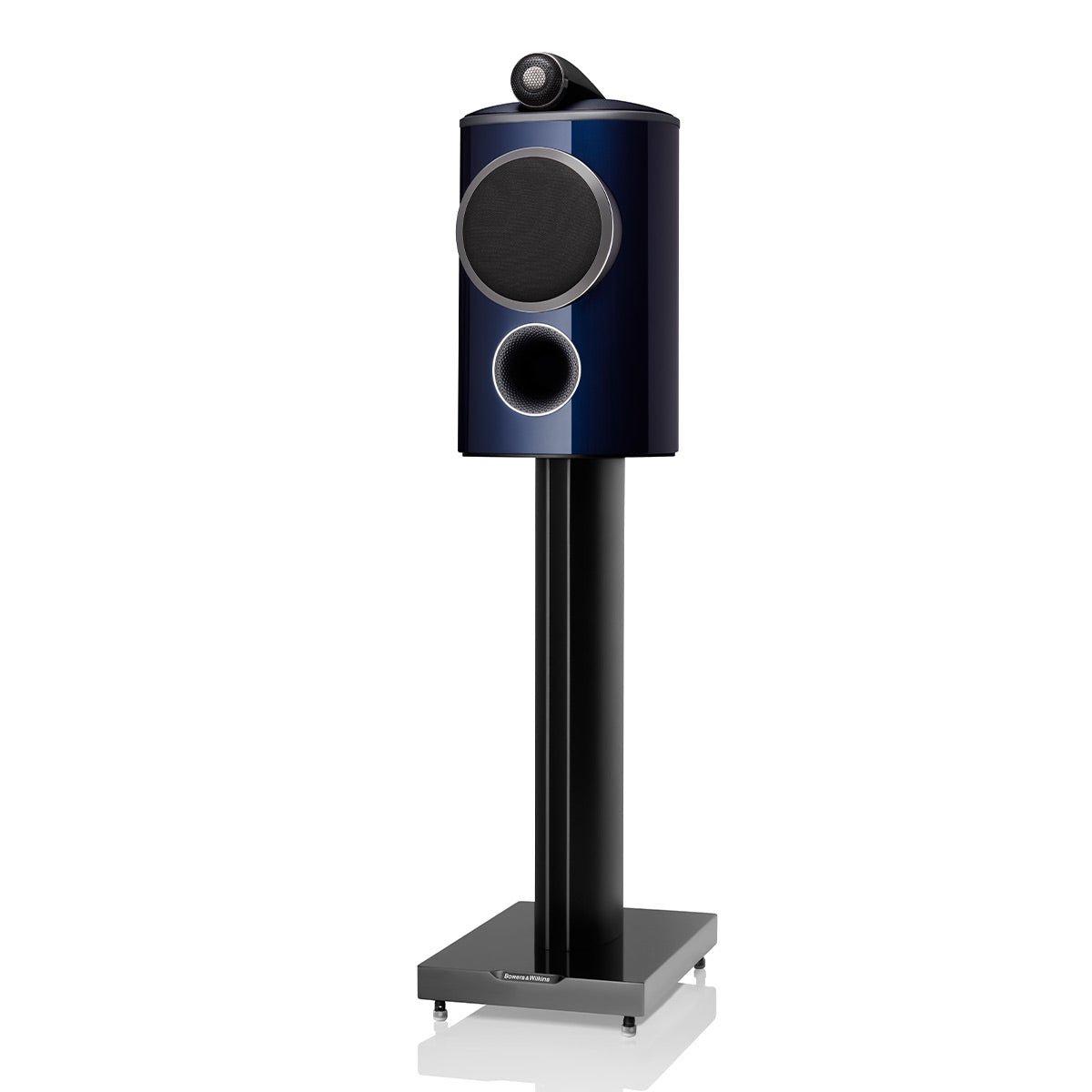

*Please note: Speaker stand sold separately


  • Technical features
    • Diamond tweeter
    • Solid Body Tweeter-on-Top
    • Continuum™ cone bass/midrange
    • Matrix™
    • Anti-Resonance plug
    • Flowport™
  • Description: 2-way vented-box system
  • Drive units
    • 1x ø25mm (1in) Diamond Dome high-frequency
    • 1x ø165mm (6.5in) Continuum™ cone bass/midrange
  • Frequency range: -6dB 34Hz to 35kHz
  • Frequency response (+/-3dB from reference axis): 42Hz to 28kHz ±3dB
  • Sensitivity (on axis at 2.83Vrms at 1m): 88dB
  • Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
    • <1 % 90Hz - 20kHz
    • <0.3% 120Hz - 20kHz
  • Nominal impedance: 8? (minimum 4.6?)
  • Recommended amplifier power: 50W - 120W into 8Ω on unclipped program
  • Max. recommended cable impedance: 0.1Ω
  • Dimensions (W x H x D): 9.4” x 17.3” x 14.7”
  • Net weight: 34.3lbs

What's In The Box

  • 805 D4 Signature 2-Way Bookshelf Speaker - Each

*Please note: Speaker stand sold separately
