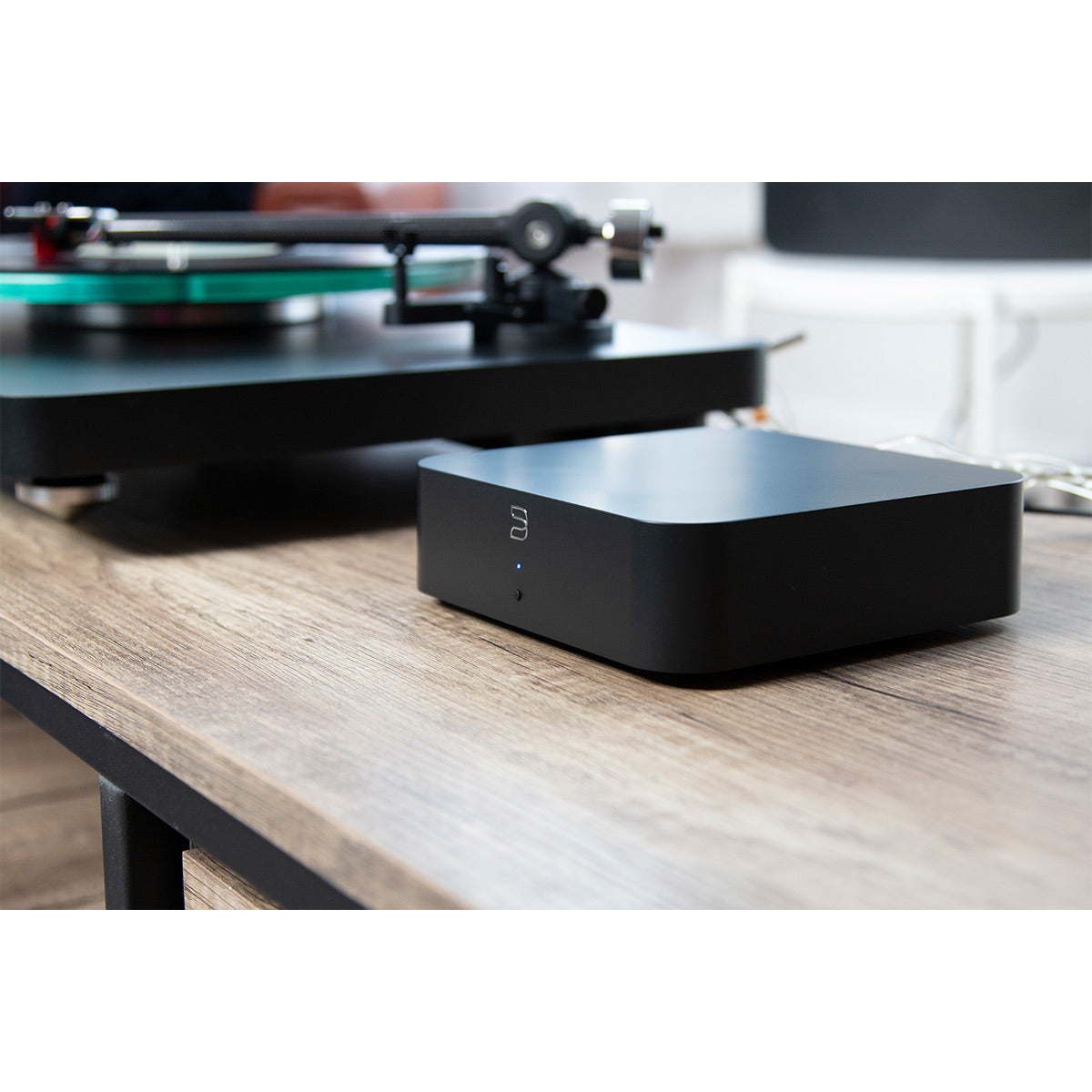

Bluesound HUB Wireless Audio Source Adapter and Network Preamp

Questions? We're here to help.
Model: CB130BLKUNV UPC: 786357001968 Item: 177802
Product Information
This is one for music lovers. The HUB connects analog and digital audio devices to the BluOS ecosystem for networked streaming, allowing you to listen to any music source in the house without being limited by wires and physical proximity.
Compact, Industrial Design
The HUB is designed to seamlessly blend into any environment with its compact shape. 1U rack height and 1/3 rack width make for a clean system design. Four-way keyhole mounting slots allow for four different orientation options and easy cable management.
Multiple Source Inputs
The HUB is compatible with nearly any audio input, including HDMI ARC for audio, Coax, Digital Optical, and Stereo Analog, so you have a wealth of options when it comes to connecting music sources to the BluOS network.
Easy Setup, Easy Control
Each HUB can manage two sources simultaneously (one analog, one digital) and you can add up to four HUBs to a single network using the simple setup wizard in the BluOS App. Easily control all your speakers and sources through the BluOS App on your smartphone, tablet, or desktop.
High Performance
The HUB’s networked moving magnet phono pre-amp delivers uncompromised audio quality for your turntable. Choose between dual-band Wi-Fi or a wired Gigabit Ethernet connection for a stable network audio performance.
Powered By USB-C
A universal USB-C plug and play connection make powering the HUB easy and efficient. With only a small external power supply needed, the HUB has more space for dedicated audio inputs, increasing its usability and versatility while creating more opportunities for easy network source sharing.
Specifications
Specifications
- Audio & Operating System
- Operating System: BluOS
- BluOS Controller Operating System: iOS, Android, Windows, MacOS
- Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron
- Simultaneous Audio Streams: 2 per HUB
- 1 x analog audio input, 1 x digital audio input
- Maximum Number Units: 4x HUB on single network (8 simultaneous streams)
- Native Sampling Rates: up to 192 kHz
- Bit Depth: 16-24
- Signal-to-Noise Ratio: >100 dB (Line input)
- >80 dB (Phono MM input)
- Distortion: <0.03% 20-20 kHz -1dBFS output
- Frequency Response 20-20 kHz +/-0.3dB; 50 kHz -3dB
- Connections
- Power Supply: Universal USB-C Power adapter
- (Input:100-240V AC/0.3A Output:5V/2A)
- Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
- Wi-Fi Built In: Wi-Fi 5 (802.11ac), 2.4/5GHz
- Analog Line Input: 1 x Stereo RCA
- Phono Input: 1 x Stereo RCA (Moving Magnet)
- Optical Input: 1 x TOSLINK digital optical
- Coaxial Input: 1 x RCA (75 ohms)
- HDMI Input: HDMI eARC with CEC
- USB Input: Type A (for BluOS firmware upgrade only)
- Audio Output: Network
- Features
- Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
- Status Indicator: Front Panel LED
- Function Button: Front Panel Function Button
- Power Consumption: 0.5W Network Standby
- Finish: Black; Matte Satin Paint
- Version: CB130
What's in the Box
What's in the Box
- HUB Wireless Audio Source Adapter
- 5V Power Adapter
- 3 x International Plug Adapters
- USB-C Power Cable
- Ethernet Cable
- Mounting Template
- Safety/Warranty Guide
- Quick Setup Guide
