AudioControl Three.2 In-Dash Equalizer/Crossover with AUX Inputs

Regular price $325.00
Sale price $325.00 Regular price
Save $-325.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 8410602 | UPC: 855814005167

Specifications

What's In The Box

Product Information

Model: 8410602 | UPC: 855814005167

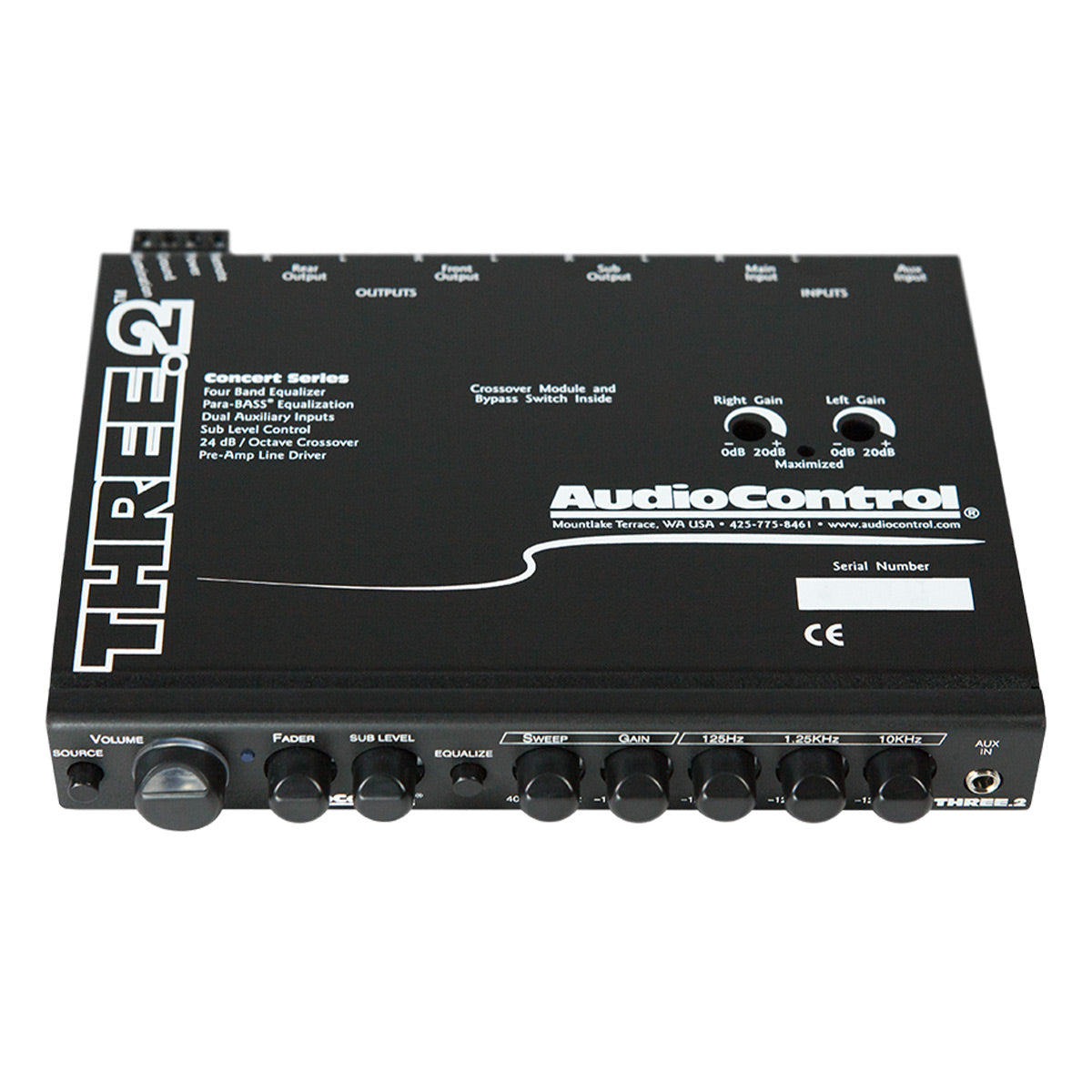

If you want great sound and love to "tweak" your system, then you will truly appreciate the AudioControl THREE.2. Affectionately called the "EQ on steroids", the THREE.2 is a high-end pre-amplifier that offers equalization and crossover controls for enhanced sound quality. Multiple audio inputs, both front, and rear allow for maximum connectivity with all of your favorite source units.

While being housed in a compact ½ DIN-sized chassis, the THREE.2 is truly a feature-laden processor. The THREE.2 starts with four stereo equalization filters including AudioControl’s proprietary Para-BASS controls, which give subwoofers extra kick and detail as needed. It also features a 4 channel, 2-way, 24 dB/octave car audio crossover with a fader. To round out the package the THREE.2 also includes a subwoofer level control, master volume control, and the ability to select the backlighting illumination color between Cool Blue and Hot Red.

Given that many of today’s audio enthusiasts like to carry their music with them, the THREE.2 is equipped with dual, 3.5mm auxiliary input jacks located on the front and rear of the chassis. This helps facilitate the permanent installation of cabling or lets a user plug in their portable audio device on the fly. Like all AudioControl autosound products, the THREE.2 is built in their factory in the Pacific Northwest, USA, and carries a full 5-year part and labor warranty when installed by an authorized dealer.

Features:

  • Stereographic equalization
  • Front and Rear, Dual Auxiliary inputs
  • Para-BASS® low-frequency contouring
  • Selectable Cool Blue or Hot Red back-lighting
  • 24dB/Octave Linkwitz Riley crossover
  • Pre-amp gain of 20dB
  • Line driver: 13 volts peak output
  • Subwoofer level control
  • High headroom PWM switching power supply
  • Master volume and fader control

Specifications

  • Inputs
    • Preamp Inputs: 1 (2 channels)
    • Input Gain: 0-20dB
    • Aux Inputs: 2 (1/8" stereo)
    • Input Impedance: 20kΩ
  •  Outputs
    • Preamp Outputs: 3 (6 channels)
    • Maximum Output Level: 9.5Vrms
    • Output Impedance: 150Ω
  •  Performance
    • Total Harmonic Distortion: 0.01%
    • Frequency Response: 20Hz-20kHz
    • Signal to Noise: 110dB
    • Equalizer Frequencies: 40Hz-80Hz (parametric), 125Hz, 1.25kHz, 10kHz
    • Equalization Cut/Boost: ±12dB
    • Crossover type: 24dB/octave Linkwitz-Riley
    • Factory Crossover Setting: 90Hz
  •  Control
    • Remote In
  •  General
    • Power Supply: High Headroom PWM Switching
    • Current Draw: 250mA
    • Recommended Fuse Rating: 1A
  • Weight & Dimensions
    • Dimensions (W x H x D): 6.75" x 1" x 5"
    • Weight: 2.0lbs (0.9kg)




What's In The Box

  • Three.2
  • Power connector
  • Manual
  • 5 Year Warranty
