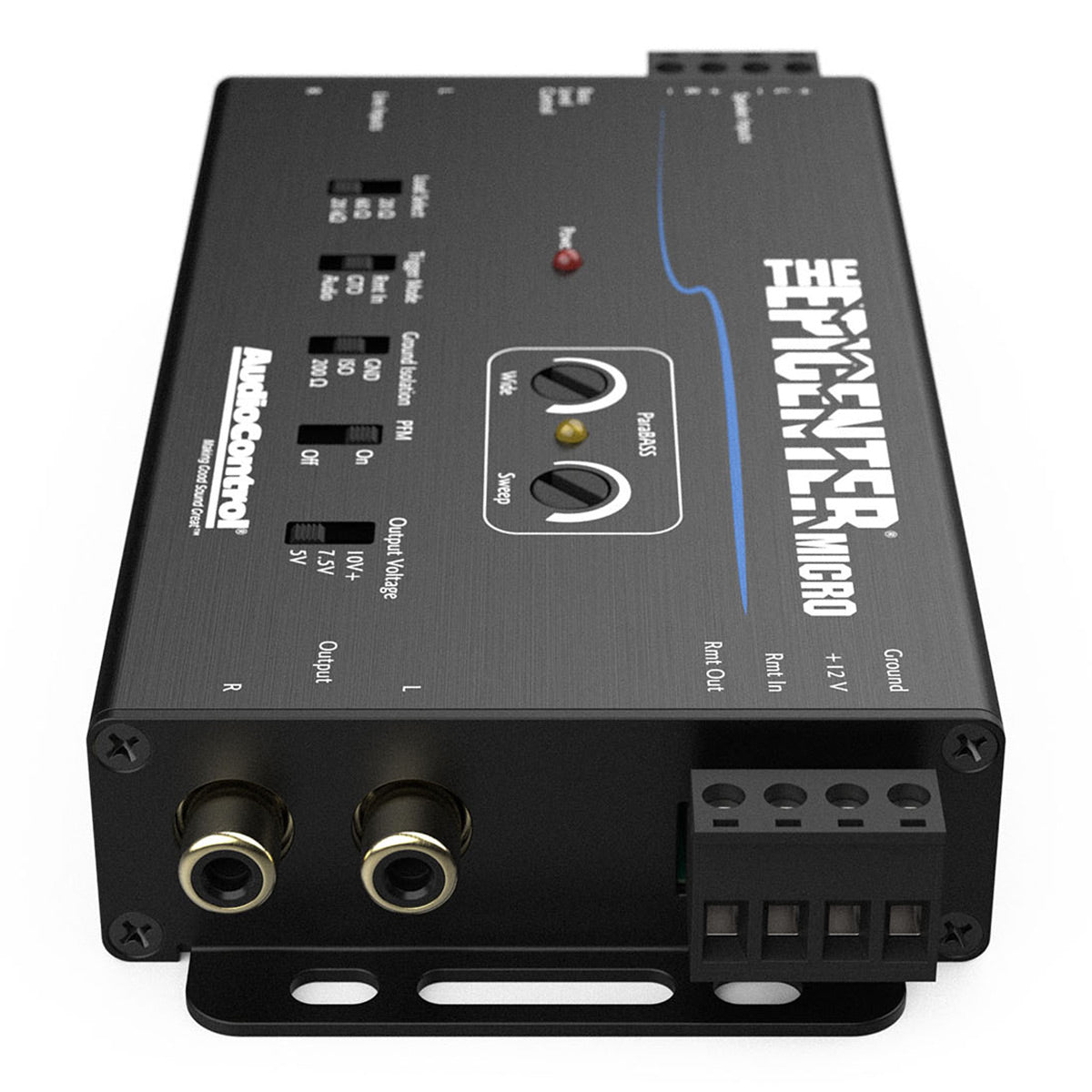

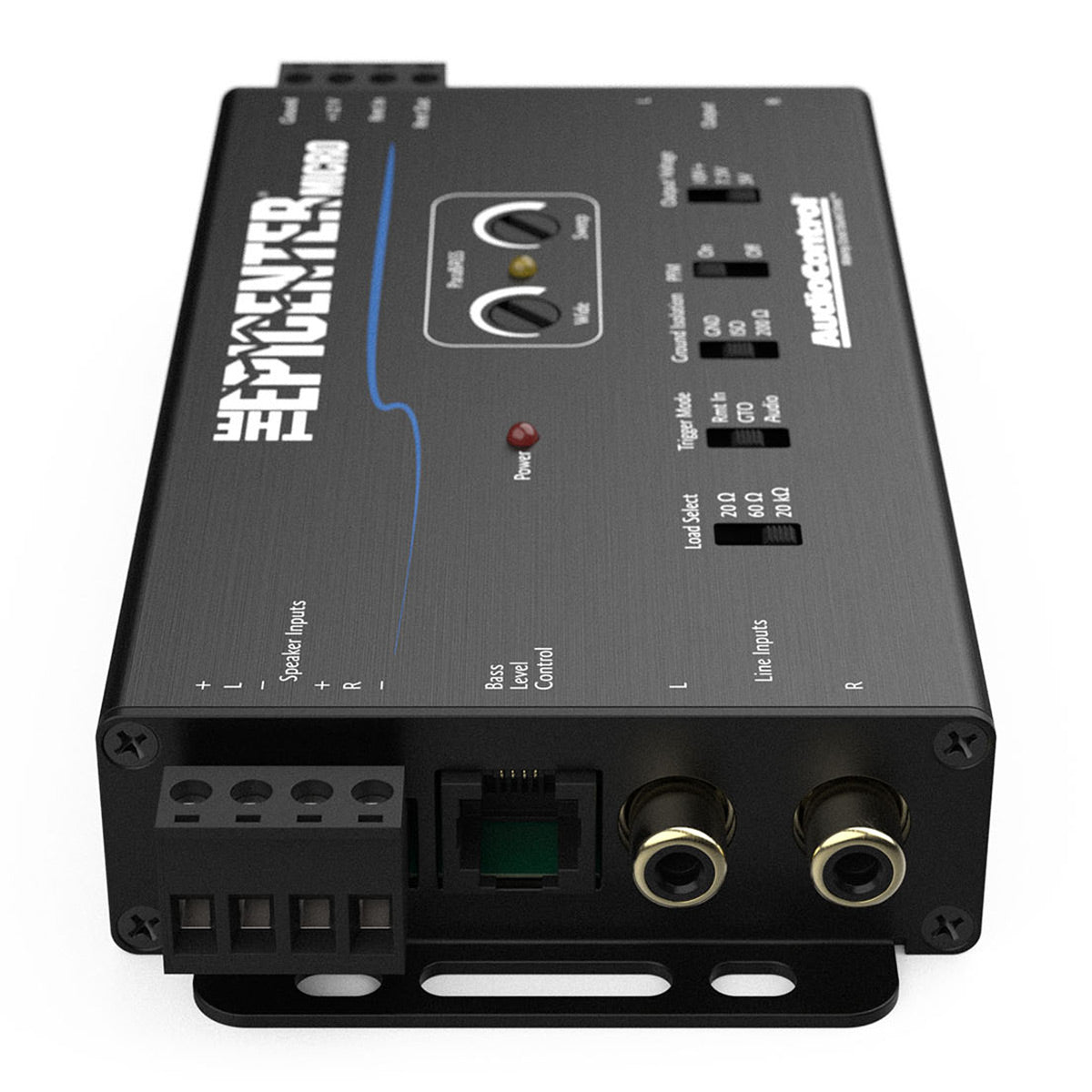

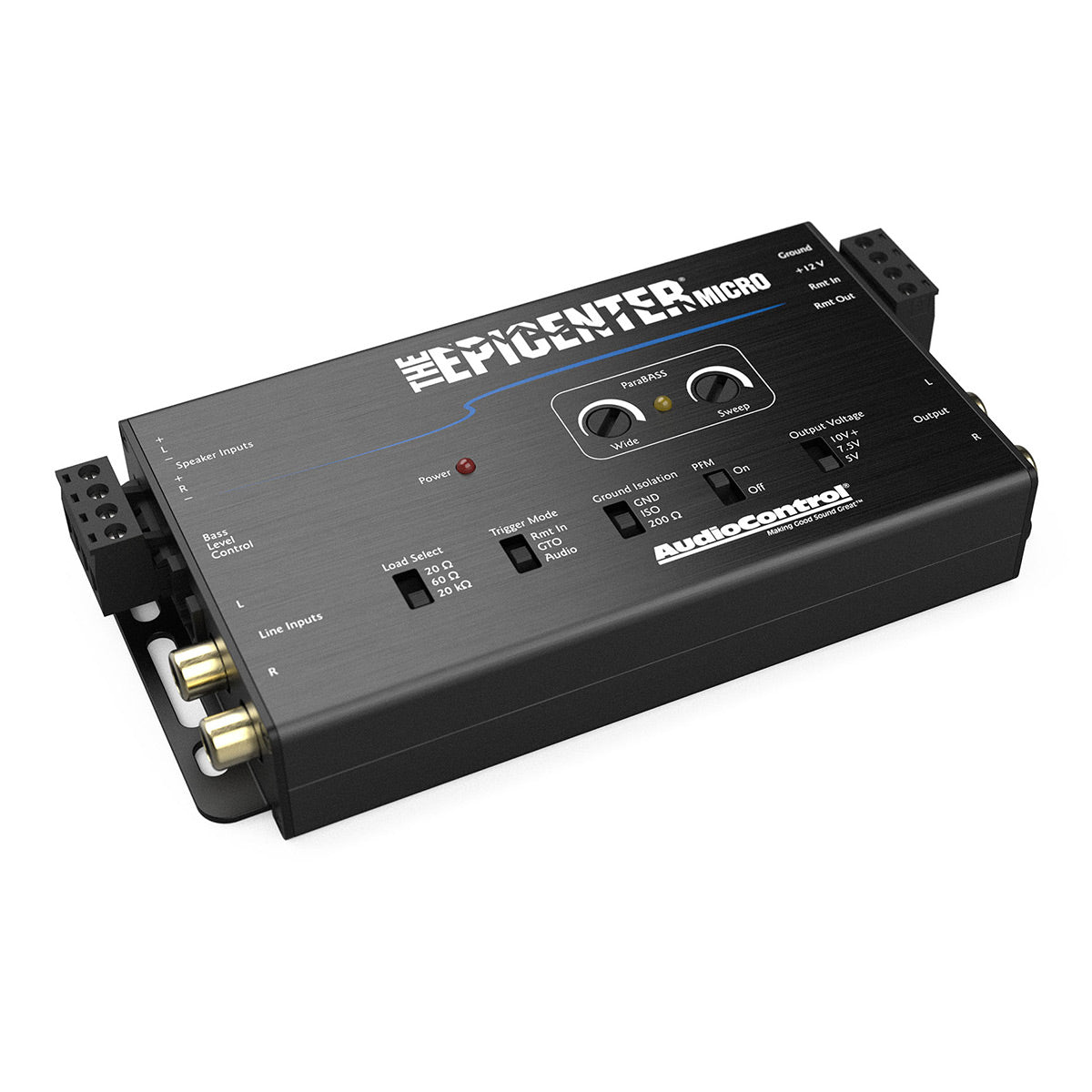

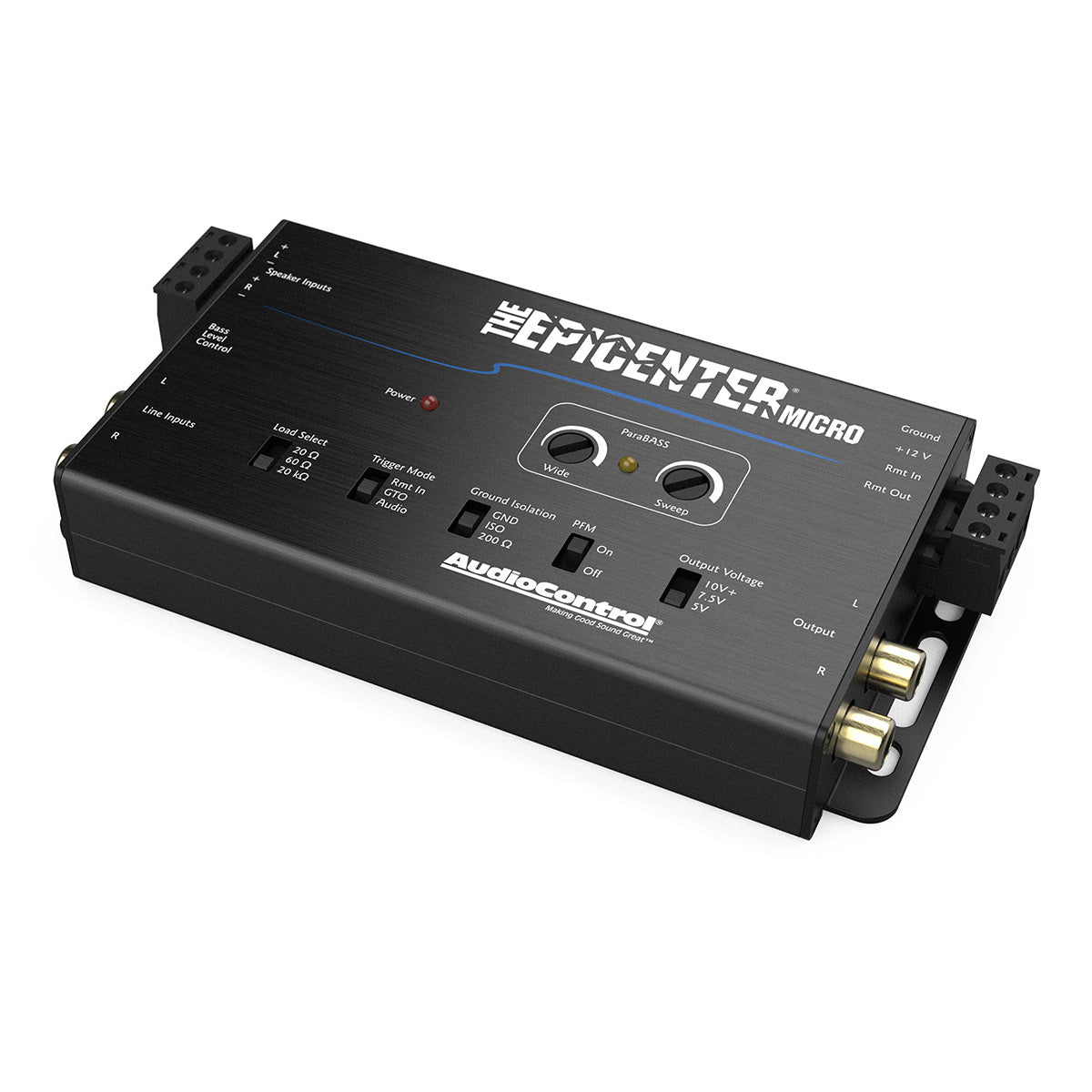

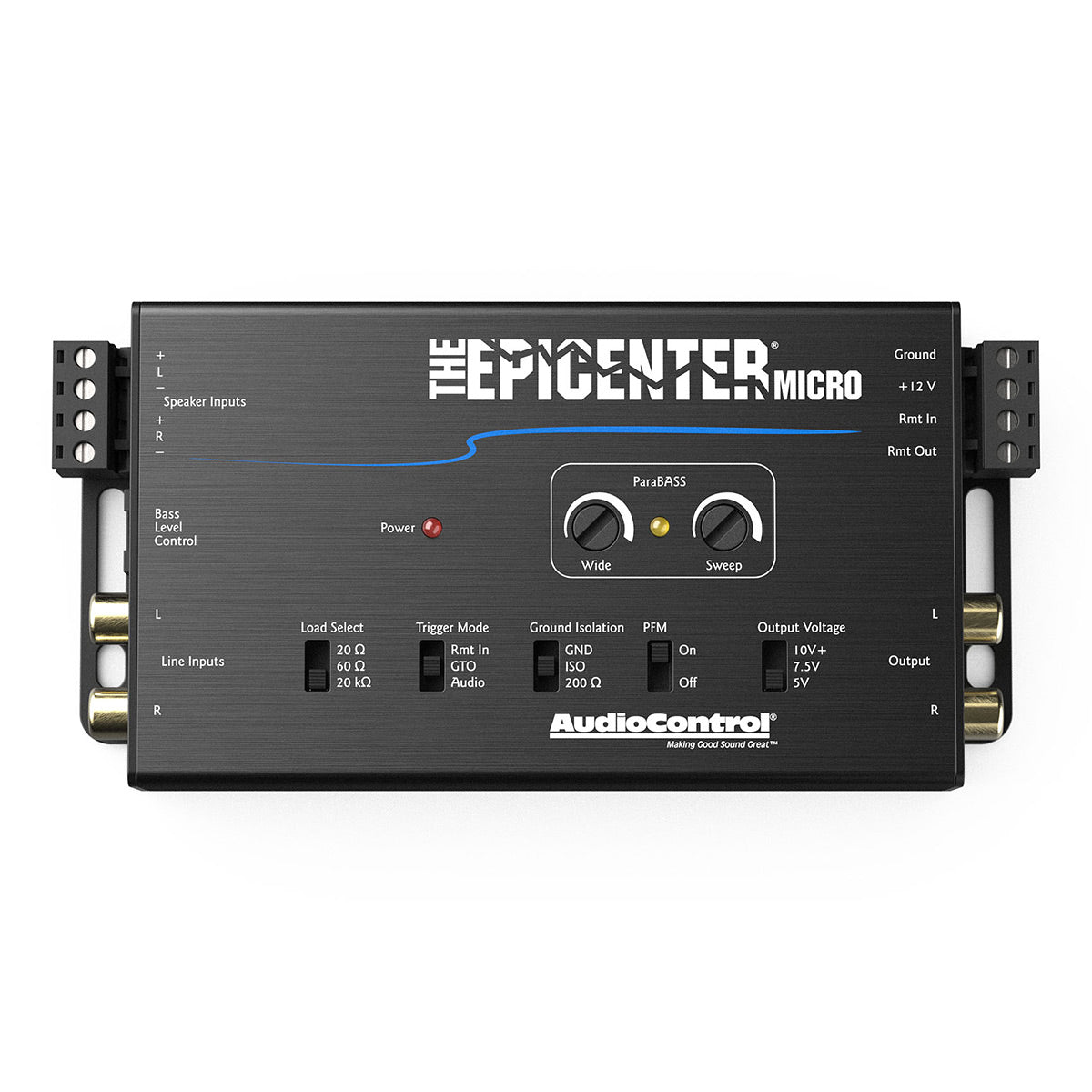

AudioControl The Epicenter Micro Bass Restoration Processor & Line Output Converter with ACR-4

Regular price $249.00
Sale price $249.00 Regular price
Save $-249.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: EPICENTERMICRO | UPC: 851523007997

Specifications

What's In The Box

Product Information

Model: EPICENTERMICRO | UPC: 851523007997

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.

Features

  • Patented Digital Bass Restoration
  • ParaBASS® Bass Shaping
  • Speaker and Line Level Inputs
  • Load Matching Circuit
  • Multiple Trigger Modes
  • ACR-4 Dual Knob Dash Mount Control Included

Bass Maximizer

The Epicenter® Micro is designed to reproduce low-frequency information by looking at the upper-frequency ranges and detecting musical harmonics. These harmonics then allow The Epicenter® Micro to drop down a few octaves and reproduce the “missing” bass notes.

Line Output Converter

Beyond maximizing bass, The Epicenter® Micro is a line output converter packed with premier OEM integration features like AudioControl’s Load Matching Circuit (LMC) with Load Select, multiple Trigger Modes, and selectable Ground Isolation. For power-users, the PFM Subsonic Filter can be bypassed and Output Voltage can be configured for up to 10 Volts!

Specifications

  • Inputs
    • Speaker Level Input: 1 (2 channels)
    • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
    • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
    • Line Level Input: 1 (2 channels)
    • Line Level Input Impedance: 7kΩ
  • Outputs
    • Preamp Outputs: 1 (2 channels)
    • Maximum Output Level: 9.5Vrms/13V peak
    • Output Impedance: 150Ω
  • Performance
    • Total Harmonic Distortion: 0.03%
    • Signal to Noise: >105 dB
    • Frequency Response: 10 Hz – 22 kHz ±1 dB
  • Control
    • Remote In / GTO™ Signal Sense / Audio Sense
    • 12VDC Remote Out (always active when unit is on)
  • General
    • Current Draw: 300 mA
    • Recommended Fuse Rating: 1 A
  • Weights & Dimensions
    • Dimensions(WxHxD): 5.9″ x 1″x 3"
    • Weight: 0.6 lbs. (0.27 kg)

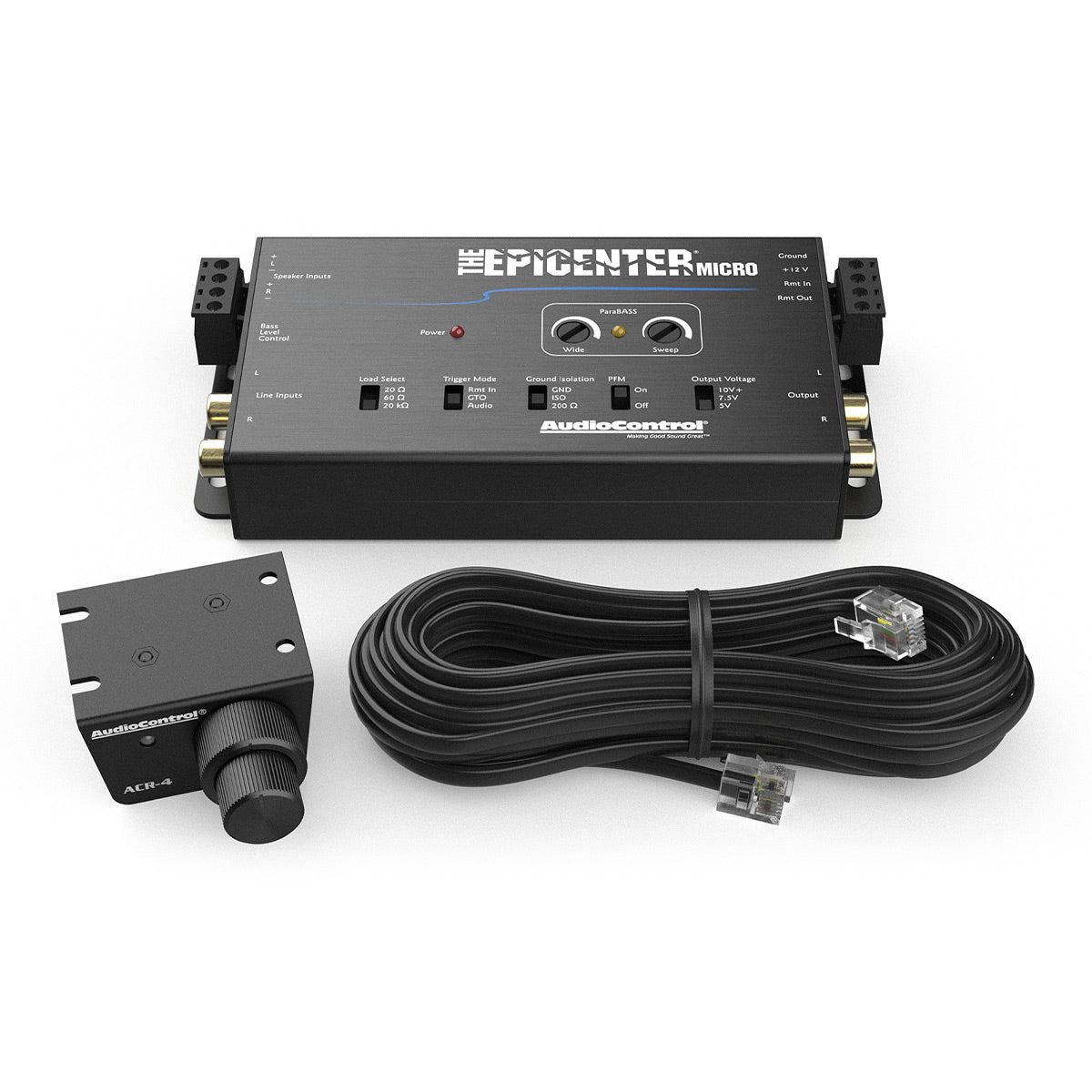

What's In The Box

  • The Epicenter Micro
  • ACR-4
  • 20′ Phone Cable
  • Speaker and Power connectors
  • Manual
  • Warranty
