AudioControl

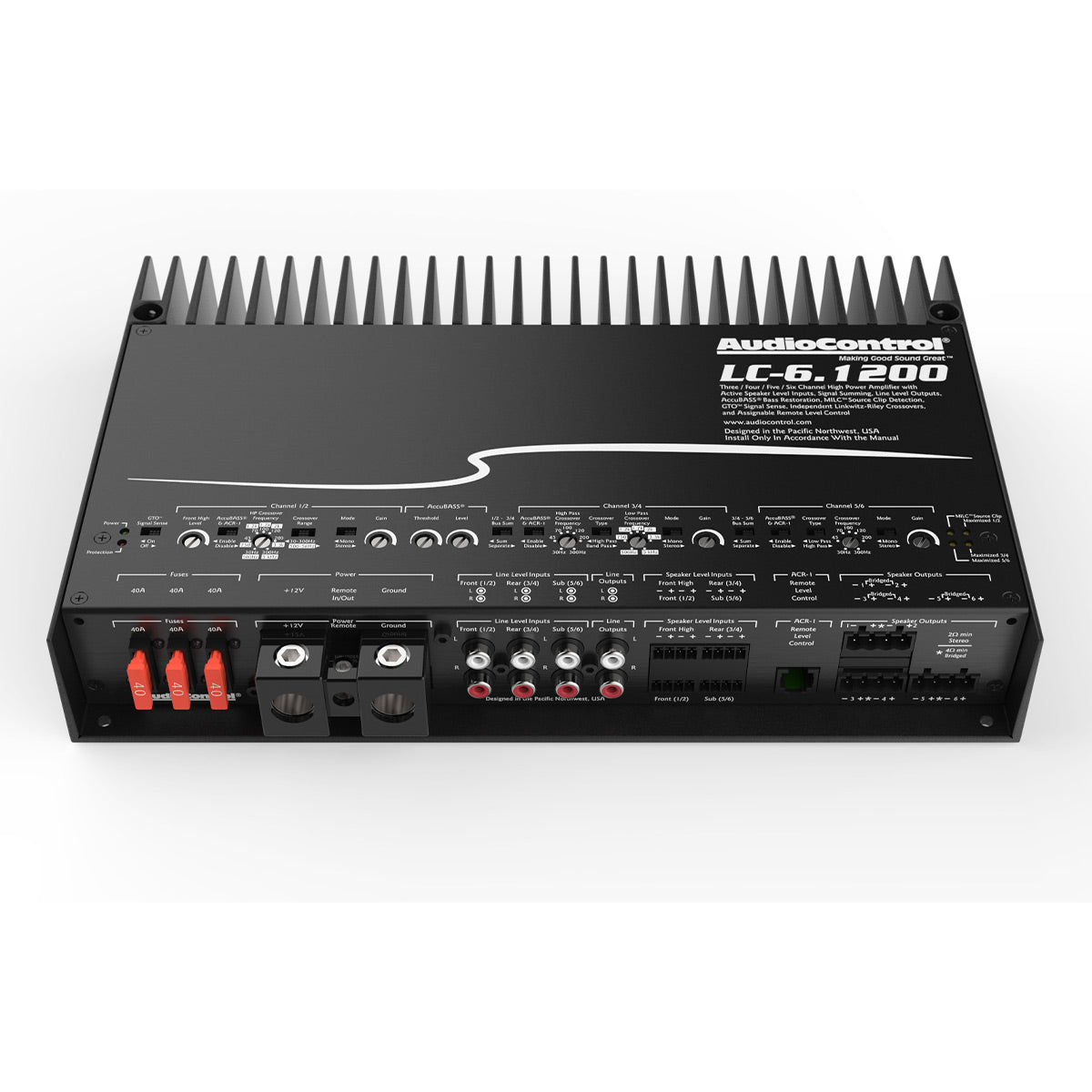

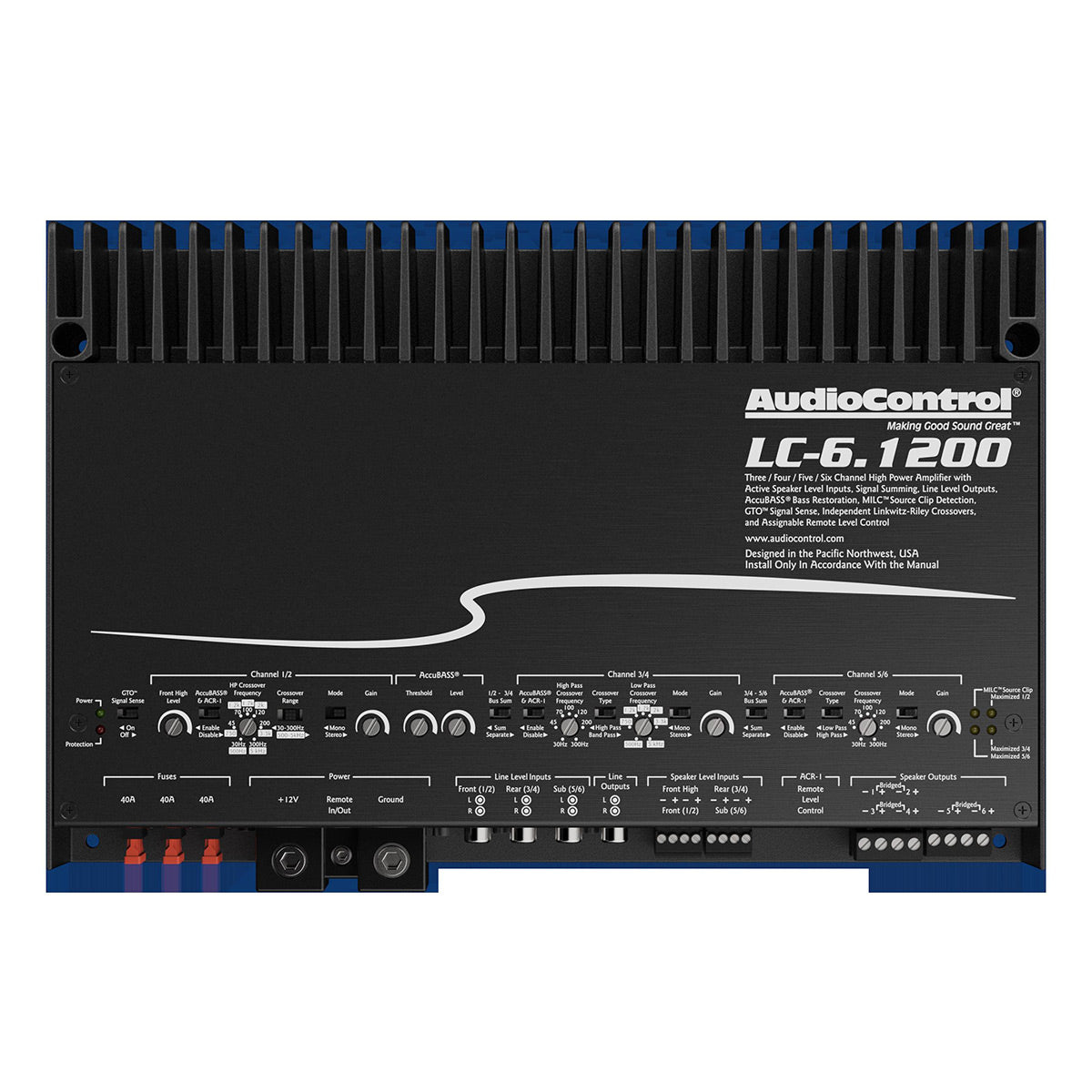

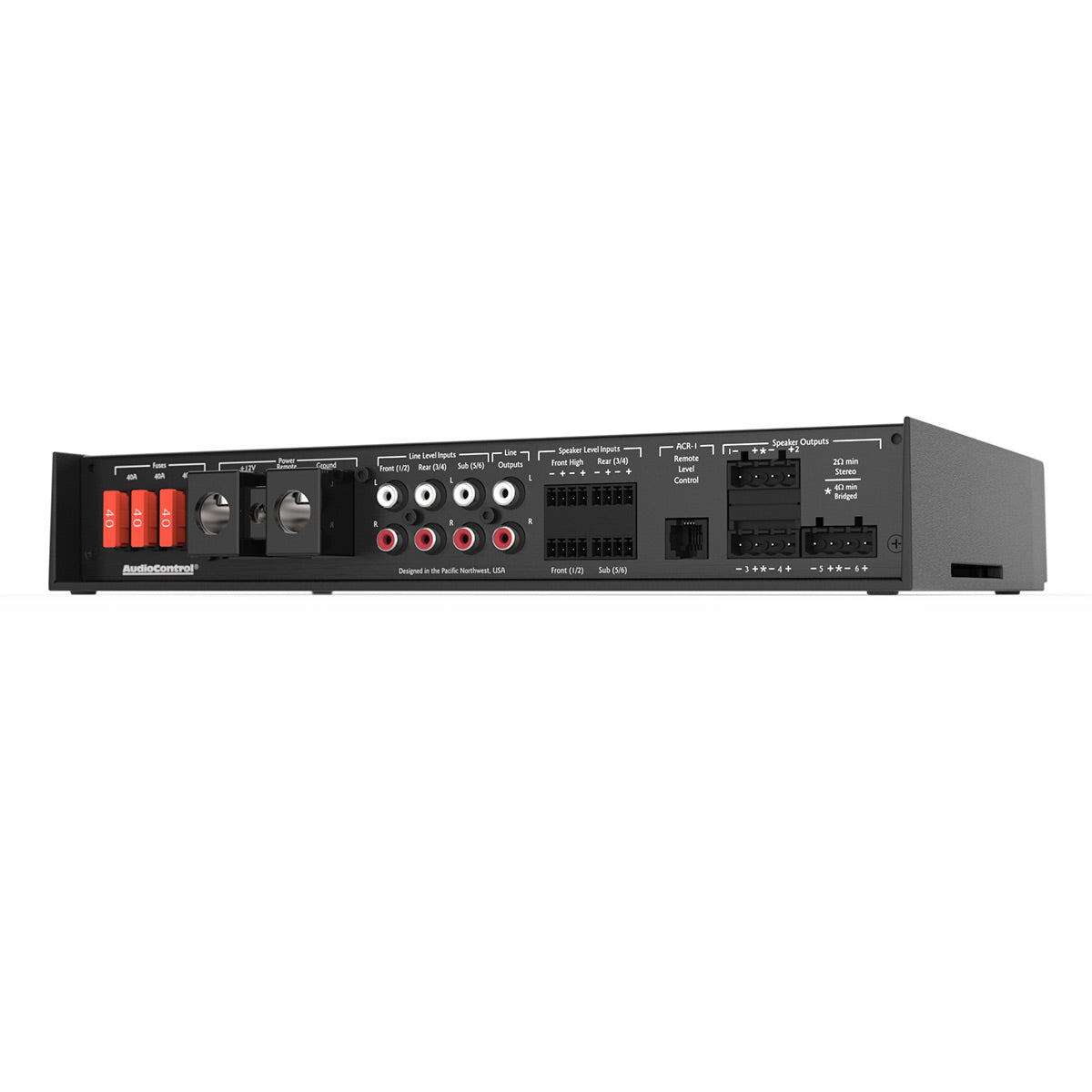

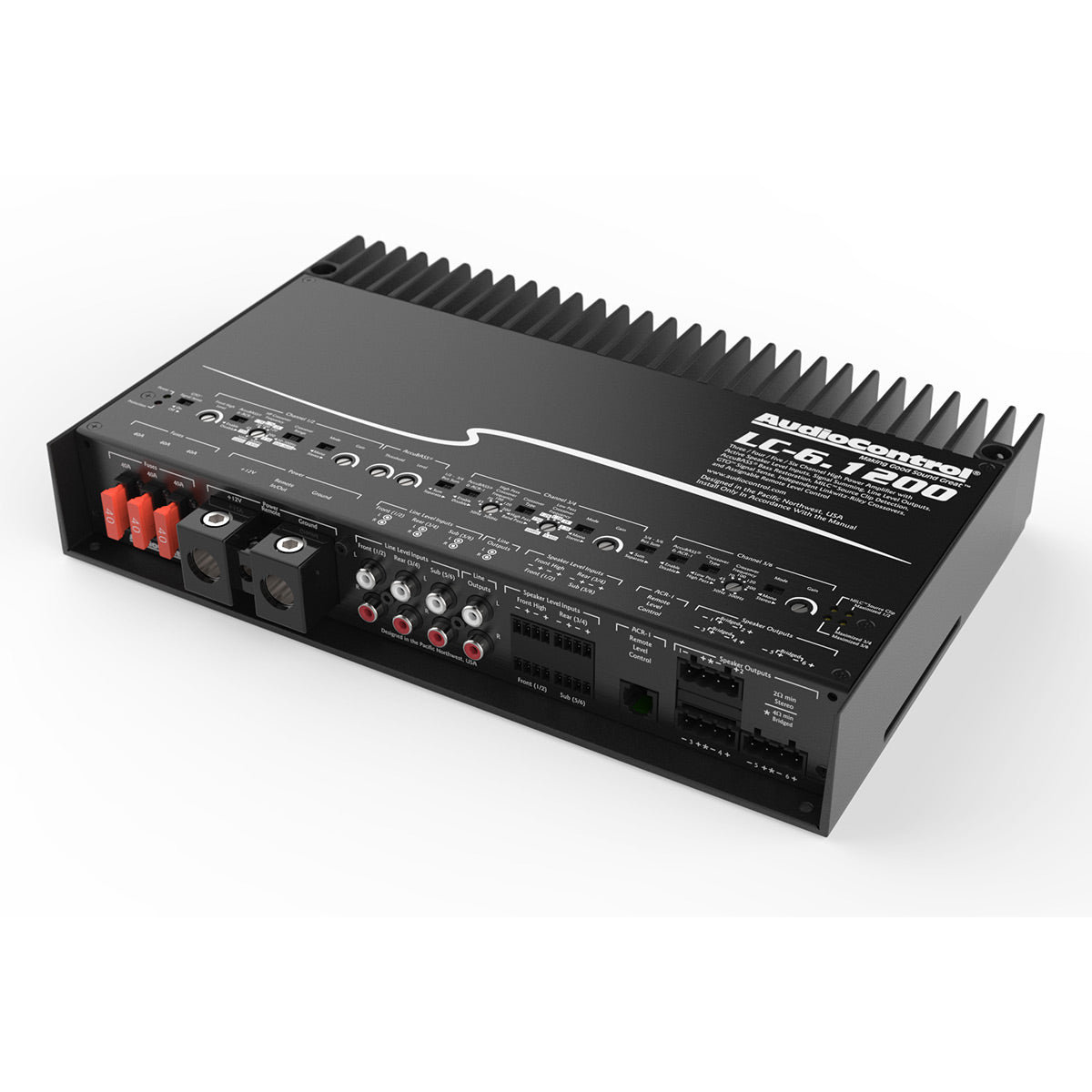

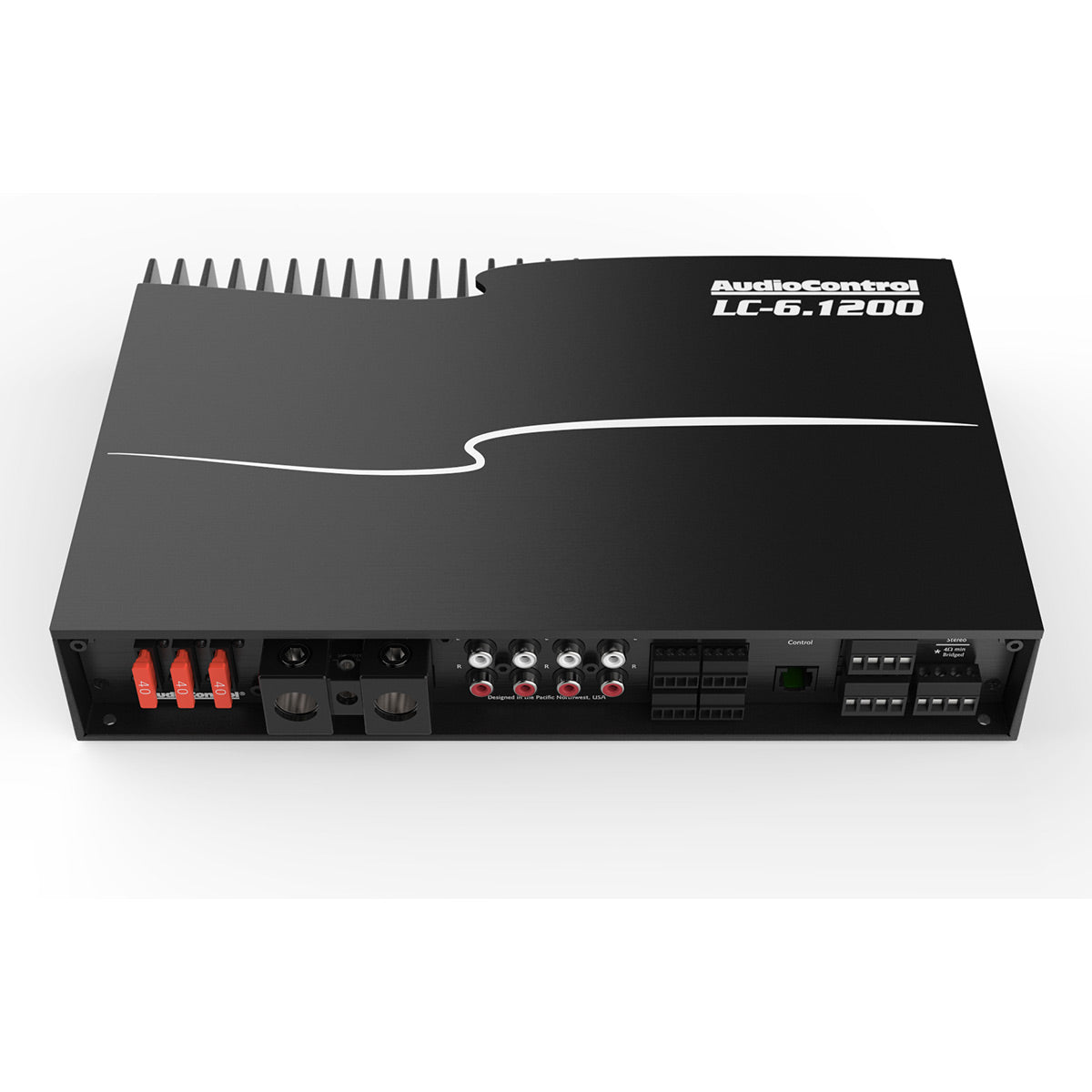

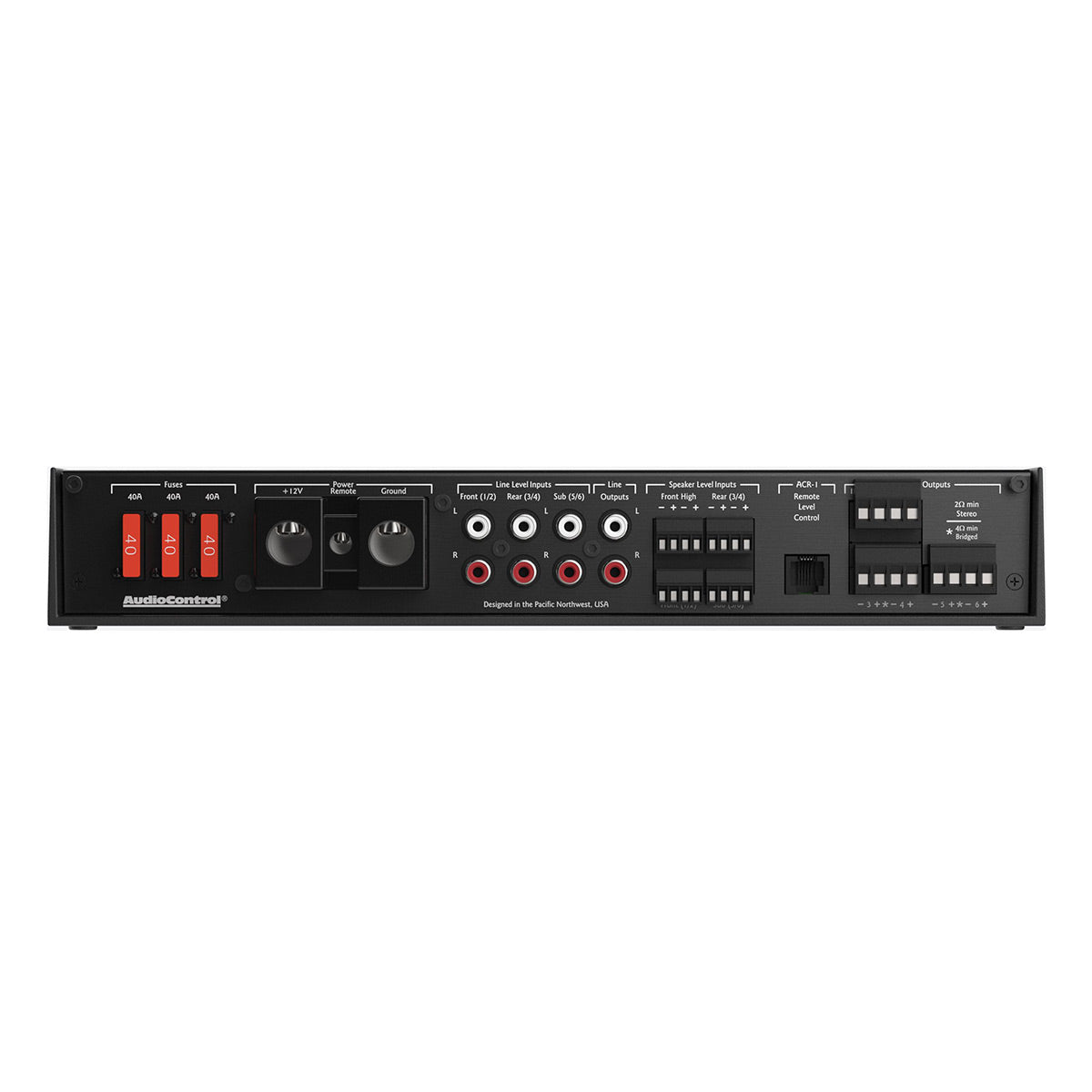

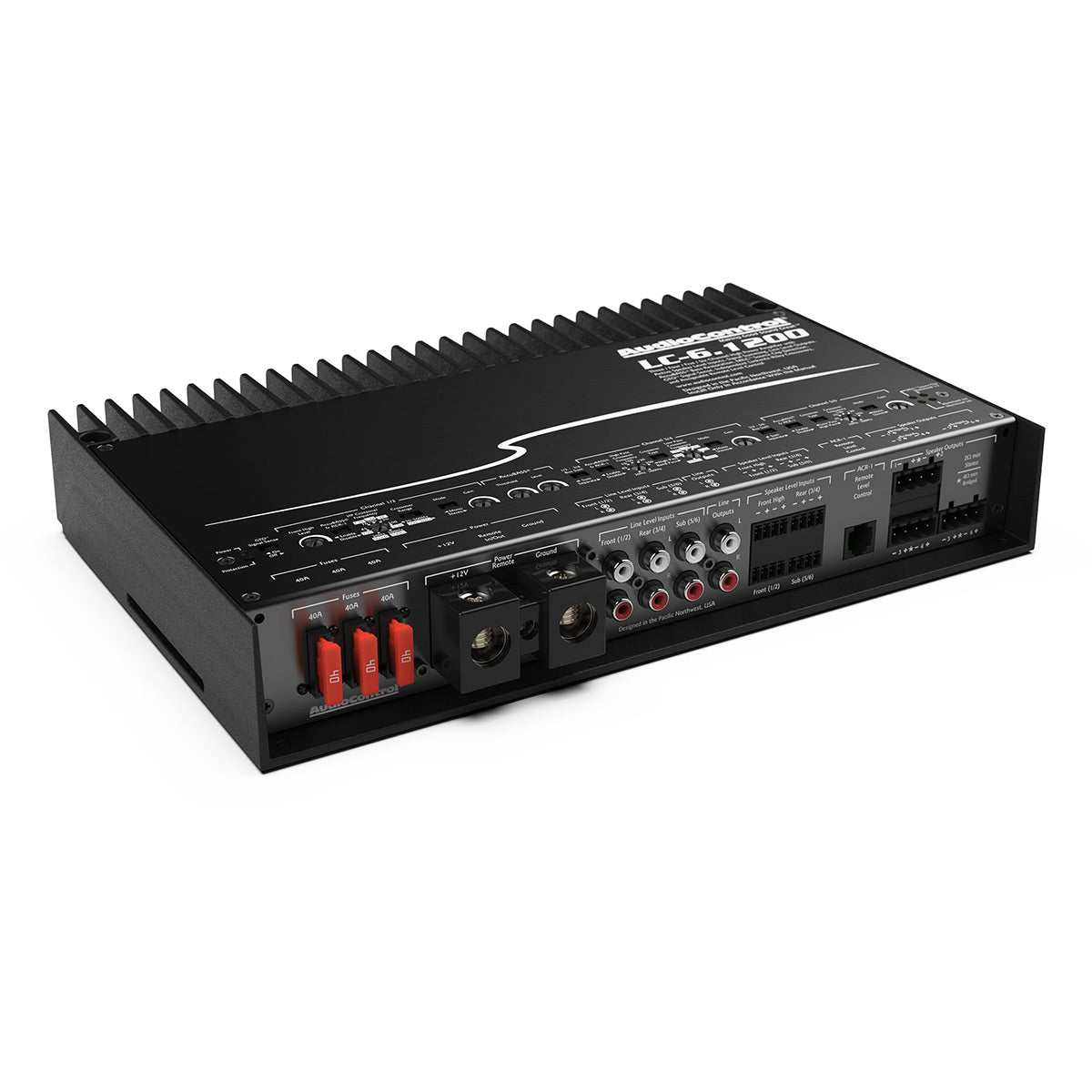

AudioControl LC-6.1200 High-Power Multi-Channel Amplifier with Accubass

Regular price $899.00
Sale price $899.00 Regular price
Save $-899.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 8510190 | UPC: 851523007201

Specifications

What's In The Box

Product Information

Model: 8510190 | UPC: 851523007201

High-Power Multi-Channel Amplifier with Accubass®

Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6 channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory-installed source units. The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

More control and features are included in the GTO Signal Sense, MILC Source Clip Detection, and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution-based amplifier.

Features:

  • Configurable as 6/5/4/3/2 channel amplifier
  • 6 x 200 watts @ 2 ohms
  • 6 x 125 watts @ 4 ohms
  • 400 watts @ 4 ohms bridged
  • AccuBASS® Processing
  • MILC™ Maximum Input Level Control (Patent Pending)
  • GTO™ Signal Sense
  • 3-way Independent Linkwitz-Riley Alignment crossovers
  • Summable active speaker-level inputs (8 channels) for OEM integration
  • 6 preamp inputs
  • 2 assignable preamp outputs
  • PFM Subsonic Filter
  • Optional ACR-1 assignable remote control
  • Solid One-Piece Aluminum Chassis

Specifications

  • Inputs
    • Preamp Inputs: 6 balanced
    • Preamp Input Voltage Range: 250 mV – 8 Vrms
    • Speaker Level Inputs: 8
    • Speaker Level Input Voltage Range: 3 V – 40 Vrms
  • Outputs
    • Rated Continuous (RMS) Power at 14.4V:
      • 4Ω – 125 W x 6 RMS
      • 2Ω – 200 W x 6 RMS
      • Bridged 4Ω – 400 W RMS
    • Preamp Outputs: 2
    • Maximum Preamp Output: 8.5 V RMS
  • Performance
    • Frequency Response: 10 Hz – 30 kHz
    • Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
    • THD+N: < 0.1%
    • Minimum Power / Ground Wire Gauge: 3 AWG wire
    • Fuse Rating: 3 x 40 A
    • Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
  • Weight & Dimensions
    • Dimensions (W x H x D): 12" x 2.1" x 8.0"
    • Weight: 7.2lbs. (3.3kg)


What's In The Box

  • LC-6.1200
  • Speaker connectors
  • Fuses
  • Manual
  • 5 Year Warranty
