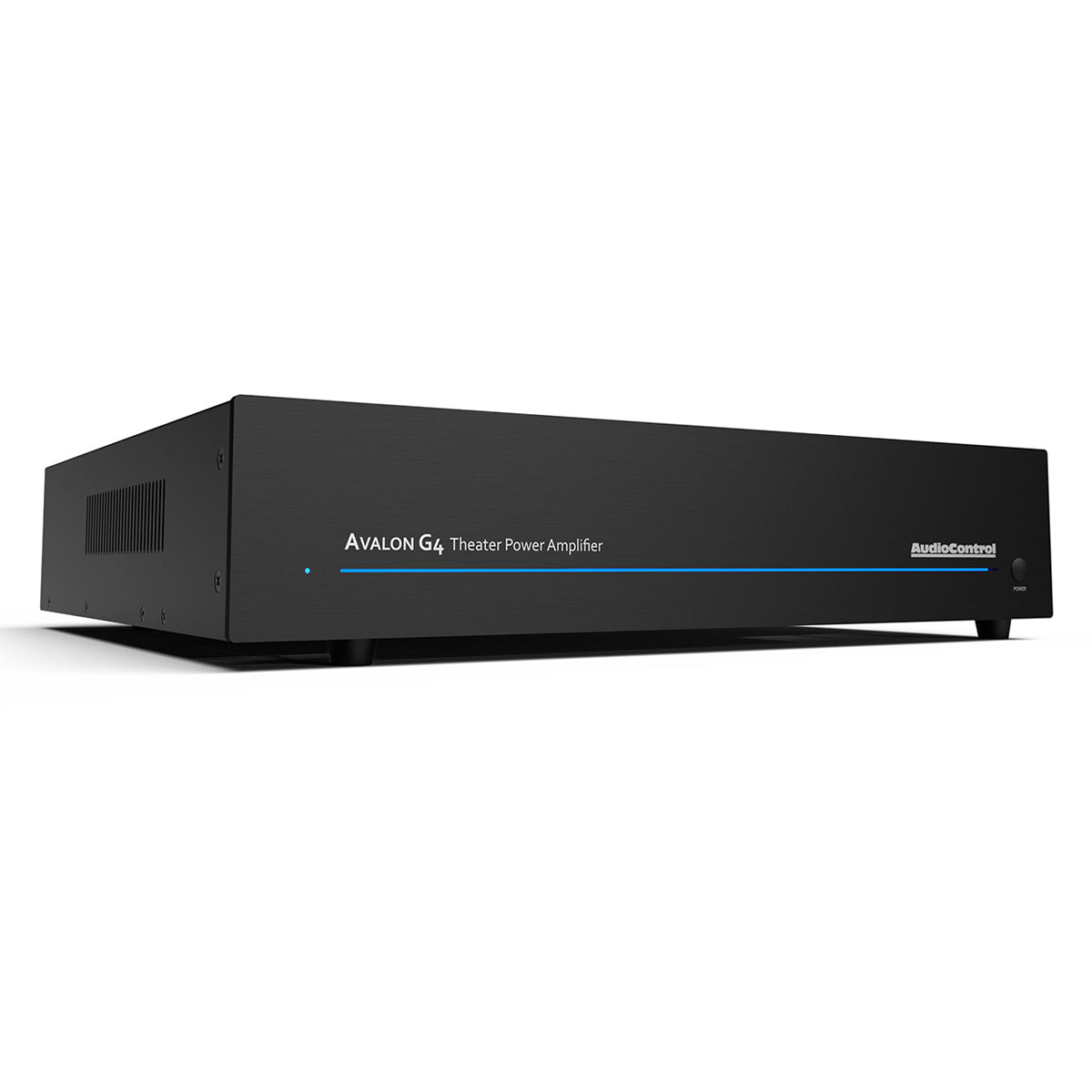

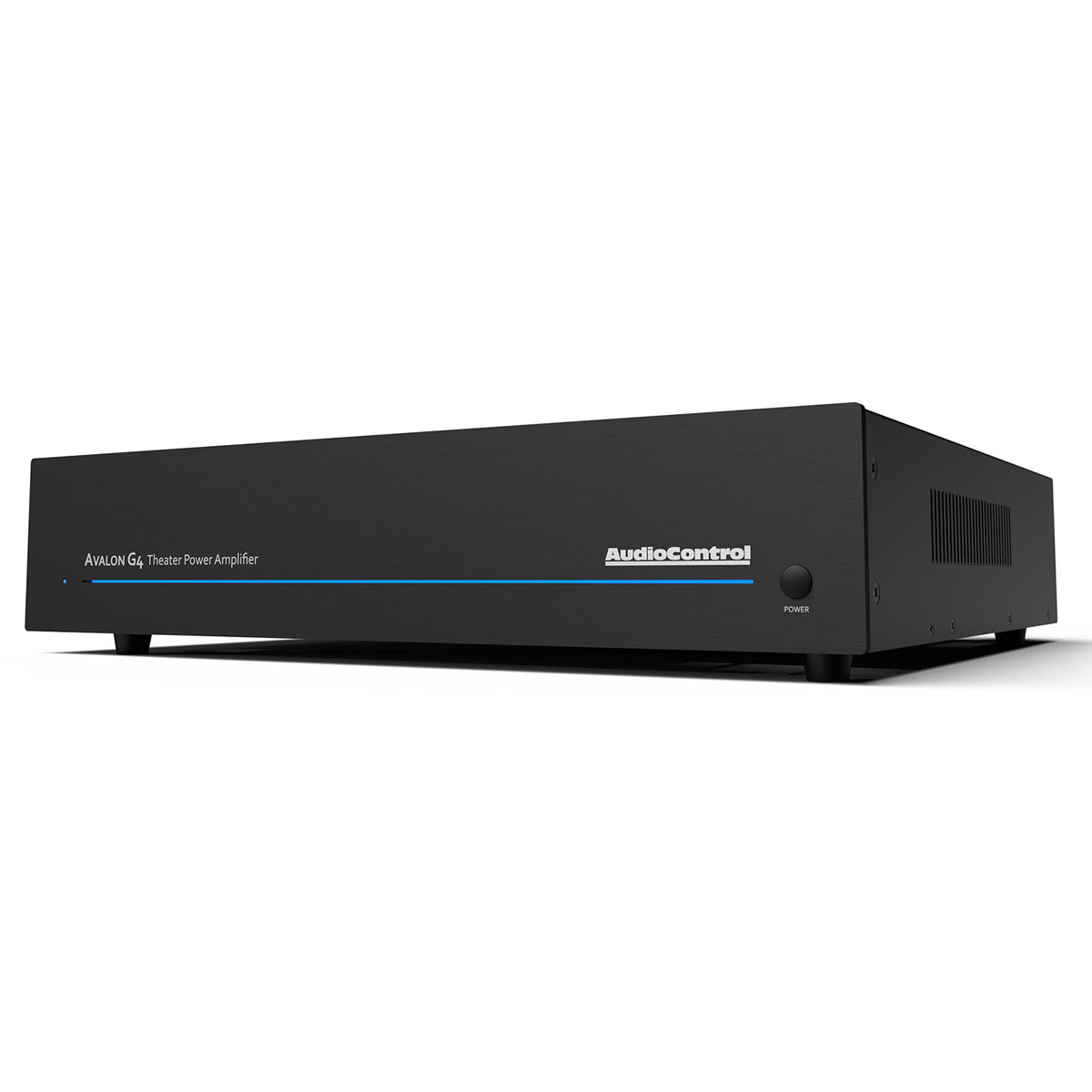

AudioControl Avalon G4 4-Channel Home Theater Amplifier
Overview
Product Information
Specifications
What's In The Box
Product Information
Using the award-winning Savoy G3 amplifier as a basis, the AudioControl Avalon G4 delivers exceptional detail and clarity thanks to an innovative and highly efficient Class H design that effortlessly achieves 230 watts per channel, all channels driven. The Class H design topology provides superb audio quality and bulletproof reliability while reducing heat dissipation from a compact form factor. The Avalon G4 also features AudioControl’s LightDrive anti-clipping protection circuit, which protects loudspeakers from clipping and distortion even in extreme conditions such as a highly dynamic action movie soundtrack.
The Avalon G4 can be easily configured as a 4 channel amplifier, a powerful 2-channel amplifier, or as a 2.1 solution without any need for DSP management. Each pair of channels features hi/lo/bypass crossover controls, balanced (XLR) and unbalanced (RCA) inputs as well as RCA throughputs to achieve multiple configuration options. The Avalon G4 also features independent channel level controls, remote power control triggers, and audiophile-grade 5-way binding posts.
Features
- Award-winning theater amplifier technologies
- Four-channel home theater amplifier
- Multi-mode operation: 4 channel, 2.1 channel, and high-power 2 channel
- 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
- 600 watts at 8 ohms bridged
- Stable into low impedances
- Stereo/mono operation
- Unparalleled Energy Efficiency
- High Definition BiMOS Outputs
- Cool Running Class H Operation
- LightDrive Anti-Clipping Protection Circuitry
- 5-way Binding Posts
- Unbalanced RCA inputs with pass through
- Balanced XLR Inputs
- Bullet-Proof Reliability
- Remote 12 volt Trigger
- Perfect paired with AudioControl’s Maestro M9 or M5 Preamplifiers
Specifications
Inputs
- Inputs: 4 RCA unbalanced, 4 XLR balanced
- Input sensitivity: 1.42Vrms for full output
- Maximum input voltage: 2.7Vrms
- Input impedance: 100kΩ
Outputs
- Amplifier channels: 4
- Power output (8Ω): 230W per channel
- Power output (4Ω): 300W per channel
- Power output (8Ω bridged mono): 600W
- Minimum speaker load: 4Ω
Performance
- Damping factor: >450
- Total harmonic distortion: 0.04% (230W @ 8 ohms 20Hz - 20kHz)
- Signal-to-noise: >102dB, A-wtd ref full output
- Frequency response: 10Hz - 20kHz ± 1dB
Control
- Remote power trigger: +12VDC or dry contact closure
General
- Peak AC power draw (full output 8Ω): 1200W
- Typical AC power draw (all channels driven): 400W
- Protection: Clipping, short circuit, thermal, DC offset
Dimensions/Weight
- Dimensions (W x D x H): 17" x 16.5" x 3.5"
- Weight: 38 lbs.
What's In The Box
- Avalon G4 4-Channel Home Theater Amplifier
- Power cord
- Rack Mount Brackets
- Manual
- Warranty
