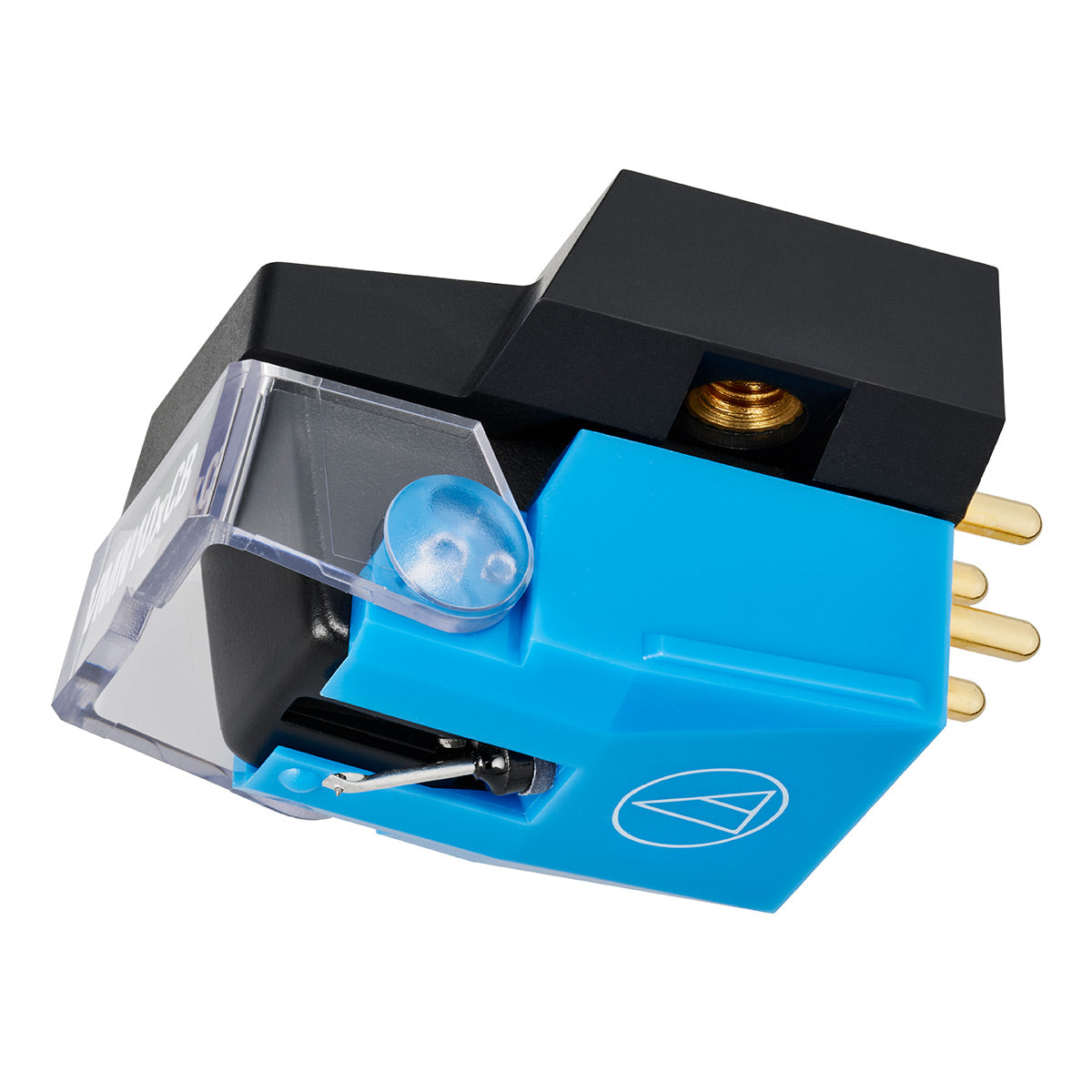

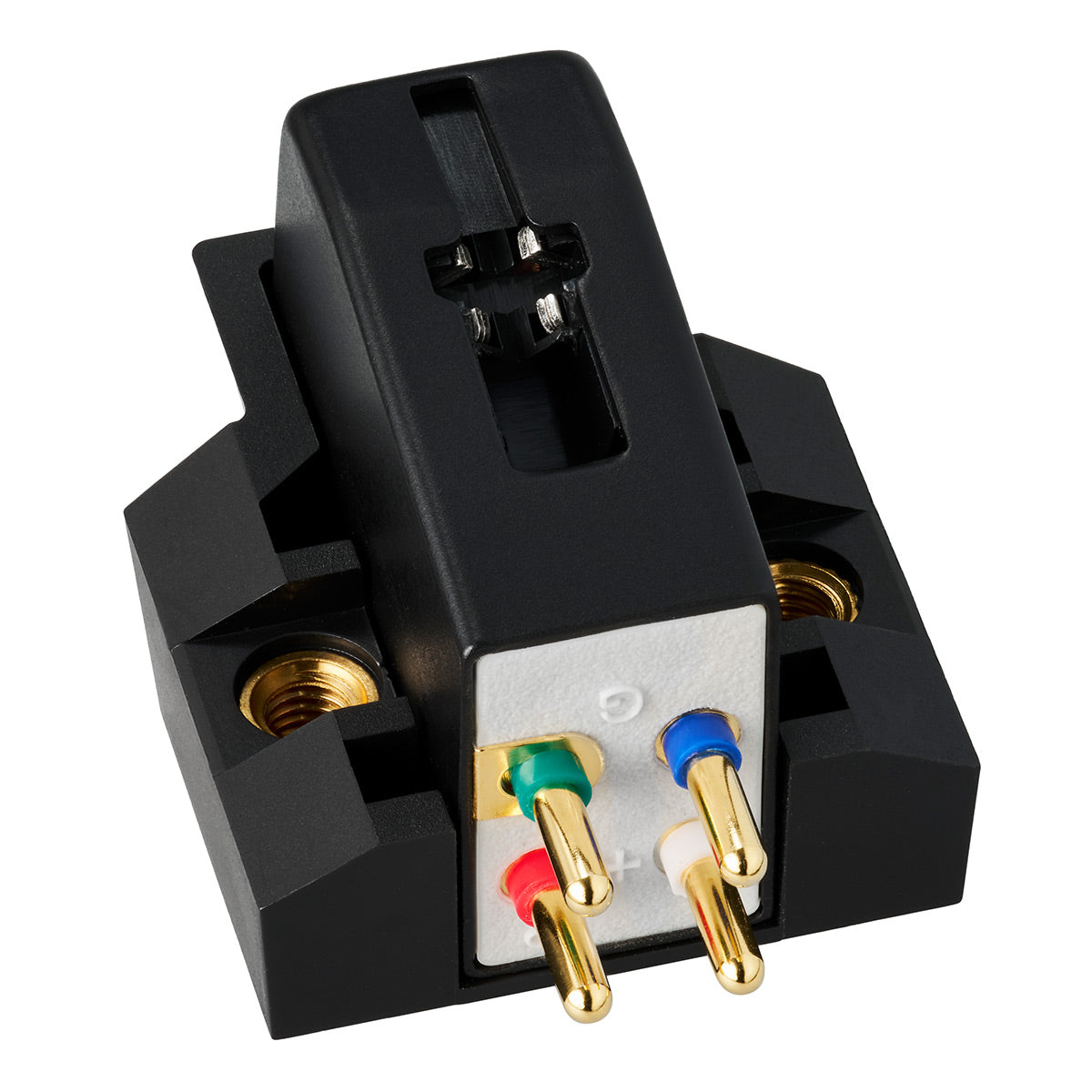

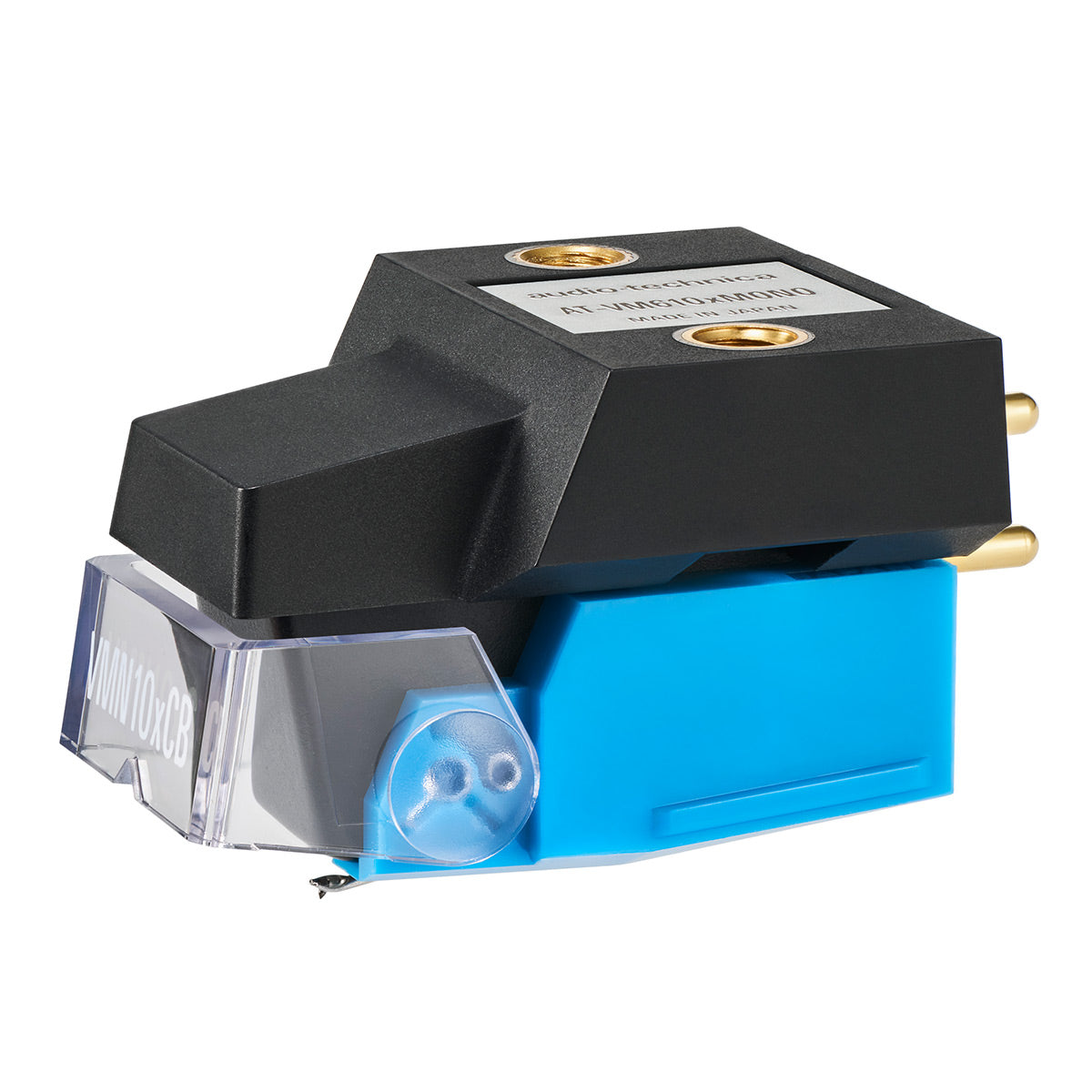

Audio-Technica AT-VM610xMONO VMx Mono Phono Cartridge

Regular price $129.00
Sale price $129.00 Regular price
$0.00 Save $-129.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Oct 6 – Mon, Oct 13

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: AT-VM610XMONO | UPC: 4961310163280

Specifications

What's In The Box

Product Information

Model: AT-VM610XMONO | UPC: 4961310163280

The Audio-Technica AT-VMx series enhances its premium dual moving magnet cartridges with greater warmth, detail, and realism. Featuring dual magnets aligned to the stereo groove, it delivers excellent channel separation and frequency response. Upgrades like PCUHD® copper wire and reduced coil turns improve clarity and transient response. The paratoroidal coil design and center shield plate reduce crosstalk for a cleaner stereo image. Practical features include easy-mount threaded inserts and a V-cut stylus guard for precise placement, making the VMx series a refined, user-friendly choice for high-quality vinyl playback.

As its name indicates, the AT-VM610xMONO is designed for playing mono records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide.

Features

  • AT-VMx Dual Moving Magnet Cartridge
  • Conical Bonded Stylus (0.6 mil)
  • Paratoroidal Coils Improve Transient Response
  • Center Shield Plate Reduces Crosstalk
  • Durable Low-Resonance Polymer Housing
  • Aluminum Cantilever
  • Compatible with Any Turntable Headshell That Accepts 1/2” Cartridges

PCUHD® (Pure Copper Ultra High Drawability)

Like all VMx cartridges, the AT-VM610xMONO features PCUHD® (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy. The 0.6 mil conical bonded stylus of the AT-VM610xMONO tracks the center of the record groove for reliable performance and excellent fidelity.

Easy to Install & Use

Each VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

Specifications

  • Type: VM
  • Frequency response: 20 to 20,000 Hz
  • Output voltage: 5.0 mV (1 kHz, 5 cm/sec.)
  • Horizontal/vertical output ratio: 20 dB (1 kHz)
  • Tracking force: 1.8 to 2.2 g (2.0 g standard)
  • Coil impedance: 1.6 k ohms (1 kHz)
  • DC resistance: 375 ohms
  • Recommended load impedance: 47 k ohms
  • Recommended load capacitance: 150 to 250 pF
  • Coil inductance: 240 mH (1 kHz)
  • Static compliance: 23 × 10?6 cm/dyne
  • Dynamic compliance: 7 × 10?6 cm/dyne (100 Hz)
  • Stylus: Conical bonded
  • Stylus curvature radius: 0.6 mil
  • Cantilever: Aluminum pipe
  • Vertical tracking angle: 20°
  • Dimensions: 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D)
  • Threaded hole: M2.6 × 2
  • Weight: 7.2 g (0.25 oz)
  • Replacement stylus (sold separately): AT-VMN10xCB

What's In The Box

  • AT-VM610xMONO VMx Mono Phono Cartridge

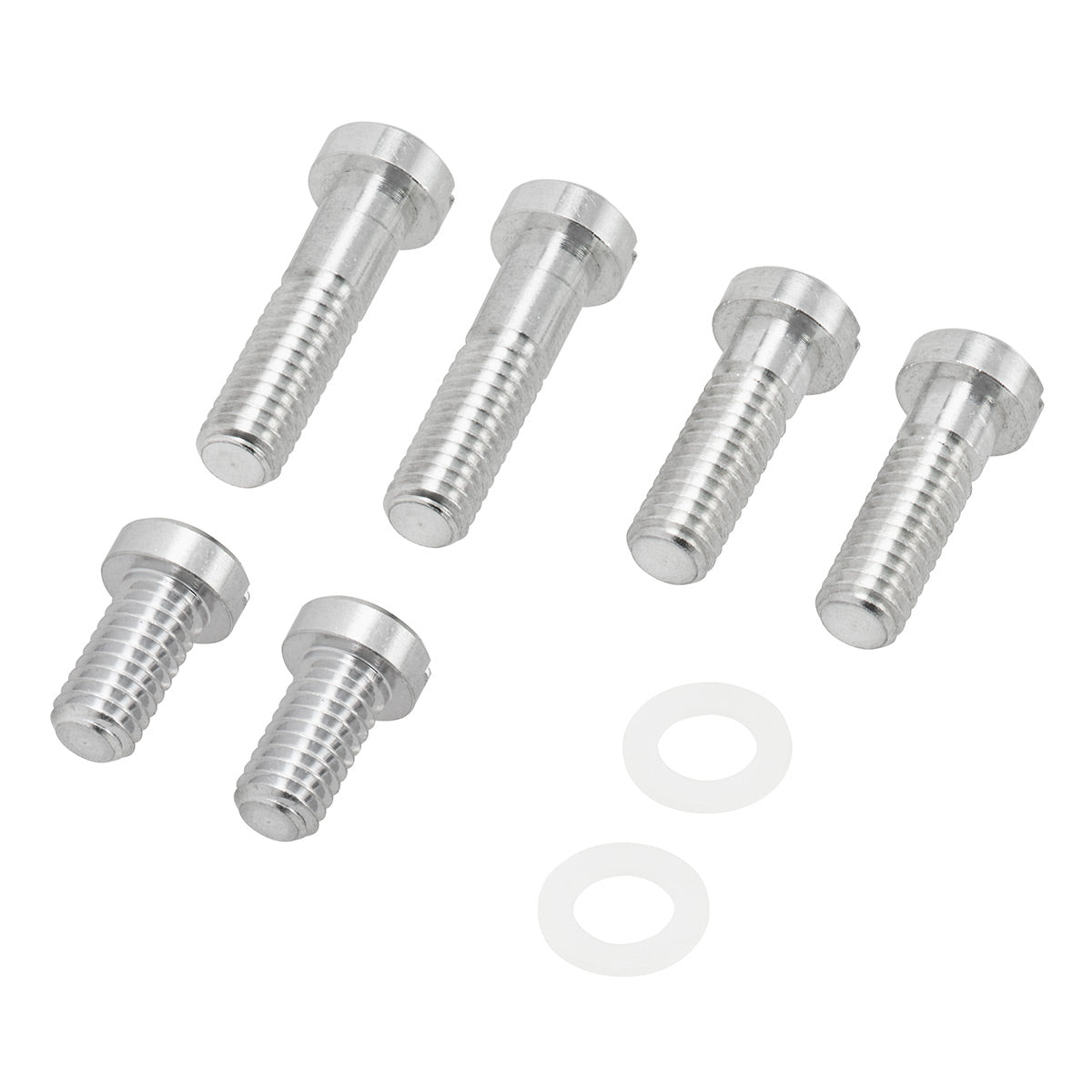

  • Cartridge Installation Screws
  • Washers
  • Manual
