Sony Mobile

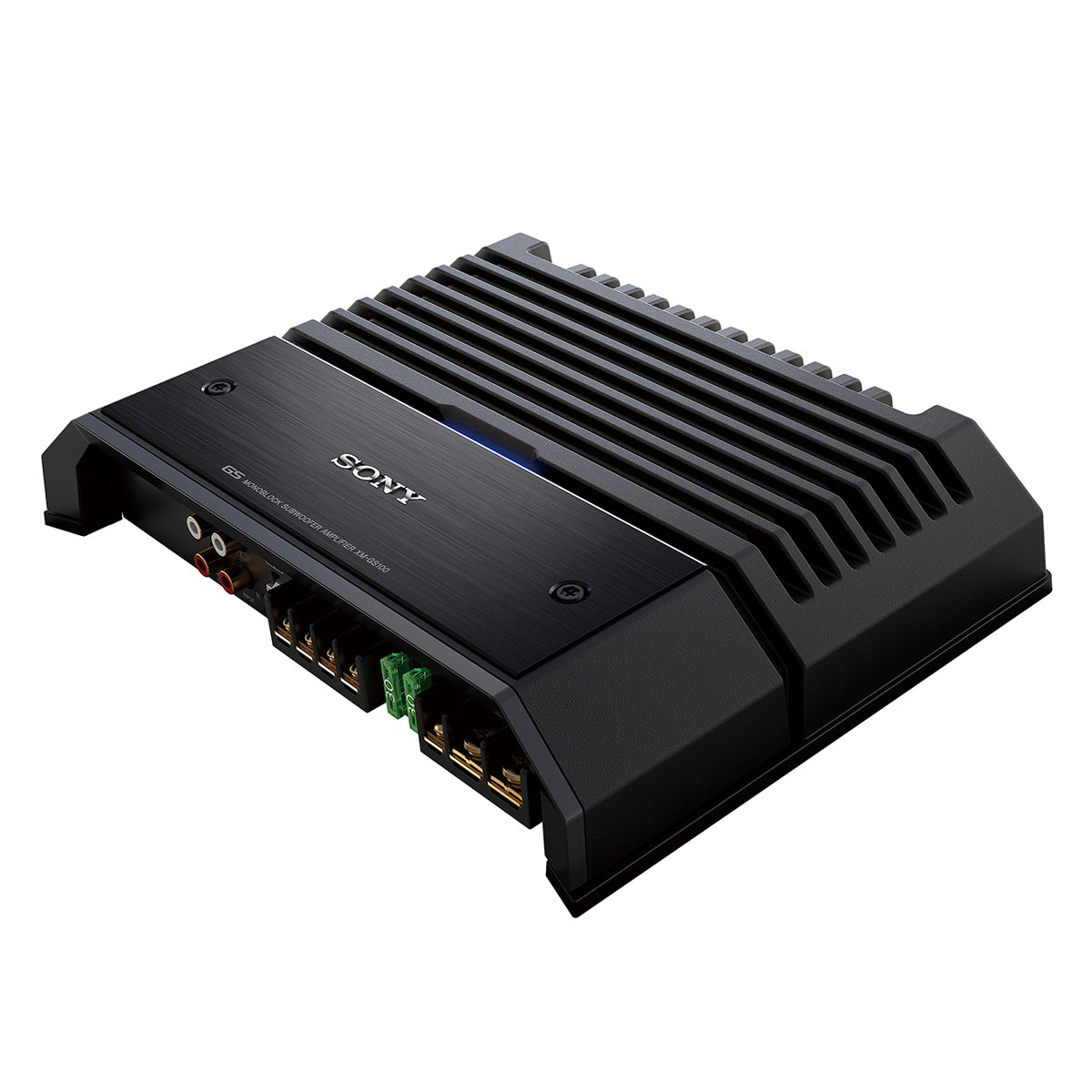

Sony Mobile XM-GS100 GS-Series 600-Watt Monoblock Subwoofer Amplifier

Regular price $198.00
Sale price $198.00 Regular price
Save $-198.00 (%)

In Stock & Ready to Ship
Free Shipping Get it between Tue, Dec 12 – Tue, Dec 19

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Sony Mobile XM-GS100 GS-Series 600-Watt Monoblock Subwoofer Amplifier Overview

Product Information

Model: XM-GS100 | UPC: 027242823297


What's In The Box

Product Documents

Product Information

Model: XM-GS100 | UPC: 027242823297

XM-GS100 GS-Series 600-Watt Monoblock Subwoofer Amplifier

The Sony GS-100 Class-D subwoofer amplifier affords incredible installation flexibility, thanks to its compact size and packs quite a punch. GS series amplifiers offer tremendous value including convenience features such as: modern cosmetics, variable cross-overs and singe-side electrical connections to suit almost any application.

Amp Design

The XM-GS100's efficient Class-D mono block design, compact chassis size, and single sided connections provide multiple mounting options while maximizing output and control for your audio system.

4 Ohm Power Output

The XM-GS100 delivers 330 watts RMS power at 4 ohm with 14.4 volts, from 20Hz - 200Hz with less than 1% THD+N. This unit has a maximum output power of 600 mono at 4 ohm.

2 Ohm Power Output

The XM-G100 delivers 600 watts RMS power at 2 ohm with 14.4 volts, at 50 Hz with less than 1% THD+N. This unit has a maximum output power of 1100 watts mono at 2 ohm.

Built-In Crossovers

The XM-GS100 has a removable top panel that conceals a variable 12 dB/oct LPF (Low-Pass filter) at 50-300Hz as well as a 12 dB/octave sub-sonic HPF (High-Pass filter), variable at 6-70Hz to maximize your systems potential. This amplifier also offers a variable 0-10 dB 40 Hz bass boost circuit to increase low frequency response.

Input Flexibility

As well as traditional RCA inputs, the XM-GS100 offers direct connections (High Level Input) to the speaker output of your car audio unit if it is not equipped with RCA line outputs. The auto sensing, high level input feature also allows the amplifier to be powered up without the need for remote power turn on connections.

Protection Circuitry

The Active Thermal Control regulates the units operating temperature for stable, long-term playback at high volume levels. Dynamic Distortion Suppressor reduces distortion that occurs at higher playback levels for clear bass reproduction.


Size & Weight

  • Dimensions (W x H x D): 2.01 x 10.71 x 7.95 in
  • Weight: 5.51 lbs


  • Channel Configuration: Mono
  • Low Pass Filter: Variable: 50-300 Hz
  • Low-Pass Filter Slope: 12 dB/oct

Rated Output Power, RMS 20-20000 Hz

  • Max. Channel Configuration at 4 ohm (W) / THD (%): 330 W x 1 / 1.0% (20-200 Hz)
  • Max. Channel Configuration at 2 ohm (W) / THD (%): 600 W x 1/1.0% (50 Hz)

Maximum Output Power (1 kHz)

  • Max. Channel Configuration at 4 ohms: 600 W x 1
  • Max. Channel Power Configuration at 2 ohms: 1100 W x 1

General Features

  • Frequency Response: 10-300 Hz
  • Tolerance: +0.5/-3 dB
  • Signal to Noise Ratio: 100 dB
  • Total Harmonic Distortion at 1 kHz (%): 0.1% (50 Hz)


  • CEA Power output: 330 W x 1
  • CEA SN Ratio: 65 dBA
  • Load Capability (ohm): NO/YES
  • Subsonic High Pass Filter: YES
  • Bass Boost: Frequency (0 - 10 dB): 40 Hz
  • Speaker Level Input: YES
  • Line In: Input Sensitivity: 0.3–6
  • Gold Plated Connectors: YES
  • Current drain (A) - rated output power at 4 ohm: 30A
  • Line Out: YES (Through)

What's In The Box

  • One XM-GS100 amplifier
  • Speaker level input harness
  • Mounting hardware
  • Owner's manual
