MantelMount MM860 V2 Motorized Drop Down & Swivel TV Mount with Built-In Wifi for 55"-100" TV

Regular price $2,999.00
Sale price $2,999.00 Regular price
Save $-2,999.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: MM860 | UPC: 860001148909


What's In The Box

Product Information

Model: MM860 | UPC: 860001148909

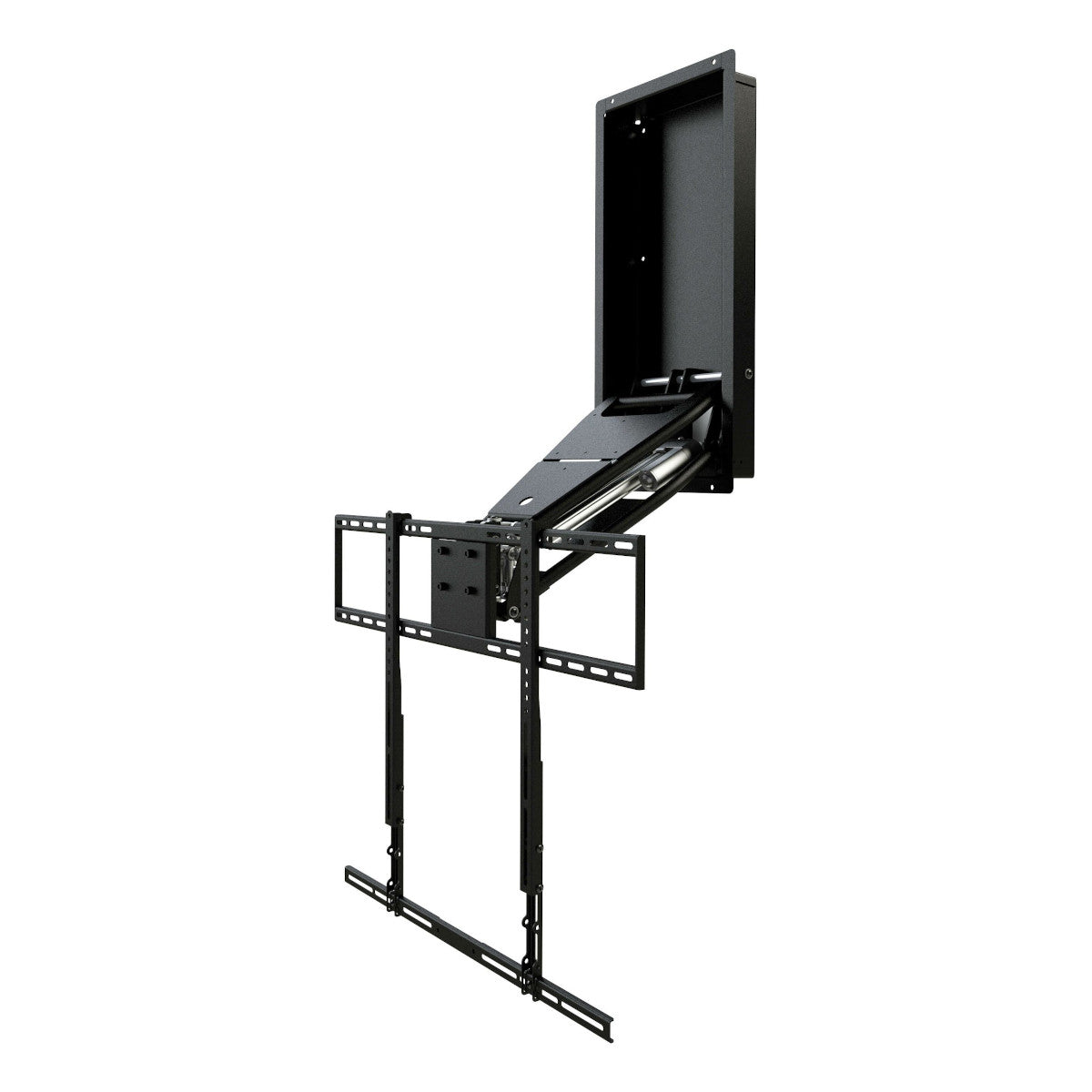

The award-winning MantelMount Pro MM860v2 automatically lowers and swivels a TV into the perfect position for the best picture quality and ultimate viewing experience.  New to the MM860v2 is built-in wi-fi for times when ethernet is not easily accessible as well as for remote management functionality. The MM860v2 is the ideal solution for upscale installations and works with all popular home automation control systems.

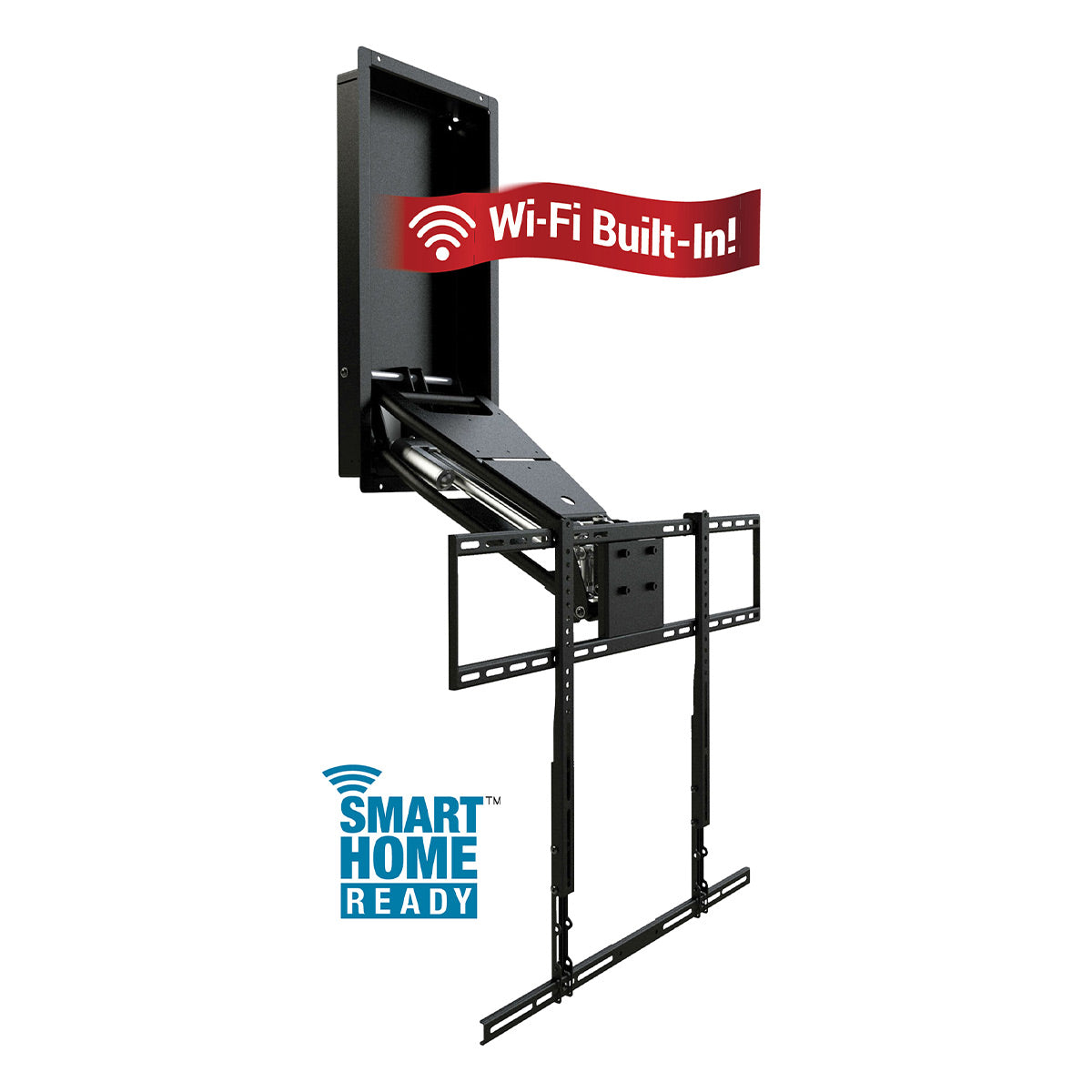

  • NEW! Built-In Wi-Fi! Configure the mount and connect it to home automation when hardwired Ethernet is not available
  • Multi-Axis Hub Dual heavy-duty tubular steel lifting arms attached to lift housing
  • Paintable, powder-coated matte finish
  • 25° Swivel Each Direction
  • Built-In Sound Bar
  • Adapter accommodates sound bars up to 40”

Remote Control Choices

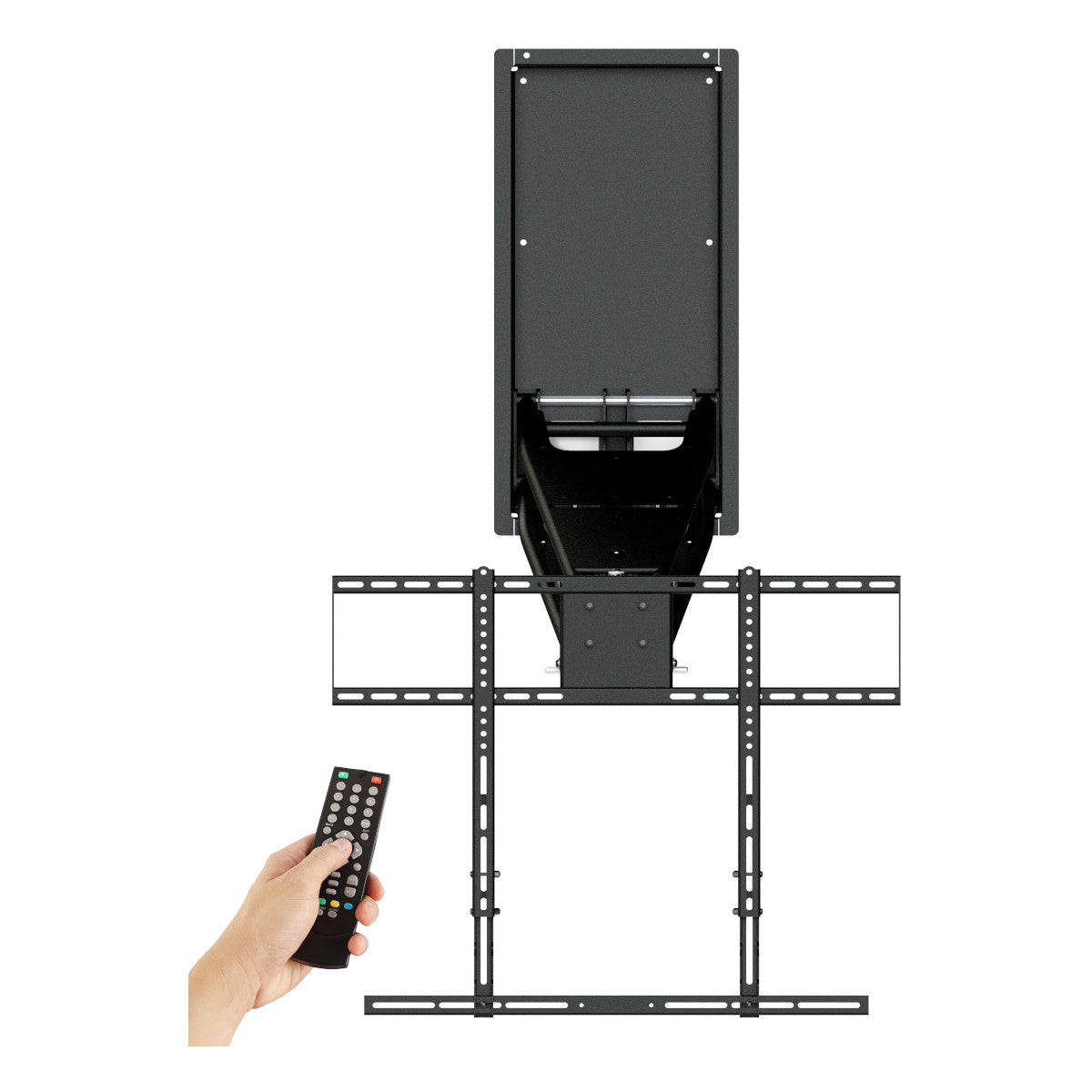

Controlled through the included 433 MHZ RF remote, IR-based Logitech and URC remotes, and popular home automation systems.

Home Automation Options

Works with Control4, URC, RTI, Crestron, Savant and Logitech.

Power Sensing Technology

Detects when the TV is turned on and automatically lowers it to a favorite preset. Provides automation even without a control system.

Silent Operation

Two custom electronic actuators allow for smooth, barely audible movement.

Recess-able Housing

Conceals the lifting arm and electronics in the raised position. Can be recessed for flush-to-wall installations.

Temperature Sensing Monitor

TV automatically retracts to its home position when an unsafe temperature is detected.

Multiple Memory Presets

Easily program multiple preset positions for favorite viewing locations.

Power Loss Recovery

Keeps its last location in memory, eliminating the need for a reset after power interruption.

Soft & Hard Travel Stops

Vertical and horizontal travel limits configured through both software and hardware, provide a virtual safety shield that prevents the TV from touching the wall or mantel.

Plug & Play Networking

DHCP enabled right out of the box. Easily identifiable on the network.

On-board Web Server

For simple browser-based configuration.

Online Software Updates

Download the latest software and firmware updates from the internet directly to the control module.

Communication Protocols

Can be managed with IP via Ethernet or IR through an IRDA port.

Post-installation Levelling

Allows for screen position refinement after the mount is installed.

Horizontal Braces with Paintable Covers

Make retrofitted installations fast and easy, for both recessed or surface installations.

Easy to Service

The mount installs in one piece. Electronics are contained in a single lightweight module that’s easily shipped, removed and replaced.


  • TV Size: 55"– 100"
  • Optimal Size: 65" – 100"
  • Weight Capacity: 125 lbs.
  • Mount Weight: 73 lbs.

What's In The Box

  • MM860 V2 Motorized Drop Down & Swivel TV Mount with Built-In Wifi for 55"-100" TV
  • Recess Box
  • Mounting hardware
