Kenwood STZ-RF200WD Motorsports HD Dash Cam with GPS and Rear-View Camera

Regular price $449.00
Sale price $449.00 Regular price
Save $-449.00 (%)

In Stock & Ready to Ship
Free Shipping Get it between Tue, Apr 23 – Tue, Apr 30

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: STZ-RF200WD | UPC: 019048232601


What's In The Box

Product Documents

Product Information

Model: STZ-RF200WD | UPC: 019048232601

Catch All of the Action

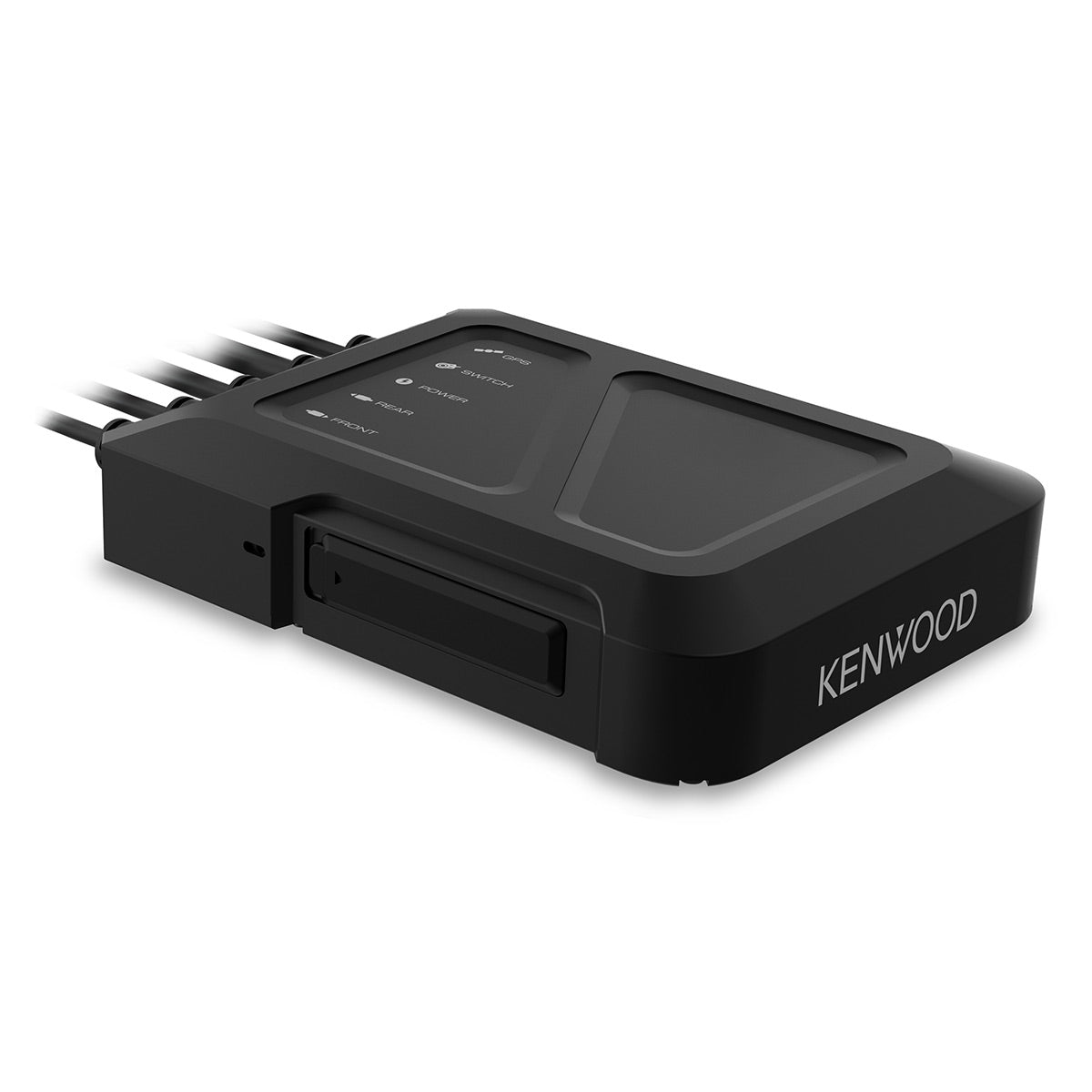

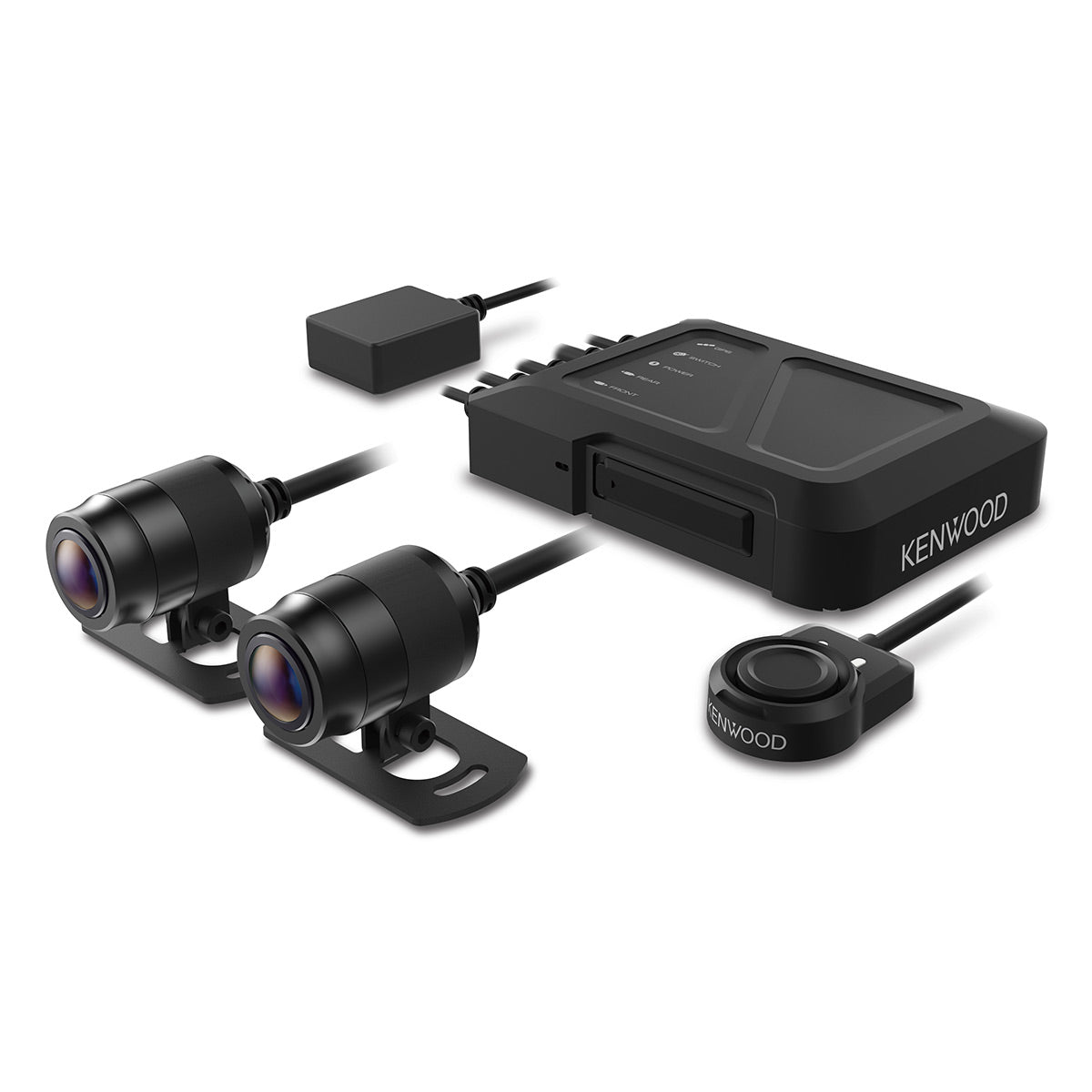

Introducing a motorsports-grade Dual Camera recording system with a hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTVs, ATVs, watercraft & more.


  • Full HD Recording
  • Front & Rear View Recording
  • HDR (High Dynamic Range)
  • EIS (Electronic Image Stabilization)
  • 3-axis G-Sensor & GPS
  • Waterproof & Dustproof
  • Compact Design
  • Optional Extension Cables

2 Megapixel High Definition Recording

Captures clear video from both directions.

Front & Rear View Recording

The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.

Extra Wide View Camera Coverage

Both cameras cover a 195° (diagonal) extra-wide range field of view.

HDR (High Dynamic Range) for Backlighting

Built-in HDR easily records clear images in dark or well-lit environments without underexposing or overexposing the image, ensuring superior night vision recording.

EIS (Electronic Image Stabilization)

Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its built-in image stabilization.

3-axis G-sensor & GPS

The STZ-RF200WD is equipped with a 3-axis G-Sensor designed to detect a collision and GPS that records speed, latitude, and longitude.

Waterproof & Dustproof

The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low-pressure water jets.

Memory Included

A 32GB microSD card is included so that you can be ready to catch all of the action right out of the box. The system supports up to a 256GB microSD card (sold separately).

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

Wireless Link

Enables video playback, file transfer, and easy setup via the KENWOOD Motorsports CAM smartphone app (*Device Requirement OS: Android 7.0 or later, OS: iOS 11.0 or later). Once files are transferred to the device, you can easily share recorded videos.

Review The Action

KENWOOD Motorsports CAM Viewer is a desktop software for displaying video recorded with this system.

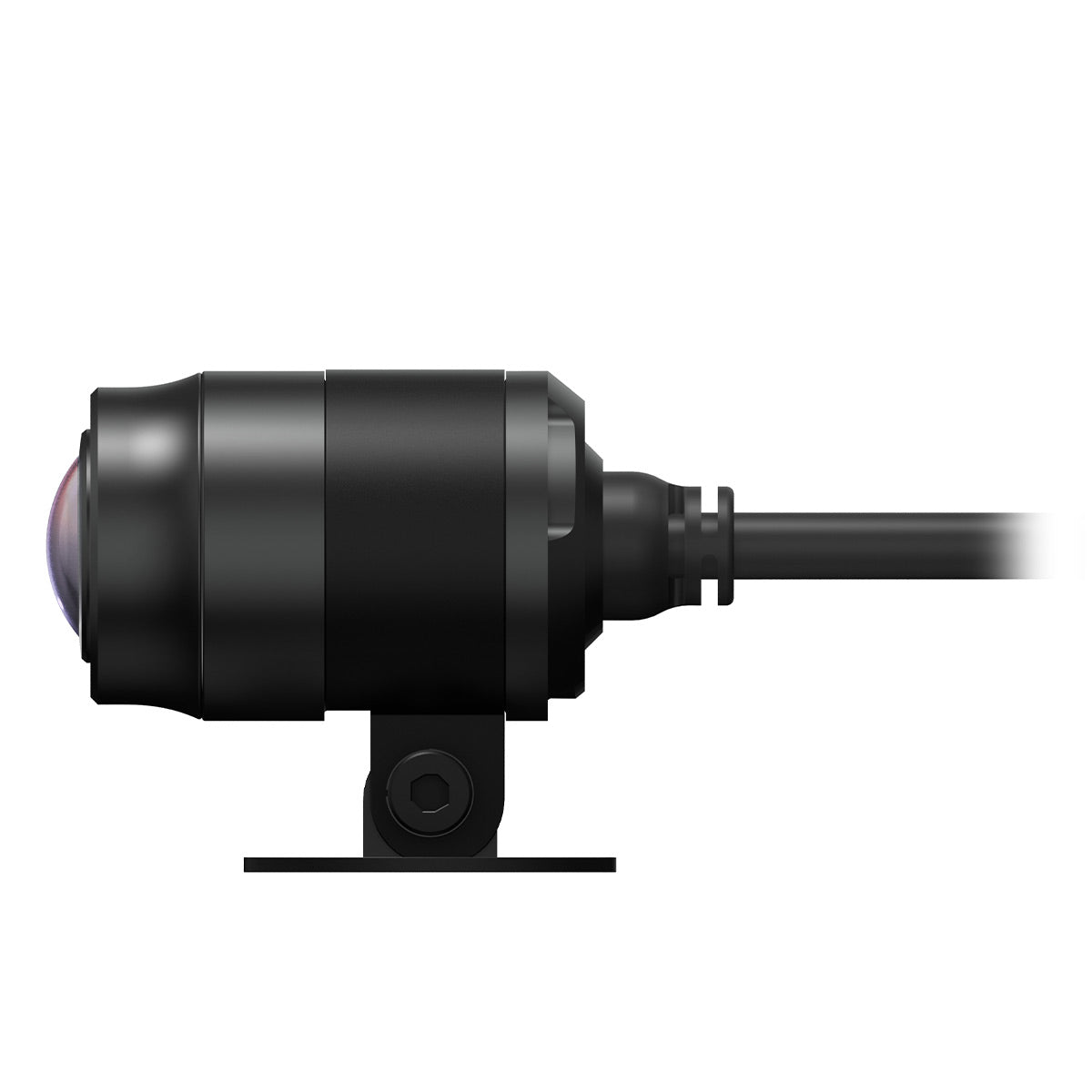

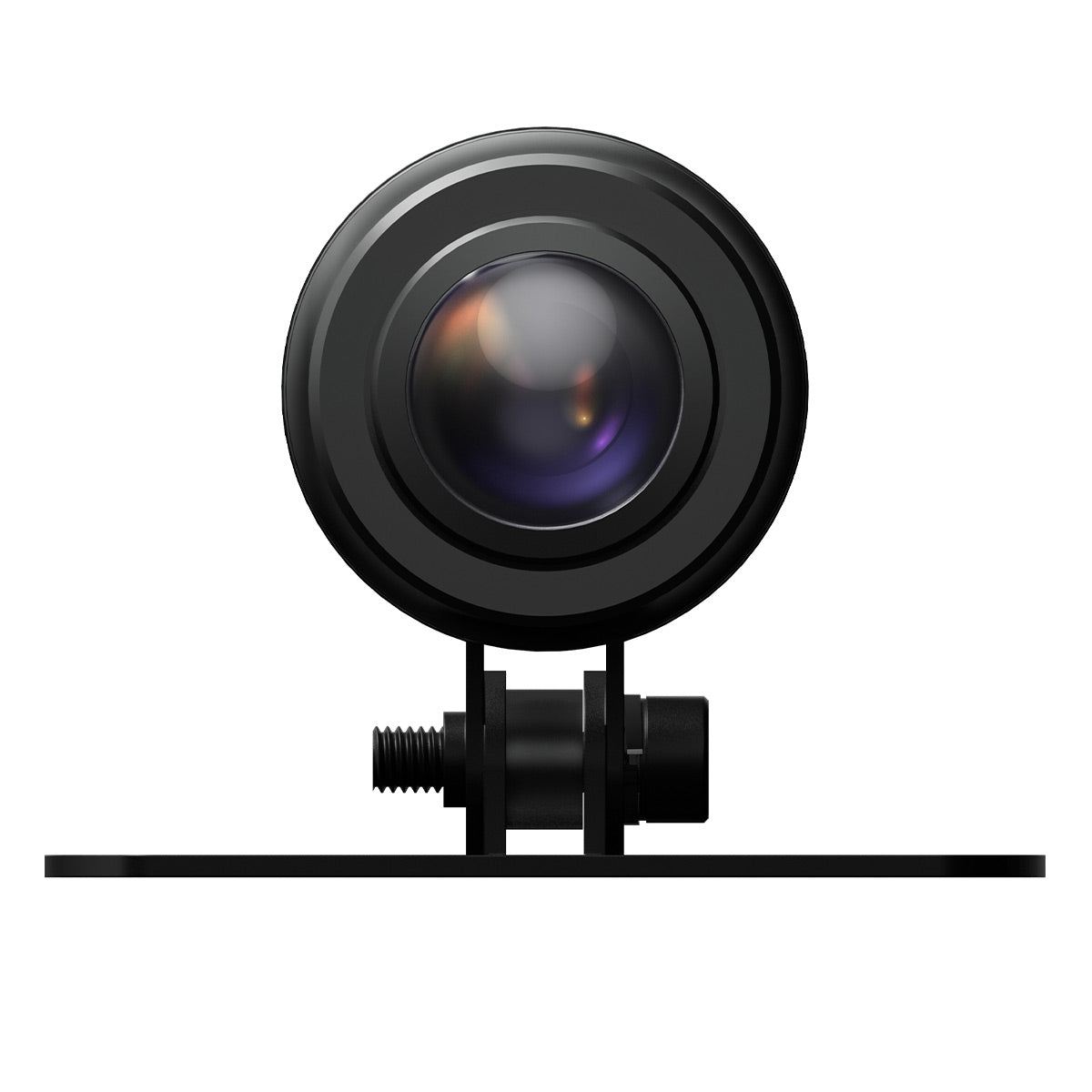

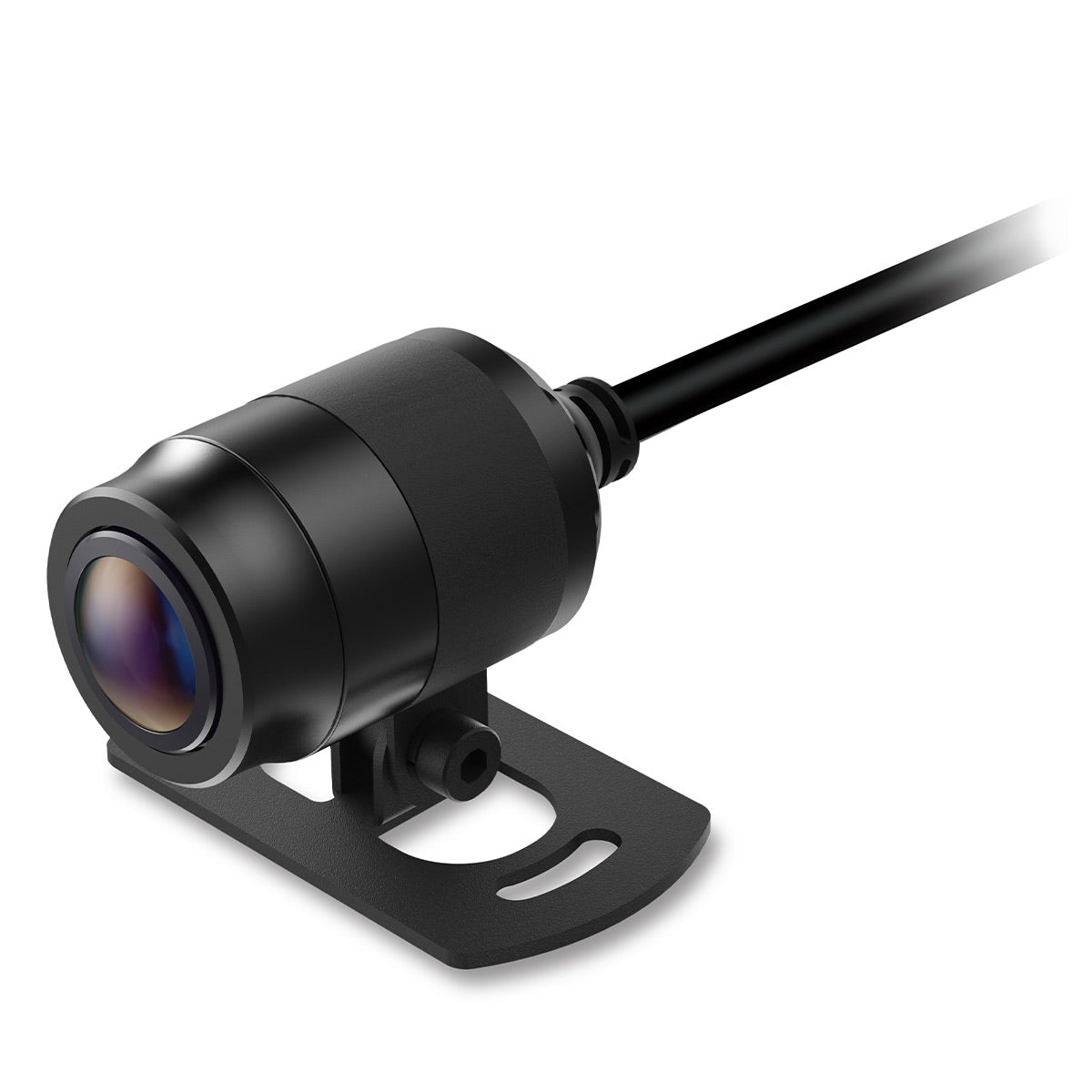

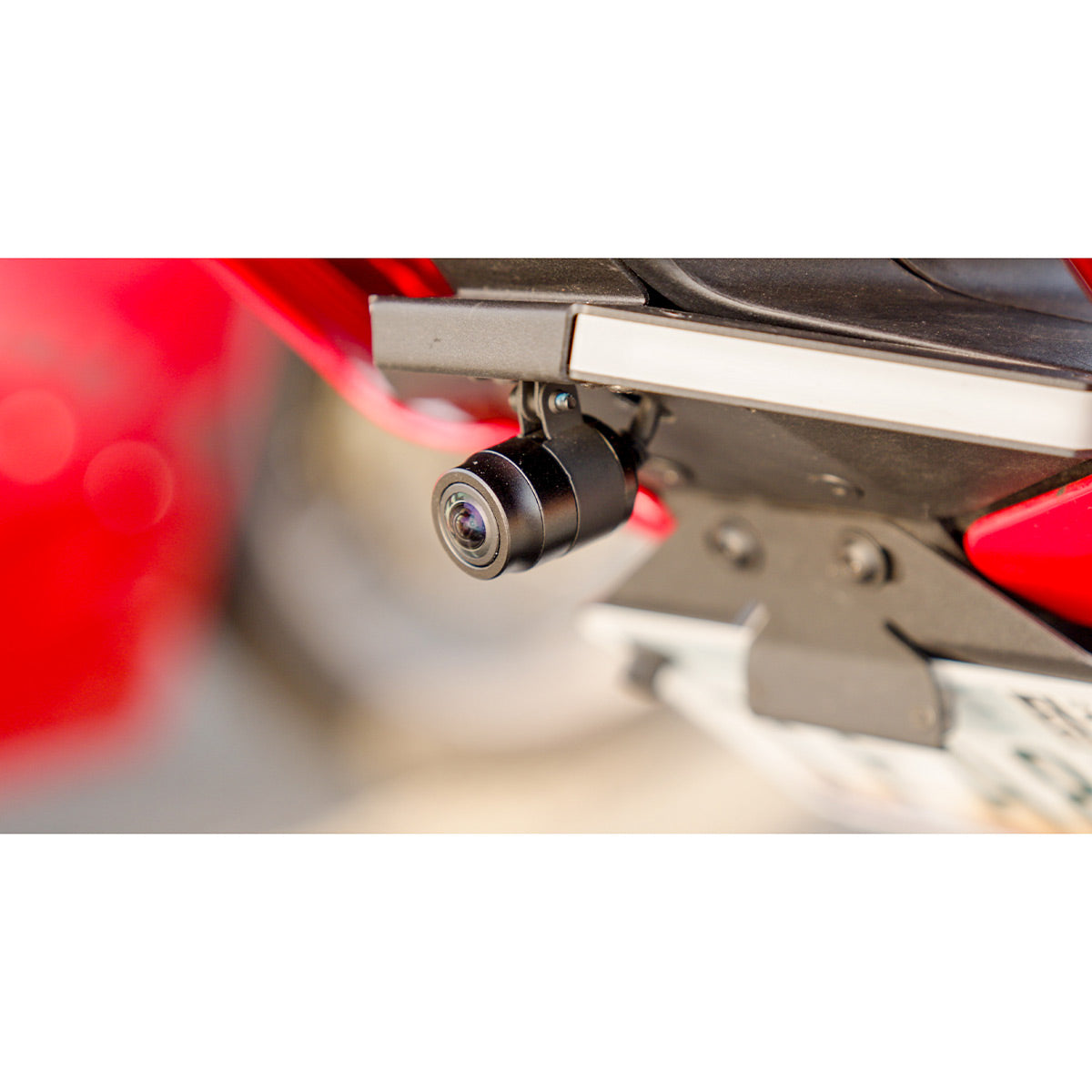

Compact Front & Rear Cameras

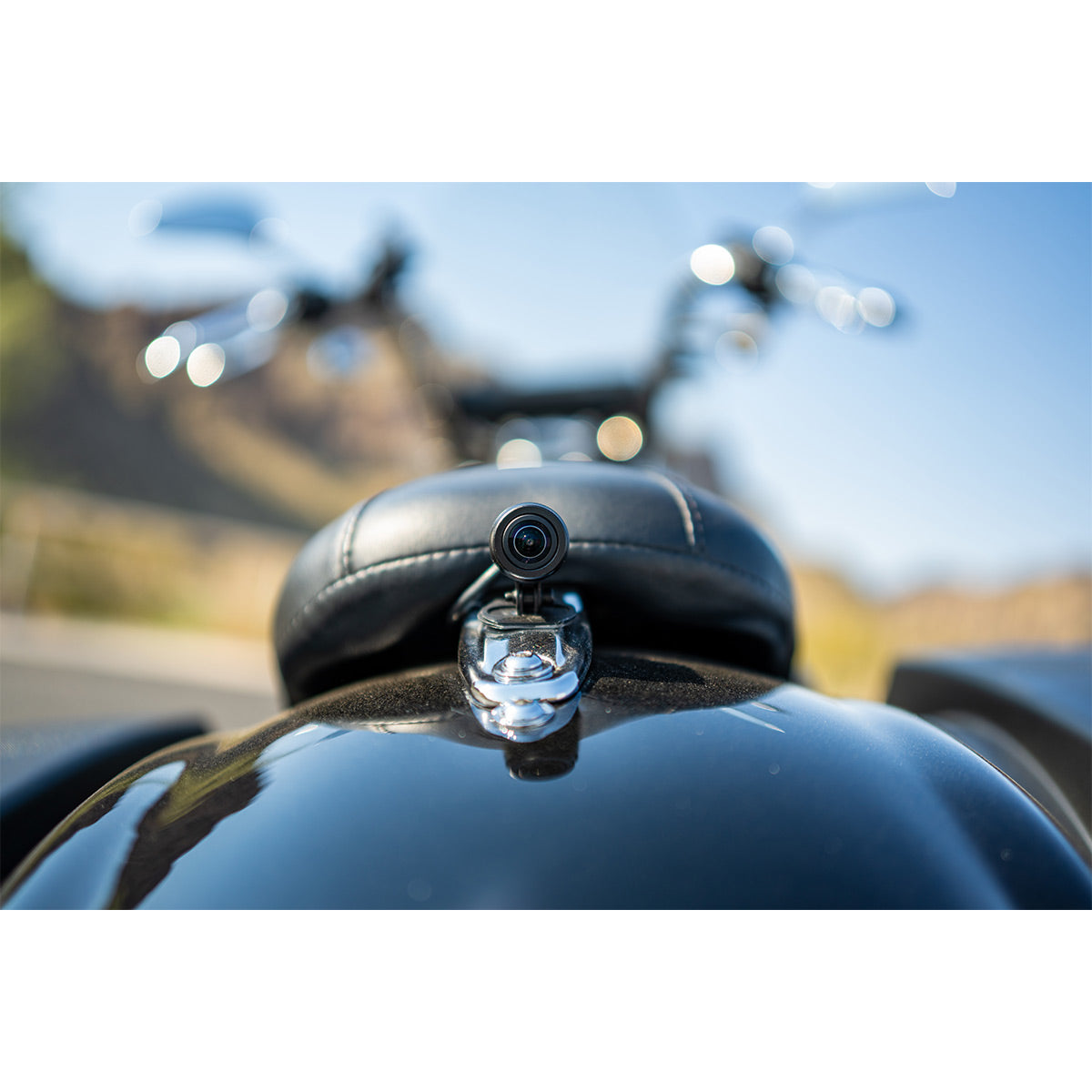

Small camera size provides for a stealthy look and easier installation in various locations.

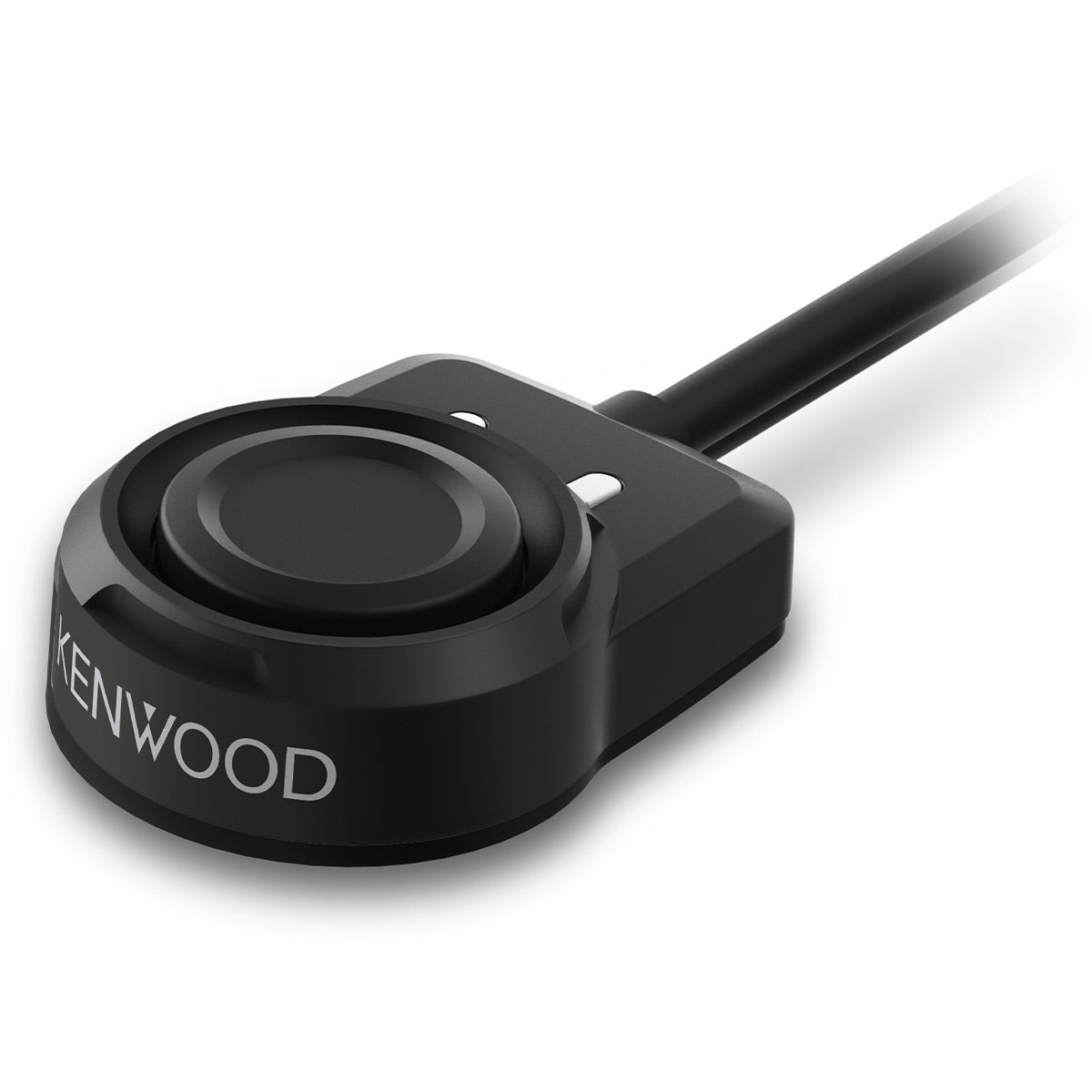

You Are In Control

Multi-function control switch for simplified system control.


  • Recording Resolution: 1920 x 1080 (2M)
  • Recording Format: H.264 (MP4)
  • Image Sensor: 1/2.7" CMOS Sensor
  • Frame Rate: 27.5fps
  • Lens: F=2.2 Fixed Focus Lens
  • Field of View: 195°(Diagonal)
  • Recording Mode: Continuous, Event, Manual
  • Operating Temperature: -4°F - 140ºF
  • External Storage: 32GB microSD Included (Supports max 256GB)
  • High Dynamic Range (HDR): Yes
  • G-Sensor: Yes
  • Super Capacitor: Yes
  • Electronic Image Stabilization (EIS): Yes
  • Audio Recording: Yes
  • Size (W x D x H)
    • Main Unit: 3-1/8” x 7/8” x 4-1/8”
    • Cameras: 15/16(Φ)" x 1-3/8"

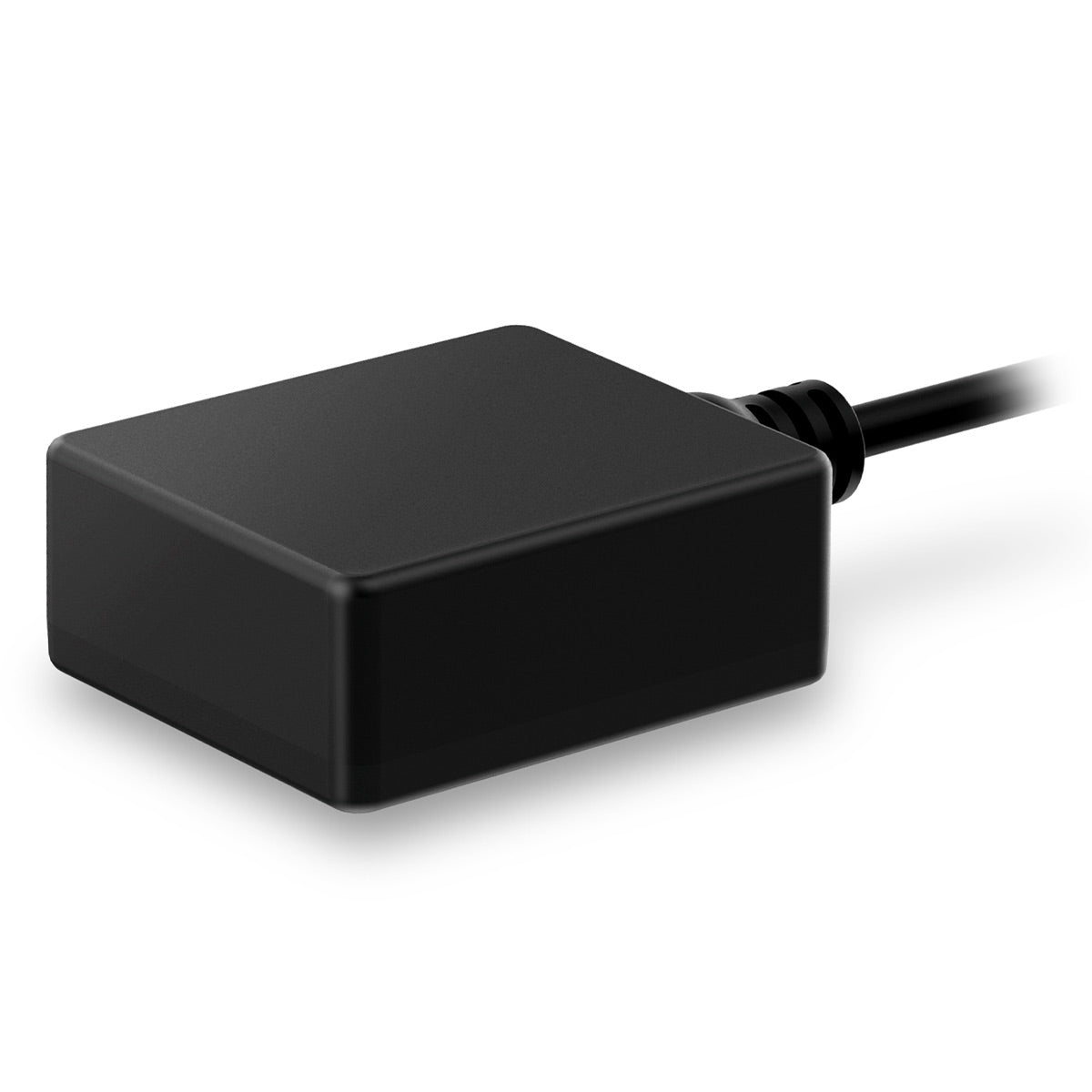

    • GPS/GLONASS Antenna: 1-1/8” x 1/2"x 1-5/16”
    • Control Switch: 1 x 1-7/16" x 3/8"
  • Cable Length
    • GPS Antenna : 6.6ft
    • Switch : 6.6ft
    • Front Camera : 6.6ft
    • Rear Camera : 6.6ft
    • Power Cable : 3.3ft

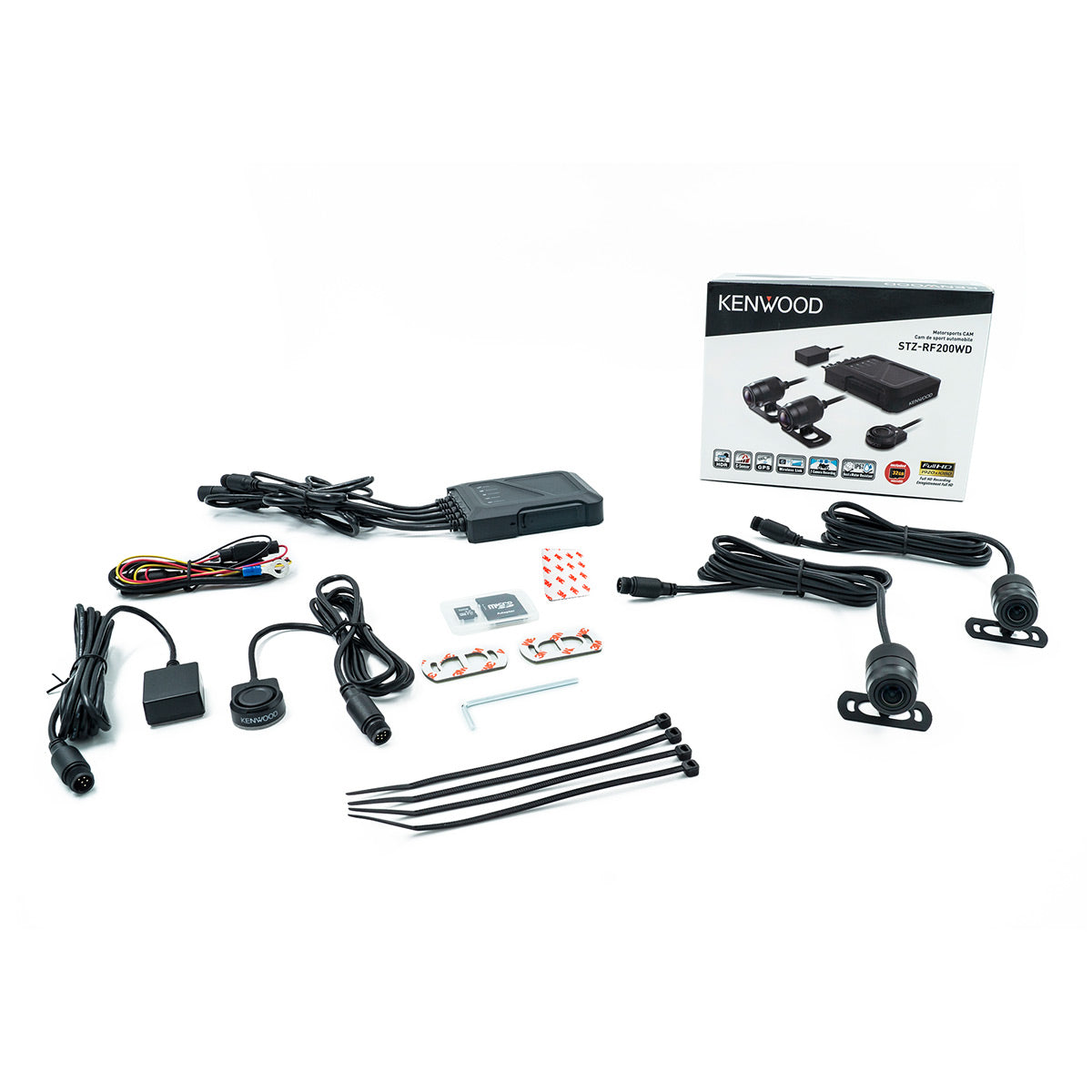

What's In The Box

  • STZ-RF200WD Dual HD Camera Recording System with GPS
  • 25" front & rear camera cables
  • 16" GPS cable
  • 20.5" push-button cable
  • 13" power cable
  • Hideaway Module
  • 32 GB Micro HDSC Card
  • Micro SD Card Adapter
  • Manual
