Hi-fi starts with Emit.

Jaw-dropping performance from powerful stand mounters.

Emit 20 is a high-performance stand mount speaker derived from the Evoke, Contour i, and Confidence series. It gives a stellar combination of detail and punch for small to medium-sized rooms.

Dynaudio doesn't use the term ‘authentic fidelity’ lightly. With Emit 20, that’s exactly what you’ll get: a premium audiophile speaker that astonishes at the price. It might be an "entry-level" model, but Emit 20 is still crammed with technology that you’ll find in their other families, right up to the flagship Confidence range and the Core professional reference monitors. Make no mistake: you’ll experience performance you simply wouldn’t expect at this level.

Mid/bass power and control

Emit 20 uses an 18cm MSP (Magnesium Silicate Polymer) woofer, based on the one used in the Evoke series. MSP is a material Dynaudio developed in-house and have used for many years on their most renowned models. The cone itself is a one-piece design; the dust-cap is molded as part of the playing surface, which gives it a solid connection to the voice-coil that moves it back and forth. You’ll hear that connection as supreme control and detail in the low and midrange frequencies.

The voice-coil itself is aluminum, wound onto a two-layer glass-fiber former. Dynaudio has a long history of using aluminum wire in their voice coils – and for good reason. It’s light, so doesn’t impede fine movement, and they can get more windings on the former for a given length of wire. That means more ‘BL’, or magnetic power. More power means more punch. They have boosted that further, too, by coating the aluminum wire in copper.

Combined with the stacked ferrite magnet system and new surround, that gives Emit 20’s long-throw mid/bass driver all the bass power you could want, even at high volumes, combined with amazing control over midrange frequencies (where instruments such as guitars, vocals, and violins reside).

High-level tweeter performance

Emit 20 uses the Cerotar tweeter directly from Evoke. It’s a 28mm soft-dome design that includes the ingenious Hexis inner-dome device. The coated fabric dome delivers sweet-sounding high frequencies – all the openness and detail the artists want you to experience in their recordings – while the Hexis smooths the frequency response and reduces unwanted resonance for surprising clarity.

Cerotar is powered by a powerful Ferrite+ strontium carbonate ceramic magnet system. It gives the tweeter all the power it needs to play loud without breakup while maintaining all the nuance you could want. Even at neighbor-bothering levels.

And because it uses technology from the top-of-the-range Core pro reference speakers (whose users need to listen intently for long periods), you won’t get tired when you’re in the middle of a long session.

Inside the crossover

The mid/bass driver and tweeter are marshaled by a custom-designed crossover from the same team who brought you Heritage Special and Core. Dynaudio's engineers used a hybrid first- and second-order topology for the tweeter and woofer respectively, giving them exceptional control over each driver’s behavior. It means you’ll hear what the artist wants you to hear, without compromise.

An impressive finish

Emit 20 comes in three custom-designed laminate finishes – Black, White, and Walnut – that beautifully complement the cabinets’ clean Scandinavian design (conceived in-house at the Dynaudio headquarters in Denmark). Black magnetic grilles come as standard in the box.

They have even lavished attention on the cover rings, which hide the mounting screws. They’re one-piece molded with the surface finish embedded in the material, which eliminates the need for lacquer – so they won’t degrade over time.

If you want an audiophile-level stand mount speaker for a stereo set-up in the medium-size room, or fancy a little more ‘oompf’ from your rear surround channels, Emit 20 is the ideal choice.

Specifications

  • Sensitivity: 86dB (2.83V/1m)
  • IEC Power Handling: 160 watt
  • Impedance: 6 Ω
  • Frequency response (± 3 dB): 53Hz - 25kHz (-6 dB 42 Hz - 35 Khz)

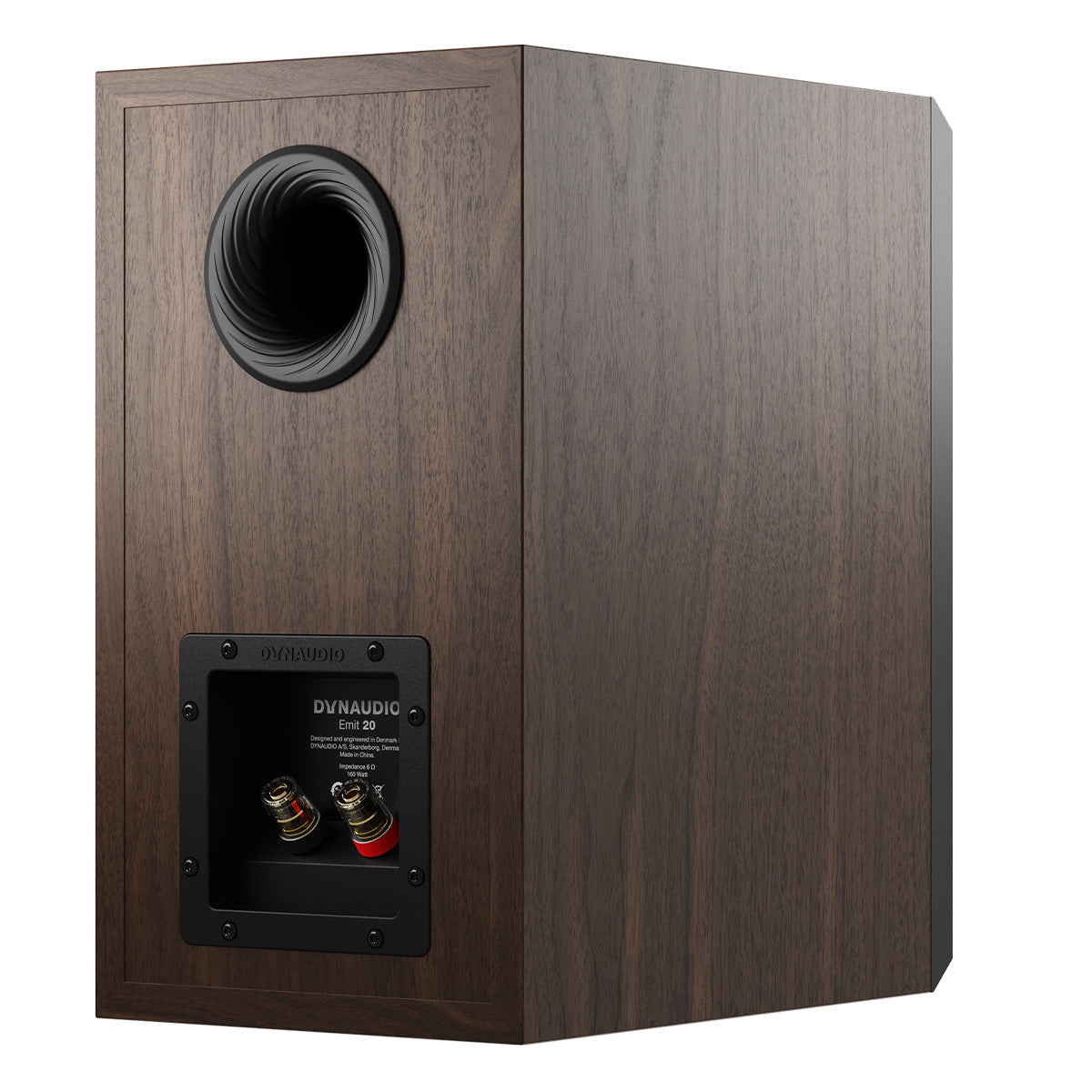

  • Box principle: Bass-reflex rear double flared port
  • Crossover: 2-way
  • Crossover frequency: 3800Hz
  • Crossover topology: 1ST order tweeter  / 2nd order woofer
  • Tweeter: Cerotar soft dome with Hexis
  • Midrange / Woofer: 18 cm MSP
  • Dimensions & Weight
    • Dimensions (W x H x D): 8.1" x 14.6" x 12.3"
    • Dimensions with feet/grill (W x H x D): 8.1" x 14.6" x 12.8"
    • Weight: 22.8 lb

What's In The Box

  • 2x Emit 20
  • 2 Grill
  • 2x Dome Protector Yellow
  • 2x Foam Plug
  • 1x Instructions for Use
  • 1x Safety Information
  • 1x Warranty Extension Card
