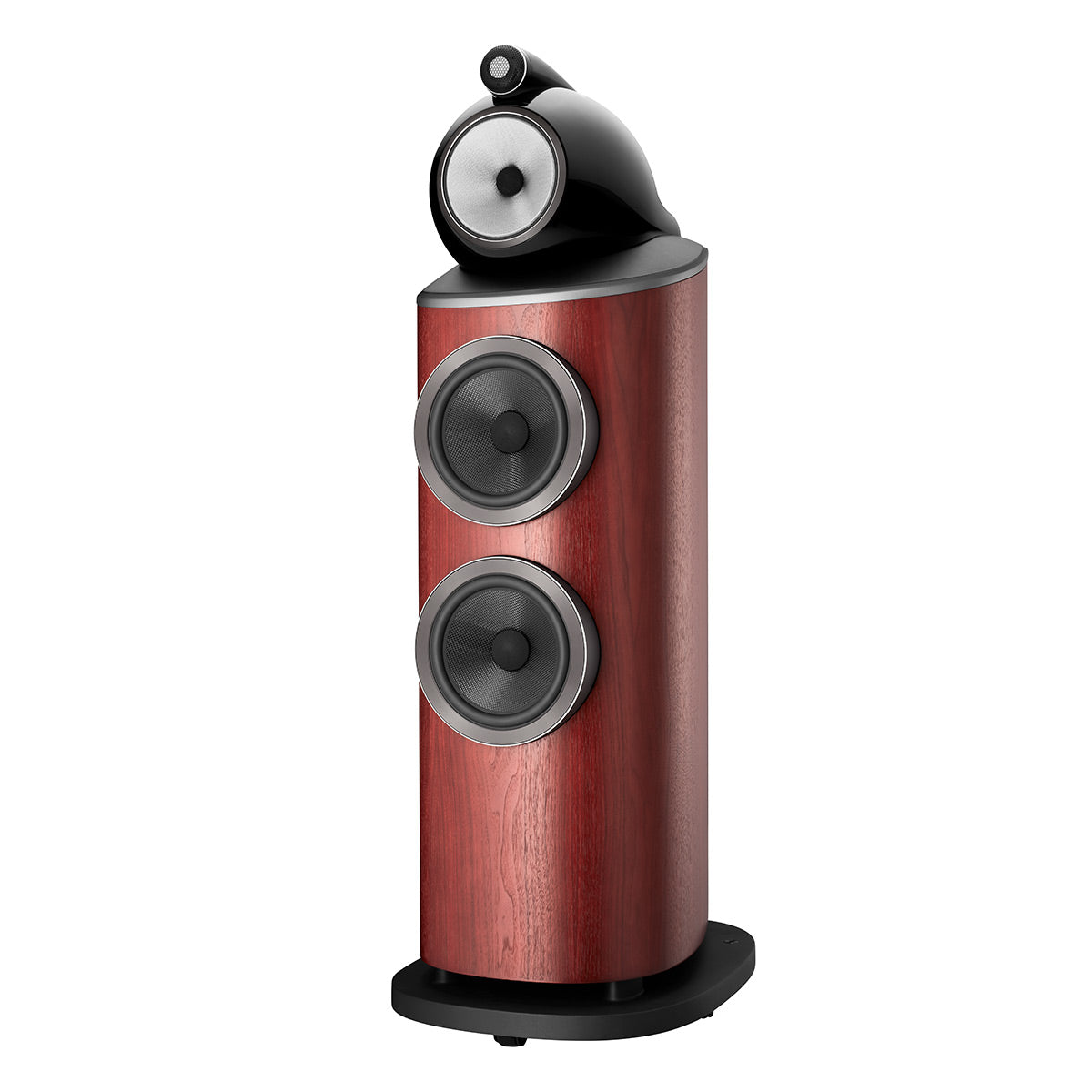

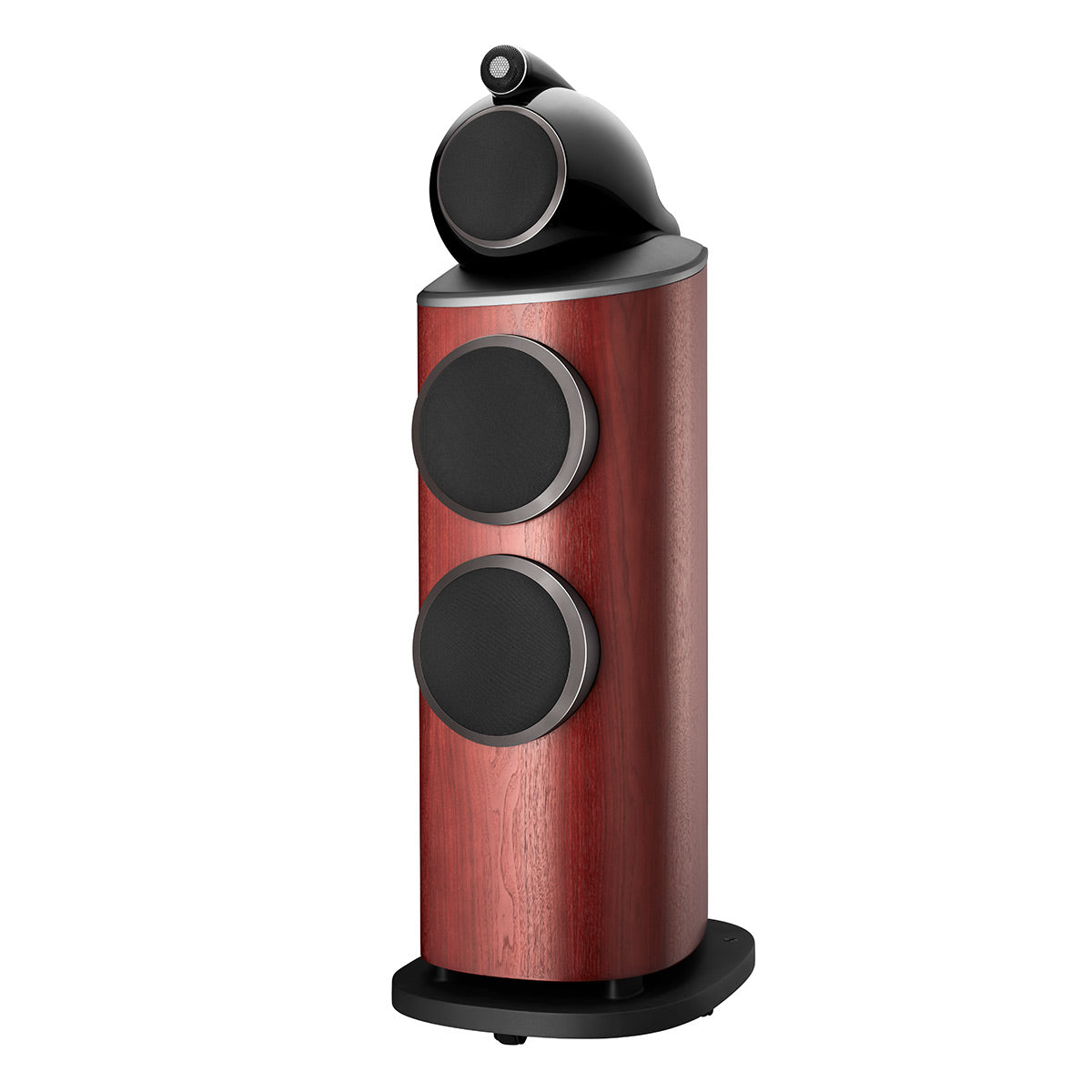

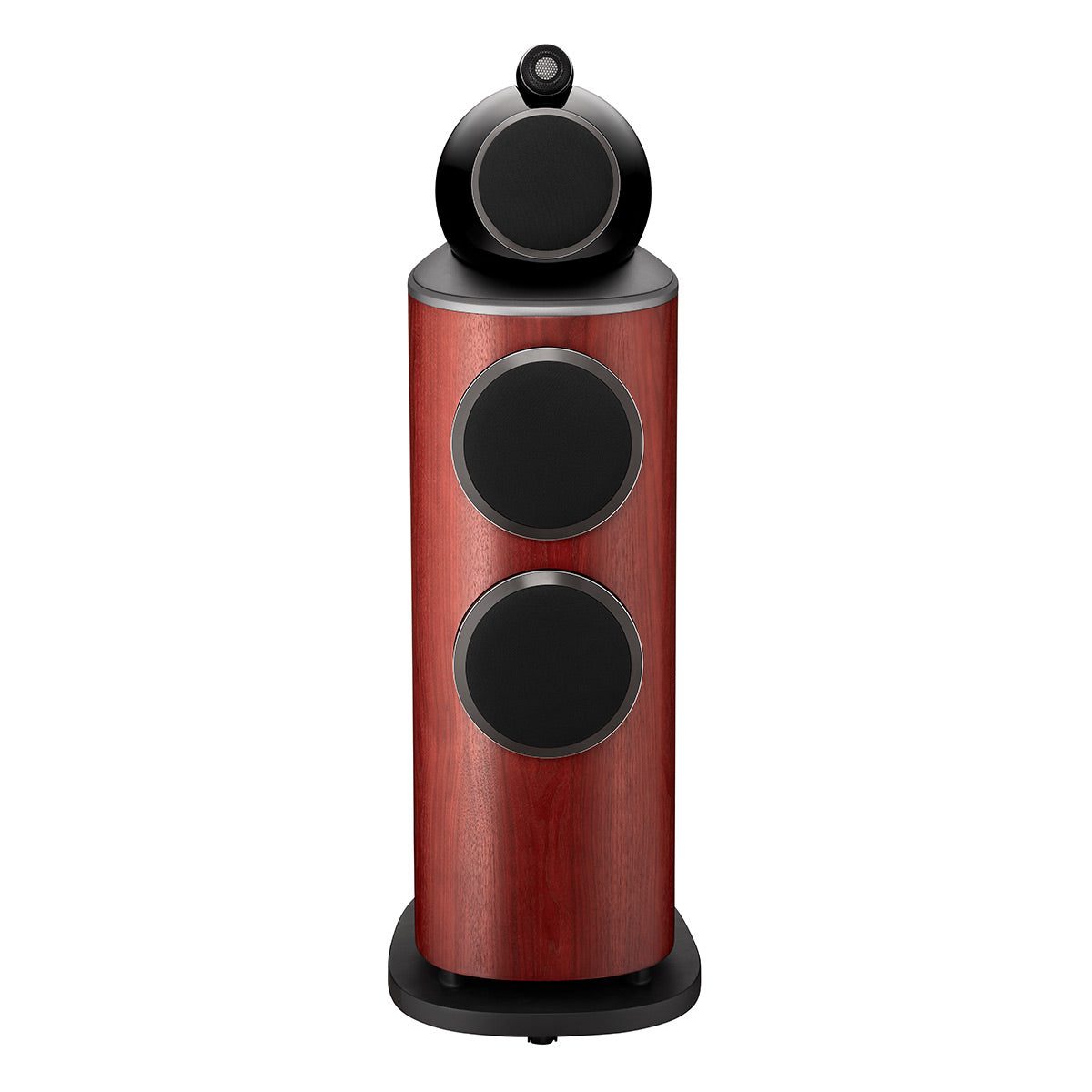

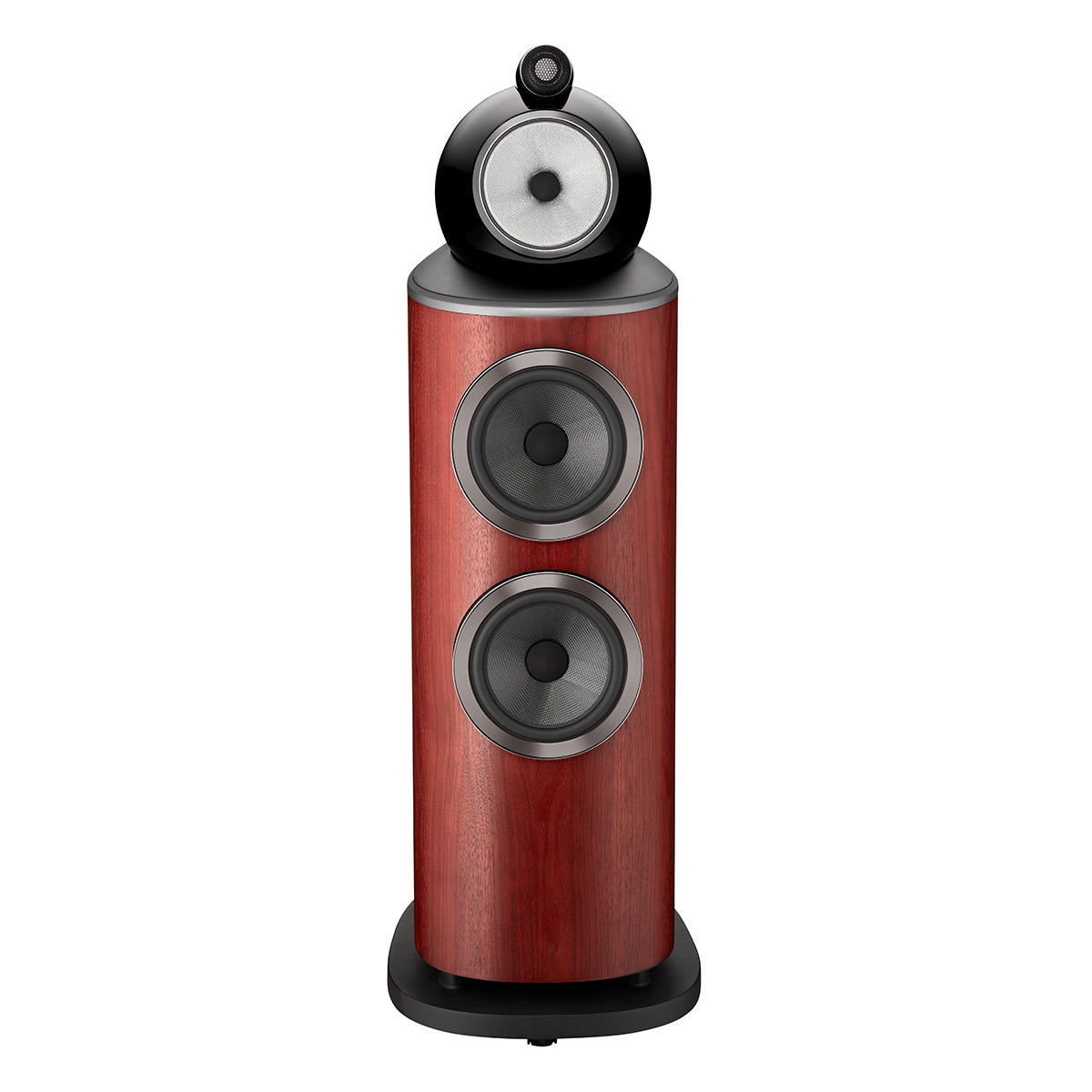

Bowers & Wilkins 802 D4 3-Way Floorstanding Speaker - Each (Satin Rosenut)

Regular price $15,500.00
Sale price $15,500.00 Regular price
Save $-15,500.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: FP42838 | UPC: 714346336999


What's In The Box

Product Information

Model: FP42838 | UPC: 714346336999

Excellence. Evolved.

This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is their benchmark, their icon; the most advanced range of loudspeakers they know how to make. For Bowers & Wilkins, the 800 Series Diamond is everything they know, and everything they are.

The 802 D4 offers much of the performance of 801 D4, including the same Turbine Head enclosure for its midrange cone, yet is more affordable overall. Perfect for reference-grade stereo listening and also an excellent choice in home theatre applications.


  • Diamond tweeter
  • Solid-body Tweeter-on-Top
  • Continuum cone FST™
  • Anti-Resonance plug
  • Biomimetic Suspension
  • Turbine Head
  • Matrix™
  • Aerofoil cone bass units
  • Flowport™

Aluminum top-plate

Every stereo model in the new range has a significantly upgraded cabinet design with an all-new aluminum top plate for even greater stiffness and as a result, even more realism. The same design provides a perfect mounting point for all-new Leather by Connolly cabinet detailing.

Decoupled midrange

The dedicated midrange cone uses four proprietary Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the loudspeaker's bass drivers.


  • Description: 3-way vented-box system
  • Drive Units
    • 1 x 25mm (1 in) diamond dome high-frequency
    • 1 x 150mm (6 in) Continuum cone FST™ midrange
    • 2 x 200mm (8 in) Aerofoil cone bass units
  • Frequency Range: 14Hz to 35kHz
  • Frequency Response (+/- 3dB from reference axis): 17Hz to 28kHz
  • Sensitivity (on axis at 2.83Vrms at 1m): 90dB
  • Harmonic Distortion
    • 2nd and 3rd harmonics (90dB, 1m on axis)
    • <1% 70Hz - 20kHz
    • <0.3% 100Hz - 20kHz
  • Nominal Impedance: 8Ω (minimum 3.0Ω)
  • Recommended Amplifier Power: 50W - 500W into 8Ω on unclipped program
  • Maximum Recommended Cable Impedance: 0.1Ω
  • Dimensions (W x H x D): 16.26" x 47.95" x 23.7"
  • Weight: 194.23 lbs

What's In The Box

  • 802 D4 3-Way Floorstanding Speaker
  • Literature Pack
