Perlisten Audio

Perlisten Audio S5i-LR In-Wall Speaker - Each (Black)

Regular price $6,495.00
Sale price $6,495.00 Regular price
Save $-6,495.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Perlisten S5i-LR Overview

Product Information

Model: S5I-LR | UPC: 850033248135

Specifications

What's In The Box

Product Information

Model: S5I-LR | UPC: 850033248135

The next level in-wall speaker with directivity control to even lower frequencies while enabling a DPC array. The timbre is matched not only in the raw materials, but in the critical frequency response, power response, and phase. In addition, the S5i-LR is THX Dominus Center certified.  A true value compared to almost any in-wall on the market.

Design

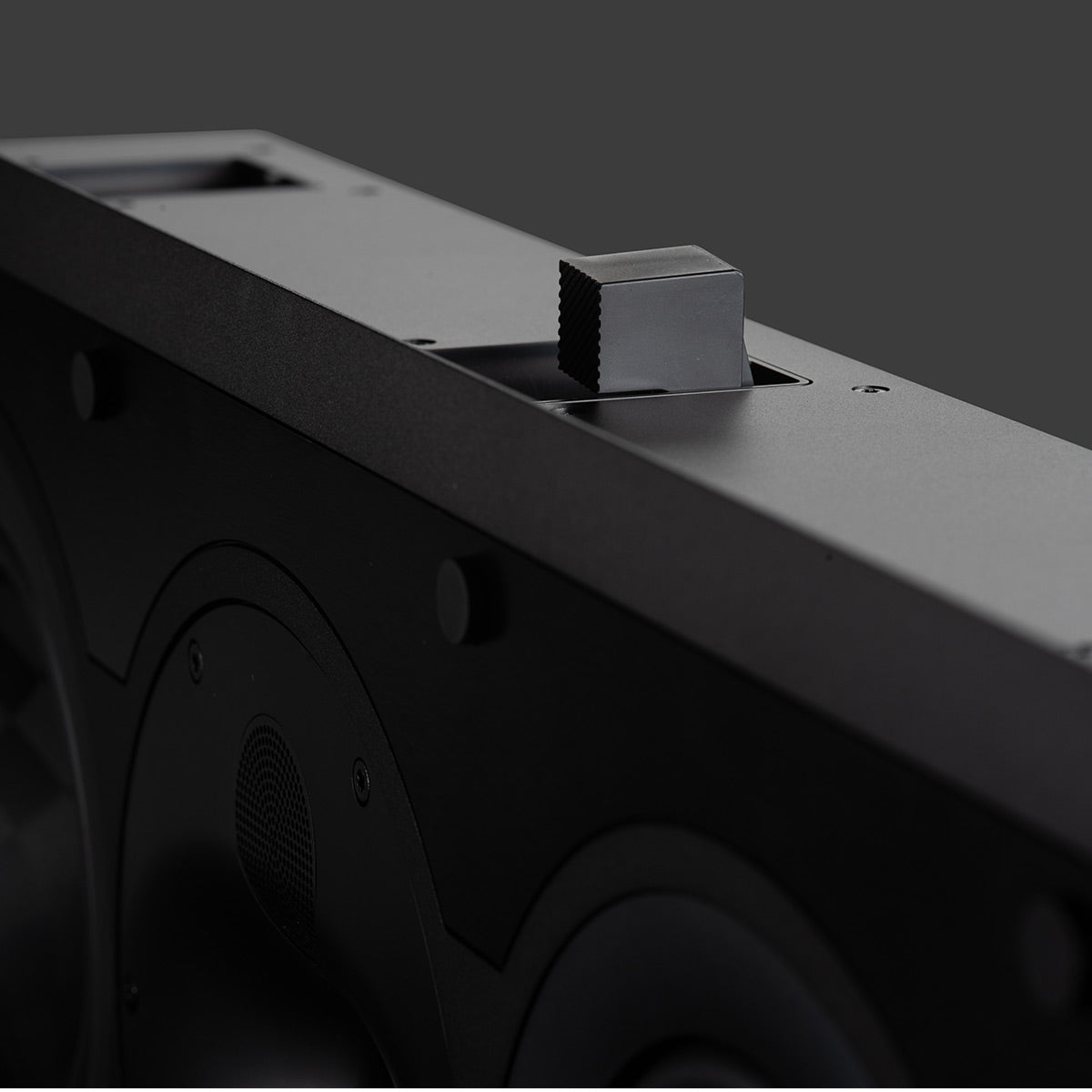

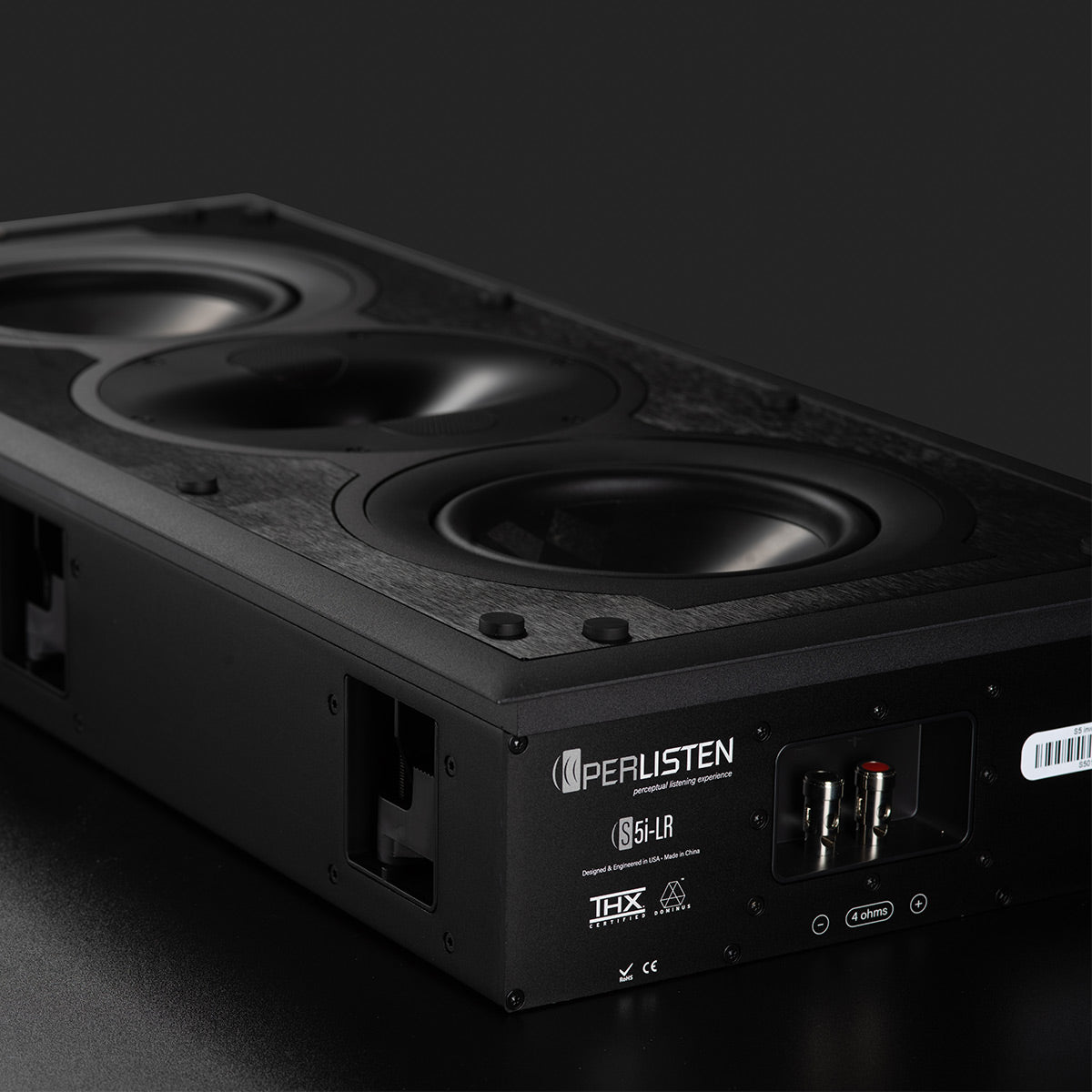

The S5i-LR is the LCR channel adaptation of Perlisten’s flagship S5m monitor, specifically designed for in-wall applications. Shallow 4” mounting depth and integral aluminum extrusion rear enclosure ensure consistent performance and minimal sound propagation to adjacent rooms.

DPC-Array

Utilizing advanced Comsol acoustic modeling, the DPC-array is the result of 18 months of painstaking simulations and prototyping. The result is one of the most technologically advanced loudspeakers available. This new tweeter/waveguide DPC-Array delivers amazing accuracy, smoothness, and directivity control to handle the critical vocal range and delicate treble. All S-Series speakers share the same DPC-Array and benefit from Perlisten’s unique timbre matching technique across the entire series. Custom bass drivers made from thin-ply carbon diaphragms (TPCD) used here in a compact acoustic suspension enclosure for predictable low-frequency performance ideally suited for multi-channel systems.

Specifications

  • Dimensions (W x H x D):  26.2” x 11.8” x 4.4”
  • Mounting Dimensions (W x H x D): 24.6” x 10.1” x 4.0”
  • Weight: 35.0 lbs.
  • Enclosure Alignment: 3-way acoustic suspension
  • Driver Compliment
    • DCP-Array
      • 28mm Beryllium
      • (2) 28mm Textreme TPCD
    • Woofers
      • (2) 180mm Textreme TPCD
  • Sensitivity (2pi): 91.6dB / 2.83v / 1.0m
  • Impedance: 4Ω nominal / 3.1Ω min
  • Response Linearity: 80 - 20kHz +/-1.5dB window
  • Frequency Response (-10dB): 52 - 37kHz
  • Typical In-Room Bass Extension: 46Hz
  • Recommended Amplifier Power: 100 - 350W RMS
  • SPL capability (100-20kHz)
    • 117.3dB peak
    • 117.0dB peak <3% 2nd, 3rd Harmonics
  • Certification: THX Dominus

What's In The Box

  • S5i-LR In-Wall Speaker - Each (Black)

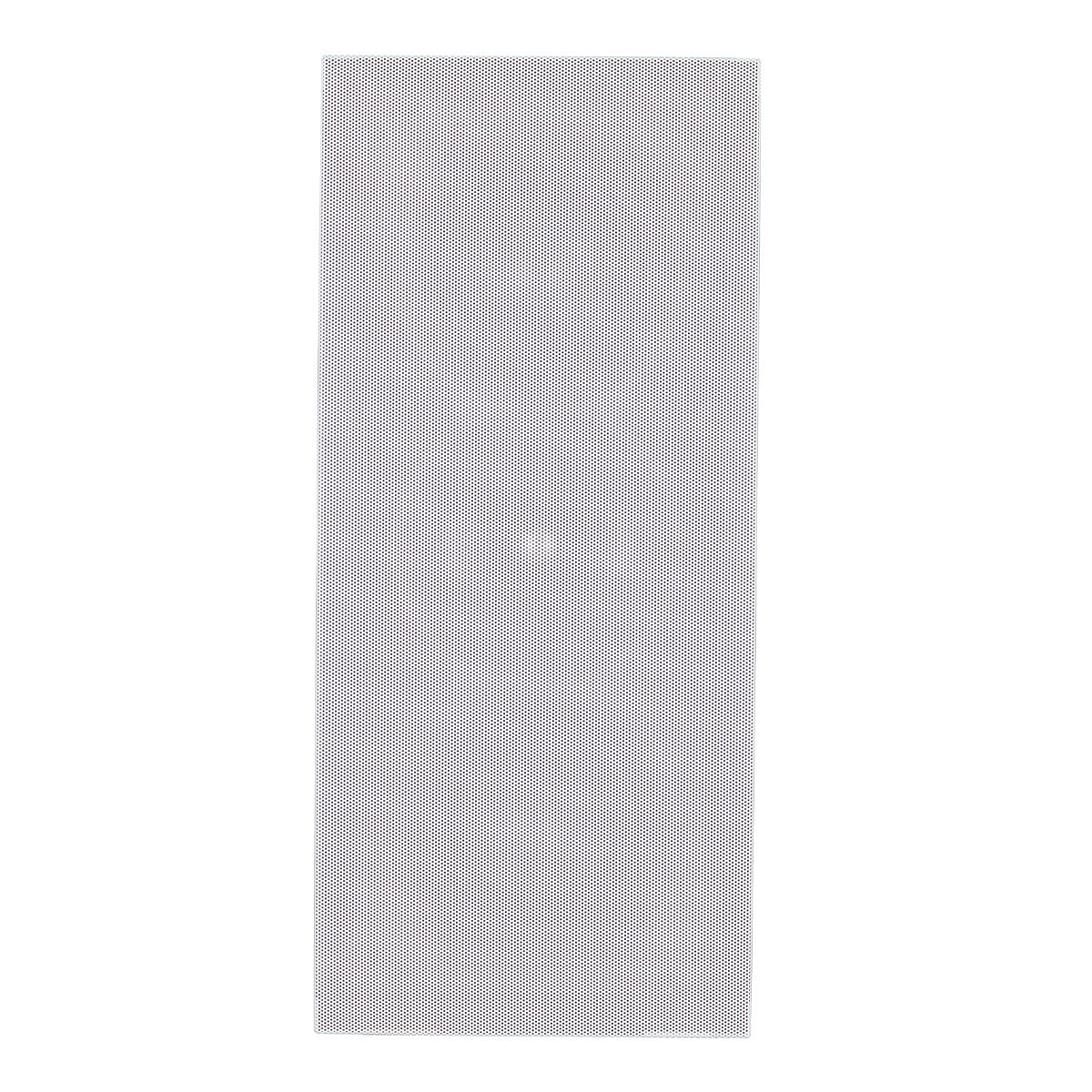

  • White Grille
