Product Information
Specifications
Specifications:
- Rated Impedance [Ω]: 4
- Fs [Hz]: 38
- Sensitivity [1W, 1m]: 85.7
- Qts: 0.437
- Qms: 8.916
- Qes: 0.46
- Re [Ω]: 6.52
- Vas [ft³, L]: .59, 16.75
- Continuous Power Handling [Watts RMS]: 700
- Outer Frame Dimension [in, cm]: 10-11/16, 27.2
- Mounting Depth [in, cm]: 6-3/8, 16.2
- Mounting Cutout [in, cm]: 9-3/16, 23.4
- Frequency Response [Hz]: 24 – 100
Sealed Enclosure Specs
- Minimum Sealed Volume ft3 (L): .66 (18.7)
- Minimum Sealed Power Handling: 700 RMS
- Maximum Sealed Volume ft3 (L): 1.25 (35.4)
- Maximum Sealed Power Handling: 700 RMS
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF
- Box Volume [ft³, L]: .66 (18.7)
- Panel A [in, cm]: 12x12, 30.5x30.5
- Panel B [in, cm]: 12x10.5, 30.5x26.7
- Panel C [in, cm]: 10.5x10.5, 26.7x26.7
Vented Minimum
- Box Volume, ft³ (L) + port displacement: 1.25, 35.4
- Port Opening Size, in x in (cm x cm): 2.5x11.25, 6.4x29
- Port Length, in (cm): 19.75, 50
- Power Handling, RMS: 700
Vented Maximum
- Box Volume, ft³ (L): 2.25, 63.7
- Port Opening, in x in (cm x cm): 3x11.25, 7.6x29
- Port Length, in (cm): 18, 46
- Power Handling, Watts RMS: 700
What's in the Box
What's in the Box:

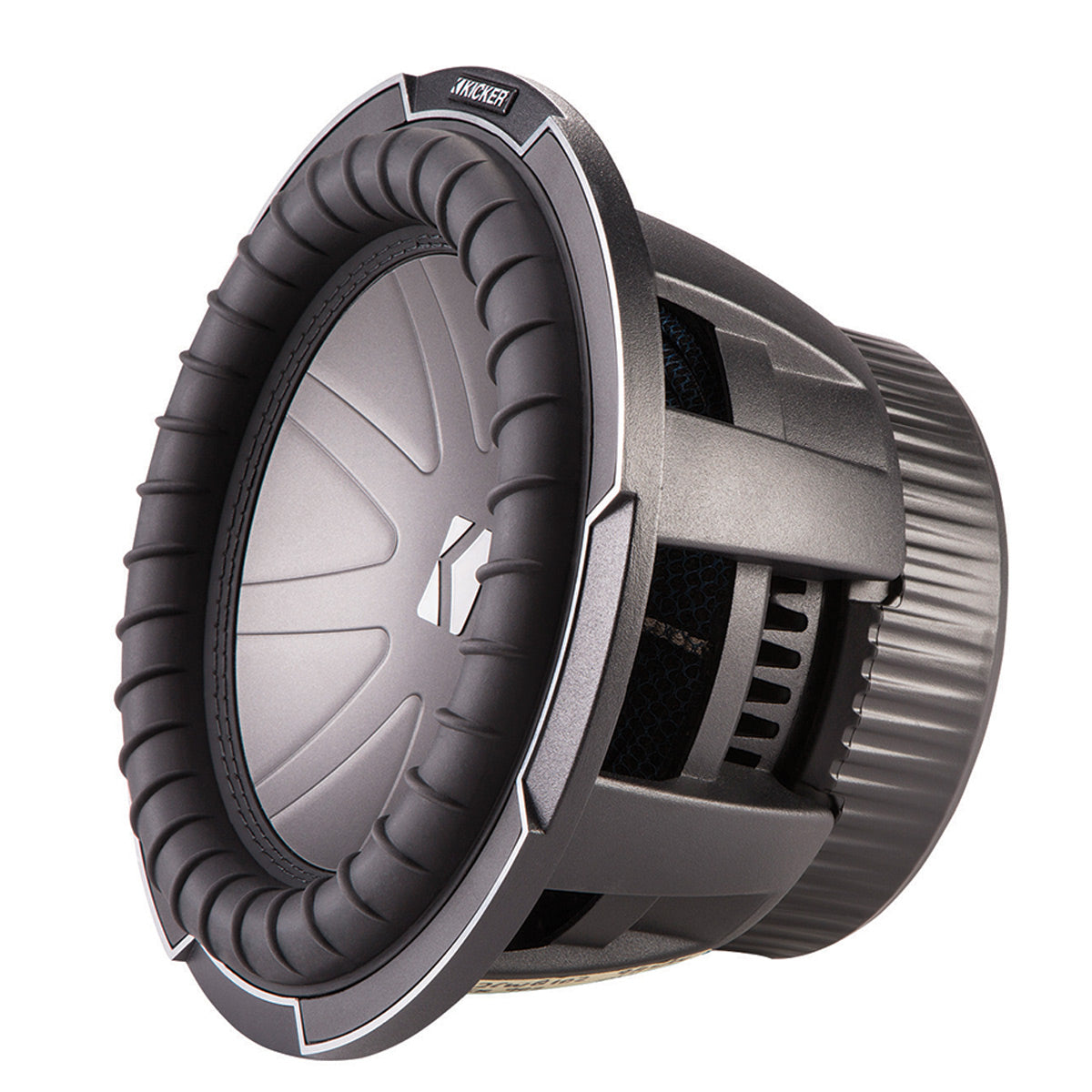

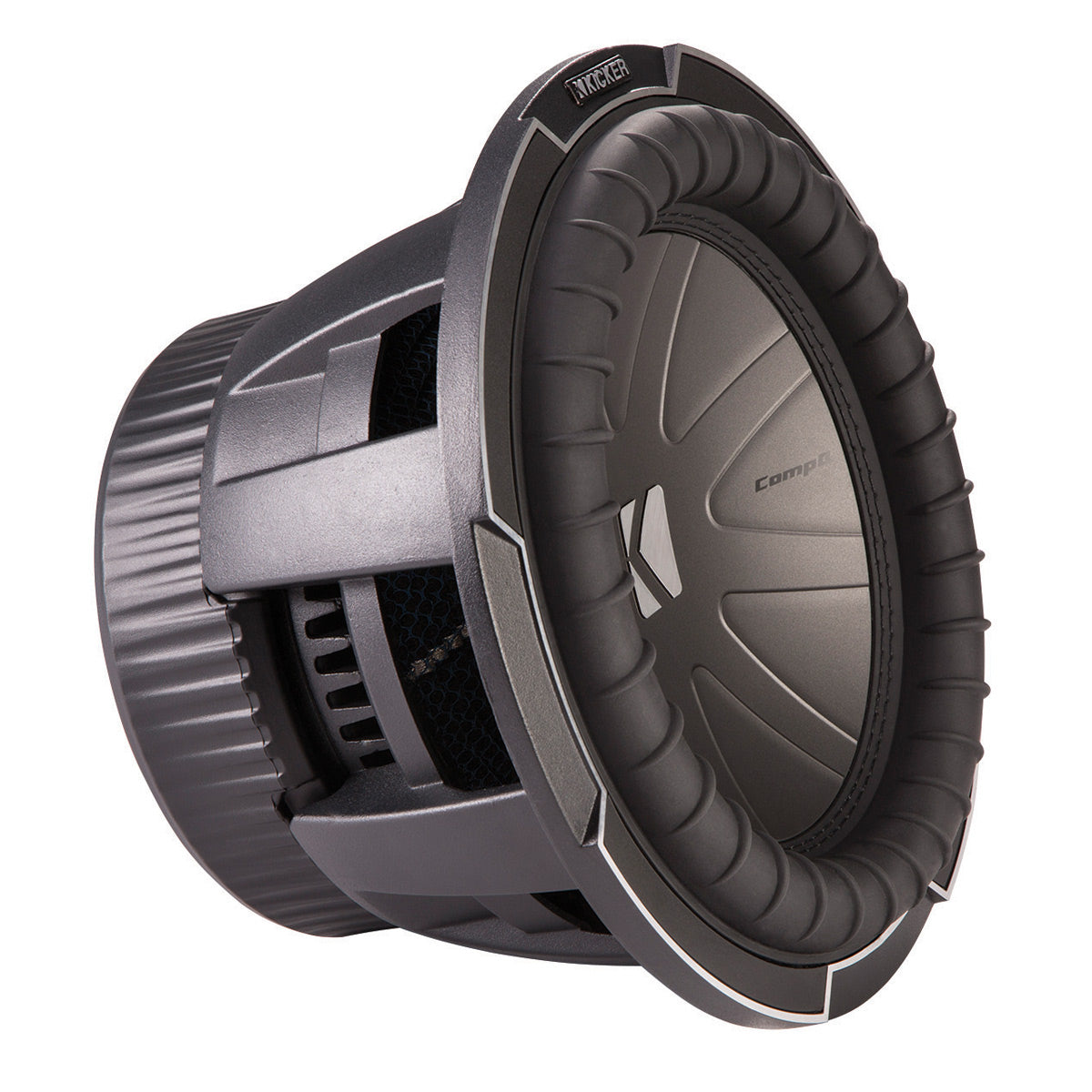

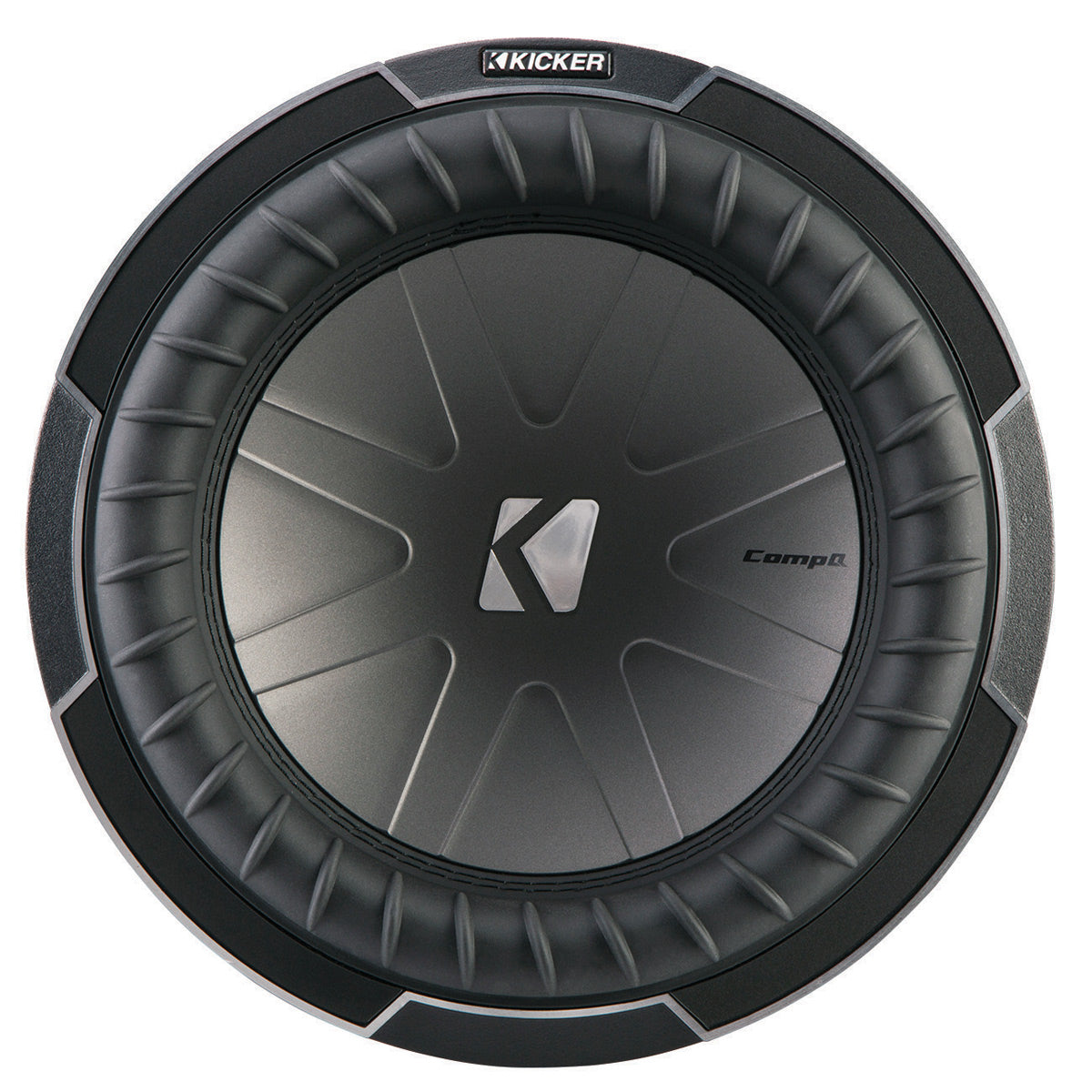

- One 42CWQ104 subwoofer
- Template
- Owner's manual
