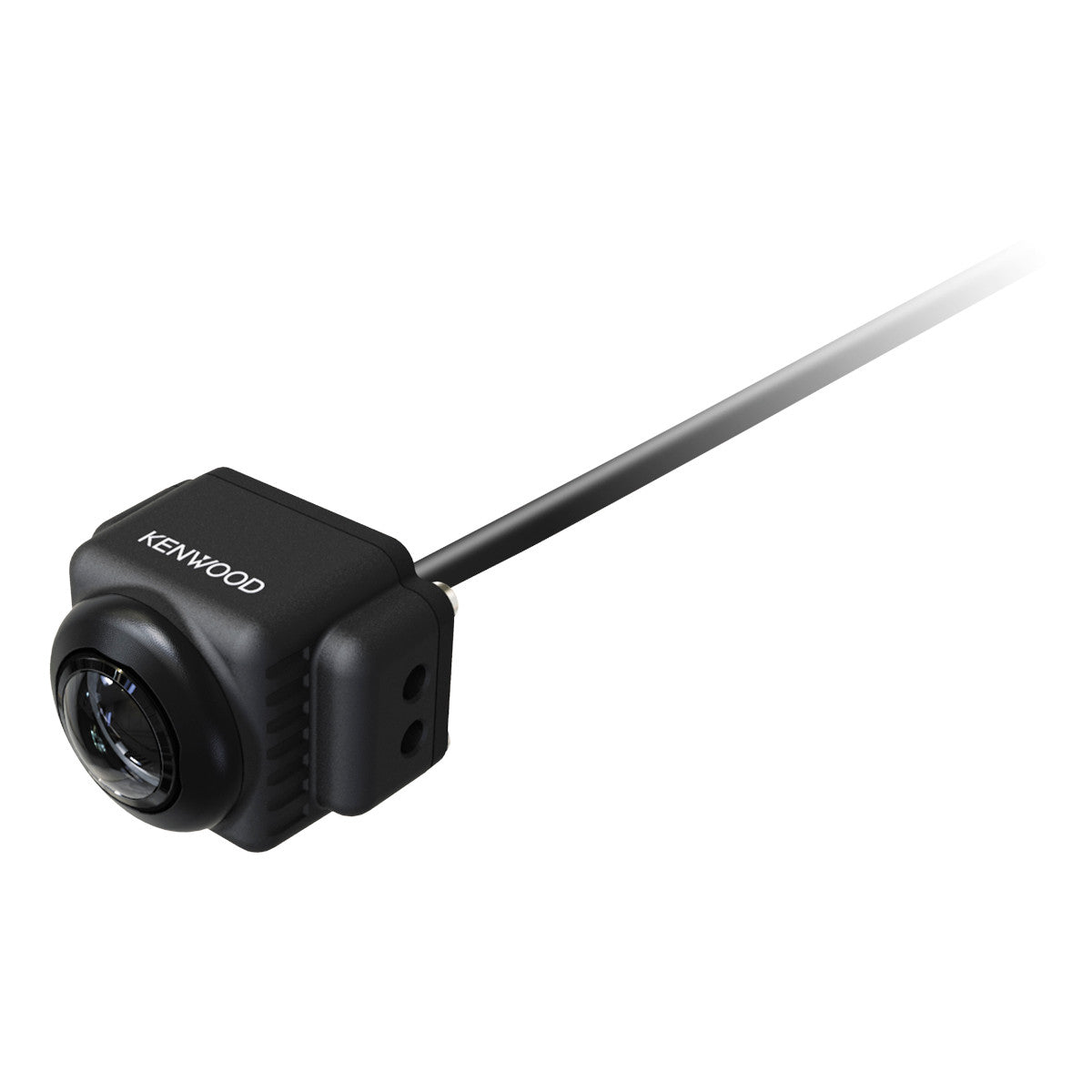

Kenwood CMOS-740HD High-Definition Rearview Camera for Select Kenwood Touchscreens

Model: CMOS-740HD UPC: 019048230782 Item: 174721

$219.00 OR

Regular Price: $250.00

Save: $31.00 (12%)

In Stock
Shipping Information
Show Store Details
Address:
754 Route 309 (Bethlehem Pike) Montgomeryville, PA 18936
Hours:
  • Mon: CLOSED
  • Tues - Sat: 10AM - 5PM
  • Sun: CLOSED
Phone:
(215) 368-8343
Show Store Details
Address:
38 Greenfield Avenue, Ardmore, PA 19003
Hours:
  • Mon: CLOSED
  • Tues - Sat: 10AM - 5PM
  • Sun: CLOSED
Phone:
(610) 649-7002
Choose a Store Location

More Product Details

Our product experts are here to help

Questions? We're here to help.

Product Information

Features

  • High Definition Rear Camera
  • 1280 x 720 (720P) HD Output
  • Dustproof / Waterproof IP67 Rated
  • Compatible only with 2020 KENWOOD HD Display Receivers

High Definition View

Displaying the image in true 1280 x 720 (720P) High Definition on compatible with DNX997XR, DDX9907XR, and DMX957XR receivers.

HDR (High Dynamic Range)

HDR helps to reduce “blown-out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night, and places where light-dark contrast is particularly severe.

12V & 24V Compatible

Camera works with both 12V and 24V applications.

Specifications

Specifications

  • Photographed Image: HD (1280 x 720)
  • Lens: Wide angle, focal length: 1.86mm F:2.0
  • Frame Rate: 30fps
  • Angles of View: Horizontal 180°/ Vertical 103°
  • Operating Voltage: 12V/24V
  • Operating Tempreture: -22? to +185? / -30? to +85?
  • IPX: IP67
  • Output: HD-TVI
  • Weight: 0.073lbs / 33.2g (without cable)
  • Dimensions (W x H x D): 1-1/4" x 15/16" x 1" / 31.1mm x23.0mm x25.2mm
  • Cable Length:
    • Camera Unit side: 9.84ft / 3m
    • DC Box Unit side: 19.69ft / 6m

What's in the Box

What's in the Box

  • Camera
  • Connection cable

Reviews

Customer Reviews for Kenwood CMOS-740HD High-Definition Rearview Camera for Select Kenwood Touchscreens

There are no reviews for this item. Write Review

Q&A

Customer Q & A

Have a functionality, compatibility, or otherwise product-specific question about this product? Ask it here! If you have a customer service or shipping question, please direct it to our customer service department

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
how long is the cable? extension for an RV?
A shopper on Sep 15, 2021
  The length of the Kenwood-supplied video cable is a total of 32. 12-feet of the cable is hardwired to the camera and then there is a 20 extension cable in the box, too.
